P5AT Engine Rebuild Guide

The P5AT engine, commonly found in the Mazda BT-50 and Ford Ranger (PX and PX2 models), is a robust 3.2-litre, five-cylinder, turbo-diesel unit. While generally reliable, like any engine, it can encounter specific issues that may necessitate a rebuild or the use of a comprehensive rebuild kit. Understanding these common problems and the components involved in a rebuild is crucial for maintaining the longevity and performance of your vehicle.

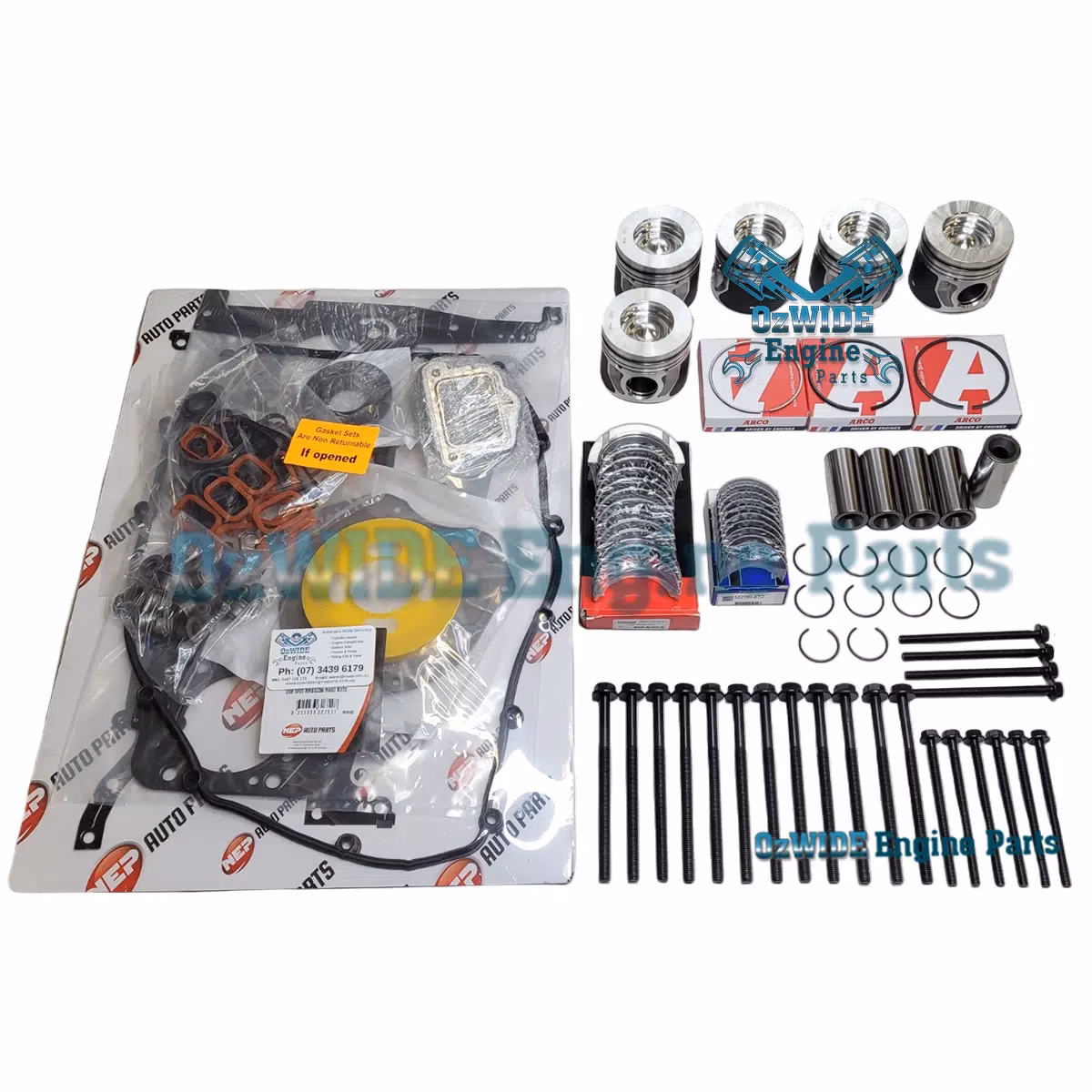

What is a P5AT Engine Rebuild Kit?

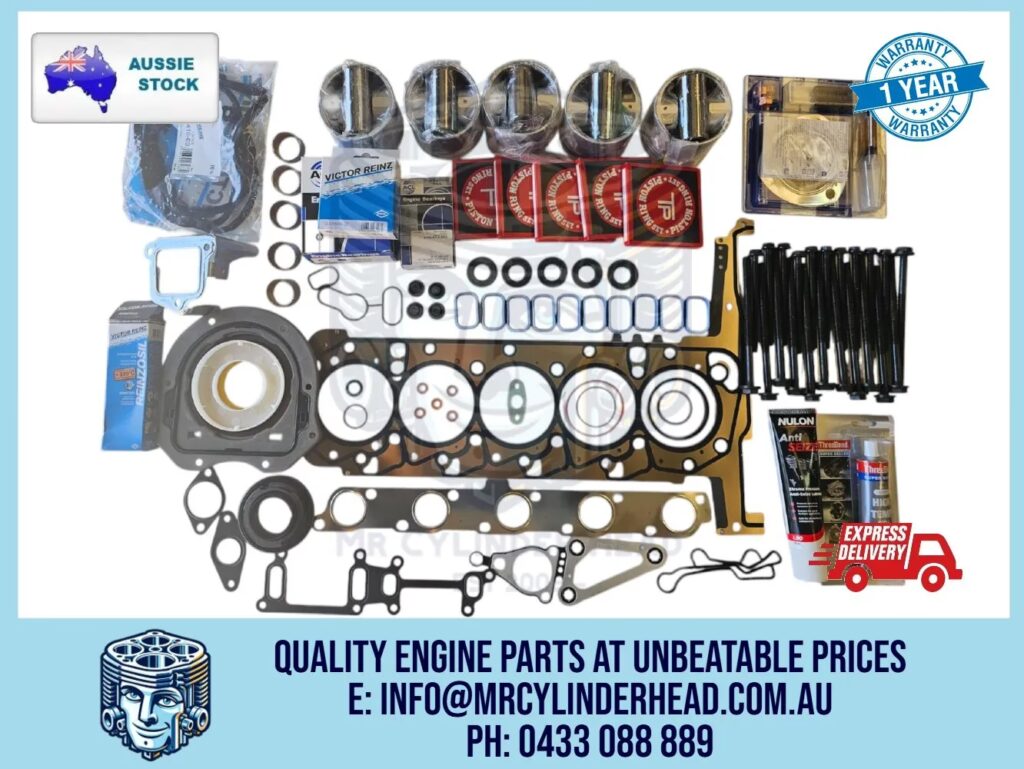

A P5AT engine rebuild kit is a collection of essential parts designed to restore an engine to its optimal working condition. These kits typically include a range of gaskets, seals, and sometimes internal components required for a thorough engine overhaul. A premium P5AT engine rebuild kit, such as those designed for the Mazda BT-50 with the 3.2L 5cyl Turbo Diesel engine (engine code: P5AT), often features high-quality, Australian or Japanese-made parts. When purchasing such a kit, it's vital to provide the specific year, make, and model of your vehicle to ensure compatibility.

Common P5AT Engine Issues and Solutions

The P5AT engine, while generally dependable, is known to suffer from a few recurring problems. Addressing these proactively can prevent more significant and costly damage.

Blown Head Gasket

One of the most frequently reported issues with the Ford Ranger and Mazda BT-50 3.2L P5AT engine is a blown head gasket. This can manifest as coolant loss, overheating, or white smoke from the exhaust. A blown head gasket can be caused by a variety of factors, including a faulty EGR cooler, radiator issues, a burst cooling hose, a malfunctioning thermostat, or problems with the fuel system. Poor maintenance is often cited as a primary contributor to head gasket failures.

Repairing a Blown Head Gasket

The repair process for a blown head gasket typically involves removing the cylinder head, dismantling damaged components, and thorough cleaning. Reputable engine reconditioners or mechanics can perform this task. Key steps in a proper head gasket repair include:

• Pressure Testing the Head: This identifies any cracks or leaks not visible to the naked eye.
• Surface Grinding: Resurfacing the cylinder head to ensure a perfect seal.
• Dismantling and Cleaning: Thoroughly cleaning all components.
• Replacing Valve Steam Seals: Essential for preventing oil consumption.
• Reassembly: Using new gaskets and seals, including the head gasket itself.

A comprehensive rebuild kit will contain the necessary gaskets and seals for this procedure. In some cases, valve guides and valves may also need replacement, requiring a valve grind and further machining.

Faulty EGR Coolers

Another common culprit for cooling system issues, and indirectly for head gasket failures, is a faulty Exhaust Gas Recirculation (EGR) cooler. A leaking EGR cooler can allow exhaust gases to enter the cooling system, leading to overheating and coolant loss. If an EGR cooler fails, the exhaust system can fill with water, causing a lack of coolant in the radiator and potentially leading to a blown head gasket.

Testing and Replacing EGR Coolers

To diagnose a faulty EGR cooler, pressure testing under simulated normal working conditions is recommended. This typically involves:

• Cold Test: Pumping cold fluid (like fluorescent coolant) through the assembly at a pressure of around 18 PSI (higher than normal operating pressure) and holding it for 15 minutes to check for leaks.
• Hot Test: Increasing the coolant temperature to 90 degrees Celsius while maintaining 18 PSI pressure and checking for leaks.

If leaks are detected in either test, replacement of the EGR cooler is advised. While the cost of replacing an EGR assembly is significantly less than a complete engine failure, understanding its condition can help pinpoint the root cause of other cooling system problems. It's a proactive measure that can save considerable expense down the line. Testing it helps determine if it's the source of coolant loss, rather than a simpler issue like a leaking hose or radiator.

Holes in Pistons

Holes in pistons are a serious issue that can arise from several factors, most notably faulty diesel injectors. When diesel injectors fail, they can spray fuel in a concentrated manner, creating a 'cutting torch' effect on the piston crown, eventually burning a hole through it. This is a catastrophic failure that will likely require a significant engine overhaul or replacement.

Diesel Injector Maintenance

To mitigate the risk of piston damage, it is recommended to recondition or replace diesel injectors at intervals of around 100,000 km. Furthermore, when replacing injectors, it is crucial to have the injector seats recut. This ensures a perfect seal, preventing compression leaks past the injector seals, which can also lead to engine problems.

Turbo Failure

Symptoms of turbo failure include a noticeable loss of power or boost. If the turbocharger fails, it can send debris into the intake system, causing further damage.

Turbo Replacement and System Checks

Repairing turbo failure involves replacing the turbocharger, ideally with a genuine Garrett unit as originally fitted by Ford. Crucially, the entire intake system must be meticulously cleaned to remove any metal fragments or damage from the failed turbo. All components of the oil system that may have been affected, including the oil and filter, air filter system, and potentially the oil feed line, must also be replaced or thoroughly cleaned. The oil feed line, in particular, needs to be clear to ensure adequate oil supply to the new turbo. Post-rebuild, all intake parts must be checked for cleanliness, leaks, and blockages.

Oil Change Procedure

Even simple maintenance tasks like oil changes need to be performed correctly on the P5AT engine. An incorrect oil change can lead to engine failure. The engine oil should not be left to drain for more than 10 minutes. If the engine oil pump drains back, it may fail to re-prime upon restart, leading to severe engine damage due to lack of lubrication. Therefore, it's essential to follow the correct procedure for draining and refilling the engine oil.

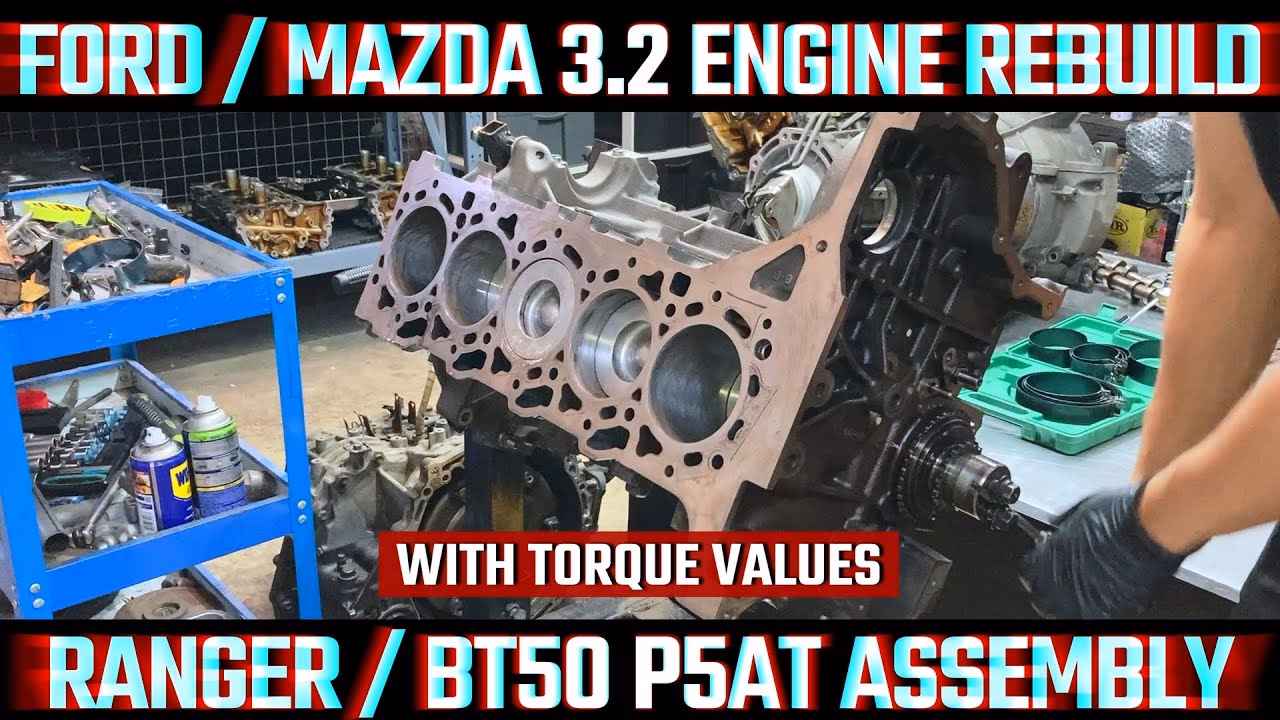

Reconditioning a P5AT Engine

Reconditioning a P5AT engine involves a detailed process to restore its performance and reliability. A typical cylinder head reconditioning for a P5AT engine includes:

• Cylinder head bend check
• Hardness test
• Straightening (if necessary)
• Complete dismantling
• Ultrasonic cleaning
• Pressure testing

As mentioned earlier, valve guides and valves may also require replacement, necessitating a valve grind and surface grind. The final steps involve washing and reassembling the head with new components.

Key Components in a Reconditioned Engine

When opting for a reconditioned P5AT engine, particularly for a Mazda BT-50 3.2L, you can expect it to be rebuilt with high-quality components. A premium reconditioned engine often includes:

• Brand New Injectors & Injector Pump: Essential for proper fuel delivery and engine performance.
• New Updated Geared Oil Pump: An improved design for better lubrication.
• New Engine Oil Cooler: Critical for maintaining optimal oil temperature.
• New Glow Plugs: Ensuring reliable cold starts.

These new components contribute to enhanced performance, smoother operation, and extended durability. The process is typically an exchange basis, where your old engine core is used for rebuilding the next unit.

Frequently Asked Questions

What is the P5AT engine?

The P5AT is a 3.2-litre, five-cylinder, turbo-diesel engine manufactured by Ford and commonly used in vehicles like the Mazda BT-50 and Ford Ranger.

What are the common problems with the P5AT engine?

Common issues include blown head gaskets, faulty EGR coolers, holes in pistons (often due to injector failure), turbo failure, and potential damage from incorrect oil changes.

How often should I service my P5AT engine?

Regular servicing is crucial. Pay close attention to the cooling system checks at regular intervals to help prevent head gasket failures. It's also recommended to service or replace diesel injectors around every 100,000 km.

Can I rebuild my P5AT engine myself?

While possible for experienced mechanics, rebuilding an engine is a complex task requiring specialized tools, knowledge, and precision. For most owners, it's best to entrust this work to a reputable engine reconditioner or mechanic. Using a high-quality rebuild kit will ensure all necessary parts are available.

Where can I buy P5AT engine parts?

Specialist suppliers like ETP Online offer a range of parts for the Ford Ranger and Mazda BT-50 P5AT engines, including comprehensive rebuild kits and reconditioned engines.

By understanding the potential issues and the importance of quality parts and proper maintenance, you can ensure your P5AT-powered Mazda BT-50 or Ford Ranger continues to deliver reliable performance for years to come. Whether you're performing routine maintenance or undertaking a full engine rebuild, using a premium rebuild kit with quality components is a sound investment in your vehicle's longevity.
