Understanding the P0253 OBD-II Fault Code
The P0253 diagnostic trouble code (DTC) signifies a specific issue within your diesel engine's fuel delivery system. Officially, it translates to "Injection Pump Fuel Metering Control "A" Low (Cam/Rotor/Injector)". This code is exclusively relevant to diesel engines, particularly those equipped with common rail direct injection systems. At its core, P0253 indicates that the Powertrain Control Module (PCM), also known as the Engine Control Unit (ECU), has detected an anomaly in the signal voltage between the electronic fuel control actuator and the fuel metering control sensor. This discrepancy suggests that the amount of fuel being metered into the high-pressure pump is not aligning with the PCM's expectations, leading to potential performance issues.
The Mechanics of Fuel Metering in Diesel Engines

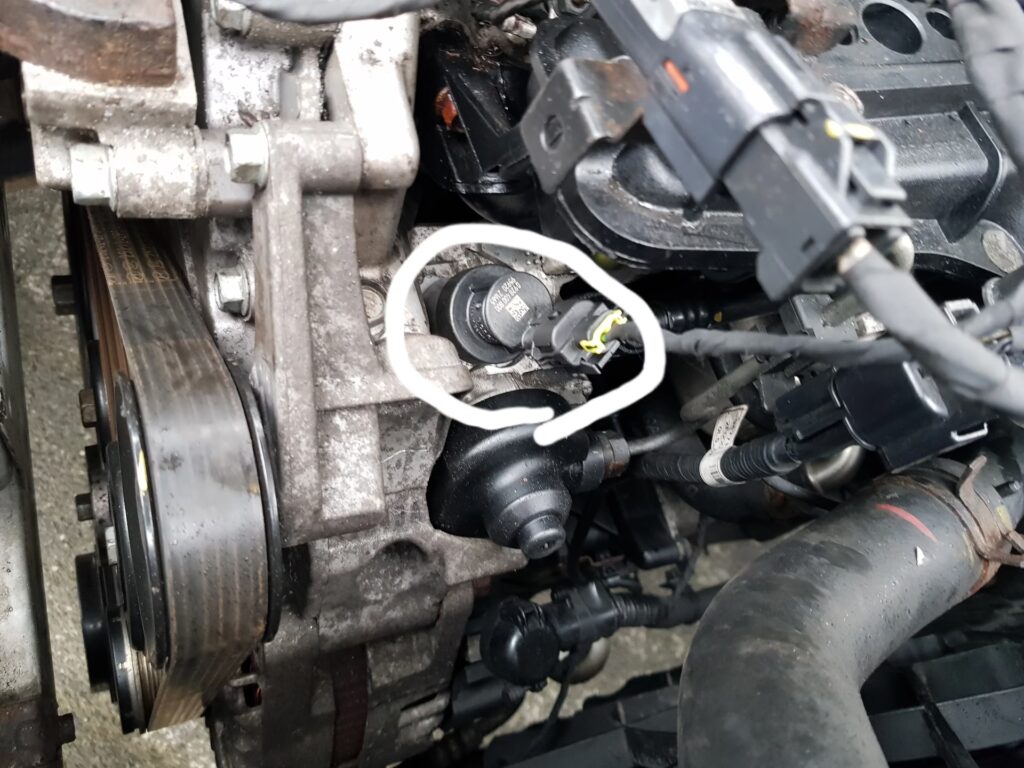

Modern diesel engines rely on sophisticated systems to precisely control fuel delivery. The electronic fuel control actuator, typically mounted on the high-pressure fuel pump, plays a crucial role. It regulates the volume of fuel entering the pump's internal chambers, thereby dictating the pressure and quantity of fuel sent to the fuel rail. To ensure this pressure remains within a tight operational window, a fuel pressure sensor is employed. This sensor converts the physical fuel pressure into an electrical signal, which the PCM interprets. The PCM then uses this information to calculate critical parameters like injector pulse width (how long the injectors stay open) and injection timing (when injection occurs relative to the piston's position). For optimal engine performance, the signals from the fuel control actuator and the pressure sensor must be in harmony. A 'low' reading, as indicated by P0253, suggests that the fuel metering control system is not receiving or is not capable of delivering the expected signal, often implying insufficient fuel flow or pressure regulation.
Common Culprits Behind P0253
Several factors can contribute to the P0253 code being logged by your vehicle's PCM. Identifying the root cause is key to an effective repair. Here are some of the most frequent offenders:
- Restricted Fuel Flow: A primary suspect is a blockage somewhere in the fuel supply line to the high-pressure pump. This could be a clogged fuel filter, a dirty or obstructed fuel strainer at the pump's inlet, or even kinks in the fuel lines.
- Fuel Contamination: Diesel fuel can be susceptible to contamination from various sources. Bacterial growth, dissolved waxes (especially after using biodiesel in older systems), and water in the fuel can all lead to blockages and signal irregularities.
- Wiring and Connector Issues: The intricate electrical network connecting the fuel system components to the PCM is vital. Damaged, burnt, corroded, or shorted wiring, as well as loose or corroded electrical connectors, can disrupt signal transmission. Open circuits caused by engine vibration are also a possibility.
- Faulty Fuel Pressure Sensor: If the sensor responsible for reporting fuel rail pressure is not functioning correctly, it can send inaccurate data to the PCM, leading to the P0253 code.
- Defective Fuel Control Actuator: This component directly regulates fuel flow into the high-pressure pump. If it malfunctions, it can cause the low metering control signal.
- High-Pressure Fuel Pump Failure: While less common than filter issues, a failing high-pressure pump itself can lead to P0253, as it may not be able to generate or maintain the required fuel pressure and volume.
- Lift Pump or Shut-off Solenoid Issues: If your vehicle is equipped with an electric lift pump (in the fuel tank) or a fuel shut-off solenoid on the pump, a fault in these components can also trigger the code.
- PCM Internal Fault: Although relatively rare, a failing driver circuit within the PCM itself can cause this code. However, it's crucial to exhaust all other possibilities before considering the PCM as the faulty component.
Symptoms to Watch For
The manifestation of the P0253 code can vary depending on the severity of the underlying issue. Some vehicles might only display the illuminated 'Check Engine' light with no other immediately noticeable symptoms. However, in more serious cases, you might experience:
- Rough Idling or Running: The engine may not run smoothly, exhibiting vibrations or uneven operation.
- Reduced Engine Power: You might notice a significant loss of acceleration and overall engine performance.
- Hesitation During Acceleration: The vehicle may stumble or hesitate when you press the accelerator pedal.
- Increased Smoke from Exhaust: In some instances, incomplete combustion due to incorrect fuel delivery can result in excessive exhaust smoke.
- Hard Starting or No-Start Conditions: In severe cases, the engine may be difficult to start or refuse to start altogether due to insufficient fuel pressure.
- Reduced Fuel Economy: The engine's struggle to operate efficiently can lead to a noticeable drop in miles per gallon.
Troubleshooting P0253: A Step-by-Step Approach
Diagnosing and resolving the P0253 code requires a systematic approach, often involving a combination of visual inspections, electrical tests, and fuel system checks. Always consult your vehicle's specific service manual for detailed procedures and specifications.
Step 1: Initial Checks and Data Gathering
Before diving deep, start by:
- Scan for Codes: Use an OBD-II scanner to confirm P0253 and note any other related DTCs.
- Record Freeze Frame Data: This data provides a snapshot of engine conditions at the moment the code was set, which can be invaluable for diagnosing intermittent faults.
- Check Fuel Filter and Strainer: As recommended, this is often the first and easiest step. A clogged fuel filter or inlet strainer is a very common cause. Replace if necessary.
- Inspect for Fuel Contamination: Check for signs of bacterial growth or waxy substances in the fuel. Address any contamination with appropriate cleaning procedures.
Step 2: Visual and Electrical Inspection
Proceed with a thorough inspection of the relevant wiring and connectors:
- Visual Inspection: Carefully examine all wiring harnesses and connectors associated with the fuel injection pump, fuel control actuator, and fuel pressure sensor. Look for any signs of damage, chafing, melting, corrosion, or loose connections. Repair any faults found.
- Electrical Tests: If no visual faults are apparent, proceed to perform resistance, continuity, and voltage checks on the wiring circuits. Compare your readings to the specifications in your service manual. Pay close attention to the connections between the PCM, the fuel control actuator, and the fuel metering control sensor. Even minor variations can trigger P0253. Remember to disconnect the PCM before performing resistance checks to avoid damage.
Step 3: Testing Fuel System Components
If electrical checks don't reveal the issue, focus on the fuel system's mechanical and electrical components:
- Fuel Shut-off Solenoid (if equipped): Check for battery voltage at the solenoid. If voltage is present but the solenoid doesn't operate, it likely needs replacement.
- Electric Lift Pump (if equipped): Test the lift pump's control circuit for proper voltage, resistance, and continuity. If the circuit is sound, remove and bench-test the pump itself according to the manual's specifications.
- Fuel Pressure Test: Connect a dedicated diesel fuel pressure gauge and measure the fuel pressure at the fuel rail. Compare the readings to the manufacturer's specifications. Note that while pressure might be correct, fuel volume delivery could still be insufficient, leading to pressure drops under load.
Step 4: Sensor and Actuator Diagnosis
With the basic fuel system checks completed:
- Fuel Pressure Sensor Testing: If fuel pressure appears normal but the code persists, suspect the fuel pressure sensor. Follow the service manual's procedures for testing its resistance and output voltage. Replace if it falls outside specifications. Always follow safety procedures for releasing residual fuel pressure before removing the sensor.
- Fuel Control Actuator Testing: If all electrical tests and fuel pressure readings are within spec, the electronic fuel control actuator is a strong candidate for failure. However, a defective high-pressure pump can also mimic this symptom.
Step 5: When to Seek Professional Help
Diagnosing internal issues within a modern high-pressure diesel fuel pump or complex PCM faults can be challenging and requires specialized tools and expertise. If you've exhausted the preliminary steps and the problem remains elusive, or if you suspect a major component failure like the high-pressure pump, it's advisable to seek professional diagnosis and repair from a qualified diesel mechanic.
It's helpful to be aware of codes that share similar symptoms or root causes:
- P0251: Injection Pump Fuel Metering Control "A" Malfunction
- P0252: Injection Pump Fuel Metering Control "A" Range/Performance
- P0254: Injection Pump Fuel Metering Control "A" High
- P0255: Injection Pump Fuel Metering Control "A" Intermittent
- P0256-P0260: These codes relate to "B" circuits, often indicating similar issues but potentially with different components or control strategies within the fuel system.
The designation "A" and "B" typically refer to different aspects of the fuel pressure control system, not necessarily different pumps. "A" often relates to the fuel pressure sensor on the rail, while "B" can refer to electrical issues within the control circuit of the actuator on the pump itself.
Frequently Asked Questions (FAQs)
Q1: What does P0253 specifically mean for my diesel engine?
A1: It means the PCM has detected a low signal from the fuel metering control system "A," which is crucial for regulating fuel delivery to the high-pressure pump. This often points to issues with fuel flow or the control signals related to fuel pressure.
Q2: Can a simple fuel filter replacement fix P0253?
A2: Yes, a clogged fuel filter is a very common cause, so replacing it is often the first and most effective step. If the issue persists, further diagnosis is needed.
Q3: Is P0253 a serious code?
A3: It can be. While some symptoms might be mild, it indicates a problem with the core fuel delivery system, which can lead to reduced performance, increased wear, or even engine failure if left unaddressed.
Q4: How much does it typically cost to diagnose P0253?
A4: Diagnosis usually involves about an hour of labor. Costs vary by location and shop rates, typically ranging from $75 to $150 per hour for labor. The total cost will depend on the complexity of the issue found.
Q5: Can I drive my vehicle with the P0253 code present?
A5: It's generally not recommended to drive extensively with this code. While the vehicle might still run, the compromised fuel delivery can lead to poor performance, increased fuel consumption, and potentially cause further damage to the fuel system components.
Conclusion
The P0253 code serves as a vital alert from your diesel engine's PCM, highlighting a potential problem in the fuel metering control system. By understanding the code's meaning, recognizing its common causes and symptoms, and following a systematic diagnostic approach, you can effectively troubleshoot and resolve this issue. Whether it's a simple fix like a fuel filter replacement or a more complex repair involving the fuel pump or electronics, addressing P0253 promptly will ensure your diesel engine continues to perform reliably and efficiently.
