Decoding P0010: Camshaft Actuator Circuit Explained

When your vehicle's 'Check Engine' light illuminates, it often signals an underlying issue that your car's onboard diagnostic system has detected. Among the myriad of potential fault codes, P0010 – Camshaft Position Actuator Circuit (Bank 1) – is one that frequently puzzles motorists. This code points to a problem within your engine's Variable Valve Timing (VVT) system, a sophisticated mechanism designed to optimise engine performance and fuel efficiency across various RPMs. Understanding this code is crucial, as ignoring it can lead to reduced performance, increased fuel consumption, and potentially more significant engine damage over time. This comprehensive guide will delve into what P0010 signifies, how to diagnose it accurately, and the most effective ways to resolve it, ensuring your vehicle remains reliable on the road.

Understanding the P0010 Fault Code

The P0010 fault code, officially known as 'Camshaft Position Actuator Circuit (Bank 1)', indicates an electrical issue within the circuit that controls the camshaft position actuator, often referred to as the VVT solenoid or Oil Control Valve (OCV). Modern engines utilise VVT systems to precisely control when the intake and exhaust valves open and close. This is achieved by adjusting the camshaft's position relative to the crankshaft, allowing the engine's 'breathing' to be fine-tuned for optimal power and efficiency at different speeds.

The camshaft position actuator, or VVT solenoid, is a critical component in this system. It's an electro-hydraulic valve that regulates the flow of engine oil to the camshaft phaser (also known as a cam sprocket or actuator). By controlling oil pressure to the phaser, the solenoid can advance or retard the camshaft's timing. When the Engine Control Unit (ECU) detects an electrical malfunction in the circuit of this solenoid on Bank 1, it triggers the P0010 code.

What Does "Bank 1" Mean?

In V-type engines (V6, V8, etc.), 'Bank 1' refers to the side of the engine that contains cylinder number 1. If your vehicle has a straight or inline engine (e.g., inline-four, inline-six), it will typically only have one bank, which is considered Bank 1. The P0010 code specifically highlights an issue with the camshaft actuator circuit on this particular bank, usually affecting the intake camshaft.

Common Symptoms of P0010

While the 'Check Engine' light is the primary indicator of a P0010 code, several other symptoms might accompany it, giving you clues about the severity of the problem. These can vary depending on the specific vehicle model and the exact nature of the electrical fault:

• Illuminated 'Check Engine' Light: This is almost always the first and most obvious symptom.
• Reduced Fuel Economy: As the VVT system isn't operating correctly, the engine may not be running at its most efficient, leading to higher fuel consumption.
• Rough Idle or Stalling: Incorrect valve timing can cause the engine to run erratically, particularly at idle, or even stall completely.
• Decreased Engine Performance: You might notice a lack of power, poor acceleration, or the engine feeling sluggish.
• Difficulty Starting: In some cases, compromised valve timing can make it harder for the engine to start.
• Engine Noise: Unusual noises, such as ticking or rattling, might originate from the VVT system if the actuator is failing mechanically or oil pressure is inadequate.

Root Causes Behind P0010

The P0010 code specifically points to an electrical circuit issue, but the underlying causes can range from simple to complex. It's crucial to understand these potential culprits to diagnose the problem effectively:

• Faulty Camshaft Position Actuator Solenoid (VVT Solenoid): This is the most common cause. The solenoid itself can fail internally, either electrically (open circuit, short circuit) or mechanically (stuck valve, clogged internal passages).
• Wiring Harness Issues: Damaged, chafed, open, or shorted wiring leading to the VVT solenoid is a frequent culprit. Rodent damage, corrosion, or simple wear and tear can cause these issues.
• Poor Electrical Connection: Corroded or loose connectors at the VVT solenoid or the ECU can disrupt the circuit's integrity.
• Low or Dirty Engine Oil: While P0010 is an electrical code, the VVT system relies heavily on clean engine oil at the correct pressure. If the oil is too low, too dirty, or the wrong viscosity, it can impede the solenoid's operation, leading the ECU to detect an electrical anomaly as the solenoid struggles to function. Clogged oil passages within the engine or the solenoid itself due to sludge can also be a factor.
• Faulty Engine Control Unit (ECU/PCM): Although less common, a malfunctioning ECU could incorrectly interpret signals or fail to send proper commands, triggering the P0010 code.

The Critical Role of Engine Oil

It cannot be stressed enough how vital clean, correctly specified engine oil is for the proper functioning of a VVT system. The camshaft actuators operate using oil pressure to change the camshaft's position. If the oil is dirty, has sludge, or is not at the correct level or viscosity, it can prevent the VVT solenoid from operating correctly, leading to sluggish response or complete failure. This can, in turn, trigger the electrical P0010 code because the ECU detects that the solenoid isn't behaving as expected, even if the electrical circuit itself isn't directly 'broken'.

Diagnosing P0010: A Step-by-Step Guide

Diagnosing P0010 requires a systematic approach, starting with the simplest checks and progressing to more complex electrical tests. Remember, patience and attention to detail are key.

1. Confirming the Code and Checking for Others

The first step is always to connect an OBD2 scan tool to your vehicle's diagnostic port. Confirm the existence of the P0010 code. It's also paramount to properly analyse the data from the OBD2 scan tool to find the main problem. Furthermore, properly examine other existing diagnostic trouble codes that may cause the P0010 code to trigger. Sometimes, a seemingly unrelated code might be the root cause. For instance, an engine misfire code might indicate an underlying issue that also affects VVT operation. After noting all codes, clear them to see whether P0010 returns or not. If it returns immediately, the issue is likely persistent.

2. Visual Inspection is Key

Before diving into electrical tests, perform a thorough visual inspection:

• Check Engine Oil: Verify the oil level and condition. Is it at the correct level? Does it look excessively dark or sludgy? If it's low or dirty, an oil and filter change is highly recommended as a first step.
• Inspect Wiring and Connectors: Carefully examine the wiring harness leading to the VVT solenoid on Bank 1. Look for any signs of fraying, cuts, rodent damage, or pinched wires. Check the connector itself for corrosion, bent pins, or a loose connection. Disconnect, inspect, and reconnect the connector to ensure good contact.
• Check for Physical Damage: While less common, inspect the VVT solenoid for any visible external damage.

3. Electrical Circuit Testing

This step requires a multimeter and a basic understanding of electrical circuits:

• Voltage Supply: With the ignition on (engine off), test for 12V power at the VVT solenoid connector. One pin should have battery voltage. If not, trace the wiring back to the fuse box or ECU to identify an open circuit.
• Ground Circuit: Test the ground circuit to ensure good electrical continuity to the ECU or chassis ground.
• Resistance of the Solenoid: Disconnect the VVT solenoid and measure its internal resistance (ohms) across its terminals. Compare this reading to your vehicle's service manual specifications. An open circuit (infinite resistance) or a short circuit (very low resistance) indicates a faulty solenoid. Typical resistance values for VVT solenoids are often between 6-10 ohms.
• Continuity of Wiring: If you suspect a wiring issue, perform continuity tests on the wires between the VVT solenoid connector and the ECU connector to check for opens or shorts.

4. Testing the VVT Solenoid Itself

Beyond electrical resistance, you can often test the solenoid's mechanical function:

• Bench Test: If removed, you can sometimes apply 12V directly to the solenoid's terminals (briefly!) and listen for a click, indicating the internal valve is actuating. Some solenoids can also be visually inspected for plunger movement.
• Power Balance Test (Scan Tool): Some advanced scan tools allow you to command the VVT solenoid on and off, or vary its duty cycle. Observing live data for camshaft position changes can help confirm if the solenoid is responding.

Important Note: Always refer to your vehicle's specific repair manual for exact specifications, wiring diagrams, and diagnostic procedures. These provide invaluable information for accurate troubleshooting.

Impact of P0010 on Your Vehicle

While P0010 might seem like just another code, its implications can affect your vehicle significantly. An improperly functioning VVT system means your engine isn't operating at its peak efficiency. This can lead to:

• Reduced Performance: You'll likely experience a noticeable drop in acceleration and overall engine power.
• Increased Emissions: Inefficient combustion due to incorrect valve timing can lead to higher harmful emissions, potentially causing your vehicle to fail emission tests.
• Poor Fuel Economy: The engine will consume more fuel than necessary, hitting your wallet.
• Potential for Engine Damage: Although rare, prolonged driving with severe VVT issues, especially those related to oil starvation or extreme timing misalignment, could potentially lead to premature wear or damage to engine components.

Resolving the P0010 Code

Once the diagnosis is complete, resolving P0010 typically involves addressing the identified root cause. Here are the most common solutions:

• Replace the VVT Solenoid: If tests confirm the solenoid itself is faulty, replacement is usually straightforward. Ensure you purchase a quality replacement part that matches your vehicle's specifications.

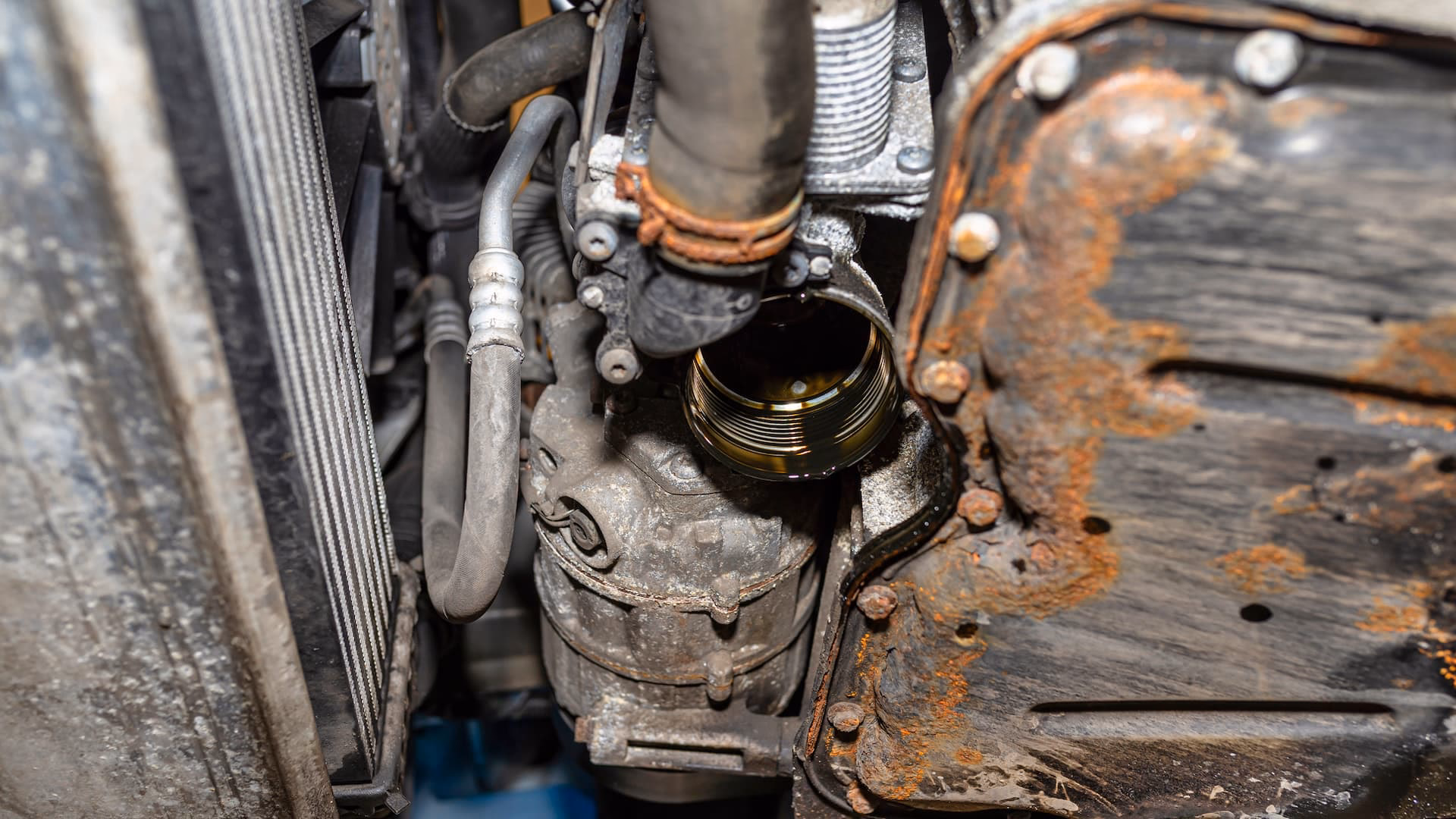

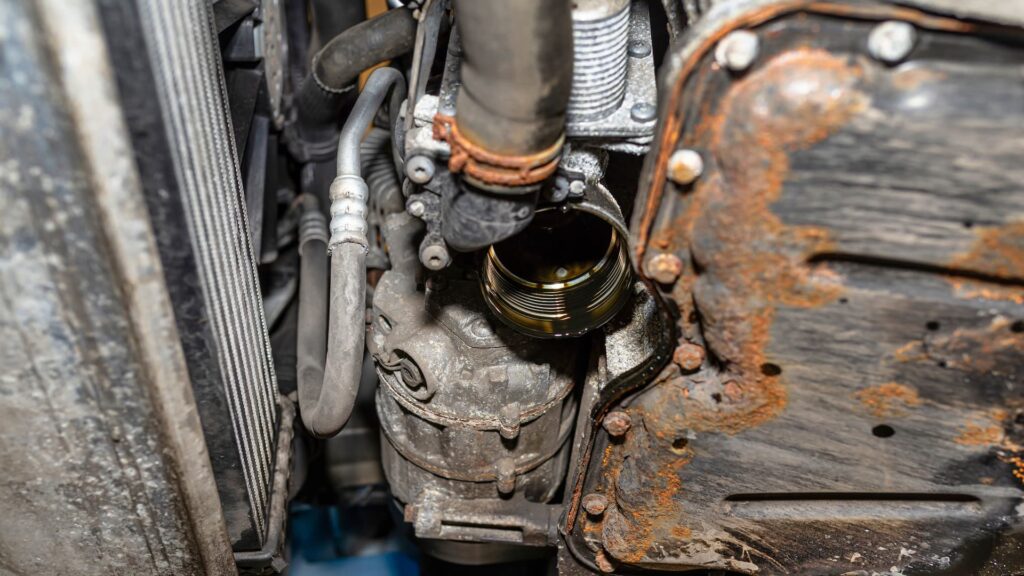

• Perform an Oil and Filter Change: If dirty or low oil was a contributing factor, a fresh oil and filter change with the correct viscosity and type of oil can often resolve the issue, especially after clearing the codes. This is often a good first step, even if other issues are suspected.
• Repair Wiring or Connectors: If damaged wiring or a corroded connector is found, repair or replace the affected section of the harness or the connector.
• Address Clogged Oil Passages: If sludge is suspected, a professional engine flush might be considered, though this should be approached with caution as it can sometimes dislodge larger particles. More severe cases might require inspection of VVT oil passages.
• ECU/PCM Replacement: This is a last resort, only considered if all other possibilities have been thoroughly ruled out by a qualified technician, as it's an expensive repair.

Table: Common P0010 Causes and Solutions

Preventative Measures

Preventing the P0010 code, and many other VVT-related issues, largely comes down to diligent maintenance:

• Regular Oil Changes: Adhere strictly to your vehicle manufacturer's recommended oil change intervals, using the specified type and viscosity of engine oil. Clean oil is the lifeblood of your VVT system.
• Use Quality Oil Filters: A good quality oil filter ensures contaminants are effectively removed from the oil, preventing clogs.
• Monitor Oil Level: Regularly check your engine oil level between services to ensure it's always at the correct mark.

Frequently Asked Questions About P0010

Q: Is P0010 a serious fault code?

A: Yes, P0010 should be taken seriously. While it might not immediately lead to a breakdown, it indicates an issue that can significantly impact engine performance, fuel efficiency, and potentially lead to long-term wear if not addressed. It's best to diagnose and fix it promptly.

Q: Can I drive my car with a P0010 code?

A: While your car might still be drivable, it's not recommended for extended periods. You could experience reduced power, worse fuel economy, and potentially cause more damage to the engine over time. It's always best to have it checked as soon as possible.

Q: How much does it cost to fix P0010?

A: The cost to fix P0010 can vary widely depending on the underlying cause and your vehicle's make and model. If it's just a simple oil change, it's relatively inexpensive. If a VVT solenoid needs replacing, parts can range from £50 to £200, plus labour costs. Wiring repairs can also vary. ECU replacement is the most expensive option, often running into hundreds of pounds.

Q: Can a simple oil change fix P0010?

A: In some cases, absolutely. If the primary issue is low oil pressure due to low oil level or a clogged solenoid from dirty, sludgy oil, a fresh oil and filter change with the correct oil type can often resolve the P0010 code. It's often one of the first and simplest diagnostic steps.

Q: What is a camshaft position actuator?

A: A camshaft position actuator, also known as a VVT solenoid or oil control valve (OCV), is an electro-hydraulic component that controls the flow of engine oil to the camshaft phaser. This oil pressure allows the phaser to adjust the camshaft's rotational position, thereby altering valve timing to optimise engine performance and efficiency.

In conclusion, the P0010 diagnostic trouble code is a clear signal that your vehicle's Variable Valve Timing system is experiencing an electrical circuit fault on Bank 1. While the code itself points to an electrical issue, the underlying cause often involves the VVT solenoid, its wiring, or critically, the condition of your engine oil. By understanding the symptoms, performing thorough diagnostics, and addressing the root cause, you can restore your vehicle's performance and ensure its longevity. Regular maintenance, particularly timely oil changes with the correct lubricants, is your best defence against this and many other engine-related issues.
