Safeguarding Your Fuel Injection Pump

The fuel injection pump is undeniably the heart of your vehicle's fuel system, meticulously delivering fuel to the engine with precision and power. Its optimal functioning is paramount for your car's performance, fuel efficiency, and overall longevity. However, this critical component is also susceptible to various issues, primarily those stemming from fuel contamination and improper installation. Understanding the nuances of your fuel injection pump, from the necessity of a pre-filter to the intricacies of its timing, can save you from costly repairs and unexpected breakdowns. This comprehensive guide will delve into these vital aspects, ensuring your fuel system remains robust and reliable, keeping you on the road with confidence.

The Indispensable Role of a Pre-Filter for Your Fuel Pump

When it comes to the longevity and efficient operation of your fuel injection pump, particularly a high-performance unit like the OTP044 Out-Tank Fuel Injection Pump (Bosch 0580254044), the importance of a pre-filter cannot be overstated. Manufacturers explicitly recommend fitting a pre-filter prior to installation to prevent contamination, and this advice is rooted in sound engineering principles. Fuel, despite appearing clean, often contains microscopic particles, rust, dirt, and other debris that can be incredibly detrimental to the delicate internal components of a fuel pump.

A pre-filter, such as the recommended Bullet Filter, acts as the first line of defence, capturing these impurities before they reach the pump's intricate mechanisms. Without this crucial barrier, these contaminants can lead to premature wear of the pump's gears, vanes, or rollers, causing reduced flow, inconsistent pressure, and ultimately, catastrophic failure. The OTP044, known for its performance and reliability as an alternative to the Bosch 0580254044, boasts impressive flow rates (378 Ltr/Hr Max, 318 Ltr/Hr @ 3 Bar, 258 Ltr/Hr @ 5 Bar) and a max pressure of 10.4 Bar. Maintaining these specifications requires a clean fuel supply. Investing in a quality pre-filter is a small price to pay for safeguarding such a vital and expensive component, ensuring its advertised performance and extending its operational lifespan considerably.

OTP044 Fuel Pump Specifications

To further illustrate the capabilities of the OTP044, here's a detailed look at its specifications:

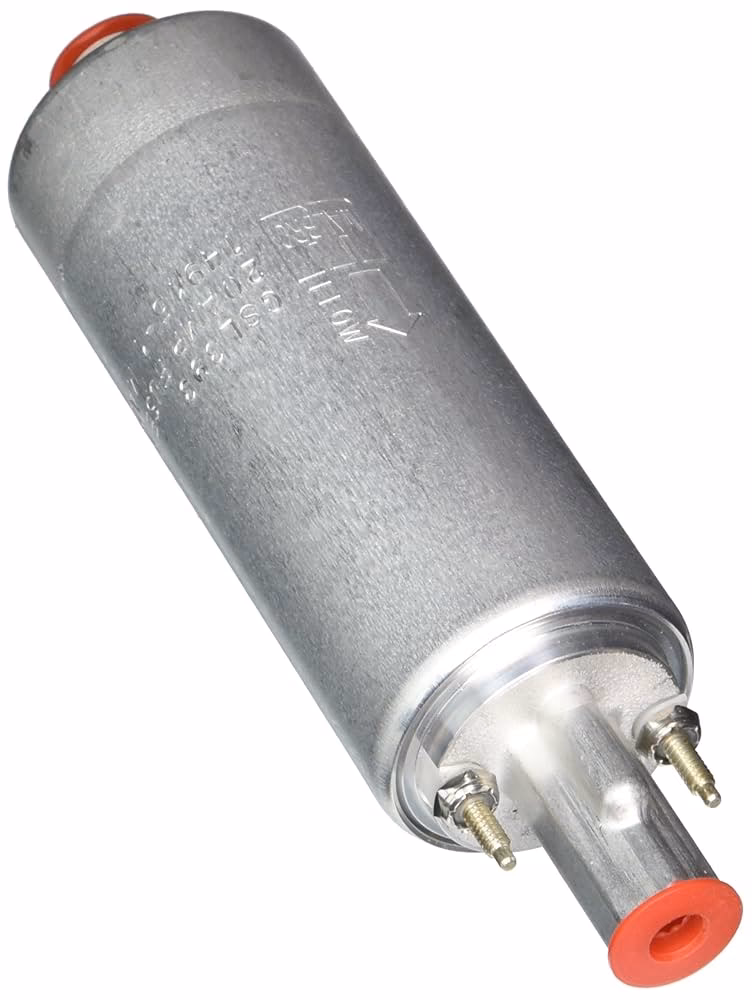

Understanding and Avoiding Fuel Pump Vacuum and Cavitation

A common yet severely damaging issue for fuel injection pumps is operating under a vacuum. This occurs when the supply pump within the injection pump attempts to pull more fuel than the in-tank supply pump can adequately deliver. In essence, the volume of fuel being supplied to the injection pump is insufficient, causing the pressure within the line to drop below atmospheric pressure, thereby creating a vacuum. This negative pressure can be a silent killer for your fuel pump.

The most critical consequence of a fuel system operating under vacuum is cavitation. Cavitation is the formation of vapour bubbles (cavities) within the liquid fuel due to a significant drop in pressure. As these bubbles are carried into higher-pressure regions within the pump, they rapidly collapse, generating incredibly powerful shockwaves. These micro-explosions, though tiny individually, exert immense force on the pump's internal surfaces. Over time, this repetitive impact erodes the metal components, leading to pitting, material fatigue, and ultimately, severe damage to the pump's moving parts. Continued driving with a fuel system under vacuum will inevitably lead to irreversible damage to the injection pump, necessitating an expensive replacement. Ensuring a robust and consistent fuel supply from the tank to the injection pump is crucial to prevent this destructive phenomenon.

Removing the Fuel Return from the Injection Pump

There may be instances, such as maintenance, replacement, or troubleshooting, where you need to remove the fuel return line from the injection pump. This is a delicate procedure that requires attention to detail to avoid damaging components or creating leaks. The fuel return line typically carries excess fuel back to the tank, maintaining optimal pressure within the system.

To remove the fuel return, you should first locate the fuel return bolt on the injection pump. This bolt is often specifically marked with an 'out' designation, indicating its function. You will typically need a 17mm hexagonal head spanner or socket to loosen and remove this bolt. Exercise extreme caution during this process, as there are usually two small copper washers that act as gaskets, one on either side of the banjo fitting (if applicable) or under the head of the bolt. These washers are crucial for creating a leak-proof seal. They are easily lost or damaged, and if not replaced or reinstalled correctly, they will cause fuel leaks. Once the bolt is loosened, carefully pull the fuel return line away from the pump, being mindful of any remaining fuel that might spill.

Precise Fuel Injection Pump Installation and Timing

Proper installation and accurate timing are paramount for the efficient operation of your engine. Incorrectly timed fuel injection can lead to poor performance, increased emissions, and potential engine damage. The timing of the fuel injection pump ensures that fuel is delivered to the cylinders at the precise moment required for optimal combustion. This can be checked and adjusted to compensate for wear in timing gears or movement in the taper sleeve drive.

Checking Timing by Timing Pin Method

This method provides a reliable way to verify and adjust your fuel injection pump's timing:

Step 1: Preparation for Timing Check

1. Remove Timing Hole Bolt: Locate bolt (1) on the engine, which covers the timing pin hole. Carefully remove this bolt. This hole is where the timing pin will be inserted to check the camshaft's position.

Step 2: Engaging the Timing Pin

2. Turn Crankshaft and Insert Pin: Turn the crankshaft counter-clockwise (when viewed from the rear of the engine). As you rotate, the timing pin (2), specifically a 3P1544 Timing Pin, should eventually align and go into the notch in the camshaft that is dedicated to the fuel injection pumps. This step precisely aligns the camshaft for the injection event.
3. Prepare for Timing Gear Bolt: Remove the fitting from timing hole (4) in the front cover of the engine. This hole provides access to the timing gear. Insert bolt (3), which is a 1D4539 Bolt (5/16 in-18 NC, 63.5 mm long), through the front cover and into the threaded hole in the timing gear. The bolt from hole (5) can often be used for this purpose.
4. Verify Timing Alignment: If the timing pin (2) is securely in the notch on the camshaft for the fuel injection pumps, AND bolt (3) passes freely into the hole in the timing gear through timing hole (4), then your fuel injection pump's timing is correct. This dual verification ensures both the camshaft and crankshaft are in their correct relative positions.

Step 3: Adjusting Timing (If Necessary)

NOTE: If bolt (3) does not go into the hole in the timing gear with timing pin (2) in the camshaft notch, adjustment is required. Proceed with the following steps:

1. Access Tachometer Drive Assembly: Begin by removing nuts (7) and the cover for the tachometer drive assembly (6). This provides access to the camshaft's end.
2. Remove Tachometer Drive Components: Carefully remove the tachometer drive shaft (9) and washer (8) from the camshaft for the fuel injection pumps. It's important to note that these two components are typically removed as a single assembly.
3. Loosen Drive Gear: Attach the 6V4069 Puller (10) onto the camshaft for the fuel injection pumps. Tighten bolts (11) on the puller until the drive gear on the camshaft becomes loose. This action releases the gear's grip on the camshaft, allowing for rotational adjustment.
4. Remove Puller: Once the gear is loose, remove the 6V4069 Puller.
5. Re-align and Confirm Timing: Turn the crankshaft counter-clockwise (viewed from the rear of the engine) until bolt (3) goes into the hole in the timing gear. With timing pin (2) still in the notch in the camshaft for the fuel injection pumps, and bolt (3) now inserted into the timing gear, the engine's timing is correctly set. This adjustment aligns the camshaft and crankshaft precisely.
6. Reinstall and Torque: Reinstall washer (8) and the tachometer drive shaft (9). Tighten the tachometer drive shaft to a torque of 149 ± 14 N·m (110 ± 10 lb ft). This ensures the drive shaft is securely fastened. Remove timing pin (2).
7. Final Verification: To confirm the timing adjustment is stable, turn the crankshaft two complete revolutions counter-clockwise (as viewed from the rear of the engine). Reinsert timing pin (2) and bolt (3). If they cannot be installed, repeat steps 'a' through 'f' to re-adjust. This double-check is crucial for ensuring the timing holds.
8. Final Assembly: Remove bolt (3) from the timing gear and reinstall it into its original hole (5). Install the plug into timing hole (4). Finally, remove timing pin (2) and reinstall bolt (1). Reinstall the cover for the tachometer drive assembly (6).

What to Do If Your Fuel Injection Pump Is Damaged

Discovering that your fuel injection pump is damaged can be a daunting experience, often manifesting as significant performance issues, starting difficulties, or even complete engine failure. Given the precision engineering and critical role of this component, repair is rarely a viable or recommended option for internal damage. In most cases, if a fuel injection pump is confirmed to be damaged, the standard procedure is to replace the fuel injection pump entirely.

Referring to your vehicle's specific maintenance manual, such as paragraph 8-6 in some older manuals, will provide the exact replacement procedure. Before concluding that the pump itself is the sole issue, however, it's wise to perform a thorough diagnostic check. Sometimes, symptoms mimicking a damaged pump can be caused by other issues in the fuel system, such as blockages, faulty sensors, or even external damage to valves or valve springs (as mentioned in paragraph 12- regarding damaged valves or valve springs). If the pump is definitively damaged, ensure you source a high-quality replacement, preferably from a reputable manufacturer or a trusted alternative like the OTP044, to ensure reliability and optimal performance for your vehicle.

Frequently Asked Questions About Fuel Injection Pumps

Do I need a pre-filter for my OTP044 out-tank fuel injection pump?

Yes, absolutely. It is explicitly recommended to fit a pre-filter, such as a Bullet Filter, prior to installing your OTP044 Out-Tank Fuel Injection Pump. This is crucial to prevent fuel contamination from reaching and damaging the pump's internal components, ensuring its longevity and optimal performance.

How do I remove the fuel return from the injection pump?

To remove the fuel return from the injection pump, locate the fuel return bolt, which is usually marked with 'out'. Use a 17mm hexagonal head spanner or socket to loosen and remove it. Be very careful with the two small copper washers that serve as gaskets; ensure they are not lost or damaged, as they are essential for a leak-proof seal.

What happens if a fuel injection pump is under a vacuum?

When the supply pump in the injection pump pulls more fuel than the in-tank supply pump can push, the pressure drops, creating a vacuum. Continued driving under these conditions can lead to cavitation. Cavitation is the formation and rapid collapse of vapour bubbles within the fuel, which causes significant erosion and damage to the internal components of the injection pump, leading to premature failure.

How do you install a fuel injection pump?

Installing a fuel injection pump involves several critical steps, especially concerning its timing. The process generally includes preparing the timing hole, inserting a timing pin into the camshaft notch, aligning a bolt with the timing gear through a front cover hole, and if necessary, loosening the drive gear with a puller (e.g., 6V4069 Puller) to adjust the timing precisely. After adjustment, components are reinstalled and torqued to specifications, followed by a final verification of the timing by rotating the crankshaft and re-checking alignment.

What to do if fuel injection pump is damaged?

If your fuel injection pump is confirmed to be damaged, the primary course of action is to replace the fuel injection pump. Refer to your vehicle's specific service manual (e.g., paragraph 8-6) for the detailed replacement procedure. Before replacing, ensure no other components, such as valves or valve springs, are also damaged (e.g., check paragraph 12- for valve damage).

Conclusion: Proactive Maintenance for Peak Performance

Maintaining your fuel injection pump is not just about reacting to problems; it's about proactive measures that ensure the long-term health and efficiency of your vehicle's engine. From the simple yet critical step of installing a pre-filter to protect against contamination, to understanding the severe implications of operating under a vacuum and the destructive force of cavitation, every aspect of fuel system care contributes to reliability. Mastering the precise procedure for fuel pump timing and understanding the correct protocol for fuel return line removal are also essential skills for any serious mechanic or enthusiast. By adhering to these best practices and promptly addressing any signs of trouble, you can significantly extend the life of your fuel injection pump, safeguard your engine, and ensure that your vehicle continues to deliver optimal performance mile after mile. Remember, a well-maintained fuel system is the cornerstone of a dependable and efficient vehicle.
