Unit Injectors: Precision Power for Diesel Engines

In the intricate world of automotive engineering, where the pursuit of greater efficiency, reduced emissions, and enhanced power is relentless, the fuel injection system stands as a cornerstone of engine performance. For diesel engines, in particular, the method of fuel delivery is paramount. Among the various sophisticated systems developed, the unit injector holds a distinguished position, representing a significant leap forward in precision and control. This article delves into the fascinating mechanics of unit injectors, exploring their ingenious design, operational principles, and the numerous advantages they bring to the modern diesel engine.

What Exactly is a Unit Injector?

At its core, a unit injector is a highly integrated component designed to deliver fuel directly into an engine's combustion chamber. Unlike earlier systems that relied on a central high-pressure pump feeding multiple injectors via long fuel lines, the unit injector system takes a fundamentally different approach. The special feature of this system is that an individual pump is assigned to each cylinder. This means that the pump and the nozzle are combined into a single, compact assembly that is installed directly within the cylinder head. This 'all-in-one' design is crucial to its effectiveness, eliminating the need for high-pressure fuel pipes and their associated potential for failure, while simultaneously enabling much higher injection pressures to be achieved.

A Legacy of Innovation: The Evolution of Fuel Injection

While the provided historical notes are brief, the very existence of the unit injector signifies an evolution in diesel fuel delivery. Before its widespread adoption, diesel engines often used simpler, less precise injection methods. The drive for cleaner exhaust gases, better fuel economy, and more powerful engines pushed engineers to develop systems that could deliver fuel with unprecedented accuracy and pressure. The unit injector emerged as a robust solution, effectively bridging the gap towards the highly sophisticated common rail systems seen today, offering a blend of mechanical simplicity and electronic control that proved highly effective for many applications.

The Ingenious Architecture: Design and Technology Unpacked

The design philosophy behind the unit injector is one of integration and efficiency. By combining the pumping element and the injector nozzle, engineers managed to create a system that is both incredibly potent and remarkably streamlined. Here are the key aspects of its design and technology:

• Elimination of High-Pressure Pipes: One of the most significant design breakthroughs is the complete removal of external high-pressure fuel lines. This not only reduces the complexity of the engine bay but also eliminates a common point of failure and pressure loss, ensuring that the maximum possible pressure is delivered directly to the point of injection.
• Direct Cylinder Head Mounting: Each unit injector is fitted directly into the engine cylinder head. This close proximity to the combustion chamber minimises the distance fuel has to travel under high pressure, contributing to faster response times and more accurate injection.
• Integral Fuel Ducts: The fuel itself is supplied to the injectors via integral ducts machined directly into the cylinder head. This clever design further streamlines the system, removing external hoses and ensuring a secure, leak-free pathway for the fuel.
• Individual Pumping Elements: Each injector possesses its own pumping element. This decentralised pumping mechanism allows for precise, cylinder-specific fuel delivery, which is vital for engine balancing and performance.
• Electronic Solenoid Valve: In electronically controlled systems, each injector is equipped with a fuel solenoid valve. This valve is the heart of the system's precision, allowing the engine's Electronic Control Unit (ECU) to dictate the exact timing and duration of the injection event.
• Dual Pressure System: The overall fuel system is divided into two distinct parts: a low-pressure supply system (typically below 500 kPa) that delivers fuel to the injectors, and the high-pressure injection system (reaching up to an astonishing 2,200 bar) that is generated within the injector itself.

Driving Forward: Key Advantages of Unit Injector Systems

The meticulous design of unit injectors translates directly into a host of tangible benefits for engine performance and environmental impact:

• High Performance for Clean and Powerful Engines: By achieving injection pressures up to 2,200 bar, unit injectors can atomise fuel into an incredibly fine mist. This ensures a more complete and efficient combustion process, leading to higher engine power output.
• Balanced Performance with Low Consumption and Emissions: The precise control over injection timing and quantity ensures that fuel is delivered exactly when needed and in the correct amount. This optimisation results in a remarkable balance between high engine power and significantly reduced fuel consumption, alongside lower harmful emissions. This contributes to the overall efficiency of the vehicle.
• High Degree of Efficiency Due to Compact Design: The integrated pump and nozzle design minimises mechanical losses and maximises the efficiency of the fuel delivery process. Less energy is wasted in pressurising long fuel lines, meaning more energy goes directly into propulsion.
• Low Noise Level Due to Direct Assembly: By being directly assembled into the engine block, the unit injectors benefit from the inherent dampening properties of the engine structure. This helps to reduce operational noise, contributing to a quieter and more refined driving experience.
• Ideal Air-Fuel Mixture: The ultra-high injection pressures enable a superior mixing of fuel and air within the combustion chamber. An ideal air-fuel mixture is critical for maximising power, reducing soot formation, and ensuring the engine runs smoothly and cleanly.

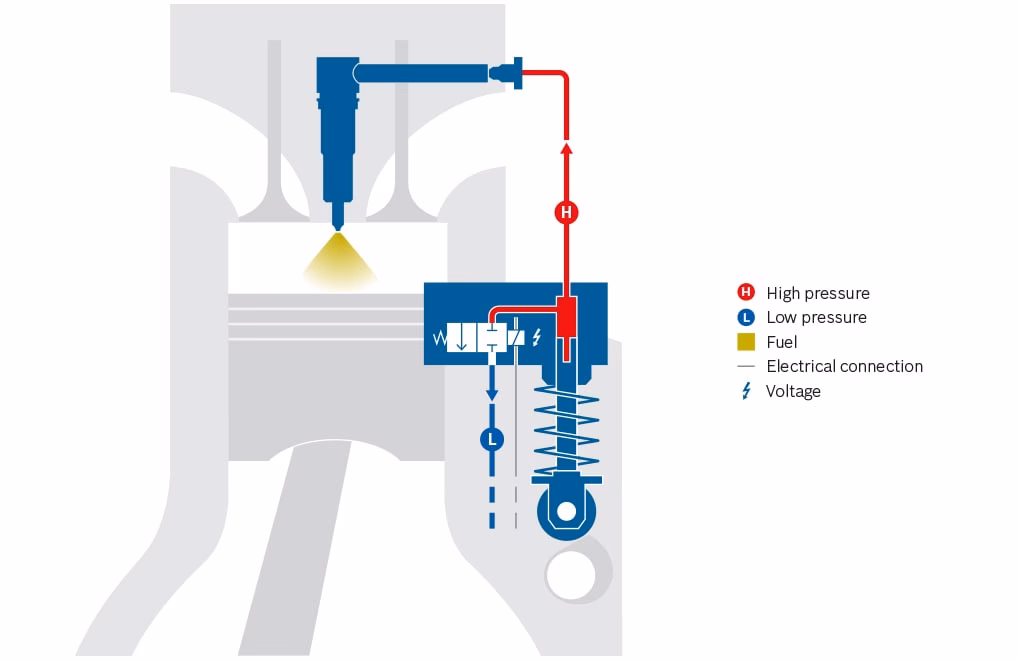

Understanding the Heartbeat: The Unit Injector's Operation Cycle

The operation of a unit injector is a precisely orchestrated dance of mechanical movement and electronic commands. It can be broken down into four distinct phases, all controlled with exquisite precision by the engine's ECU:

1. The Filling Phase:
The cycle begins with a low-pressure fuel delivery pump supplying filtered diesel fuel into the integral ducts machined within the cylinder head. This fuel then flows into the fuel port of each constant stroke pump plunger injector, which is operated by the engine's overhead camshaft. As the pump element moves upwards, it draws fuel from the supply duct into the chamber within the injector. During this phase, the electric solenoid valve remains de-energised, keeping the fuel line open and allowing the chamber to fill completely.

2. The Spill Phase:
Following the filling phase, the pump element begins its downward stroke. As long as the solenoid valve remains de-energised, the fuel line continues to be open. This allows any excess fuel to flow out of the chamber and back into the return duct, preventing premature pressure build-up and ensuring the system is ready for the next injection event.

3. The Injection Phase:
This is the critical moment. As the pump element continues its downward motion, the engine's ECU energises the solenoid valve. This immediate energisation causes the fuel line to close, sealing off the return path. With nowhere else to go, the fuel trapped within the chamber is now rapidly compressed by the descending plunger. The pressure inside the injector quickly escalates until it exceeds a specific 'opening' pressure. At this point, the injector nozzle needle lifts, allowing the highly pressurised fuel to be injected as a fine, atomised spray directly into the combustion chamber, initiating the power stroke.

4. The Pressure Reduction Phase:
The plunger continues its downward journey, but the injection doesn't last for the entire stroke. When the required quantity of fuel has been delivered, as determined by the engine's ECU, the ECU de-energises the solenoid. This action immediately re-opens the fuel valve, allowing the remaining fuel to flow back into the return duct. This sudden release of pressure causes an instant drop in the injection pressure, which in turn causes the injector nozzle needle to snap shut. With the nozzle closed, no more fuel is injected, precisely ending the combustion event.

In summary, the start of an injection is meticulously controlled by the solenoid's closing point, while the exact quantity of fuel injected is determined by the duration the solenoid remains closed. This entire operation is under the complete and masterful control of the engine's ECU, ensuring optimal performance under all driving conditions.

Beyond Core Functionality: Advanced Features and Electronic Sophistication

The electronic control inherent in unit injector systems allows for a range of advanced functions that further enhance engine performance, efficiency, and environmental friendliness:

• Temperature-Controlled Injection Timing: The ECU can adjust injection timing based on engine temperature, optimising cold starts and ensuring smooth running across various operating temperatures.
• Cylinder Balancing (Smooth Idle): By precisely monitoring and adjusting fuel delivery to each cylinder, the ECU can ensure an incredibly smooth and balanced idle, reducing vibrations and improving overall refinement.
• Switching Off Individual Cylinders: Under part-load conditions, the ECU can strategically switch off individual cylinders. This reduces pumping losses and further lowers emissions and fuel consumption, demonstrating remarkable optimisation.
• Multi-Pulse Injection: Modern unit injector systems can perform more than one injection event during a single engine cycle. This multi-pulse injection can involve a small pilot injection before the main injection to soften combustion noise, followed by the main injection, and potentially post-injections to aid in exhaust aftertreatment systems.

Unit Injector vs. Common Rail: A Snapshot Comparison

While unit injectors offer significant advantages, it's useful to briefly compare them with their contemporary, the common rail system, to understand their respective strengths.

Frequently Asked Questions (FAQs)

What makes unit injectors unique?
Their uniqueness lies in the integration of the pump and nozzle into a single, compact unit fitted directly into each cylinder head. This eliminates high-pressure fuel lines and allows for extremely high and precise injection pressures.

How do unit injectors contribute to fuel economy?
By enabling ultra-high injection pressures, unit injectors atomise fuel more finely, leading to more complete and efficient combustion. The precise electronic control over injection timing and quantity also ensures that fuel is only delivered exactly when and where it's needed, minimising waste.

Are unit injectors still relevant in today's vehicles?
While common rail systems have become dominant in many modern passenger cars, unit injectors remain highly relevant in certain heavy-duty applications, commercial vehicles, and industrial engines where their robustness, high power output, and efficiency are particularly valued.

What role does the ECU play in a unit injector system?
The Engine Control Unit (ECU) is absolutely vital. It controls the energisation and de-energisation of the solenoid valve in each injector, thereby dictating the precise start and end of the injection, as well as the exact quantity of fuel delivered. It also manages advanced functions like cylinder balancing and multi-pulse injection.

Conclusion

The unit injector system stands as a testament to intelligent engineering, offering a robust, efficient, and highly precise method for fuel delivery in diesel engines. Its innovative design, which eliminates high-pressure pipes and integrates the pump and nozzle, has paved the way for engines that are not only more powerful and fuel-efficient but also cleaner and quieter. With its capacity for ultra-high injection pressures and sophisticated electronic control, the unit injector has played a crucial role in advancing diesel technology, ensuring that these hard-working engines continue to meet the ever-increasing demands for performance and environmental responsibility.
