Astra H Gearbox Oil Change: 5-Speed Capacity Guide

Ensuring your car’s gearbox is properly lubricated is paramount to its longevity and smooth operation. Just like engine oil, gearbox oil degrades over time, losing its viscosity and protective qualities. For owners of the popular Vauxhall Astra H 1.7 CDTi, understanding how to maintain this vital component can save you a significant amount in repair costs and enhance your driving experience. This comprehensive guide will walk you through the process of changing your gearbox oil, with a specific focus on the oil capacity for a 5-speed gearbox, ensuring you have all the information you need to tackle this task with confidence.

While the prospect of changing gearbox oil might seem daunting, it's a perfectly achievable DIY task for those with a bit of mechanical inclination and the right tools. I recently undertook this job on my own Astra H 1.7 CDTi, and I can assure you it’s less complicated than it appears. The key is proper preparation, understanding each step, and adhering to the correct oil specifications. Let's dive into why this maintenance is so important and how you can carry it out safely and effectively.

Why Gearbox Oil Matters: The Heart of Your Transmission

Your car's gearbox is a complex system of gears, bearings, and shafts that work in harmony to transmit power from the engine to the wheels. This intricate dance creates significant friction and heat, and without adequate lubrication, these components would quickly wear out, leading to noisy operation, difficulty shifting gears, and eventually, catastrophic failure. Gearbox oil plays several crucial roles:

• Lubrication: It reduces friction between moving parts, preventing wear and tear.
• Cooling: It dissipates heat generated by friction, maintaining optimal operating temperatures.
• Cleaning: It carries away metallic particles and other contaminants, keeping the internal components clean.
• Corrosion Protection: It protects metal surfaces from rust and corrosion.

Over time, the oil breaks down due to heat and shear forces, becoming less effective. It also accumulates tiny metal particles from normal wear, which can become abrasive. Changing your gearbox oil at recommended intervals, or when you notice signs of degradation, is a proactive measure that can significantly extend the life of your transmission and maintain its performance.

Is This Job For You? DIY vs. Professional Service

Deciding whether to tackle a gearbox oil change yourself or take it to a professional depends on your comfort level, available tools, and time. For many, the DIY route offers significant cost savings and the satisfaction of understanding their vehicle better. The job itself isn't technically difficult, but it does require getting underneath the car and dealing with fluid. If you're unsure about working under a lifted vehicle or handling automotive fluids, a professional garage is always a safe bet. However, if you're keen to learn and save some quid, this guide is designed to empower you.

Getting Started: Tools & Preparation

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and more efficient. For this job, you'll need the following:

Safety is paramount when working under a vehicle. Always use sturdy car ramps or properly rated axle stands. Never rely solely on a jack. Ensure the car is on a level, hard surface and the handbrake is engaged, with wheels chocked.

The Step-by-Step Guide to Gearbox Oil Replacement

Preparation: Warming Up and Lifting Your Astra

Firstly, it's advisable to have the gearbox oil warm before draining. This makes the oil less viscous and allows it to drain more thoroughly. Take your Astra for a short 10-15 minute drive. This will bring the oil up to temperature without making it excessively hot to handle.

Once back, position your car on ramps or jack it up and secure it on axle stands. For this particular job, I found ramps to be ideal as they allow the car to remain relatively level, which is crucial for accurate refilling later. Drive the car onto the ramps, ensuring it's securely positioned. Engage the handbrake and use wheel chocks on the rear wheels for added security.

Accessing the Filler Point: Battery Removal

The filler hole for the gearbox on the Astra H 1.7 CDTi is cleverly tucked away underneath the battery tray. This means you'll need to remove the battery and its tray to gain access.

1. Disconnect the Battery: Start by disconnecting the positive (+) terminal first, then the negative (-) terminal. It's good practice to cover the disconnected terminals with paper towels or a non-static cloth to prevent accidental contact with metal surfaces, which could cause a short circuit.
2. Remove Battery Clamp: Undo the bolt that secures the battery clamp and remove the clamp. Keep this bolt and clamp in a safe place.
3. Lift Out the Battery: Carefully lift the battery out of its tray and set it aside. Batteries are heavy, so be mindful of your back.
4. Remove Battery Tray Obstacles: The battery tray isn't just held down by bolts; it also has the ECU, various connectors, coolant pipes, and battery feeds tied or clipped onto it. You'll need to unclip these or carefully cut any cable ties securing them. Be extremely cautious not to snip any wires! Take note of how everything is routed so you can reassemble it correctly.
5. Unbolt the Battery Tray: There are typically three bolts holding the battery tray in place. One of these is often quite hidden and notoriously difficult to reach. A long extension on your ratchet will be your best friend here. Patience is key!
6. Remove the Battery Tray: Once all attachments are freed and bolts are removed, you can lift out the battery tray.
7. Locate the Filler Bolt: With the tray removed, you'll now have a clear view of the top of the gearbox. The filler bolt should be clearly visible. It's usually a large bolt, often with a star drive head. Loosen this bolt but do not remove it fully yet. This prevents any debris from falling into the gearbox while you work underneath the car.

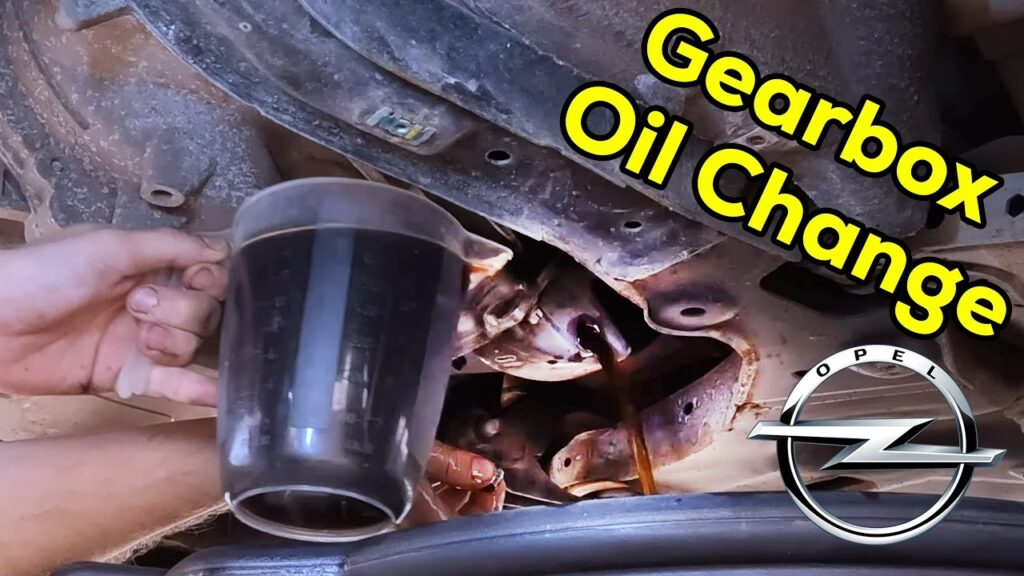

Draining the Old Oil: Sump and Level Bolts

Now that the filler point is accessible, it's time to get underneath the car to drain the old oil. If you haven't already, ensure the car is securely lifted on ramps or axle stands.

1. Locate the Sump and Level Bolts: Underneath the gearbox, you'll find two key bolts: the sump bolt (drain plug) at the very bottom, and the level bolt, typically located slightly higher up on the side of the gearbox casing. Both usually require a T40 star drive.
2. Position Catch Container: Place your large container directly underneath the sump bolt to catch the draining oil.
3. Remove the Level Bolt First: This is a crucial step. Removing the level bolt first allows air to enter the gearbox as the oil drains, preventing a vacuum and ensuring a smoother, more complete drain.
4. Remove the Sump Bolt: With the level bolt removed, proceed to remove the sump bolt. Be prepared for the oil to gush out once this bolt is loosened.
5. Allow to Drain: Let all the old oil drain out completely. This can take some time, so be patient.
6. Re-fit Sump Bolt: Once the oil flow has reduced to a slow drip, re-fit the sump bolt and tighten it securely. Do NOT re-fit the level bolt yet. The level bolt hole will be your indicator for the correct oil level when refilling.

Refilling with Fresh Oil: The Crucial Capacity

With the old oil drained and the sump bolt secured, it’s time for the most critical part: refilling with the correct amount of fresh gearbox oil. This is where knowing your gearbox type and its specific capacity is vital.

For the Vauxhall Astra H 1.7 CDTi, the oil capacity differs depending on whether you have a 5-speed or 6-speed gearbox:

As per the information provided, for a 5-speed gearbox, you will need 1.75 litres of gearbox oil. Most gearbox oil comes in 1-litre bottles, so you'll likely need two bottles, using 1.75 from them. Ensure you're using the correct Vauxhall specified oil (part number: 09120541) to guarantee compatibility and optimal performance.

1. Insert Funnel: Go back under the bonnet. If you haven't already, fully remove the filler hole bolt and insert a clean funnel into the opening. A funnel with a long, flexible spout can be particularly helpful here.
2. Begin Pouring Oil: This step is best done with a helper. One person can pour the new oil slowly into the funnel, while the other person is underneath the car, watching the level hole.
3. Pour Slowly and Monitor: For a 5-speed box, start by slowly pouring in approximately 1.5 litres of the new oil. Allow it to settle for a couple of minutes. Then, continue pouring the remaining 0.25 litres very slowly, until oil just begins to drip out of the level hole. This indicates that the gearbox has reached its correct fill level.
4. Stop Pouring and Settle: Once oil starts to drip from the level hole, stop pouring immediately. Give the gearbox 5-10 minutes for the oil to fully settle and for any remaining air bubbles to escape. The dripping from the level hole should slow down significantly or virtually stop.
5. Re-fit Level Bolt: Once the dripping has virtually ceased, re-fit the level hole bolt and tighten it securely.

Reassembly: Putting It All Back Together

With the gearbox now filled with fresh oil, it's time to reverse the disassembly process.

1. Lower the Car: Carefully lower your car from the ramps or axle stands.
2. Re-fit Filler Bolt: Under the bonnet, remove the funnel and re-fit the filler hole bolt. Tighten it securely.
3. Re-install Battery Tray: Position the battery tray back into place. Remember that tricky hidden bolt between the fuse box and the battery tray wall – this one can be a real pain! Re-attach all the coolant pipes, wires, connectors, and the ECU that you unclipped or cut ties from earlier. Double-check that everything is securely fastened and routed correctly.
4. Re-install Battery: Carefully place the battery back into its tray.
5. Reconnect Battery Terminals: Reconnect the negative (-) terminal first, then the positive (+) terminal. This order helps prevent sparks.
6. Re-attach Battery Clamp: Secure the battery with its clamp.

Post-Procedure Tips and Considerations

Congratulations, you have now completed the gearbox oil replacement! The job might have taken you around two hours, especially if it was your first time and you were meticulously checking everything and perhaps taking notes for future reference. Here are a few things to keep in mind after the job:

• Radio Code: Since the battery was disconnected, your car's radio/stereo may require you to re-enter its security code. Have this code handy.
• Electrical Functions: Some minor electrical functions or warning lights might behave unusually immediately after reconnecting the battery. Often, simply switching the ignition off and restarting the car will resolve these issues.
• First Drive: Do not 'thrash' your car for the first 10-15 minutes after the oil change. Drive gently, allowing the new oil to circulate properly throughout the gearbox and fully coat all internal components.
• Check for Leaks: Over the next few days, periodically check underneath your car for any signs of oil leaks around the sump bolt, level bolt, and filler bolt. A small drip can become a big problem.

Frequently Asked Questions (FAQs)

Q1: How often should I change my gearbox oil?

A1: Unlike engine oil, gearbox oil doesn't typically have a strict service interval like every 10,000 miles. Many manufacturers consider it a 'lifetime' fluid, but this refers to the 'lifetime' of the warranty, not the vehicle itself. For optimal longevity, it's generally recommended to change gearbox oil every 60,000 to 100,000 miles, or every 5-7 years, especially if you do a lot of stop-start city driving or heavy towing. If you notice stiff gear changes or unusual noises, it's worth checking and potentially changing the oil sooner.

Q2: Can I use any gearbox oil?

A2: No, absolutely not. Using the incorrect type of gearbox oil can cause serious damage to your transmission. Always refer to your car's owner's manual or use the specific Vauxhall part number (09120541) provided to ensure you're using the correct viscosity and specification (e.g., GL-4 or GL-5, synthetic or mineral). The wrong oil can lead to poor lubrication, seal degradation, and premature wear.

Q3: What are the signs that my gearbox oil needs changing?

A3: Common signs include difficulty shifting gears (especially when cold), grinding noises when changing gears, a whining or humming noise from the gearbox, or a noticeable increase in transmission temperature. If the oil appears very dark, smells burnt, or has metal particles in it when you drain it, it's definitely time for a change.

Q4: Do I need to flush the gearbox?

A4: For a manual gearbox, a simple drain and refill is usually sufficient. A full 'flush' is more commonly associated with automatic transmissions and requires specialised equipment. For a manual gearbox, a thorough drain allows most of the old, contaminated oil to escape.

Q5: What if I overfill the gearbox oil?

A5: Overfilling can be just as detrimental as underfilling. Excess oil can cause increased pressure within the gearbox, leading to seals blowing out, leaks, and foaming of the oil. Foaming reduces the oil's lubricating properties and can lead to overheating. This is why using the level bolt as an indicator is crucial – it ensures you fill the gearbox to the correct capacity.

Conclusion

Changing the gearbox oil on your Vauxhall Astra H 1.7 CDTi, especially the 5-speed variant with its 1.75 litres capacity, is a rewarding maintenance task that contributes significantly to the health and performance of your vehicle. By following these detailed steps, gathering the correct tools, and prioritising safety, you can ensure your transmission remains in top condition, providing you with smooth shifts and reliable driving for many miles to come. Regular maintenance like this is the secret to a long and happy life for your car.
