On-Car Brake Lathe: The Ultimate Solution?

Few things are as disconcerting whilst driving as a brake pedal that pulsates, a steering wheel that shudders, or a cacophony of squeals and grinds emanating from your wheels. These aren't just minor annoyances; they're often clear indicators of underlying issues with your vehicle's braking system, compromising both your safety and driving comfort. While many immediately think of replacing brake discs and pads, a more sophisticated and often more effective solution exists for specific problems: the on-car brake lathe. But is it truly the ultimate answer to your braking woes?

Understanding Common Brake Disc Issues

Before delving into the solution, it's crucial to understand why brake discs can become problematic. Discs are subjected to immense heat, friction, and environmental exposure, leading to various forms of wear and damage.

The Silent Enemy: Corrosion and Surface Imperfections

In the damp, often salty, climate of the UK, corrosion is a persistent adversary for metal components, and brake discs are no exception. Rust can build up on the disc surface, especially on areas not regularly swept by the brake pads. This leads to an uneven braking surface, reducing the effective contact area between the pad and disc. The consequences are immediate: reduced braking performance, uneven pad wear, and often, an unsightly appearance – a particular concern for used cars on a showroom or forecourt where aesthetics can significantly influence a sale.

The Jitters: Disc Runout and Vibrations

One of the most common complaints related to brake discs is the presence of vibrations. These can be felt through the brake pedal, the steering wheel, or even the entire vehicle chassis when braking. This phenomenon is often attributed to 'warped' discs, but the technical term is 'disc runout' or 'disc thickness variation' (DTV). Runout refers to the wobble of the disc as it rotates, while DTV means the disc isn't uniformly thick across its surface. Both conditions cause the brake pads to momentarily lose and regain contact with the disc, resulting in the pulsating sensation and noise. These issues are often exacerbated by improper fitting, uneven tightening of wheel nuts, or excessive heat during heavy braking.

The Unwelcome Sound: Brake Noise

From high-pitched squeals to low-frequency groans and grinding noises, brake noise is not only irritating but also a sign that something isn't quite right. While new pads need to bed in, and some noise can be normal, persistent or excessive noise often points to surface irregularities on the disc, incorrect pad material, or issues with caliper components. A common cause is glazing or hardening of the disc surface, or simply an uneven surface that causes the pad to vibrate against it.

The On-Car Brake Lathe: A Modern Solution

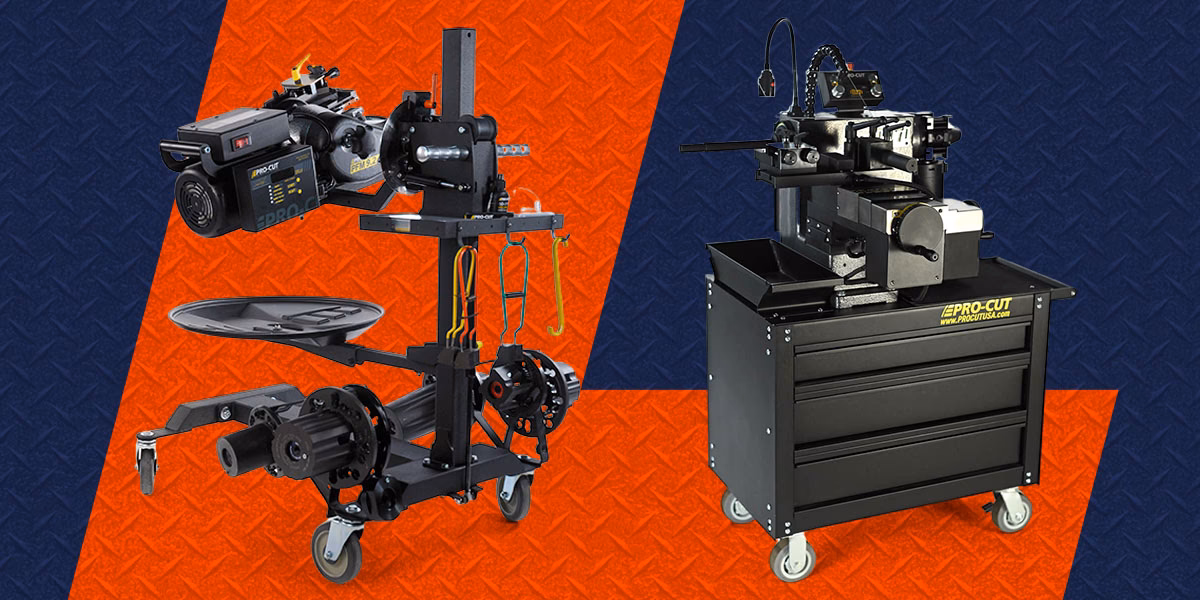

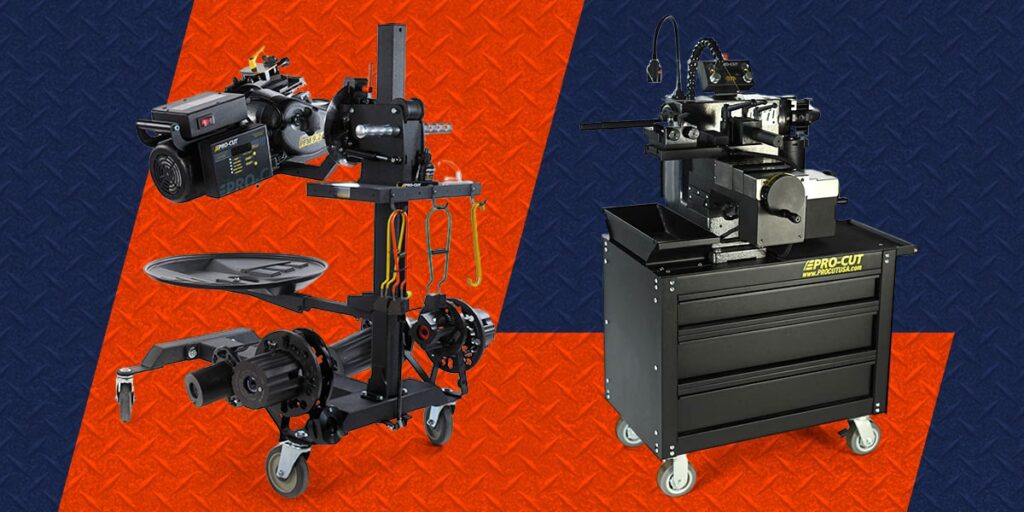

Enter the on-car brake lathe, a piece of equipment designed to precisely resurface brake discs while they remain mounted on the vehicle's hub. This is a significant departure from traditional off-car bench lathes, where discs are removed and machined independently.

What is an On-Car Lathe?

An on-car lathe is a specialised machine that attaches directly to the vehicle's hub assembly once the wheel and caliper are removed. It then rotates the brake disc slowly while a precision cutting tool shaves off a minuscule amount of metal from both sides of the disc. This process effectively removes surface imperfections, rust, and corrects any disc runout or DTV that might be present.

Why it's often the "Only Permanent Solution"

The key advantage of an on-car lathe lies in its ability to correct the disc's alignment relative to the vehicle's hub. Even a brand-new brake disc, when mounted on a slightly imperfect or contaminated hub, can exhibit runout. An off-car lathe cannot account for these hub-related imperfections. By skimming the disc directly on the car, the on-car lathe ensures that the newly machined surface is perfectly parallel and concentric with the vehicle's specific hub assembly. This hub-centric precision is why, for issues like persistent vibrations, runout, or uneven corrosion, an on-car lathe is frequently cited as the only truly permanent solution, as it addresses the root cause of the problem in situ.

When to Consider On-Car Disc Skimming

While not every brake issue necessitates disc skimming, there are specific scenarios where it is highly recommended:

• Persistent Brake Noise: If your brakes are consistently squealing, grinding, or groaning despite new pads, surface irregularities are a likely culprit.
• Brake Pedal or Steering Wheel Vibrations: The tell-tale sign of disc runout or DTV. If you feel pulsations when braking, skimming can often resolve this.
• Visible Corrosion or Scoring: When discs appear rusty, pitted, or have shallow grooves, an on-car lathe can restore a smooth, clean surface, improving both performance and aesthetics.
• Before New Pad Installation on Slightly Worn Discs: To ensure optimal bedding-in of new brake pads and maximise their life and performance, skimming slightly worn discs can provide a perfectly flat surface for the new pads to mate against.
• High-Performance or Luxury Vehicles: These vehicles often demand the highest level of braking performance and precision, making on-car skimming an ideal choice.

The Skimming Process: Precision in Action

The process of on-car disc skimming is remarkably precise and efficient:

1. Vehicle Preparation: The car is safely lifted, and the wheels are removed. The brake caliper is carefully detached and suspended without straining the brake hose.
2. Lathe Mounting: The on-car lathe unit is securely mounted to the vehicle's hub assembly. This is a critical step, ensuring the lathe is perfectly aligned with the hub.
3. Precision Cutting: The lathe's motor slowly rotates the brake disc, while a pair of cutting tools simultaneously shave a minimal amount of material from both sides of the disc. This dual-sided cutting ensures parallelism and a perfectly flat surface.
4. Measurement and Finish: Throughout the process, technicians monitor the disc's thickness to ensure it remains above the manufacturer's minimum specification. Once complete, the disc surface is cleaned, and the brake components are reassembled.

The entire process for a single disc can often be completed in less than an hour, making it a relatively quick solution compared to waiting for new parts or extensive replacements.

Key Benefits of On-Car Lathe Service

• Restored Braking Performance: A perfectly flat and true disc surface ensures maximum contact with brake pads, leading to more effective and consistent braking.
• Eliminates Noise and Vibrations: By correcting runout and surface imperfections, the primary causes of brake noise and pedal pulsations are eradicated.
• Extends Disc Life: If sufficient material remains, skimming can significantly prolong the life of your existing brake discs, delaying the need for full replacement.
• Optimises New Pad Performance: New pads bed in more efficiently and effectively on a perfectly flat surface, leading to better initial braking and longer pad life.
• Cost-Effective: In many cases, skimming is a more economical option than purchasing and fitting entirely new brake discs, especially for higher-end vehicles.
• Improved Safety and Comfort: Smooth, quiet, and effective brakes contribute significantly to overall driving safety and comfort.
• Enhanced Vehicle Appearance: For dealerships or private sellers, removing rust and scoring makes discs look new, improving the vehicle's aesthetic appeal.

On-Car Skimming vs. Alternatives: A Comparison

It's important to understand how on-car skimming compares to other brake disc solutions:

Limitations and When Not to Skim

While an on-car lathe is a powerful tool, it's not a universal fix. It's crucial that the discs have sufficient material remaining to be safely skimmed. Every brake disc has a manufacturer-specified minimum thickness. If the disc is already at or below this limit, skimming is not possible and would be unsafe. In such cases, or if the discs are severely grooved, cracked, or deeply pitted, full disc replacement is the only safe and viable option. A qualified technician will always measure your discs to determine suitability.

Finding a Reputable Service: The "Premier" Garage Difference

The question of whether "Premier" garages offer a brake lathe service is an important one. The answer is often yes, but with nuances.

Many reputable garages, particularly those that pride themselves on comprehensive and advanced maintenance, do invest in on-car brake lathe technology. This is because they recognise its value in providing a superior and more lasting solution for certain brake issues, especially for discerning customers who demand the best.

However, it's also true that some specialist garages, particularly those catering to high-end or exotic marques like Porsche or Ferrari, might only offer this service for the specific vehicles they specialise in. This is often due to the unique specifications, precision requirements, and often higher cost of components associated with these vehicles, making a precise on-car skim a highly desirable, and sometimes necessary, service to maintain optimal performance and avoid costly premature replacements. If you own such a vehicle, it is always advisable to contact these specialist garages directly to confirm their service offerings for your specific make and model.

For all vehicle owners, when seeking an on-car lathe service, always look for garages that: have modern, well-maintained on-car lathe equipment; employ experienced and factory-trained technicians; and can provide clear explanations of the process and expected outcomes. Don't hesitate to ask about their experience with your particular vehicle type.

Frequently Asked Questions (FAQs)

How long does on-car disc skimming take?

Typically, the skimming process for one brake disc can take anywhere from 15 to 45 minutes, depending on the severity of the issue and the technician's experience. A full axle (two discs) might take around an hour to an hour and a half.

Is on-car disc skimming expensive?

The cost of skimming is generally less than the cost of purchasing and fitting new brake discs, especially for performance or luxury vehicles where replacement discs can be very costly. It offers a cost-effective alternative for extending the life of existing discs.

Can all brake discs be skimmed?

No. Discs can only be skimmed if they are above the manufacturer's minimum thickness specification. Severely grooved, cracked, or warped discs that are beyond light resurfacing will require replacement.

Does skimming reduce the life of my brake discs?

Skimming removes a very small amount of metal from the disc surface. While this technically reduces the disc's overall life by a small margin, it significantly extends the *usable* life of a disc that would otherwise cause problems. The alternative is often premature replacement due to noise or vibration issues.

Will skimming fix all brake noises?

While skimming is highly effective at eliminating noise caused by surface imperfections and runout, it won't fix noises originating from other components, such as worn brake pads, seized calipers, or worn suspension parts. A thorough diagnosis by a qualified technician is always recommended.

What is the minimum thickness requirement?

Every brake disc has a minimum thickness stamped on its edge or specified in the manufacturer's service manual. This is a critical safety limit. A technician will measure your disc thickness before skimming to ensure it will remain above this limit after the process.

Conclusion

The on-car brake lathe is a sophisticated, highly effective solution for a range of common brake disc problems, particularly those related to surface imperfections, corrosion, and frustrating vibrations caused by disc runout. By addressing the disc's geometry precisely in relation to the vehicle's hub, it offers a level of precision that often makes it the most permanent and satisfying solution. While not suitable for all brake issues, when applied correctly, it can significantly enhance your vehicle's braking performance, eliminate irritating noises, and extend the life of your brake components, ensuring a safer and more comfortable driving experience on the roads of the UK.
