Volvo XC60 T5: Oil Change Guide

DIY Oil Change for Your Volvo XC60 T5 (2.0L Turbo)

Keeping your Volvo XC60 T5 running at its best involves regular maintenance, and one of the most crucial tasks is a timely oil change. This guide will walk you through the process of changing the motor oil and replacing the oil filter on the 2.0-litre turbocharged inline four-cylinder engine (specifically the B4204T11) found in first-generation Volvo XC60 T5 models from 2015, 2016, and 2017. While this tutorial is tailored for these specific years, owners of other Volvo vehicles with different engine configurations might also find the general principles and steps helpful.

Performing this yourself can save you money and give you the satisfaction of knowing the job has been done correctly. With the right tools and a little patience, you can ensure your XC60's engine remains lubricated and protected.

What You'll Need: Essential Tools and Supplies

Before you begin, gather all the necessary items. Having everything ready will make the process smoother and more efficient. For this particular job, you will require:

• Torx T30 star bit screwdriver: For removing the under-engine cover.
• 17mm socket: Paired with a 3/8" drive ratchet for the oil drain plug.
• 86mm oil filter wrench with 16 flutes: Specifically designed for the Volvo oil filter housing.
• Automotive funnel: To pour the new oil cleanly.
• New synthetic SAE 5W-30 motor oil: Approximately 6.2 U.S. quarts (5.9 litres). Always consult your owner's manual for the exact specification.
• Replacement OEM oil filter: Volvo part number 31372212 is compatible with the 2.0L Turbo I4 engine.
• Replacement oil drain plug gasket: Volvo part number 977751, if your drain bolt is equipped with one and it needs replacing.
• Oil catch basin: To collect the old, used oil.
• Shop rags or paper towels: For cleaning up spills and wiping components.
• Wheel chocks: For safety to prevent the vehicle from rolling.
• Torque wrench (optional but recommended): To ensure the drain plug is tightened to the correct specification.

Step-by-Step Guide to Changing Your Volvo XC60 T5's Oil

1. Prepare the Vehicle

Start by warming up the engine for a few minutes. This helps to suspend any sludge or contaminants in the oil and allows it to drain more freely. Once the engine is warm, park your XC60 T5 on a level surface. Engage the parking brake firmly and place wheel chocks on both sides of the rear tires for added safety. A level surface is crucial for an accurate oil level reading later.

2. Remove the Under-Engine Cover (Skid Plate)

Slide yourself under the engine bay. You'll need the Torx T30 star bit screwdriver to remove the eight screws securing the under-engine cover (also known as a splash guard or under-engine cover) to the bottom of the engine bay. Turn these screws counterclockwise. Keep these screws in a safe place, as you'll need them to reattach the cover later. Note that the cover might also be secured by a metal friction fastener clip on the driver's side. Once all screws and clips are removed, carefully set the under-engine cover aside.

3. Locate and Drain the Old Oil

With the under-engine cover removed, you should be able to locate the silver metal oil pan. The oil drain bolt is typically found at the rear edge of the oil pan, with its head facing towards the back of the SUV. Just in front of the oil pan, you'll find the round black plastic oil filter cap.

Position your used oil catch basin directly beneath the oil drain bolt. Using the 17mm socket and your ratchet, begin to loosen the oil drain bolt by turning it counterclockwise. Be cautious as you remove the bolt; the oil might still be quite hot. Once loosened, you can carefully spin the bolt out by hand. Allow the old oil to drain completely. This can take several minutes, or until the flow reduces to an occasional drip.

4. Inspect and Replace the Drain Plug Gasket (If Applicable)

While the oil is draining, take a moment to inspect the oil drain bolt. If it has a washer or gasket, check its condition. If it appears worn, cracked, or damaged, it's best to replace it. The correct replacement gasket for this Volvo is part number 977751.

Once the oil has finished draining, use a clean rag or paper towel to wipe away any debris from the oil drain port on the oil pan. Ensure that the old gasket isn't still stuck to the engine block. Now, carefully thread the oil drain bolt back into the oil pan by hand, turning clockwise a few turns to avoid cross-threading. Once it's snug, use the 17mm socket and ratchet to tighten it. If you have a torque wrench, aim for approximately 28 lb-ft (38 Nm). Otherwise, tighten it just past hand-tight. Double-check that the drain bolt is secure before proceeding.

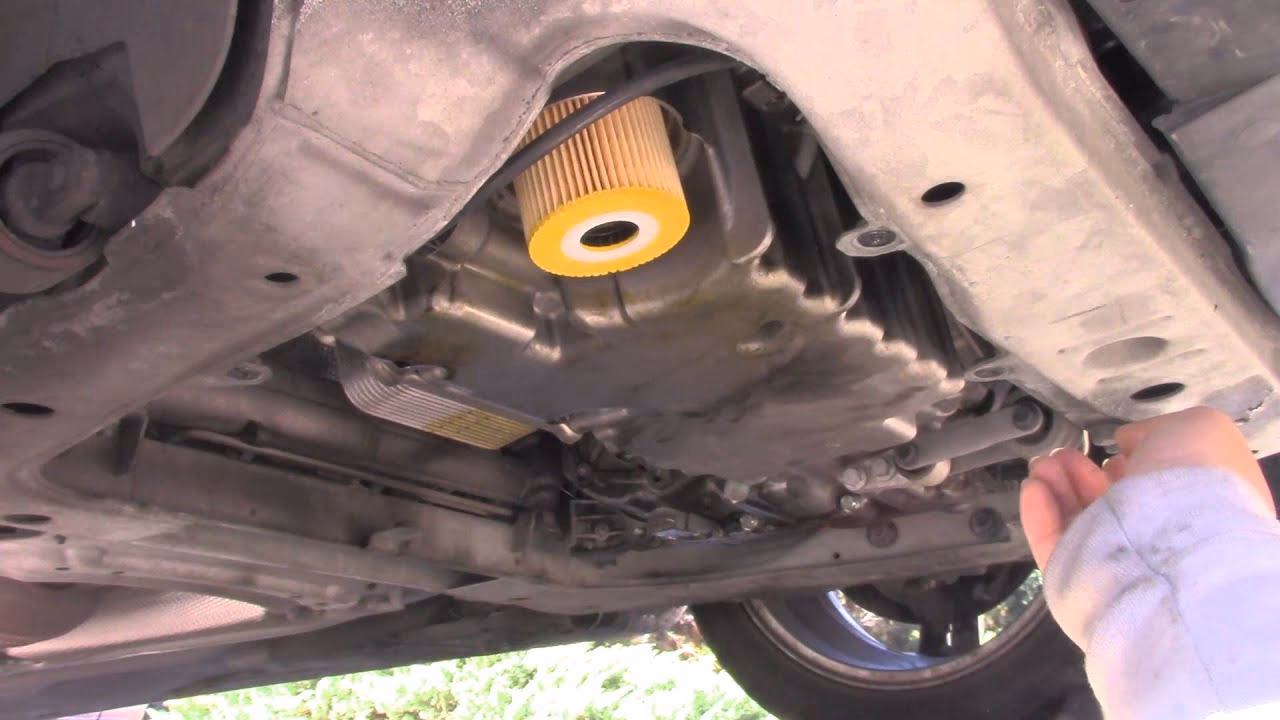

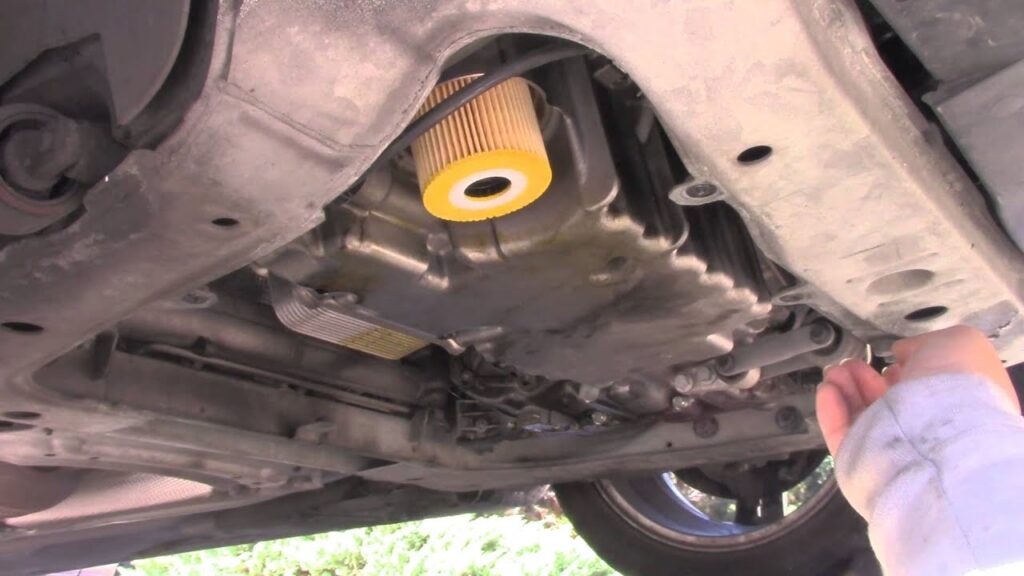

5. Remove and Replace the Oil Filter

Move your oil catch container to be positioned beneath the oil filter housing. Some filter housings have a small drain plug at the bottom (often requiring a 6mm Allen key or hex wrench) that you can remove first to drain some of the oil from the filter itself. This is an optional step that can minimise mess.

Now, attach the 86mm oil filter wrench (with its 16 flutes) to your 3/8" drive ratchet. Fit the wrench onto the oil filter cap and turn it counterclockwise to loosen it. Once loosened, carefully spin the oil filter cap off by hand. Pull out the old oil filter cartridge and place it in the catch basin. Allow any residual oil to drain.

With the old filter removed, you'll need to take off the old rubber O-ring gasket from the filter cap. It's usually located in a groove on the cap. Lubricate the new O-ring gasket with a bit of fresh 5W-30 oil. This lubrication helps to create a good seal and makes future removal easier. Slide the new, lubricated O-ring onto the threads of the filter cap.

Insert the new oil filter cartridge into the filter cap until it clicks securely into place. Now, carefully screw the oil filter cap (with the new filter and O-ring) back onto the engine block by hand, turning clockwise. Tighten it approximately 1/4 to 1/3 of a turn past when it feels snug. Again, ensure the filter cap is securely tightened.

6. Add New Engine Oil

Locate the oil filler cap on the engine bay, typically found in the centre of the rubber engine cover. Twist this cap off counterclockwise and set it aside. Insert your automotive funnel into the oil filler hole.

The 2.0L B4204T11 engine has a total oil capacity of 6.2 U.S. quarts (5.9 litres) when changing the oil and filter. Slowly and carefully pour the new synthetic SAE 5W-30 oil into the funnel. It's a good idea to start with slightly less than the full capacity. You might not need to add all 6.2 quarts to reach the correct level, especially if some old oil remained in the system. Always aim for the "Max" or "Full" line indicated on the electronic oil level display.

Once you've added the oil, replace the oil filler cap by twisting it back on clockwise.

7. Check the Oil Level Electronically

Modern Volvos, including this XC60 T5, often do not have a traditional dipstick. Instead, they rely on an electronic oil level sensor. To check the oil level:

1. Place your smart key fob into its designated slot on the dashboard.
2. Press and hold the "Start/Stop" button to turn the ignition to "Key Position II" (also known as "Run" mode). Do not start the engine. Release the button once the warning lights illuminate on the instrument cluster.
3. Using the thumbwheel on the left stalk of the steering wheel, navigate through the driver information system until you find the "Oil Level" option.
4. Press the "OK" button at the end of the left stalk to view the oil level display.

Important Note: The owner's manual states that the electronic oil level system may not be entirely accurate immediately after an oil change. It can take up to 30 km (approximately 18.6 miles) of driving or for the car to be stationary for at least two hours for the system to provide a precise reading. It's often best to check the level after a short drive.

8. Reinstall the Under-Engine Cover

With the oil level checked and confirmed, you can now reattach the under-engine cover. Position it back in place and secure it using the eight Torx T30 screws you removed earlier. Ensure all screws are tightened properly.

Frequently Asked Questions (FAQs)

Q1: Does the Volvo XC60 T5 have an oil filter?

A1: Yes, the Volvo XC60 T5, particularly the 2.0L Turbo I4 engine, uses a cartridge-style oil filter that is housed within a removable cap.

Q2: What is the correct oil for my Volvo XC60 T5?

A2: For the 2.0L Turbo I4 engine in the 2015-2017 XC60 T5, the recommended oil is synthetic SAE 5W-30. Always confirm with your owner's manual for the most accurate specification.

Q3: How much oil does the Volvo XC60 T5 need?

A3: The oil capacity for an oil and filter change on the 2.0L Turbo I4 engine is approximately 6.2 U.S. quarts (5.9 litres).

Q4: How often should I change the oil in my Volvo XC60 T5?

A4: It's generally recommended to change the oil and filter every 7,500 to 10,000 miles, or as specified in your owner's manual. Driving conditions can influence this interval.

Q5: Why is my Volvo XC60 T5 not showing a dipstick?

A5: Many modern vehicles, including this generation of the Volvo XC60, have replaced traditional dipsticks with electronic oil level sensors for a more precise reading and to reduce the risk of oil leaks.

Concluding Thoughts

Performing your own oil changes on your Volvo XC60 T5 is a rewarding task that contributes significantly to the longevity and performance of your vehicle. By following these detailed steps, you can confidently tackle this essential maintenance yourself. Remember to always prioritise safety, use the correct parts and fluids, and consult your owner's manual if you have any doubts. Regular oil changes are a cornerstone of good automotive care, ensuring your XC60 continues to provide reliable and enjoyable driving for years to come.
