Unsticking Your Turbo: A Golf TDI Guide

Ever noticed your faithful Golf TDI feeling a bit sluggish, perhaps with an unexpected puff of black smoke from the exhaust, especially after a period of gentle driving? Or worse, has your dashboard lit up with a dreaded 'limp mode' or an 'overboost' error code? These are classic symptoms of a common affliction among modern diesel engines, particularly those equipped with Variable Geometry Turbochargers (VGTs): carbon buildup causing the turbo vanes to stick.

One common question that arises when discussing turbo issues is: do turbo vanes have oil going through them? The simple answer is no, not directly. While your turbocharger relies heavily on engine oil for lubrication of its high-speed bearings and for cooling, this oil circulates within the central shaft and bearing housing. The vanes themselves, located on the exhaust turbine side of the turbo, are exposed to hot exhaust gases. It is from these exhaust gases, specifically unburnt fuel particles and soot, that carbon deposits accumulate on the vanes and their housing, leading to the sticking phenomenon. This distinction is crucial to understanding why carbon buildup is the primary issue, not oil contamination of the vanes.

Understanding Your Turbocharger: The Basics

A turbocharger is a forced induction device that uses the exhaust gases to spin a turbine, which in turn drives a compressor. This compressor then forces more air into the engine's cylinders, leading to a significant increase in power and efficiency. Many modern diesel engines, like your Golf TDI, utilise Variable Geometry Turbos (VGTs), also known as Variable Nozzle Turbos (VNTs). These turbos have a ring of movable vanes around the turbine wheel. By changing the angle of these vanes, the turbo can alter the speed and direction of exhaust gas hitting the turbine, effectively optimising boost pressure across a wide range of engine speeds. This allows for excellent low-end torque and reduced turbo lag. However, this sophisticated mechanism is also its Achilles' heel when it comes to carbon buildup.

The Culprit: Carbon Buildup

The primary reason for sticking turbo vanes is the accumulation of carbon and soot deposits. This is particularly prevalent in vehicles that spend a lot of time "pootling about town" – in stop-start traffic, at low RPMs, or on short journeys where the engine and exhaust system don't get hot enough to burn off these deposits efficiently. Diesel engines, by their nature, produce soot as a byproduct of combustion. When the exhaust gas temperatures are insufficient, this soot doesn't fully combust or escape, instead clinging to the hot surfaces within the turbo, especially the intricate variable geometry vanes and their housing. Over time, these deposits harden, restricting the smooth movement of the vanes, causing them to stick.

Recognising the Symptoms of a Sticking Turbo

Identifying a sticking turbo early can save you from more severe issues down the line. Here are the tell-tale signs to look out for:

• Lack of Power or 'Limp Mode': This is often the most noticeable symptom. The car might feel sluggish, especially under acceleration, or suddenly lose power and enter 'limp mode' (reduced engine power to prevent damage). This often coincides with a 'Turbo Overboost' code.
• Black Smoke and 'Pooting': As one Golf TDI owner experienced, a significant 'soot circle' on the ground after revving the engine, or consistent puffs of black smoke, indicates incomplete combustion or an inability for the turbo to manage exhaust gases effectively due to restrictions. This is often referred to as 'pooting'.
• Turbo Overboost Codes: When the vanes stick in a position that causes too much boost pressure, the engine's ECU will detect an 'overboost' condition and often trigger a fault code, putting the car into limp mode to protect the engine.
• MAF Sensor 'Impossible Reading' Codes: While a faulty Mass Air Flow (MAF) sensor can be a standalone issue, it's frequently linked to turbo problems. If the turbo isn't boosting correctly, the amount of air entering the engine won't match what the MAF sensor expects, leading to 'impossible reading' errors. Cleaning the MAF sensor might offer temporary relief, but if the underlying turbo issue persists, the errors will return.
• Restricted Power at Higher Speeds: As described by one owner, the car might 'throttle back' in higher gears (e.g., 5th gear around 70mph) when you put your foot down. This is typically the ECU cutting power to prevent damage due to incorrect boost or air readings.

Diagnosing a Sticking Turbo Actuator Rod

Before considering turbo removal, it's crucial to confirm the vanes are indeed sticking. The actuator rod provides a visual indication:

1. With the engine running, get underneath the car (safely supported on axle stands or a ramp) and locate the turbo's vacuum actuator. This is usually a round canister with a rod protruding from it, connected to a lever on the turbo itself.
2. Carefully remove the vacuum hose from the actuator.
3. Observe the actuator rod: It should move freely and smoothly through its full travel, typically about an inch.
4. If it moves the full travel but appears to have spots of delay or 'stutter', this is a strong sign that the vanes are sticking.
5. In more severe cases, the rod may move very little or not at all, definitively indicating jammed vanes.

Initial Remedies and 'The Italian Tune-Up'

For minor carbon buildup, some drivers have found success with what's colloquially known as the 'Italian Tune-Up'. This involves driving the car hard – safely and within legal limits – using higher gears on a motorway for an extended period. The idea is to get the exhaust system and turbo hot enough to burn off some of the carbon deposits. While this can provide incremental improvements, as one user noted, it's often a temporary solution and not a cure for significant blockage. Cleaning the MAF sensor can also help with related symptoms, but again, it addresses the symptom, not the root cause.

The Ultimate Solution: Turbo Cleaning and Overhaul

If initial remedies fail and the actuator rod test confirms sticking vanes, the most effective solution is to remove and thoroughly clean the turbocharger. This is a detailed process that requires patience and the right tools. Here’s a comprehensive guide, drawing from experienced mechanics:

Tools Required:

• 5mm Allen key (for ratchet, e.g., 3/8-inch drive)
• 6mm Allen key (for ratchet)
• 10mm spanner & socket
• 12mm deep socket
• 13mm socket
• 16mm socket
• 17mm spanner (potentially modified for oil feed pipe)
• 22mm spanner
• T30 Torx bit (for ratchet, e.g., 1/4-inch drive)
• T25 Torx bit (for ratchet or screwdriver)
• Short and long extensions for ratchets
• Flat blade screwdriver
• Pliers (especially suitable for springy circular clips)
• Small/thin long nose pliers
• Small flat head screwdriver
• Drill with wire brush attachments (various sizes)
• Cleaning agents (optional, but helpful for stubborn carbon)
• Vice (handy for disassembling turbo, but not essential)
• Gloves and safety glasses
• Container for draining oil

Step-by-Step Turbo Removal:

1. Prepare the Vehicle: Safely lift and support the front of the car on sturdy axle stands. Disconnect the battery for safety.

2. Remove the Downpipe with Catalytic Converter:

• Remove the plate held by 4x 13mm nuts.
• Undo the 2x 13mm bolts on the exhaust clamp and slide it along.
• Remove the 2x 13mm bolts holding the exhaust up at the back of the subframe.
• Remove the flat bar from the catalytic converter to the gearbox (2x 16mm bolts).
• Using a 5mm Allen key with a long extension, undo the clamp holding the exhaust to the turbo. Be careful not to lose the gasket. Persuade the clamp loose if it's tight.
• Once loose, the exhaust can be carefully removed, providing access through the exhaust tunnel.

3. Disconnect Oil Lines:

• Using a 22mm spanner, remove the oil return pipe from the engine block. A small amount of oil will drain.
• Using a 17mm spanner, undo the oil feed pipe. If it's very tight, be cautious; there's a connecting piece that screws into the turbo. You might need to modify a 17mm spanner to hold this piece to prevent twisting the pipe.
• Follow the oil feed pipe to the left of the manifold and remove the 12mm clamp. Carefully bend the pipe up and away.

4. Remove EGR and Inlet Pipes:

• On top of the manifold, remove the pipe to the EGR cooler: 2x 12mm nuts at the manifold and 2x 6mm Allen bolts at the EGR cooler. Pull the pipe out.
• Using a T30 Torx bit, remove the two bolts holding the turbo inlet pipe to the engine (one top right of the turbo, one near the flexi inlet piping).
• With pliers, squeeze the clip holding the turbo inlet pipe into the turbo, slide it over, and pull the pipe out. Removing it completely makes more room.

5. Disconnect Boost Pipe and Actuator:

• Using a flat head screwdriver, pull out the 'C' clip holding the boost pipe into the turbo, then pull out the boost pipe. Removing the full boost pipe to the intercooler can make this easier.
• Pull the vacuum hose off the turbo actuator and move it out of the way.

6. Unbolt the Turbo:

• Remove the 13mm bolt at the bottom of the exhaust side of the turbo that connects to a bracket on the block.
• Remove the heat shield on the right side of the manifold (2x 12mm bolts).
• Finally, remove the 8x 12mm bolts holding the turbo to the cylinder head.
• Carefully pull out the turbo. It should come through the exhaust tunnel. It can be awkward, but gentle wiggling and persuasion should get it out.

Step-by-Step Turbo Cleaning:

1. Initial Inspection: With the turbo off, check for any play in the shaft or damage to the compressor/exhaust wheels. Excessive play indicates worn bearings, meaning a clean might only be a temporary fix or replacement is needed.

2. Disassemble the Turbo:

• Remove the oil return pipe from the turbo itself (if not already done).
• Remove the actuator: first, detach the clip on the rod, then remove the 2 bolts holding the actuator to the turbo. You can mark its position with tipex for reassembly, though there's usually a peg for alignment.
• Remove the remaining 3x 10mm bolts holding the two halves of the turbo together (exhaust and compressor housings).
• Carefully separate the turbo halves. Some may require gentle persuasion with a hammer, but be extremely careful not to damage any lugs or mating surfaces.

3. Clean the Vane Mechanism:

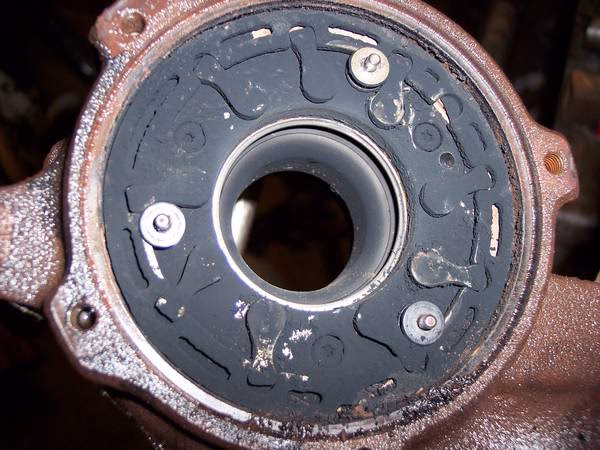

• Once separated, you'll see the carbon buildup on the exhaust side.
• Grab the exhaust side of the turbo and carefully take out the movable ring, being mindful of the 3 guide wheels and pins (often circled in yellow in diagrams).
• On the turbo housing, locate and remove the 3x T25 bolts that hold the vane plate. These can be very tight due to carbon. Work them back and forth gently, little by little, to avoid snapping them.
• Remove the vane plate and the 3 spacers underneath it. Note that the vane plate itself can sometimes be stuck to the housing.
• Now for the cleaning: Use a drill with various wire brush attachments. A larger one for the main housing and a smaller, thinner one for the individual vanes and their slots. Scrape and brush away all carbon buildup from the housing, the movable ring, the vanes, and the vane plate. Ensure all surfaces are smooth and free of gritty deposits. You can use cleaning agents designed for carbon, but mechanical cleaning is often sufficient.

4. Reassembly:

• Insert the cleaned vane plate (if removed), ensuring the holes line up.
• Place the 3 spacers over the holes.
• Carefully place the cleaned vanes on top of the spacers, ensuring everything is aligned and the bolts will pass through the spacers.
• Insert the 3 pins into their holes.
• Place the movable ring over the vanes, ensuring it's in the correct position. Crucially, align the control arm (which the actuator connects to) and the alignment peg (if present).
• Re-fit the 3x T25 bolts, being careful as they are offset and only go one way. Tighten them carefully.
• Grab the compressor part of the turbo and carefully slot the two parts of the turbo together. You may need to gently wiggle the control lever to ensure it slots into place correctly with the internal mechanism. The turbo halves should sit flush.
• Once together, move the control lever by hand. It should move freely and smoothly without any sticking or jamming.
• Re-fit the 3x 10mm bolts with large washers that hold the turbo halves together.
• Re-fit the actuator, snapping the 'C' clip back into place on the rod.

Re-fitting the Turbo:

Re-fit the turbo back into the car by reversing the removal steps. Double-check all connections, especially the oil lines, to ensure they are tight and leak-free. Once everything is reassembled, reconnect the battery.

Post-Cleaning and Maintenance Tips

After cleaning your turbo, it's wise to adopt some proactive habits to prevent future carbon buildup:

• Regular 'Spirited' Driving: While not advocating reckless driving, regular motorway runs where the engine and turbo get up to optimal operating temperatures can help burn off soot before it accumulates. Think of it as a preventative 'Italian Tune-Up'.
• Quality Fuel and Oil: Using high-quality diesel fuel and adhering to your manufacturer's recommended oil change intervals with the correct specification oil can minimise carbon formation.
• Check for Boost Leaks: Even after a turbo clean, sporadic MAF errors or poor performance could indicate a boost leak. Performing smoke leak tests can help identify these.
• MAF Sensor: If MAF errors persist, even after cleaning, consider replacing the MAF sensor with a reputable OEM or quality aftermarket part.

Frequently Asked Questions (FAQs)

Q: What causes turbo vanes to stick?
A: The primary cause is the buildup of carbon and soot deposits from exhaust gases on the variable geometry vanes within the turbo's exhaust housing. This is exacerbated by short journeys, stop-start driving, and low engine RPMs that don't allow the exhaust system to get hot enough to burn off these deposits.

Q: Can I clean my turbo without removing it?
A: There are 'on-car' turbo cleaning chemical treatments available, which involve spraying a cleaner into the turbo's intake or exhaust side. These can sometimes help with minor sticking, but for significant carbon buildup, a full physical removal and clean is almost always necessary for a lasting solution. They are rarely as effective as a manual clean.

Q: How long does turbo cleaning take?
A: For an experienced mechanic, removing and cleaning a turbo might take 3-4 hours. For someone doing it for the first time, it's wise to allocate a full day, or even a weekend, to take your time, keep bolts organised, and ensure everything is done correctly.

Q: Is it worth cleaning a turbo or should I replace it?
A: If the turbo's bearings are still good (no excessive shaft play) and the issue is purely carbon-related, cleaning is a very cost-effective solution compared to replacing the entire turbocharger. A new or reconditioned turbo can be significantly more expensive. However, if there's damage to the wheels or bearing play, replacement is the only viable option.

Q: Why do I get MAF errors after turbo issues?
A: A sticking turbo means the engine isn't getting the correct amount of air it expects. The MAF sensor measures the incoming air, and if there's a discrepancy between the measured air and the engine's expected air (based on throttle position and RPM), the ECU can flag an 'impossible reading' or similar MAF-related error code. Cleaning the MAF sensor might provide temporary relief, but addressing the turbo issue is key.

Addressing a sticking turbo can seem daunting, but with the right tools and a methodical approach, it's a manageable task that can significantly improve your Golf TDI's performance and longevity. Proactive maintenance and understanding the common causes of these issues are key to keeping your diesel running smoothly and efficiently for years to come.
