MOT Type 3 Aggregate: The Drainage Champion

When it comes to laying a solid foundation for construction projects, the choice of sub-base material is paramount. While many are familiar with MOT Type 1, a lesser-known yet incredibly vital aggregate, MOT Type 3, holds a unique position, particularly where efficient water management is a priority. Often referred to as MOT Type 3 sub-base, this coarse, well-graded granular material is a cornerstone in modern road construction and serves as an essential base layer for a multitude of other construction applications, especially those demanding excellent drainage.

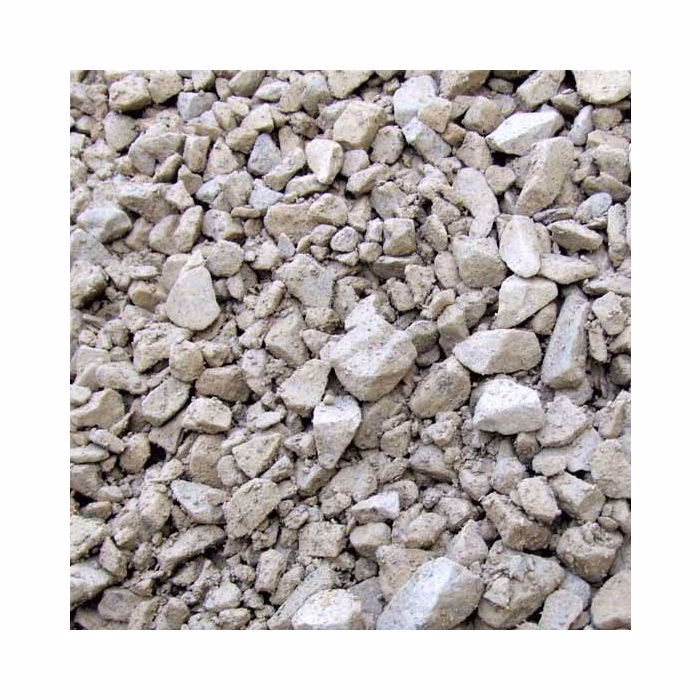

Produced from meticulously crushed rock, MOT Type 3 undergoes a precise screening and grading process. This ensures a blended material with particle sizes ranging from 0mm to 40mm. What truly sets Type 3 apart, however, is its 'open graded' characteristic. Unlike its counterparts, it contains significantly fewer 'fines' – the very fine particles that can impede water flow. This engineered design allows water to drain freely and effectively, making MOT Type 3 an unparalleled choice for projects where efficient drainage is not just a preference but a critical requirement.

Understanding the Composition and Characteristics of MOT Type 3

The magic of MOT Type 3 lies in its carefully controlled composition. By crushing various types of rock, and then screening them to achieve a specific particle size distribution, manufacturers create a material designed for maximum performance. The 0mm to 40mm grading ensures a strong, interlocking base, while the deliberate reduction in fine particles is what gives Type 3 its distinctive edge. This 'open-graded' nature means that there are more voids between the aggregate particles, creating channels through which water can readily pass. This is in stark contrast to more 'dense-graded' materials like MOT Type 1, which have a higher proportion of fines that compact tightly, limiting permeability.

The primary benefit derived from this open grading is, unequivocally, its superior drainage capability. In many construction scenarios, water accumulation can lead to significant problems, including structural instability, frost heave, and general deterioration of the surface layer. By allowing water to percolate through the sub-base and into the ground below, MOT Type 3 helps to mitigate these issues, ensuring the long-term integrity and performance of the overlying surface.

The Versatility of MOT Type 3 Aggregate: Key Applications

The unique properties of MOT Type 3 make it incredibly versatile, suitable for a wide array of applications where effective drainage is non-negotiable. Its ability to create a stable yet permeable base has seen it become the preferred choice in many specialised construction projects:

• Sports Pitches and Arenas: For playing fields, synthetic turf pitches, and equestrian arenas, maintaining a stable, well-drained surface is crucial. MOT Type 3 ensures that rainwater quickly drains away, preventing waterlogging, improving playability, and extending the lifespan of the pitch.
• Permeable Paving: As urban environments increasingly look for ways to manage surface water runoff, permeable paving solutions are gaining traction. MOT Type 3 forms the ideal sub-base for these systems, allowing water to filter through the permeable blocks or surface material and then through the aggregate layer into the ground, reducing strain on conventional drainage systems.
• Sustainable Drainage Systems (SuDS): SuDS are designed to manage surface water in a way that mimics natural processes, reducing flood risk and improving water quality. MOT Type 3 is a fundamental component in many SuDS designs, acting as a crucial infiltration layer that allows controlled drainage and groundwater recharge.
• Driveways, Paths, and Patios: While MOT Type 1 is often used for driveways, Type 3 is gaining popularity, especially for permeable driveways or in areas prone to standing water. For paths and patios, it provides a stable foundation that effectively manages rainwater, preventing puddles and erosion.
• Tennis Courts: Similar to sports pitches, tennis courts require a consistent, well-drained surface for optimal play and longevity. MOT Type 3 provides the necessary stability and drainage, ensuring the court remains playable even after heavy rainfall.

The applications highlight MOT Type 3's role in creating resilient, water-smart infrastructure. Its use not only provides structural support but also contributes significantly to environmental sustainability by managing rainwater at source.

MOT Type 3 vs. MOT Type 1: A Comparative Analysis

Understanding the distinction between MOT Type 3 and MOT Type 1 is crucial for selecting the correct aggregate for your project. While both are sub-base materials, their characteristics and intended uses differ significantly, primarily due to their fine content and resultant drainage properties.

As the table illustrates, the key differentiator is the fines content. MOT Type 1, with its higher proportion of fine particles, is designed to compact into a very dense and stable layer, offering excellent load-bearing capacity and a relatively impermeable barrier. This makes it ideal for traditional road construction and heavy-duty foundations where water infiltration is to be prevented. MOT Type 3, conversely, sacrifices some of that ultimate density for permeability, making it the go-to solution for projects that integrate drainage and water management into their core design.

What About MOT Type 3 Limestone?

When you encounter terms like "MOT Type 3 Limestone," it simply refers to the parent rock from which the aggregate was crushed. MOT Type 3, as a specification, dictates the grading and characteristics of the material, not necessarily its geological origin. Limestone is a common and widely available sedimentary rock, often used for producing various aggregates, including MOT Type 3. Its inherent properties, such as good workability and compactability, make it an excellent source material. Therefore, MOT Type 3 Limestone is an aggregate that meets the MOT Type 3 specification but is specifically derived from crushed limestone quarries.

The choice between MOT Type 3 derived from limestone, granite, or other rock types often comes down to regional availability, cost, and sometimes specific project requirements. Functionally, as long as the material meets the MOT Type 3 standard for grading and fines content, it will perform as expected in terms of drainage and stability for its intended applications.

Tips for Working with MOT Type 3 Aggregate

Proper installation is key to maximising the benefits of MOT Type 3. Here are a few general considerations:

• Preparation: Ensure the underlying ground is properly excavated, level, and compacted before laying the Type 3 sub-base.
• Geotextile Membrane: In many applications, especially those involving permeable paving or areas with poor underlying soil, a geotextile membrane can be beneficial. It acts as a separation layer, preventing the Type 3 aggregate from mixing with the sub-grade and maintaining its drainage efficiency.
• Layering and Compaction: Apply the Type 3 aggregate in layers, typically no more than 150-200mm thick, and compact each layer thoroughly using a plate compactor or roller. While Type 3 doesn't achieve the same density as Type 1, proper compaction is still vital for stability.
• Depth: The required depth of the MOT Type 3 sub-base will depend heavily on the specific application and anticipated load. For a light-traffic path, a shallower depth might suffice, whereas a driveway or sports pitch will require a more substantial layer. Always consult project specifications or a qualified professional.

Frequently Asked Questions About MOT Type 3 Aggregate

Is MOT Type 3 suitable for heavy traffic areas?

Yes, MOT Type 3 can be used in heavy traffic areas, but typically as part of a permeable paving system where the load is distributed effectively. Its primary strength is drainage, and while it provides good stability, for extremely heavy loads without permeable surfacing, Type 1 might be preferred, or a combination of layers could be specified by an engineer.

Can I use MOT Type 3 for a traditional, non-permeable driveway?

While possible, it's not its primary intended use if drainage isn't a concern. For a traditional, non-permeable driveway, MOT Type 1 is often the more common and cost-effective choice due to its superior compaction properties for a dense, impermeable base. However, if you have issues with standing water on your property, Type 3 beneath a permeable top layer would be an excellent solution.

How deep should MOT Type 3 be laid for a typical driveway?

For a typical domestic driveway, a compacted depth of 150mm to 200mm (6-8 inches) of MOT Type 3 is often recommended for good stability and drainage. However, this can vary based on soil conditions, anticipated vehicle weight, and the final surface material. Always consult a professional or engineering specifications for precise requirements.

What is the difference between 'fines' in aggregate?

'Fines' refer to the very smallest particles within an aggregate mixture, typically less than 0.063mm in size (silt and clay). In MOT Type 1, these fines help the aggregate bind together tightly when compacted, creating a dense, less permeable layer. In MOT Type 3, these fines are largely removed, creating a more open structure that allows water to pass through freely, hence its 'open graded' classification.

Is MOT Type 3 considered an environmentally friendly choice?

Yes, in many respects, it is. Its use in Sustainable Drainage Systems (SuDS) directly contributes to better water management, reducing urban flood risk and promoting groundwater recharge. Furthermore, by allowing water to infiltrate naturally, it helps reduce the burden on conventional drainage infrastructure and can improve water quality by filtering pollutants. Many aggregates, including Type 3, are also produced from locally sourced crushed rock, reducing transport emissions.

Conclusion

MOT Type 3 aggregate stands out as a crucial material in modern construction, particularly where effective water management and sustainable practices are at the forefront. Its unique open-graded structure, characterised by fewer fines, provides unparalleled drainage capabilities, making it indispensable for projects ranging from high-performance sports pitches to environmentally conscious permeable paving and SuDS. While its cousin, MOT Type 1, excels in creating dense, highly stable bases, Type 3 offers a permeable alternative that is vital for managing surface water efficiently. Understanding its properties and applications allows builders and homeowners alike to make informed decisions, ensuring the longevity, stability, and environmental integrity of their construction projects.
