Understanding Your Motor's Capacitor: A Comprehensive Guide

When your vehicle's motor isn't performing as it should, it can be a source of considerable frustration. While many components could be at fault, the motor capacitor often plays a crucial, yet sometimes overlooked, role. This guide aims to demystify the function of capacitors in automotive motors, explain common issues, and provide a clear understanding of their role in ensuring your vehicle runs smoothly. We'll delve into what a capacitor does, why it might be the culprit behind motor problems, and what you need to know about their maintenance and potential replacement. Whether you're a seasoned DIY mechanic or just starting to explore your vehicle's inner workings, this information will be invaluable.

What Exactly is a Motor Capacitor?

At its core, a motor capacitor is an electrical component that stores electrical energy in an electric field. In the context of electric motors, particularly single-phase AC motors commonly found in various automotive applications (though less common than in industrial settings), capacitors are primarily used to help the motor start and run efficiently. They essentially provide an auxiliary magnetic field, out of phase with the main field, which is essential for generating the initial rotational force (torque) needed to get the motor spinning. Once the motor reaches a certain speed, this auxiliary circuit may be switched out by a centrifugal switch or other mechanism, though some motors employ a "run capacitor" that remains in the circuit to improve efficiency and power factor.

The Role of Capacitors in Motor Operation

Think of a capacitor as a temporary energy reservoir. For a motor to start, it needs a strong initial push. A start capacitor provides a jolt of extra current to the auxiliary winding of the motor, creating a rotating magnetic field that gets the motor turning. Without this boost, many single-phase motors would simply hum and fail to start.

A run capacitor, on the other hand, is designed to stay in the circuit continuously. Its purpose is to improve the motor's running performance by ensuring the magnetic field remains balanced, leading to smoother operation, increased efficiency, and reduced power consumption. In essence, capacitors are vital for overcoming the motor's inertia and maintaining optimal performance.

Common Signs of a Failing Capacitor

Identifying a faulty capacitor can sometimes be tricky, as symptoms can mimic other motor problems. However, there are several tell-tale signs:

• Motor fails to start or starts intermittently: This is perhaps the most common symptom. If the capacitor is weak or has failed, it won't provide the necessary starting torque.
• Motor hums but doesn't spin: The motor is receiving power, but the capacitor isn't providing the phase shift needed for rotation.
• Motor runs slowly or lacks power: A failing run capacitor can lead to reduced efficiency and power output.
• Motor overheats: An inefficiently running motor due to capacitor issues can generate excess heat.
• Visible damage to the capacitor: Look for bulging, leaking (often a waxy or oily substance), or corroded terminals. This is a clear indication of failure.

Can a Capacitor Cause a Motor to Spin?

Yes, a capacitor is fundamental to a motor's ability to spin, especially single-phase motors. It's not that the capacitor itself *makes* the motor spin in isolation, but rather it's an integral part of the motor's starting and running mechanism. Without a functioning capacitor (or with a faulty one), the motor will struggle or be completely unable to achieve rotation. The initial energy stored and released by the capacitor is what kick-starts the rotational process.

How to Safely Remove a Capacitor from a Motor

Safety first! Capacitors can store a significant electrical charge even after the power supply has been disconnected. Improper handling can lead to a painful electric shock. Always ensure the power source to the motor is completely disconnected before proceeding.

Tools You'll Need:

• Insulated gloves
• Safety glasses
• Screwdrivers (appropriate sizes)
• Pliers (insulated handles recommended)
• Multimeter (for testing, optional but recommended)

Step-by-Step Removal Process:

1. Disconnect Power: Ensure the vehicle's battery is disconnected or the circuit powering the motor is switched off at the breaker or fuse box. Verify there is no power using a multimeter if possible.

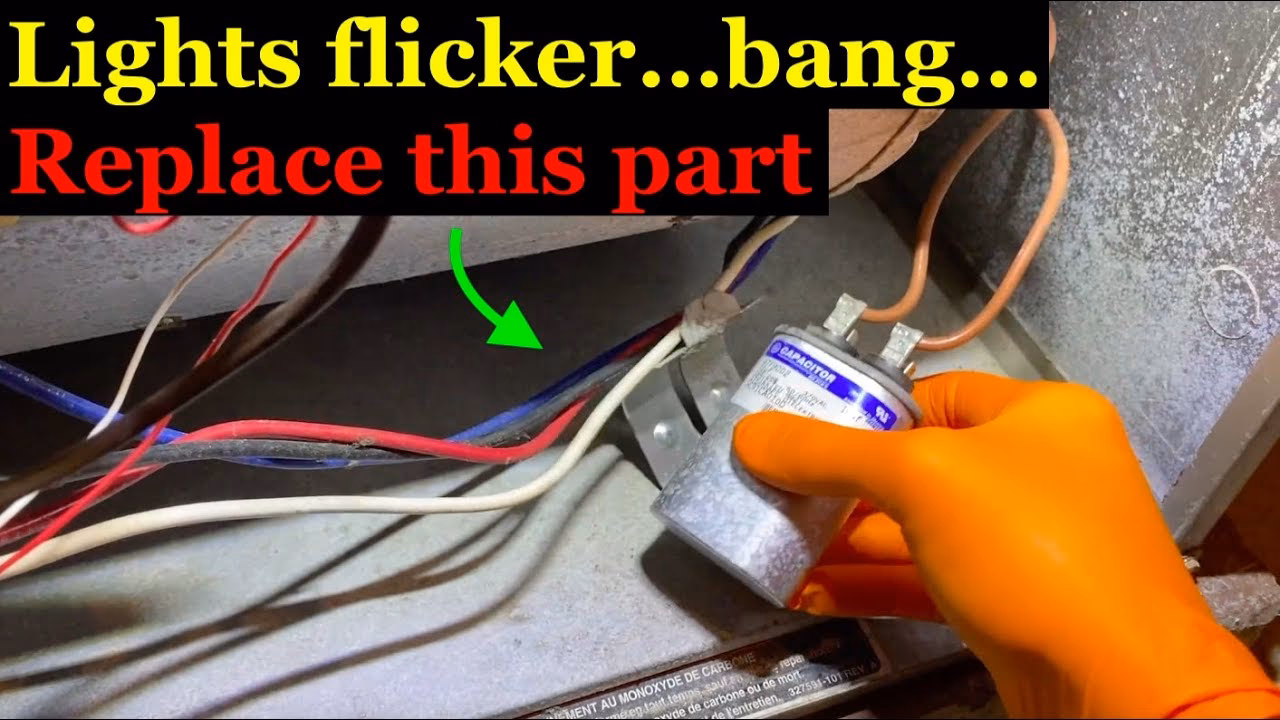

2. Locate the Capacitor: Capacitors are typically cylindrical or oval-shaped and mounted near the motor housing. They will have two or more terminals where wires connect.
3. Discharge the Capacitor (Crucial Step): Even with power disconnected, a capacitor can hold a charge. To safely discharge it, use an insulated screwdriver. Briefly touch the metal shaft of the screwdriver across both terminals of the capacitor simultaneously. You might see a small spark, which is normal and indicates the capacitor is discharging. Never touch the terminals or the metal casing directly with your hands.
4. Disconnect Wires: Carefully disconnect the wires leading to the capacitor terminals. They are usually held in place by screw terminals or spade connectors. Use insulated pliers or a screwdriver to loosen the screws or gently pull the connectors. Note which wire goes to which terminal for correct reinstallation.
5. Remove Mounting: Capacitors are often held in place by a mounting bracket, strap, or screws. Unscrew or unfasten these to free the capacitor from the motor assembly.
6. Inspect and Replace: Once removed, inspect the capacitor for any signs of damage (bulging, leaks). If it appears damaged or if testing confirms it's faulty, it will need to be replaced with one of the exact same specifications (capacitance in microfarads (µF) and voltage rating).

Testing a Motor Capacitor

A multimeter with a capacitance testing function is the best way to determine if a capacitor is functional.

If the multimeter shows an OL (overload) or a reading significantly lower than the rated value, the capacitor is likely faulty. Remember to always compare the reading to the specifications printed on the capacitor itself.

Capacitor Specifications and Replacement Considerations

When replacing a capacitor, it's crucial to match the original specifications.

• Capacitance (µF): This value indicates the capacitor's ability to store charge. It must be the same or very close to the original. A significant deviation can cause improper motor function or damage.
• Voltage Rating (V): This is the maximum voltage the capacitor can safely handle. The replacement capacitor's voltage rating must be equal to or higher than the original. Using a lower voltage rating can lead to premature failure.
• Type: Capacitors come in various types (e.g., electrolytic, film). Ensure you replace it with the same type unless a specific upgrade is recommended by the motor manufacturer.
• Temperature Rating: Some applications require capacitors rated for higher operating temperatures. Check the original's rating.

A common mistake, as highlighted in one user's experience, is assuming a capacitor is a capacitor. Using a component with incorrect specifications, even if seemingly similar (like a different body material or a cheaper alternative), can lead to the very problems you're trying to solve, or even new ones. The £3 capacitor from Maplins, while seemingly a bargain, might not have had the correct tolerance, temperature rating, or internal construction to reliably support the motor's operation, leading to intermittent failures.

Troubleshooting Motor Issues: Beyond the Capacitor

While a faulty capacitor is a common cause of motor problems, it's not the only possibility. If you've replaced the capacitor and the issue persists, consider other potential culprits:

• Motor Windings: Damaged or shorted windings can prevent a motor from running.
• Centrifugal Switch: In start-capacitor motors, the switch that disconnects the start winding can fail, leading to the motor running poorly or burning out.
• Bearings: Seized or worn bearings can cause excessive friction, preventing the motor from turning.
• Wiring Issues: Loose connections, corrosion, or damaged wires can interrupt the flow of electricity.
• Load Issues: The motor might be trying to drive a load that is too heavy for it.
• Other Electrical Components: For systems like oil burners, issues with the solenoid, transformer, or fuel pump could also manifest as motor-related problems.

Frequently Asked Questions (FAQs)

Q1: Can I use a capacitor with a higher voltage rating than the original?

A1: Yes, you can use a capacitor with a higher voltage rating. This is generally safe and can even provide an extra margin of reliability. However, you must not use one with a lower voltage rating.

Q2: Can I use a capacitor with a different capacitance (µF) value?

A2: It's strongly advised against using a capacitor with a significantly different capacitance value. A lower µF might prevent the motor from starting or running properly, while a higher µF could potentially damage the motor.

Q3: How long do motor capacitors typically last?

A3: The lifespan of a motor capacitor varies greatly depending on the quality of the component, the operating conditions (temperature, load), and how often the motor starts and stops. Some can last for many years, while others might fail within a shorter period.

Q4: My capacitor looks okay, but the motor still isn't working. What else could it be?

A4: As mentioned in the troubleshooting section, several other components could be at fault, including motor windings, bearings, switches, or wiring. It's essential to perform a systematic diagnosis.

Q5: I saw some waxy substance leaking from my capacitor. Does that mean it's definitely bad?

A5: Yes, a leak of waxy or oily substance from the capacitor casing is a very strong indicator of internal failure. It means the sealing has broken down, and the capacitor is no longer reliable, if functional at all.

Conclusion

Motor capacitors are small but mighty components essential for the reliable operation of many motors. Understanding their function, recognizing the signs of failure, and knowing how to safely handle and replace them can save you time, money, and a great deal of frustration. Always prioritise safety, use the correct specifications for replacement parts, and don't hesitate to seek professional help if you're unsure about any step of the process. By keeping your motor capacitors in good condition, you ensure your vehicle's systems perform optimally.
