NV5600 Transmission: Fluid Guide & Capacity Secrets

The NV5600 manual transmission is a true workhorse, renowned for its exceptional durability and robust performance in heavy-duty applications, particularly within Dodge Ram trucks. However, even the most robust mechanical components require meticulous care and precise maintenance to ensure a long and trouble-free life. Understanding its specific fluid requirements and capacities is not just good practice; it's absolutely vital to prevent costly damage and maintain its legendary reliability. This comprehensive guide will delve into everything you need to know about keeping your NV5600 running smoothly, from the correct fluid type and capacity to crucial maintenance tips and even insights into potential upgrades.

NV5600 Oil Capacity: Getting the Right Amount In

Determining the exact oil capacity for your NV5600 can be a bit more nuanced than simply checking a dipstick. The amount of fluid required can vary slightly depending on how thoroughly the transmission is drained. For a standard fluid change, where the oil is drained solely through the bottom cover bolt, you'll typically need around 4 quarts of fluid. This method, while common, might not remove every last drop of old oil, leaving some residual fluid within the transmission's internal passages and cavities.

For those seeking a more comprehensive fluid replacement, especially if you're addressing an issue or performing a deeper service, you might opt to remove the Power Take-Off (PTO) covers. By doing so and carefully swabbing out all residual oil, you can increase the initial fill capacity to approximately 4.75 quarts. This more thorough method ensures that nearly all the old fluid is removed, allowing for a fresher and more complete refill, which can be beneficial for the transmission's overall health. Always remember that precision is key when it comes to fluid levels; too little can lead to lubrication starvation, causing accelerated wear on gears and bearings, while too much can result in fluid foaming, increased internal pressure, and overheating.

The Critical Fluid: Full-Synthetic ATF+4

When it comes to the NV5600, the type of fluid you use is just as important, if not more so, than the quantity. ATS, a respected name in transmission solutions, strongly recommends using a full-synthetic ATF+4 automatic transmission fluid. Brands like Amsoil are often cited as excellent choices due to their high-quality formulations and proven performance in demanding applications.

Why is ATF+4 so important for a manual transmission? Despite its "automatic transmission fluid" designation, ATF+4 is a highly advanced, synthetic fluid specifically engineered for finely-tuned transmissions. Its superior lubricating properties, exceptional thermal stability, and robust shear resistance are absolutely crucial for protecting the intricate internal components of the NV5600, which operates under significant mechanical stress and heat. Using a non-synthetic ATF where ATF+4 is specified can lead to severe damage to your transmission. The advanced additives and synthetic base oils in ATF+4 are designed to withstand the extreme pressures and temperatures found within modern gearboxes, ensuring smooth shifting, reduced friction, and significantly extended component life.

Furthermore, ATF+4 offers broad compatibility. In many applications, it can safely be used in place of older Dexron and Mercon fluids, simplifying fluid choices for multi-vehicle owners or those with mixed fleets. However, always refer to your vehicle's specific owner's manual or a trusted service guide to confirm compatibility, especially for transmissions other than the NV5600, as fluid requirements can vary significantly.

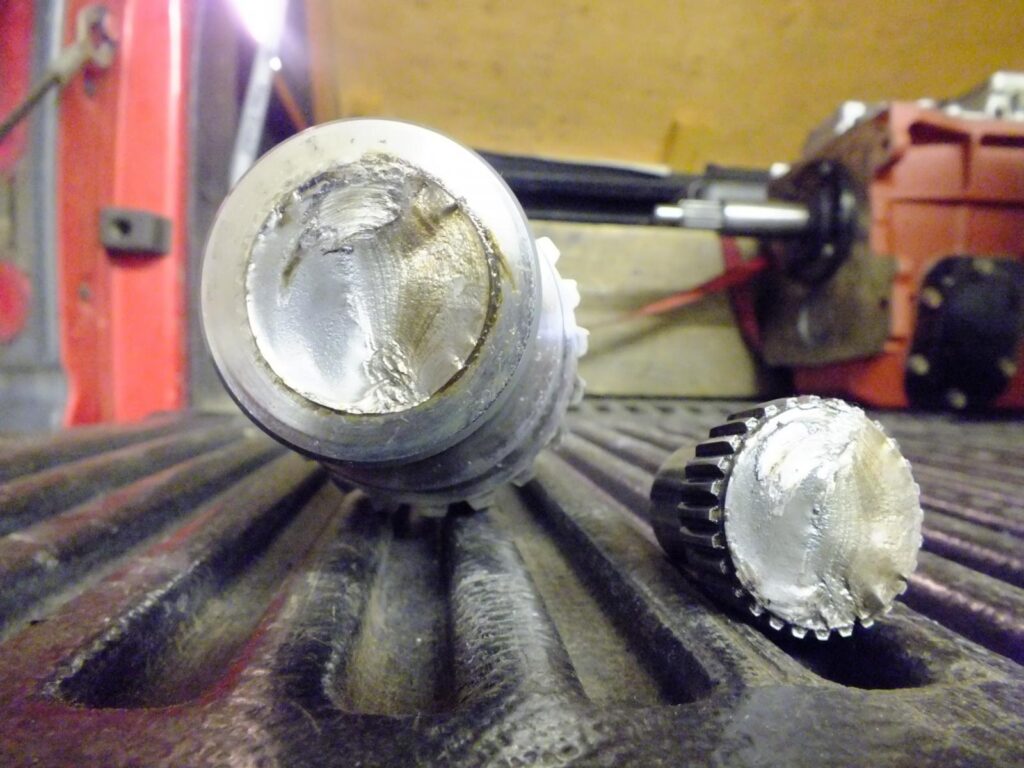

The NV5600's Unique Fill Requirement: A Crucial Warning!

Here's a piece of information that every NV5600 owner absolutely must know, as it can be the difference between a long-lasting transmission and premature failure. While the official capacity for the NV5600 is often stated as 6.75 quarts (or approximately 6.5 litres), there's a critical caveat. The factory fill plug on the NV5600 is notoriously located in the wrong spot. If you simply fill the transmission until fluid begins to seep out of this plug, your transmission will run significantly low on oil, leading to inadequate lubrication for vital upper components.

To counteract this design flaw, it is imperative to add an additional 2 quarts of manual transmission fluid through the shifter openingafter you have initially filled the transmission to the factory fill plug. This overfill might seem unconventional, but it ensures that all internal components, particularly the upper gears, input shaft bearings, and countershaft bearings, receive adequate lubrication. Running the NV5600 with insufficient oil, as would happen if you only filled to the factory plug, can lead to premature wear, increased operating temperatures, internal damage, and ultimately, catastrophic failure. This specific issue is so prevalent and well-documented that manufacturers often explicitly state that damage resulting from underfilling due to the factory plug's placement is not covered by warranty. This highlights the critical importance of adhering to this recommended overfill procedure, protecting your investment and ensuring the longevity of your NV5600.

To summarise the fluid requirements for your NV5600:

• Fluid Type: Full-synthetic ATF+4 automatic transmission fluid.
• Standard Capacity (Initial Fill to Plug): Approximately 4.75 quarts (after thorough draining).
• Total Recommended Capacity (Including Overfill): 6.75 quarts (6.5 litres).
• Critical Step: Always add 2 additional quarts through the shifter opening after filling to the factory fill plug.

Transmission Fluid Capacities at a Glance

While our focus is firmly on the NV5600, it's often helpful to see how its fluid requirements compare to other common transmissions. Below is a brief comparative table for various heavy-duty and performance transmissions, giving you a broader context within the automotive landscape.

Note: Always consult your vehicle's specific manual for the most accurate and up-to-date fluid recommendations and capacities, as these can vary significantly by model year and specific application.

Advanced Repairs and Conversions: The 5.9 Flywheel Upgrade

While routine fluid maintenance is paramount, some NV5600 owners might explore more extensive modifications or repairs, particularly when dealing with engine conversions or seeking enhanced durability. A common and significant upgrade involves converting the original Dodge 5.9 Cummins setup to a mid-range SAE #2 truck standard. This is often undertaken when pairing the 5.9 Cummins engine with different heavy-duty transmissions or for increased clutch capacity and robustness.

The Conversion Process: What Gets Replaced

When undertaking this conversion, virtually everything from the back of the engine block that was originally part of the Dodge setup is removed. This includes the Dodge flywheel housing, the stock flywheel, the original starter, and the entire clutch assembly. These components are then replaced with more robust, mid-range SAE #2 truck parts. These parts are typically found on commercial vehicles such as Ford F650, F750, and F850, Sterling trucks, Peterbilt, Kodiak, and Freightliner models that also utilise the 5.9 Cummins engine. The replacements consist of a 5.9 Cummins SAE #2 flywheel housing, a larger 14-inch flywheel, and a heavy-duty 28 MT starter. This upgrade significantly enhances the strength and versatility of the drivetrain.

Clutch Selection and Considerations

With the new 14-inch flywheel, you gain a wealth of choices for clutch assemblies. The primary requirement is that the clutch must be a 14-inch unit with a 10-spline input shaft to match the new flywheel and transmission input. Clutches typically come in two main types: "push" or "pull." The "pull" type is generally newer and more common, and it's well-suited for actuation with a hydraulic slave cylinder, offering a smoother and more modern feel. While mechanical linkage can be adapted, it usually involves significantly more effort and custom fabrication to install correctly, often proving less practical for most enthusiasts. It's also crucial to remember that the original Dodge flywheel bolts will be too short for the new 14-inch flywheel, so new, appropriate length bolts will be required to ensure secure fitment. The flywheel pilot bearing will also need to be selected carefully, either a 29 MM or 30 MM, depending on the specific input shaft size of the transmission you are pairing with the engine, ensuring a perfect interface.

Transmission Choice for Overdrive Conversions

If your goal is to incorporate an overdrive (OD) transmission into your setup, specific models are recommended for optimal performance. The Eaton Fuller FSO6406A or FSO8406A transmissions are excellent candidates for this purpose, as they are specifically designed as Fuller overdrive transmissions. It's worth noting that while the FO series also offers overdrive, they are typically not synchronised and are generally less common, which can make sourcing parts or maintenance more challenging. Conversely, the FS Fuller series transmissions, available in both 5-speed and 6-speed versions, do not feature an overdrive gear, making them unsuitable if OD is a primary requirement. When sourcing a replacement transmission for such a conversion, it's highly advisable to purchase one that includes the clutch cover. Acquiring this component separately can incur an additional cost of around $300, making it a significant saving to get it as a package. The transmission clutch cover housing usually contains critical components like the input shafts and the fork actuator, which are commonly interchangeable across the Fuller and Spicer transmission lines, simplifying future repairs or customisations.

Designing the Hydraulic Clutch System

The hydraulic clutch system for this conversion can often be assembled using a combination of off-the-shelf master and slave cylinders, allowing for a degree of customisation and cost-effectiveness. For example, a Volvo slave cylinder, costing around $35, has been successfully adapted by enthusiasts, often paired with a custom-fabricated master cylinder to meet specific pedal feel and travel requirements. The specific components you choose will largely depend on the mechanical actuator arm on the transmission. A shorter actuator arm (mounted externally and connected to the shaft) will naturally require less stroke from the hydraulic system to fully engage or disengage the clutch. The key factor for both the master and slave cylinders is volume; most cylinders featuring 1-1/8" pistons tend to work effectively, providing sufficient fluid displacement. A custom bracket will inevitably be required to securely mount the slave cylinder to the transmission housing, ensuring correct alignment and reliable operation. Additionally, depending on the available space under the firewall, a remote fluid reservoir might be necessary, which could influence the selection of your master cylinder. This level of customisation ensures optimal clutch engagement and disengagement with the new transmission setup, tailored to your vehicle's specific needs.

Frequently Asked Questions About the NV5600

What fluid type does an NV5600 transmission use?

The NV5600 requires full-synthetic ATF+4 automatic transmission fluid. This specific fluid is crucial for its longevity and performance, despite the "automatic" designation, due to its advanced lubricating and thermal properties.

How much oil does an NV5600 take, including the overfill?

The total recommended capacity for an NV5600 is 6.75 quarts (6.5 litres). This includes an essential additional 2 quarts that must be added through the shifter opening after the initial fill to the factory plug, due to the factory fill plug's incorrect placement.

Why is it important to overfill the NV5600 by 2 quarts?

The factory fill plug on the NV5600 is positioned too low, leading to underfilling if only filled to that level. Adding an extra 2 quarts ensures that all internal components, especially the upper bearings and gears, receive proper lubrication, preventing premature wear and potential failure not covered by warranty.

Can I use a non-synthetic fluid in my NV5600?

No, it is strongly advised against using non-synthetic fluid. The NV5600 is designed for the high performance and protective qualities of full-synthetic ATF+4. Using incorrect fluid can lead to significant internal damage and reduced lifespan.

What are the signs of low fluid in an NV5600?

Signs of low fluid can include difficulty shifting, grinding gears, increased transmission noise (such as whining or humming), and excessive heat generation. Addressing these symptoms promptly is crucial to prevent further, more severe damage.

When should I consider a flywheel conversion for my NV5600 setup?

A flywheel conversion to an SAE #2 truck standard is typically considered when performing an engine swap (e.g., a 5.9 Cummins) or when seeking to upgrade to a larger, more robust 14-inch clutch system for heavy-duty applications or increased power handling capabilities.

Conclusion

Maintaining your NV5600 transmission correctly is paramount to its longevity and your vehicle's overall performance. By understanding and diligently following the specific fluid requirements—particularly the use of full-synthetic ATF+4 and the critical 6.75-quart total capacity with the 2-quart overfill—you can significantly extend the life of this robust gearbox. Remember, neglecting these vital details can lead to costly repairs and extensive downtime. Whether you're performing routine maintenance or undertaking a more involved conversion, informed choices and careful execution are key to ensuring your NV5600 continues to deliver reliable power for years to come on the roads of the UK and beyond, keeping you on the move with confidence.
