The handbrake, or parking brake, is a critical safety feature in any vehicle, designed to keep your car stationary when parked, especially on inclines. For Nissan Qashqai owners, a faulty or damaged handbrake lever can be more than just an inconvenience; it can compromise safety and lead to an MOT failure. While it might seem like a complex task, replacing the handbrake lever on your Qashqai is a manageable DIY project for those with a bit of mechanical inclination and the right tools. This guide will walk you through the process, ensuring you can restore full functionality to your vehicle's parking brake system.
There are several reasons why you might need to replace your Qashqai's handbrake lever. Over time, the internal mechanism can wear out, leading to a loose or 'spongy' feel when engaged. The release button might become sticky or fail entirely, making it difficult to disengage the brake. Furthermore, accidental damage, such as excessive force or impact, can snap the lever itself or damage its mounting points. Whatever the cause, a properly functioning handbrake is non-negotiable for vehicle safety and compliance with road regulations in the UK. Tackling this repair yourself can save you a significant amount on labour costs compared to a professional garage, offering a rewarding sense of accomplishment once completed.
Essential Tools for the Job
Before you begin, gathering all the necessary tools will ensure a smooth and efficient repair process. Having everything to hand prevents frustrating pauses and helps maintain focus. Most of these tools are standard for automotive DIY, but some might be specific to interior trim work.
| Tool | Purpose |
|---|---|
| Socket Wrench Set | For various bolts and nuts, including console mounting bolts. |
| Screwdriver Set (Phillips & Flathead) | For screws securing trim panels and console components. |
| Plastic Trim Removal Tools | Crucial for prying plastic trim without causing damage. Avoid using metal screwdrivers. |
| Pliers (Needle-nose & Regular) | For manipulating clips, springs, and potentially cable ends. |
| Small Adjustable Wrench | For the handbrake cable adjustment nut. |
| Work Light / Torch | To illuminate confined spaces under the console. |
| Protective Gloves | To protect your hands from dirt, grease, and sharp edges. |
| Container for Screws/Parts | To keep track of all removed fasteners and small components. |
Safety First: Crucial Precautions
Working on any part of your vehicle requires adherence to strict safety protocols. While replacing a handbrake lever doesn't typically involve heavy lifting or working under the car, interior work still carries risks. Ensure your Qashqai is in a safe and stable position before commencing any work.
- Always park your vehicle on a flat, level surface.
- Engage the vehicle's primary parking brake (foot brake or electronic parking brake, if applicable and functional) and place wheel chocks behind the rear wheels to prevent any accidental movement.
- If your Qashqai has an electronic parking brake, ensure it is disengaged and the battery is disconnected to prevent accidental engagement or electrical shorts during the process. For manual handbrakes, disconnecting the battery is still a good practice to avoid any electrical issues, especially when working around wiring harnesses.
- Wear appropriate personal protective equipment, such as gloves and eye protection.
- Take your time and avoid rushing. Mistakes can lead to damage or injury.
Step-by-Step Guide to Handbrake Lever Replacement
This process primarily involves disassembling the centre console to gain access to the handbrake lever mechanism. The exact steps and fasteners may vary slightly between Qashqai generations (J10, J11, etc.), but the general principle remains the same.
1. Prepare the Vehicle and Workspace
Ensure your Qashqai is parked safely as described above. Clear out any items from the centre console, including the armrest storage, cup holders, and gear stick area, to give yourself ample working space. Move the front seats as far back as possible.
2. Centre Console Disassembly
This is arguably the most time-consuming part of the process, as the handbrake lever is typically integrated into the central console structure. Exercise caution and patience here to avoid damaging delicate plastic clips and trim pieces.
- Remove Gear Stick Surround: Depending on your Qashqai model, there may be a trim piece around the gear stick. This often clips into place and can be carefully pried up using plastic trim removal tools. Be gentle, as excessive force can snap the clips.
- Access Console Screws/Bolts: Look for screws hidden under rubber mats in cup holders, under the armrest storage liner, or beneath small plastic covers. Some models may have bolts securing the console base near the rear of the front seats. Remove all visible fasteners.
- Disconnect Electrical Connectors: As you start to lift the console, be mindful of any electrical connectors for features like the 12V power outlet, USB ports, heated seat switches, or the electronic parking brake switch (if applicable). Carefully disconnect these by pressing the release tabs. Take photos if you think it will help with reassembly.
- Lift and Remove Console: Once all fasteners are removed and electrical connections disconnected, you should be able to carefully lift and manoeuvre the centre console out of the vehicle. You might need to adjust the gear stick position (for manual transmission) or set the automatic shifter to 'N' to allow the console to clear.
3. Access the Handbrake Mechanism
With the centre console removed, the handbrake lever assembly should now be fully exposed. You will see the lever itself, its pivot point, and the handbrake cables attached to its base.
4. Disconnect the Handbrake Cables
The handbrake lever operates by pulling one or two cables that run to the rear brakes. Before you can remove the lever, these cables must be disconnected. There is usually an adjustment nut where the cables connect to the lever mechanism. Loosen this nut significantly to create slack in the cables. Once slack, the cable ends can typically be unhooked from the lever's pulling mechanism. Pay attention to how they are routed.
5. Remove the Old Handbrake Lever
The lever itself is usually secured by a few bolts or a combination of bolts and a pivot pin. Locate these fasteners. Remove the bolts first. If there's a pivot pin, it might be held in place by a circlip or a small retaining bolt. Carefully remove these. Once all fasteners are clear, the old handbrake lever assembly can be lifted out of its mounting bracket.
6. Install the New Handbrake Lever
Installation is essentially the reverse of removal. Carefully position the new handbrake lever assembly into its mounting bracket. Align the bolt holes and the pivot point. Insert and tighten all securing bolts and pins. Ensure everything is snug and secure, but do not overtighten, especially with smaller bolts.
7. Reconnect and Adjust Handbrake Cables
Reattach the handbrake cables to the new lever's pulling mechanism. This is a critical step for proper handbrake function. Once reconnected, you'll need to adjust the cable tension. The adjustment nut you loosened earlier is key here. Gradually tighten this nut while testing the handbrake engagement. The general rule of thumb is that the handbrake should engage fully within 3 to 7 clicks (or detents) of the lever. It should hold the vehicle firmly, but not be so tight that it causes drag on the rear wheels when released. Test the handbrake by attempting to push the car on a flat surface while engaged. Ensure the wheels spin freely when the handbrake is fully disengaged.
8. Reassemble the Centre Console
Once you are satisfied with the handbrake's adjustment, it's time to reassemble the centre console. Carefully lower the console back into place, ensuring all mounting points align. Reconnect all electrical connectors you disconnected earlier. Double-check that all wires are routed correctly and not pinched. Secure all screws and bolts that hold the console in place. Finally, reattach the gear stick surround and any other trim pieces, ensuring all clips engage properly. Give all components a firm but gentle push to ensure they are seated correctly.
9. Final Testing
Before driving, perform a final, thorough test of the handbrake. Engage it fully and attempt to drive off slowly. The car should resist movement. Release the handbrake completely and ensure there is no drag when driving. Listen for any unusual noises and confirm the lever feels firm and engages positively with each click. If your Qashqai has an electronic parking brake, test its function as well.
Common Handbrake Issues & Troubleshooting
Even after replacement, you might encounter minor issues. Here's how to address them:
- Handbrake feels loose or too many clicks: This indicates the cable tension is too low. Re-adjust the handbrake cable nut to tighten the cables.
- Handbrake feels too stiff or causes drag: The cable tension is too high. Loosen the adjustment nut slightly.
- Handbrake doesn't hold the car: Beyond cable adjustment, this could indicate worn rear brake shoes/pads or faulty handbrake cables themselves, which might need separate inspection or replacement.
- New lever doesn't 'click' into place: Double-check the installation of the new lever and its internal ratchet mechanism. Ensure it's fully seated and not obstructed.
- Console trim not fitting correctly: This usually means a clip is misaligned or broken, or a cable/wire is obstructing the fit. Carefully re-examine the area and ensure everything is clear.
Why Handbrake Levers Fail
Understanding the common causes of failure can help in future maintenance or even prevent issues. The handbrake lever is a mechanical component subjected to repeated stress. Over time, the internal ratchet teeth can wear down, leading to a loss of positive engagement. The spring mechanism that provides the 'click' can weaken or break. The release button mechanism can become stiff or seize due to dirt ingress or corrosion. Furthermore, the plastic or metal pivot points can wear, leading to excessive play in the lever. Accidental impacts or attempting to force a seized handbrake can also cause physical damage to the lever body or its mounting.
While this guide focuses on the lever, it's worth noting that the handbrake system comprises several interconnected parts. If, after replacing the lever, you still experience issues, the problem might lie elsewhere:
- Handbrake Cables: These can stretch over time, fray, or seize within their outer sheathing, leading to poor handbrake performance.

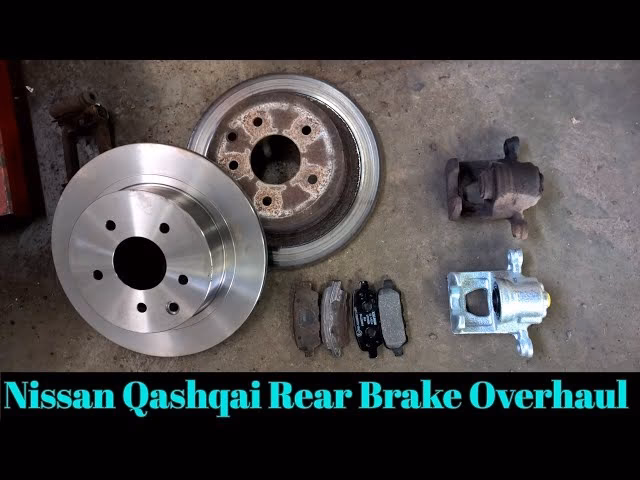

- Rear Brake Mechanism: The handbrake acts on the rear brakes. Worn brake shoes (for drum brakes) or seized callipers (for disc brakes with integrated handbrake) can prevent the handbrake from working effectively, even with a perfect lever.
Frequently Asked Questions (FAQs)
Q: How long does it typically take to replace the handbrake lever on a Nissan Qashqai?
A: For a first-timer, expect it to take anywhere from 2 to 4 hours. Much of this time will be spent on careful console disassembly and reassembly. Experienced DIYers might complete it faster.
Q: Do I need any specialised tools for this job?
A: While most tools are standard, a set of plastic trim removal tools is highly recommended. Using metal screwdrivers to pry plastic trim can easily scratch or damage your interior, leading to unsightly marks.
Q: Can I just adjust the handbrake cable instead of replacing the whole lever?
A: If the lever itself is physically sound and engages positively, but the handbrake feels loose, then adjustment of the cable is often sufficient. However, if the lever is wobbly, broken, or the release button is faulty, replacement is necessary.
Q: What if my Qashqai has an electronic parking brake (EPB)? Is the process different?
A: Yes, for Qashqai models with an EPB, the physical handbrake lever is replaced by a button. The repair process for an EPB fault is significantly different and usually involves diagnosing electrical faults or replacing the EPB motor/actuator on the rear calipers, not a mechanical lever. This guide is for models with a traditional manual handbrake lever.
Q: My handbrake feels spongy even after replacement and adjustment. What could be wrong?
A: A spongy feel often points to issues with the handbrake cables themselves (stretched, seized) or problems within the rear braking mechanism (worn brake shoes/pads, seized calipers or adjusters). These components would need further inspection.
Replacing the handbrake lever on your Nissan Qashqai is a rewarding task that can save you money and give you a deeper understanding of your vehicle. By following these detailed steps and prioritising safety, you can successfully restore your handbrake's functionality, ensuring your Qashqai is safe and compliant for the road ahead. Remember, patience and attention to detail are your best allies in any automotive repair.
