Understanding the location of critical components in your vehicle is a cornerstone of effective car maintenance. For Ford Focus owners, knowing where to find the brake pads is an essential piece of knowledge, whether you're planning a DIY replacement or simply want to be better informed when speaking with your mechanic. Brake pads are the unsung heroes of your braking system, working tirelessly to convert kinetic energy into heat through friction, thereby slowing and stopping your vehicle. This guide will walk you through precisely where to find these vital parts on your Ford Focus, ensuring you can keep your car in optimal working order.
The Anatomy of Your Braking System
Before we pinpoint the brake pads, it's helpful to understand their immediate surroundings within the braking system. Your Ford Focus, like most modern vehicles, likely employs a disc brake system. This system consists of several key components:
- Brake Disc (Rotor): A metal disc that rotates with the wheel.
- Brake Caliper: A clamp-like device that houses the brake pads and hydraulic piston(s).
- Brake Pads: The friction material that presses against the brake disc.
- Brake Fluid: The hydraulic fluid that transmits force from the brake pedal to the caliper.
- Brake Lines: The hoses and pipes that carry the brake fluid.
The brake pads are the 'wear items' in this system. They are designed to be replaced periodically as they gradually wear down from constant friction against the brake disc. The caliper's primary job is to hold the brake pads in place and then push them towards the rotor when you apply the brakes.
Pinpointing the Brake Pads on Your Ford Focus
The brake pads are located inside the brake caliper, which in turn is mounted on the wheel hub. To visually inspect or access them, you'll need to look at the wheels themselves.
Step-by-Step Location Guide:
- Locate the Wheels: This might sound obvious, but start by identifying the wheels of your Ford Focus.
- Look Through the Wheel Spokes: Modern Ford Focus models often feature alloy wheels with open spoke designs. If your vehicle has these, you can usually see the brake components through the gaps between the spokes.
- Identify the Brake Disc (Rotor): You'll see a large, circular metal disc. This is the rotor. It's attached to the hub and spins with the wheel.
- Find the Brake Caliper: The caliper is the component that straddles the brake disc, somewhat like a large clamp. It's usually a more substantial, often brightly coloured (though sometimes painted or left natural metal) piece of metal.
- The Brake Pads are Inside the Caliper: The brake pads are pressed against the sides of the brake disc, sandwiched within the caliper. You might be able to see a thin metal shim or backing plate of the pad peeking out from the caliper's jaws.
Visual Aids and What to Expect:

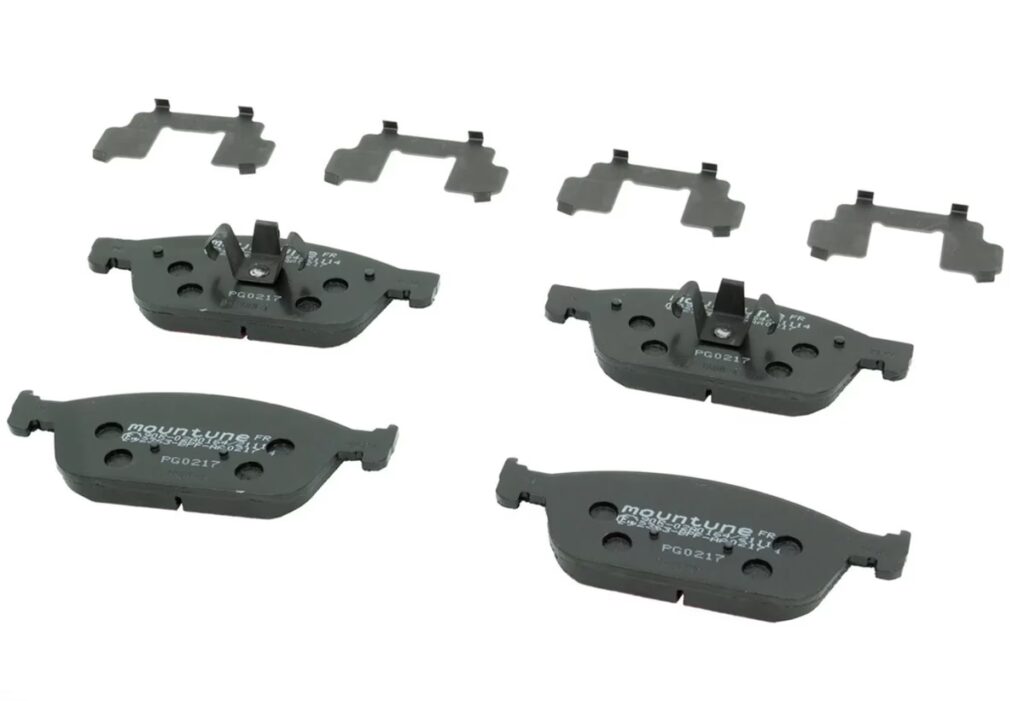

When you look through your wheel spokes, you should see the brake disc. Encircling a portion of this disc will be the brake caliper. The brake pads are the friction material that sits on either side of the disc, pressed inwards by the caliper's pistons when you brake. They are typically rectangular in shape and made of a composite material. You'll usually see two pads per caliper, one on each side of the rotor.
Important Note: The brake pads are on both the front and rear wheels, though the design and size may differ. Front brakes typically handle a larger portion of the braking force, so they may wear faster.
When to Inspect Your Brake Pads
Regular inspection is key to ensuring your braking system is in good condition. Here are some common indicators that your brake pads may need attention:
- Squealing or Grinding Noises: Many brake pads have a small metal 'wear indicator' that, when the pad material gets thin, scrapes against the rotor, producing a high-pitched squeal when you brake. A grinding noise usually indicates the pads have worn down to the metal backing plate, which can damage the rotor and is a serious safety concern.
- Reduced Braking Performance: If your car takes longer to stop, or the brake pedal feels softer or goes closer to the floor, this could indicate worn pads or other brake system issues.
- Vibration or Pulsation: While sometimes caused by warped rotors, a pulsating brake pedal can also be a symptom of uneven pad wear.
- Visual Inspection: If you can see the pads through the wheels, look at the thickness of the friction material. If it's less than about 3-4 millimetres (roughly the thickness of two UK coins stacked together), it's generally time for replacement.
DIY vs. Professional Replacement
Replacing brake pads is a common maintenance task, but it does require some mechanical aptitude and the correct tools. If you're comfortable working on your car, here's a brief overview of the process:
| Aspect | DIY | Professional |
|---|---|---|
| Cost | Lower (parts only) | Higher (parts + labour) |
| Tools Required | Jack, jack stands, lug wrench, C-clamp or piston compressor, wrenches/sockets, brake cleaner, potentially a torque wrench. | All necessary professional tools and equipment. |
| Time Commitment | Several hours, depending on experience. | Typically 1-2 hours per axle. |
| Expertise Needed | Basic to intermediate mechanical knowledge. Understanding of brake system safety. | Professional training and experience. |
| Risk of Error | Higher if inexperienced; incorrect installation can be dangerous. | Lower; professionals are trained to avoid common mistakes. |
| Warranty | Typically none on labour; parts warranty varies. | Often includes a warranty on parts and labour. |
If you are unsure about any part of the process, or if you encounter any difficulties, it is always best to seek the assistance of a qualified mechanic. Brakes are a critical safety system, and ensuring they are maintained correctly is paramount.
Frequently Asked Questions (FAQs)
Q1: How do I know if my Ford Focus brake pads need replacing?
Look for common signs such as squealing or grinding noises when braking, a spongy or low brake pedal, reduced braking effectiveness, or visual inspection revealing thin pad material (less than 3-4mm).
Q2: Can I see the brake pads without taking the wheel off?
On many Ford Focus models with alloy wheels, you can see the brake pads through the spokes of the wheel. They are located inside the brake caliper, which surrounds the brake disc.
Q3: Are the front and rear brake pads the same on a Ford Focus?
While both sets perform the same function, the front and rear brake pads often have different dimensions and friction compounds, as the front brakes typically handle more braking load.
Q4: What is the typical lifespan of Ford Focus brake pads?
The lifespan of brake pads varies greatly depending on driving style, conditions, and the quality of the pads. However, a common range is between 25,000 to 70,000 miles (approximately 40,000 to 110,000 kilometres) for front pads and potentially longer for rear pads.
Q5: What happens if I don't replace worn brake pads?
Driving with worn brake pads can significantly reduce your car's stopping power, posing a serious safety risk. If the pads wear down to the metal backing, they can also cause severe damage to the brake discs (rotors), leading to more expensive repairs.
Conclusion
Locating the brake pads on your Ford Focus is a straightforward process once you understand the components of your braking system. They reside within the brake caliper, which is mounted on the hub and encircles the rotating brake disc. Regular visual inspections and paying attention to any changes in braking performance or sounds will help you determine when these crucial wear items need replacing. Keeping your brake pads in good condition is fundamental to safe driving, ensuring your Ford Focus can stop reliably when you need it most. Always consult your owner's manual for specific details pertaining to your Ford Focus model and year.
