Mazda Miata Oil Change Guide

Choosing the Right Oil for Your Mazda Miata

Keeping your Mazda Miata running smoothly is paramount, and one of the most fundamental aspects of this is using the correct engine oil. The type of oil your Miata requires can vary slightly depending on the generation and even the market it was sold in. Fortunately, understanding these differences is straightforward, and this guide will walk you through it.

ND Miata Oil Specifications

For the latest generation ND Miata, the Operator's Manual specifies 0W-20 engine oil with an SN rating. This viscosity is chosen for its excellent performance across a wide range of temperatures, contributing to fuel efficiency and optimal engine protection. However, it's worth noting that in European and Taiwanese markets, the ND Miata also offers an option for 5W-30 oil. While 0W-20 is generally recommended for most conditions, always consult your specific vehicle's manual to confirm the precise oil requirements for your region and model year.

Oil Changes for NB and NC Miatas

When it comes to the popular NB and NC generations of the Mazda Miata, the principle of regular oil changes remains crucial. While the exact oil weight might have been less strictly dictated in older manuals compared to the ND, using a good quality synthetic oil is always a wise choice. Many enthusiasts opt for 5W-30 or 10W-30, depending on climate and driving conditions, but again, your owner's manual is the definitive source. The process of changing the oil, however, shares many common steps across these generations.

Performing a Miata Oil Change: A Step-by-Step Guide

Carrying out your own oil changes can be a rewarding experience, saving you money and giving you a better understanding of your vehicle. Here's a comprehensive breakdown of how to tackle an oil change on your Miata, with a focus on the ND generation's specifics.

Preparation is Key

Before you begin, gather all the necessary supplies:

• New engine oil (correct viscosity and rating)
• New oil filter
• Crush washer for the drain plug (recommended for each oil change)
• Wrench set (including a 17mm socket for the drain plug)
• Oil filter wrench
• Torque wrench (essential for accurate tightening of the drain plug and filter)
• Oil drain pan
• Funnel
• Gloves and rags
• Jack and jack stands (for safely raising the vehicle)
• Wheel chocks

Removing the Belly Pan (ND Specific)

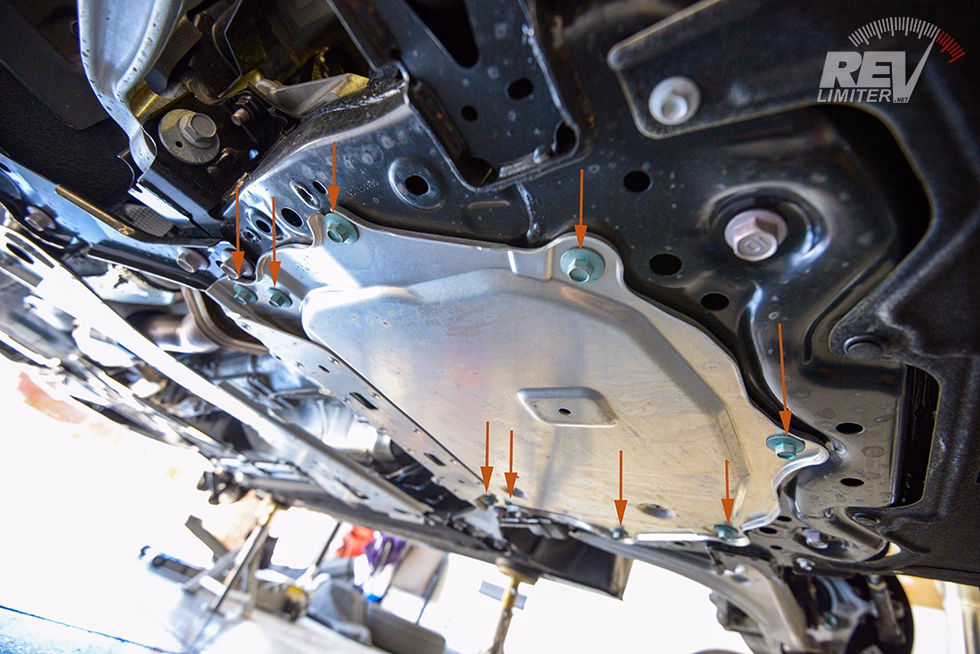

One of the first steps for an ND Miata oil change is removing the underbody splash shield, often referred to as the belly pan. This metal component is held in place by nine bolts. While this might seem like a minor inconvenience, it's designed to protect the underside of your engine. An air ratchet can significantly speed up the removal and reinstallation of these bolts.

Tip: Keep the bolts organised, perhaps in a small container, to ensure you don't lose any during the process.

Draining the Old Oil

With the belly pan removed, you'll gain access to the oil drain plug and the oil filter. Locate the drain plug, which typically requires a 17mm socket. Position your oil drain pan beneath the plug. Carefully loosen and remove the drain plug. Allow the old oil to drain completely. This process can take several minutes.

Torque Specification: Once the oil has drained, clean the drain plug and its threads. Reinstall the plug, using a new crush washer if possible, and tighten it to the manufacturer's specified torque. For the ND Miata, this is typically between 23-30 ft/lbs.

Removing and Replacing the Oil Filter

The oil filter's location on the ND Miata is conveniently placed for access after removing the belly pan. You might find that the factory-installed filter is quite tight. Use your oil filter wrench to loosen and remove the old filter. Be prepared for some residual oil to spill out.

Pre-filling the Filter: A key advantage of the ND Miata's filter placement is that you can pre-fill the new oil filter with fresh oil. This helps to reduce the time the engine runs without immediate oil pressure on startup. Apply a thin film of new oil to the rubber gasket on the new filter before screwing it into place. This ensures a good seal and prevents the gasket from tearing during installation.

Torque Specification: The factory torque specification for the oil filter is usually between 107-141 INCH/lbs. It's crucial to use a torque wrench calibrated for inch-pounds for this, as over-tightening can damage the filter or the engine block.

Filter Size Considerations

A common issue encountered with the ND Miata is the filter's low hanging position. This means you cannot use an extended-size oil filter, as it would likely interfere with the belly pan and prevent it from being reinstalled correctly. Always opt for an oil filter specifically designed for the ND Miata. Here are some common part numbers:

Adding New Oil

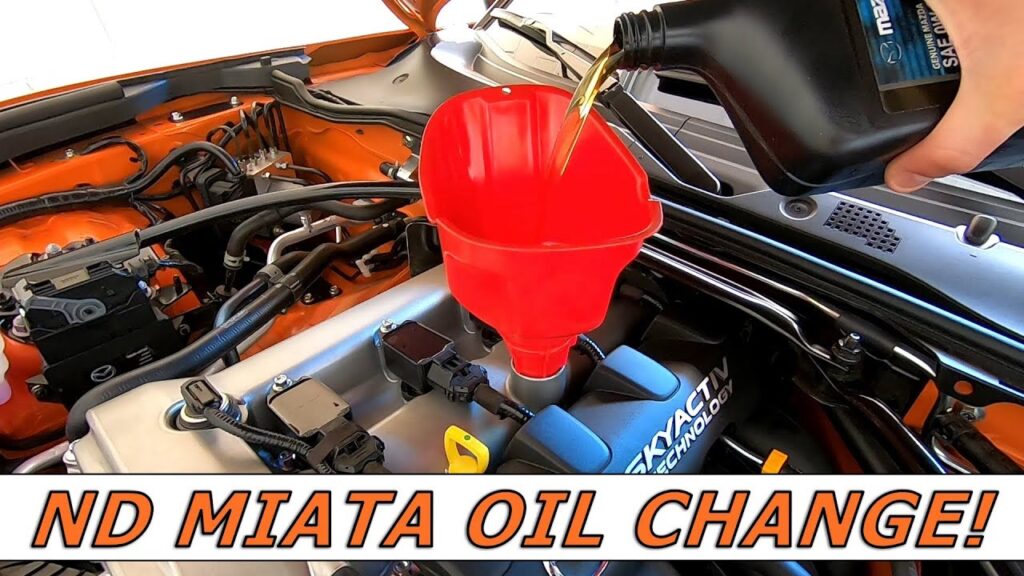

Once the drain plug is reinstalled and the new filter is in place, it's time to add the new oil. Using your funnel, add approximately 4 quarts of the specified 0W-20 oil into the engine's oil filler port. Replace the oil filler cap.

Initial Run and Level Check: Start the engine and let it run for about 30 seconds. This allows the new oil to circulate and fill the filter. While the engine is running, check for any leaks around the drain plug and oil filter. After shutting off the engine, wait for a minute or two for the oil to settle back into the oil pan. Then, check the oil level using the dipstick. The factory specification for the ND Miata is approximately 4.5 quarts from empty. Add more oil incrementally if needed to reach the correct level, being careful not to overfill.

Reinstalling the Belly Pan

With the oil change complete and the oil level confirmed, you can now reinstall the belly pan. Ensure all nine bolts are securely tightened. As mentioned, the bolts typically require a torque of 24-28 ft/lbs.

Resetting the Oil Maintenance Monitor

Modern vehicles like the ND Miata come equipped with an oil maintenance monitor that reminds you when it's time for your next service. Resetting this monitor is a simple process that can be done through the infotainment system:

1. Navigate to the 'APPLICATIONS' screen.
2. Select 'Vehicle Status Monitor'.
3. Choose 'Maintenance'.
4. Select 'Oil Change' and then 'Reset'.

This system also allows you to adjust the maintenance intervals if you prefer to service your vehicle more or less frequently than the factory recommendation. You can find this option under 'Oil Life' within the maintenance settings.

Fluid Disposal and Environmental Responsibility

Used engine oil and filters are hazardous waste and must be disposed of responsibly. Most auto parts stores and local recycling centres have facilities for accepting used motor oil. Invest in a good quality oil drain pan that can hold a significant amount of oil, making transportation for disposal easier. Always recycle your used fluids to protect the environment.

Common Pitfalls to Avoid

• Using the wrong oil type: Always adhere to the manufacturer's recommended oil viscosity and API service rating.
• Over-tightening the drain plug or filter: This can lead to stripped threads or damaged components. Use a torque wrench.
• Not replacing the crush washer: A new crush washer helps ensure a leak-free seal for the drain plug.
• Forgetting to pre-fill the oil filter: While not critical, it's a best practice for quicker oil pressure buildup.
• Overfilling the engine with oil: Too much oil can cause foaming and damage the engine.
• Using an incorrect oil filter size: Ensure the filter fits without interfering with other components, especially the belly pan on the ND.

By following these guidelines, you can confidently perform regular oil changes on your Mazda Miata, ensuring its longevity and optimal performance for many miles to come. Remember, consistent maintenance is the bedrock of a reliable vehicle.

Frequently Asked Questions

Q1: What is the correct oil for a Mazda Miata ND?

A1: The recommended oil for the Mazda Miata ND is 0W-20 with an SN rating. In some European and Taiwanese markets, 5W-30 is also an option.

Q2: Can I use a longer oil filter on my ND Miata?

A2: No, it's generally not advisable to use an extended oil filter on the ND Miata, as its low-hanging position can cause it to interfere with the belly pan, preventing proper reinstallation.

Q3: How often should I change the oil in my Miata?

A3: Consult your owner's manual for the recommended service interval. The oil maintenance monitor on the ND can also be used as a guide, and its intervals can be adjusted.

Q4: What is the torque specification for the Miata oil drain plug?

A4: The torque specification for the ND Miata oil drain plug is typically between 23-30 ft/lbs.

Q5: Where can I dispose of used engine oil?

A5: Used engine oil can usually be taken to local auto parts stores or recycling centres for proper disposal.
