BMW N47 Engine: Performance, Issues & Tuning

The BMW N47 engine, a four-cylinder common rail diesel powerhouse, marked a significant evolution in BMW’s diesel lineage when it was introduced in 2007. Succeeding the well-regarded M47, the N47 was heralded for its blend of performance and impressive fuel efficiency, quickly becoming a staple across a wide range of BMW models including the 1 Series, 3 Series, and X1. It showcased BMW's commitment to precision engineering, incorporating advancements such as TwinPower Turbo technology, direct fuel injection, and exhaust gas recirculation (EGR) to meet stringent emissions standards without compromising its dynamic capabilities. However, despite its many merits, the N47 has also garnered a reputation for certain inherent challenges, particularly concerning its longevity and reliability, which have become a significant talking point among owners and enthusiasts alike.

The N47's Lineage and Evolution

The N47 engine family, produced from 2007 until its eventual succession by the B47 around 2014-2015, represented a leap forward from its M47 predecessor. It featured a more compact design, improved fuel economy, and higher power outputs across its various iterations. Initially, the N47 was praised for its refinement and robust torque delivery, making it a popular choice for daily driving and longer journeys. However, early in its production run, a critical flaw began to emerge that would significantly impact its reputation: issues with the timing chain.

Navigating N47's Known Issues

The N47 engine, while offering impressive performance and economy, is unfortunately synonymous with a few persistent mechanical issues that demand attention from owners. Understanding these common pitfalls is crucial for proactive maintenance and ensuring the longevity of your BMW.

The Infamous Timing Chain Saga

Perhaps the most widely recognised and dreaded issue associated with the N47 is its propensity for premature timing chain wear and, in severe cases, outright failure. This is particularly concerning as the timing chain in the N47 is located at the rear of the engine, making replacement a labour-intensive and costly undertaking, often requiring engine removal. BMW attempted to address this with several revisions:

• The first major technical update occurred around 2009. This involved a redesign of the crankshaft, which has a timing chain gear built-in, featuring larger radii in an attempt to reduce wear. Unfortunately, this update did not entirely resolve the issue, with failures still reported on vehicles produced as late as 2014.
• A second significant update was rolled out later, leading to a free 'Quality Enhancement' programme for many cars. This initiative saw affected vehicles retrofitted with new guides, tensioners, and chains. It was a substantial undertaking, with noisy engines often receiving around £3,500 worth of parts and labour, essentially an attempt to extend the life of these components.

The persistence of timing chain issues underscores the importance of vigilant maintenance, especially regular oil changes, and attentive listening for any tell-tale signs of chain noise, such as a rattling or whining sound from the rear of the engine.

EGR Valve Recalls and Carbon Build-up

Another prominent issue that has affected a vast number of N47 engines is related to the Exhaust Gas Recirculation (EGR) system. There has been a widespread recall, affecting approximately 1.6 million vehicles, primarily concerning the EGR valve. The recall aims to prevent 'thermal incidents' – essentially, a risk of fire – stemming from faulty EGR coolers or valves. This highlights the critical role of the EGR system, which, while designed to reduce emissions, can also be a source of problems.

The EGR system, along with the engine's direct injection nature, contributes significantly to carbon build-up. Oil residue from the EGR mixes with exhaust gases, coating the intake manifold, inlet ports, and valves with carbon deposits. This build-up can severely restrict airflow, leading to:

• Reduced power output and torque.
• Flat spots in acceleration.
• Decreased fuel efficiency.
• Increased smoke from the exhaust.

Regular inspection and cleaning of the intake system are vital to mitigate these issues.

The Swirl Flaps Conundrum

Not all N47 engines are equipped with swirl flaps in the intake manifold, but for those that are, they can present another potential failure point. Swirl flaps are designed to create turbulence at lower RPMs, improving air-fuel mixing, enhancing fuel economy, and reducing soot and smoke emissions. However, the original OEM swirl flaps were known to be prone to breakage, with the potential for detached flaps to enter the engine, causing catastrophic damage.

While some enthusiasts opt for complete swirl flap removal, which is often considered an 'off-road' or 'motorsport' modification due to legality in certain regions, it's important to note that their removal does not necessarily harm performance, especially under load when they close anyway. However, they do contribute to low-RPM efficiency and emissions. The N47’s design, with the swirl flap shaft located inside the inlet manifold, makes removal more challenging. Some owners choose to leave the rods in place and only remove the flaps, or fit stronger aftermarket replacements. It's generally recommended to maintain them or replace them with robust alternatives rather than removing them entirely, especially given their contribution to low-end torque and economy.

N47 Engine Specifications & Applications

The N47 engine family came in various power outputs and cylinder capacities, though fundamentally sharing the same block. It was widely adopted across BMW's model range, demonstrating its versatility.

Revisions between engine models typically involved injectors, the turbocharger, and the ECU map. Higher power variants often utilised Pintle injectors with a higher rail pressure (around 1900 bar) compared to the earlier Piezo electromagnetic injectors (1600 bar) found in lower power versions. This difference in wiring means they aren't directly interchangeable.

Unlocking Potential: Tuning the BMW N47 Engine

For owners looking to extract more performance from their N47, a range of tuning options are available. The core principle of tuning a diesel engine involves increasing the amount of fuel and air supplied for combustion, leading to higher power output.

Remapping the N47 ECU

Remapping the engine's Electronic Control Unit (ECU) is arguably the most impactful and cost-effective modification for the N47. This process involves adjusting various parameters such as air-fuel mixture, injection timing, and boost pressure to optimise performance. A well-executed remap can yield substantial power and torque gains, often around 30% on turbocharged vehicles, depending on existing modifications and the engine's condition. Alternative options include aftermarket ECU upgrades for more granular control, or inline tuning boxes for a less intrusive approach.

When considering a remap, it's crucial to look beyond advertised peak power figures. Some tuners might manipulate the map to show a power spike, but a truly effective tune provides consistent power and torque delivery across the entire RPM range. Beware of poorly executed remaps that can lead to traction issues at the low end or component failures at the top end. While remapping offers significant benefits, it's important to acknowledge the downsides: it typically necessitates shorter service intervals, particularly for oil changes, and potentially more frequent checks or replacement of the timing chain due to increased stress on components.

Key N47 Performance Modifications

• Intercooler Upgrades: The stock intercooler can quickly become heat-soaked under sustained load, leading to power loss. A larger, more efficient intercooler is crucial for maintaining consistent power output, especially in turbocharged N47 engines.
• Air Induction and Performance Exhausts: While these modifications alone might not significantly boost power, they are vital for enhancing overall efficiency and power output once other modifications are in place. A free-flowing air intake and performance exhaust reduce restrictions, allowing the engine to breathe more easily. For the N47, the standard intake and exhaust are generally adequate for modest power gains, with the DPF/Cats often being the primary restriction points at higher power levels.
• Head Work: Porting and flowing the cylinder head optimises airflow into the engine by removing restrictions and turbulence. This improves the engine's 'breathing,' allowing it to capitalise more effectively on other performance modifications, leading to greater power gains and efficiency.
• Turbocharger Upgrades: Upgrading the turbocharger is one of the most significant ways to increase air supply, enabling the engine to combust more fuel for substantial power gains. The N47 was even available with a twin-turbo setup from the factory, which offered good spool-up and headroom. Aftermarket options like a GTB2260V turbo upgrade can potentially push power significantly higher (e.g., 200-275hp). Modern variable vane and twin-scroll turbochargers help mitigate turbo lag and improve top-end torque. However, it's crucial to ensure supporting modifications, like upgraded pistons and cranks, can handle the increased stress.
• Fuelling Upgrades: Increasing power necessitates a corresponding increase in fuel delivery. The N47 used different injector types (Piezo vs. electromagnetic) and fuel rail pressures depending on the power output. For significant power hikes (e.g., above 200hp), upgrades to the fuel pump and injectors become necessary. A CP4 fuel pump upgrade, with modified versions like the CP4.2 capable of supporting up to 270hp, is often recommended. Injector upgrades can add 10-15% more power, and upgrading the metering valve can provide around a 5% gain.
• Lighter Flywheels: A lighter flywheel allows the engine to rev more freely, improving throttle response. However, it's important to consider that this can sometimes affect low-end torque, which might not be desirable for all N47 applications.
• Clutch Upgrades: When significantly increasing power and torque, the stock clutch, especially one with considerable mileage, will likely begin to slip. Upgrading the clutch is a necessary step to ensure the transmission can handle the increased output. While heavy-duty clutches offer greater power tolerance, they can be heavier to operate and more 'snatchy,' affecting daily driving comfort.

EGR & DPF Management

While EGR and DPF (Diesel Particulate Filter) removal are common 'off-road' modifications, it's critical to understand that they are generally illegal for road use in most regions due to their impact on emissions. For road-legal vehicles, fitting a better-flowing DPF can improve performance and extend the time between regeneration cycles. Removing the EGR typically doesn't yield a noticeable power increase, as it closes under load anyway, but addressing carbon build-up related to it is paramount.

Maintenance Tips for Your N47

The N47 engine can be a reliable unit, provided it receives diligent maintenance. Regular servicing is paramount, especially if the engine has been tuned. Critical maintenance points include:

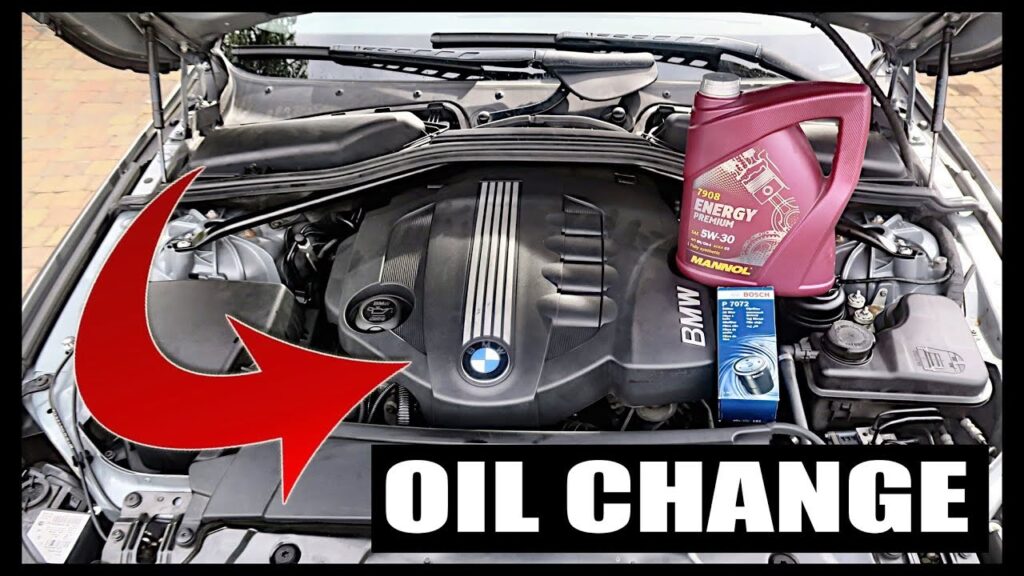

• Frequent Oil Changes: Essential for extending engine life and reliability, particularly when tuned, as increased stresses demand cleaner lubrication.
• Timing Chain Monitoring: Be vigilant for any unusual noises (rattling, whining) from the rear of the engine. Early detection can prevent catastrophic failure.
• Carbon Build-up Checks: Periodically inspect and clean the intake manifold and EGR valve to prevent significant carbon deposits from accumulating, which can severely restrict airflow and affect performance.
• Swirl Flap Inspection: If your N47 has swirl flaps, regular inspection is advised. Consider replacing original units with stronger aftermarket alternatives if concerns arise.
• Hose and Wastegate Checks: Turbocharger wastegate springs can fail, causing them to stick open. Inspect all associated hoses, as they can become fragile over time.

Frequently Asked Questions (FAQs)

When was the N47 engine replaced by the B47?

The BMW N47 engine was produced from 2007 to 2014. It was succeeded by the BMW B47 engine, which began to feature in BMW models from around 2014-2015 onwards.

What engine did the BMW N47 replace?

The BMW N47 engine directly replaced its predecessor, the BMW M47. The N47 introduced common rail diesel technology and numerous improvements over the M47.

Is the BMW N47 a reliable engine?

The N47 engine can be reliable if it is meticulously serviced and maintained. However, it is widely known for certain inherent issues, most notably the timing chain failure risk and carbon build-up, which require proactive attention from owners.

What are the most common problems with the N47 engine?

The primary issues associated with the N47 engine include excessive timing chain wear and potential failure, carbon build-up in the intake manifold and valves (often exacerbated by the EGR system and swirl flaps), and issues with the EGR valve itself, which has been subject to widespread recalls.

Can I remap my N47 engine, and what are the benefits?

Yes, remapping an N47 engine is a popular and effective way to unlock significant power and torque gains. Benefits include increased acceleration, improved responsiveness, and potentially better fuel economy when driven efficiently. However, it's crucial to use a reputable tuner and be aware that remapping can necessitate more frequent maintenance, particularly oil and timing chain checks.

Are swirl flaps removals recommended for the N47?

The recommendation for swirl flaps removal is debated. While removing them eliminates a potential failure point that could cause engine damage, they do contribute to low-RPM efficiency and emissions. Furthermore, their removal might not be legal for road use in all regions. Many recommend maintaining them or fitting stronger aftermarket alternatives rather than outright removal.

Conclusion

The BMW N47 engine is a testament to BMW’s engineering prowess, offering a compelling blend of power and efficiency that made it a popular choice across its model range. However, its legacy is also intertwined with well-documented challenges, particularly concerning its timing chain, EGR system, and swirl flaps. For owners, understanding these potential pitfalls and committing to proactive, diligent maintenance is paramount. For those seeking to enhance performance, the N47 offers considerable tuning potential through remapping, turbocharger upgrades, and fuelling enhancements. By addressing its known weaknesses and intelligently applying modifications, the N47 can continue to deliver a dynamic and satisfying driving experience for years to come.
