The Mazda MX5, affectionately known as the Miata in some circles, is celebrated worldwide for its sublime handling, balanced chassis, and pure driving engagement. However, even the most exhilarating drive demands reliable stopping power. Understanding your MX5's braking system, from routine maintenance to potential upgrades, is paramount for both safety and enhancing your driving experience. This comprehensive guide will delve into the nuances of MX5 brakes, addressing common queries and shedding light on the various setups found across different generations.

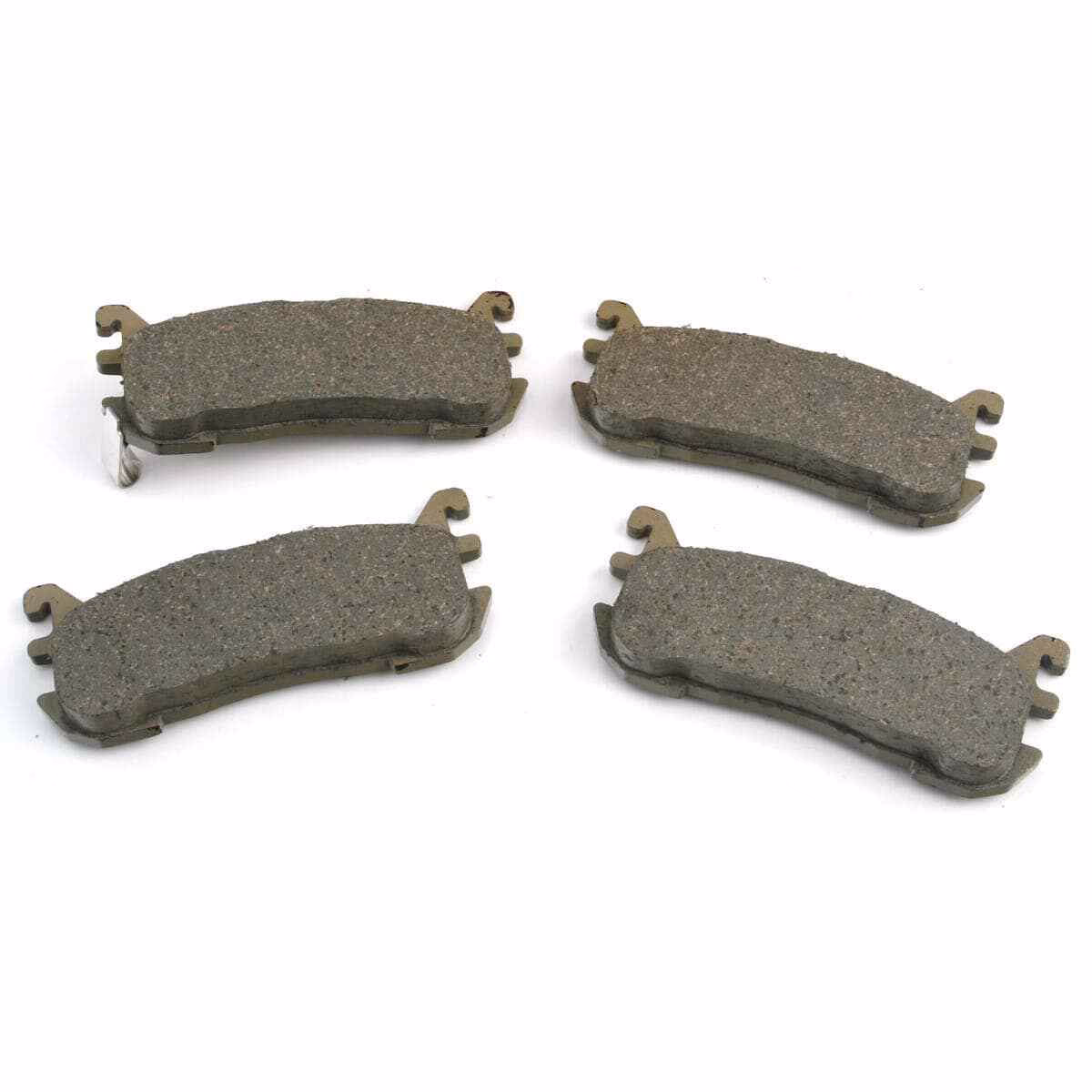

Changing Brake Pads on a 1993 MX5
Absolutely, changing brake pads on a 1993 MX5 is a standard maintenance procedure that is well within the capabilities of a competent DIY enthusiast or any professional mechanic. The 1993 model falls within the Mk1 generation, and its brake system, while specific, follows a conventional design. Regular inspection and timely replacement of brake pads are crucial for maintaining optimal braking performance and preventing more costly damage to your brake discs or calipers.
The process typically involves jacking the car safely, removing the wheel, unbolting the brake caliper, compressing the caliper piston, swapping out the old pads for new ones, and then reassembling everything. It's also a good opportunity to inspect the brake discs for wear, warping, or scoring, and to check the condition of the brake lines. Always use the correct tools and follow safety procedures, such as using axle stands and ensuring the vehicle is stable. After replacing pads, it's often advisable to slightly depress the brake pedal a few times before driving to ensure the pads are seated against the discs and to perform a gentle 'bedding-in' process to achieve full braking efficiency.
Availability of Brake Calipers for Mazda MX5
Indeed, brake calipers are readily available for various Mazda MX5 models. Given the MX5's enduring popularity and long production run, the aftermarket support for parts, including braking components, is excellent. Whether you're looking for new calipers, reconditioned units, or even performance upgrades, you'll find a wide array of options from various suppliers.
However, it's crucial to note that not all MX5 calipers are identical. As you'll discover, there are significant differences between models, particularly regarding the front calipers. When sourcing replacements, it's highly recommended to use filters or provide your vehicle's exact year and model specification to ensure you purchase the correct part. If in doubt, consulting with a parts specialist is always a good idea to confirm compatibility and avoid purchasing the wrong components.
Understanding MX5 Brake System Differences: Mk1, Mk2, and Mk2.5
The Mazda MX5, across its first two and a half generations (1989-2005), featured three distinct brake setups. Understanding these differences is key, whether you're performing routine maintenance or considering a brake upgrade. These variations primarily concern disc sizes and caliper designs, especially for the front axle.
Disc Sizes Across MX5 Generations
The primary differentiator between the various brake systems lies in the diameter of the brake discs:
- Mk1 1.6 (1989-1993): These early models came with the smallest brakes in the lineup, featuring 235mm front discs and 231mm rear discs. This setup was perfectly adequate for the lighter, less powerful 1.6-litre engine.
- Mk1 1.8 (1993-1997) and All Mk2s (1998-2000): With the introduction of the 1.8-litre engine in the Mk1 and carrying over to all Mk2 models, the brakes were uprated. These models feature larger 255mm front discs and 251mm rear discs. This provided improved stopping power to match the slightly increased engine output and weight.
- Mk2.5 Sport or Big Brake (2001-2005): The most significant brake upgrade was found on specific Mk2.5 Sport models. This 'Big Brake' setup boasts impressive 270mm front discs and 276mm rear discs. This substantial increase in disc size offers superior heat dissipation and significantly enhanced braking performance, making it ideal for more spirited driving or track use.
Caliper and Bracket Variations
Beyond disc size, the calipers and their mounting brackets also vary:
- Front Calipers: The front calipers show the most distinct differences. The Mk1 1.6 and Mk1 1.8/Mk2 calipers, while sharing some visual similarities, are not interchangeable due to different mounting points and piston sizes. They are often marked 'L' or 'R' for left or right side. The Mk2.5 Sport 'Big Brake' caliper is entirely different in design and size, clearly distinct from the earlier models.
- Rear Calipers: Interestingly, the rear calipers are largely similar across all Mk1 and Mk2 models (excluding the Mk2.5 Big Brake). This means that for a standard rear brake replacement, the process and parts are often quite consistent. However, the Mk2.5 Big Brake rear caliper is, like its front counterpart, uniquely designed to accommodate the larger disc.
Interchangeability of Components
A fantastic aspect of the MX5 platform from 1989 to 2005 is the high degree of interchangeability between brake components. All of these calipers and their respective brackets can be fitted to any MX5 or Roadster manufactured within this period. This means you could, for example, install the larger Mk2.5 Big Brakes onto an earlier Mk1 1.6 chassis. However, it's crucial that when performing such an upgrade, you mount both the caliper and its specific bracket together, as the brackets are designed to correctly position the caliper relative to the larger disc.
Caliper Brackets: The Unsung Heroes
The caliper brackets are often overlooked but are vital components. They mount the calipers securely onto the hub assembly and are specifically designed to accommodate the different disc diameters. The largest brackets are, predictably, for the 'Big Brake' setup, allowing the fitment of the larger discs. While the front caliper brackets show clear distinctions in size and mounting, the rear caliper brackets, though similar in concept, also have subtle differences in size and the specific fitting bolts, clips, and springs they utilise.
Here's a comparative overview of the brake setups:
| MX5 Model | Front Disc Size | Rear Disc Size | Front Caliper Type | Rear Caliper Type |
|---|---|---|---|---|
| Mk1 1.6 (1989-1993) | 235mm | 231mm | Standard 1.6 | Standard (non-Big Brake) |
| Mk1 1.8 (1993-1997) | 255mm | 251mm | Standard 1.8/Mk2 | Standard (non-Big Brake) |
| All Mk2 (1998-2000) | 255mm | 251mm | Standard 1.8/Mk2 | Standard (non-Big Brake) |
| Mk2.5 Sport / Big Brake | 270mm | 276mm | Distinct Big Brake | Distinct Big Brake |
The Mk1 1.6 "Big Brake" Upgrade
For owners of the early Mk1 1.6 MX5s, which have the smallest brakes in the range, a very common and highly recommended modification is to upgrade to the larger brakes from a later 1.8-litre car. This is often referred to as the "1.8 brake upgrade" or "Big Brake" upgrade (though not to be confused with the Mk2.5 Sport's even larger 'Big Brake' system).
This upgrade significantly improves braking performance and feel. The great news is that you can often re-use your existing 1.6 calipers, as the piston size is suitable for the larger discs. The key components you will need to acquire from a 1.8-litre Mk1 or any Mk2 are:
- The larger caliper brackets (front and rear)
- Appropriate brake pad clips and springs for the 1.8/Mk2 calipers
- Specific caliper mounting bolts
- New, larger brake discs (255mm front, 251mm rear)
- Matching brake pads designed for the 1.8/Mk2 calipers
This relatively straightforward swap provides a noticeable improvement in stopping power and fade resistance, especially beneficial for enthusiastic driving or occasional track days. Always ensure all components are in good condition and fitted correctly, and remember to bleed the brake system thoroughly after any work that involves opening the brake lines.
Cost of a Front Brake Conversion for a Mazda MX5
Regrettably, the information provided does not contain specific pricing details for a front brake conversion on a Mazda MX5. The cost of a front brake conversion can vary dramatically depending on several factors:
- Type of Conversion: Are you upgrading from a 1.6 to 1.8 setup using used OEM parts, or are you investing in a high-performance, multi-piston aftermarket big brake kit?
- Parts Sourcing: Prices will differ significantly between new OEM parts, reconditioned units, used parts from breakers, and brand-new aftermarket performance components.
- Brand: Premium performance brands will naturally command higher prices than standard replacement parts.
- Labour: If you're paying a garage to perform the conversion, labour costs will be a significant factor. DIY will save on labour but requires the right tools and expertise.
- Additional Components: Beyond the core calipers, brackets, discs, and pads, you might also consider braided brake lines, performance brake fluid, or master cylinder upgrades, all of which add to the total cost.
For an accurate estimate, it's best to research specific kits or gather quotes for individual components based on the type of upgrade you desire. A basic 1.6 to 1.8 upgrade using good used parts might be relatively inexpensive, while a brand-new, top-tier performance kit could run into several hundreds or even thousands of pounds.
Frequently Asked Questions about MX5 Brakes
Q: Can I upgrade the brakes on my Mk1 1.6 MX5?
A: Yes, absolutely! A very common and effective upgrade is to install the larger brake components (discs, pads, and caliper brackets) from a Mk1 1.8 or any Mk2 MX5. You can often reuse your original 1.6 calipers with this upgrade.
Q: Are all Mazda MX5 brake calipers the same?
A: No, they are not. While there's some commonality in the rear calipers (excluding the Mk2.5 Big Brake), the front calipers differ significantly between the Mk1 1.6, Mk1 1.8/Mk2, and the Mk2.5 Sport 'Big Brake' models. Always ensure you have the correct calipers and their corresponding brackets for your specific setup or intended upgrade.
Q: Do I need new calipers for a brake upgrade?
A: Not always. For the popular Mk1 1.6 to 1.8 brake upgrade, you can typically retain your original 1.6 calipers. However, if you're moving to the larger Mk2.5 Sport 'Big Brake' setup or an aftermarket multi-piston kit, new calipers will be required alongside the larger discs and appropriate mounting brackets.
Q: What is the "Big Brake" setup on an MX5?
A: The "Big Brake" setup refers to the largest factory brake system fitted to specific Mk2.5 Sport models (2001-2005). It features significantly larger 270mm front discs and 276mm rear discs, along with unique calipers and brackets, offering superior braking performance compared to earlier models.
Q: Is brake maintenance on an MX5 difficult for a DIYer?
A: Routine brake maintenance like pad and disc changes is generally considered achievable for a competent DIYer with the right tools and mechanical knowledge. However, tasks involving brake fluid bleeding or caliper overhaul require more care and attention to detail to ensure safety. Always consult a service manual and prioritise safety.
Conclusion
Whether you're performing routine maintenance or contemplating an upgrade, understanding the intricacies of your Mazda MX5's braking system is vital. From the smallest Mk1 1.6 brakes to the mighty Mk2.5 Sport "Big Brake" setup, each configuration plays a crucial role in the MX5's renowned driving dynamics. By ensuring your brakes are in top condition and selecting the right components for your needs, you can continue to enjoy the confidence and thrill of driving your iconic roadster safely on the open road.
