Mazda MX-5 Bottom End Knock: Causes & Fixes

The Mazda MX-5, affectionately known as the 'Miata' in some markets, is a beloved sports car celebrated for its agile handling, lightweight design, and engaging driving experience. However, like any vehicle, it can be susceptible to certain mechanical issues. One concern that occasionally surfaces among MX-5 owners is a phenomenon known as a 'bottom end knock'. This unsettling noise, often described as a rhythmic tapping or knocking sound emanating from the lower part of the engine, can be a source of considerable anxiety. Understanding the potential causes, symptoms, and remedies for a bottom end knock is crucial for any MX-5 enthusiast looking to maintain their cherished vehicle.

What is a Bottom End Knock?

A bottom end knock refers to a noise originating from the lower section of an internal combustion engine. This area houses critical components such as the crankshaft, connecting rods, pistons, and bearings. These parts work in a precisely orchestrated manner, and any deviation from their intended operation can manifest as an audible knock. The sound is typically related to excessive clearance or impact between moving parts within the engine's bottom end.

Common Causes of Bottom End Knock in an MX-5

Several factors can contribute to a bottom end knock in a Mazda MX-5. While some are more prevalent than others, it's essential to consider each possibility when diagnosing the issue. The most common culprits include:

1. Worn Main or Rod Bearings

This is arguably the most frequent cause of a bottom end knock. Bearings, specifically the main bearings that support the crankshaft and the connecting rod bearings that connect the pistons to the crankshaft, are subjected to immense pressure and friction. Over time, especially with inadequate lubrication or high mileage, these bearings can wear down. As the bearing material wears away, the clearance between the bearing surface and the crankshaft journal increases. This increased clearance allows the crankshaft (or connecting rod) to move excessively within its housing, leading to a metallic knocking sound, particularly under load or when the engine speed changes.

Symptoms of worn bearings often include:

• A deep, rhythmic knocking sound that increases with engine RPM.
• The knock may be more pronounced when the engine is under load (e.g., accelerating uphill).
• A drop in oil pressure, especially at higher temperatures.
• The knock might be louder when the engine is cold and quieten down slightly as it warms up, or vice versa, depending on the specific wear pattern.

2. Insufficient Oil Pressure or Lubrication

Oil is the lifeblood of an engine, providing lubrication, cooling, and hydraulic pressure. If the oil pressure is low, or if the oil is not reaching critical components in sufficient quantity or quality, it can lead to increased friction and wear. This can happen due to several reasons:

• Low Oil Level: A simple but often overlooked cause. If the engine oil level is too low, the oil pump may not be able to effectively draw oil from the sump, starving vital components.
• Worn Oil Pump: Over time, the oil pump itself can wear out, reducing its ability to generate adequate pressure.
• Clogged Oil Passages: Sludge or debris can build up in the oil passages, restricting oil flow to the bearings and other components.
• Incorrect Oil Viscosity: Using an oil that is too thin for the engine's operating conditions can lead to inadequate lubrication, especially at higher temperatures.

When lubrication is compromised, metal-on-metal contact can occur, resulting in knocking sounds as components begin to damage each other.

3. Piston Slap

While often perceived as a bottom-end noise, piston slap is technically related to the piston and cylinder wall clearance. If the clearance between the piston skirt and the cylinder wall becomes too large, the piston can rock from side to side as it moves up and down. This rocking motion causes the piston to 'slap' against the cylinder wall, producing a knocking sound. Piston slap is often more noticeable when the engine is cold and can diminish as the engine warms up and the metal components expand.

Key indicators of piston slap:

• A lighter, more metallic tapping sound compared to bearing knock.
• More prominent when the engine is cold.
• May lessen or disappear as the engine reaches operating temperature.

4. Connecting Rod Issues

Less commonly, a problem with the connecting rod itself, such as a bent rod or a worn big end (the end that attaches to the crankshaft), can cause a knocking noise. A bent connecting rod can alter the piston's trajectory, leading to abnormal contact within the cylinder or with the cylinder head. Wear in the connecting rod's bearing journal can also result in excessive play, similar to worn rod bearings.

5. Crankshaft Issues

Damage to the crankshaft, such as worn journals or a damaged counterweight, can also lead to knocking sounds. If a crankshaft journal is not perfectly round or has significant scoring, it will not seat properly within the bearings, creating excessive movement and noise.

Diagnosing the Knock

Accurately diagnosing the source of a bottom end knock is critical for effective repair. A mechanic will typically employ several methods:

1. Listen Carefully: The nature of the knock (frequency, intensity, when it occurs) can provide clues. A stethoscope or a long screwdriver can be used to pinpoint the general area of the sound.
2. Oil Pressure Test: Checking the oil pressure with a mechanical gauge can quickly reveal if low oil pressure is a contributing factor.
3. Oil Sample Analysis: Sending a sample of the engine oil for analysis can detect metal particles (like copper, lead, or tin, indicative of bearing wear) in the oil.
4. Compression and Leak-Down Tests: While primarily for top-end issues, these tests can sometimes indirectly point to bottom-end problems if they reveal unusual cylinder behaviour.
5. Dropping the Oil Pan: This is often a necessary step to visually inspect the bearings and crankshaft for obvious signs of damage or excessive wear.

Potential Solutions and Repairs

The solution for a bottom end knock largely depends on the diagnosed cause. Here's a breakdown of common repair approaches:

1. Bearing Replacement

If worn bearings are identified as the culprit, the most common repair involves replacing them. This is a labour-intensive process that requires removing the engine from the vehicle, splitting the crankcase, and replacing the main and/or connecting rod bearings. In many cases, it's advisable to also inspect and potentially re-grind or replace the crankshaft if its journals are damaged.

Table: Bearing Replacement Considerations

2. Addressing Oil System Issues

If low oil pressure or poor lubrication is the cause, the focus shifts to the oil system:

• Oil Level and Quality: Ensure the oil level is correct and the oil is of the appropriate viscosity and quality. Regular oil changes are paramount.
• Oil Pump: If the oil pump is worn, it will need to be replaced.
• Oil Passages: Thorough cleaning of oil passages is essential during engine rebuilds to remove any sludge or debris.
• Oil Filter: A clogged oil filter can also restrict oil flow.

3. Piston and Cylinder Work

If piston slap is the issue, repairs can range from simply using a thicker oil (a temporary fix) to more extensive work such as re-boring the cylinders and fitting oversized pistons, or replacing the pistons and potentially the connecting rods.

4. Engine Rebuild or Replacement

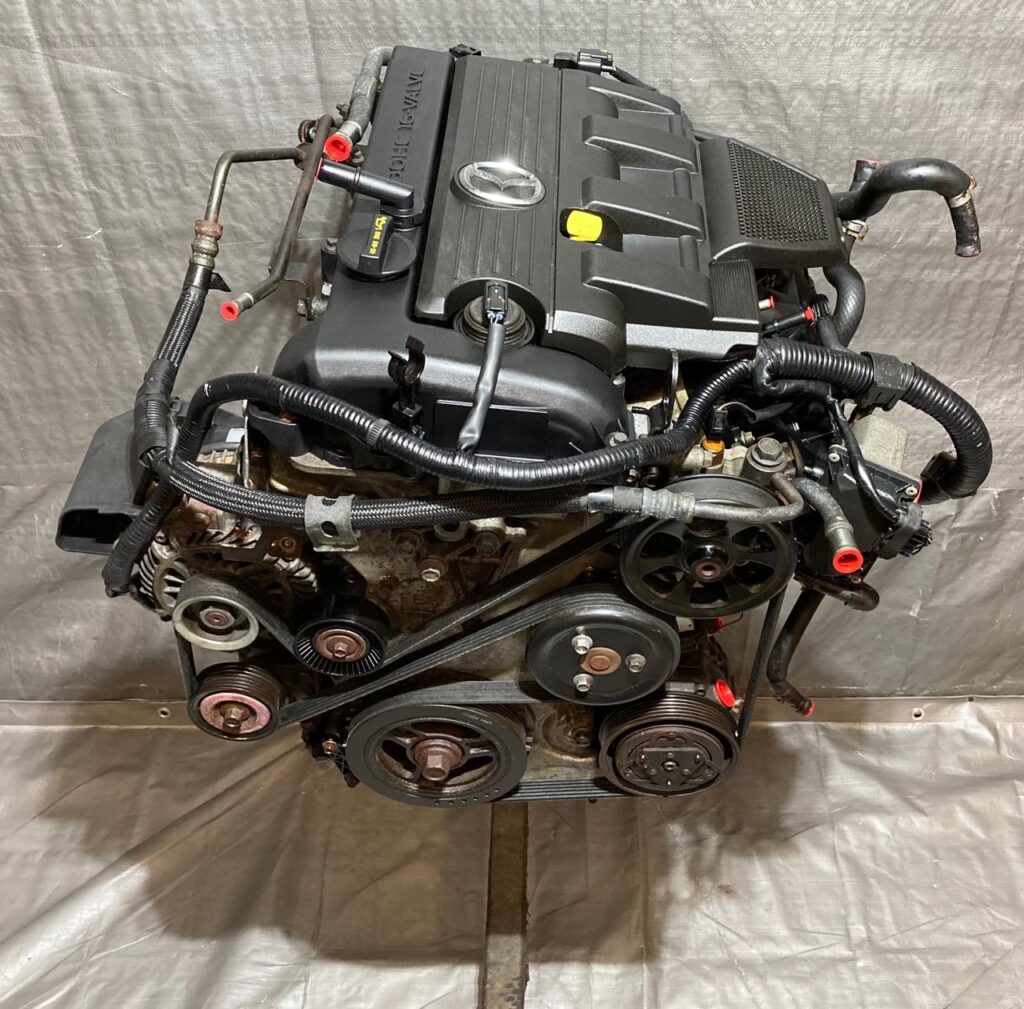

In severe cases, where multiple components are damaged or the cost of individual repairs outweighs the value of the vehicle, a full engine rebuild or replacement with a used or remanufactured engine might be the most practical solution.

Preventative Maintenance for Your MX-5

The best way to avoid the dreaded bottom end knock is through diligent preventative maintenance. Here's what MX-5 owners should focus on:

• Regular Oil Changes: Adhere to the manufacturer's recommended service intervals for oil and filter changes. Use high-quality oil of the correct viscosity.
• Monitor Oil Level: Check your oil level regularly, especially before long journeys.
• Listen to Your Engine: Pay attention to any unusual noises. Addressing minor issues early can prevent major damage.
• Warm Up Properly: Allow your engine to warm up gently, especially in colder weather, before subjecting it to hard acceleration or high RPMs. This allows the oil to circulate and reach optimal operating temperature.
• Avoid Extreme Modifications (Without Proper Support): While tuning can enhance performance, ensure any modifications that increase engine stress are accompanied by appropriate supporting modifications, such as improved oil cooling or stronger internal components.

Frequently Asked Questions (FAQs)

Q1: Can I drive my MX-5 with a bottom end knock?

It is strongly advised not to drive your MX-5 if you suspect a bottom end knock. Continuing to drive can exacerbate the damage, potentially leading to catastrophic engine failure, which is significantly more expensive to repair than addressing the initial knock.

Q2: How much does it cost to fix a bottom end knock?

The cost can vary significantly depending on the severity of the damage and the specific repairs needed. Replacing bearings and crankshaft grinding can range from several hundred to a few thousand pounds. A full engine rebuild or replacement will be considerably more expensive.

Q3: Is the MX-5 known for bottom end knocks?

While any engine can develop a bottom end knock, the MX-5 is not inherently more prone to this issue than other similarly designed engines. However, like many enthusiast cars, they are often driven hard, which can accelerate wear if maintenance is neglected.

Q4: What is the difference between a bottom end knock and a top end tick?

A bottom end knock typically sounds deeper and is associated with the crankshaft, connecting rods, and pistons. A top-end tick is usually a lighter, sharper sound originating from the valvetrain (lifters, rockers, valves).

Q5: Should I replace the oil with a thicker one if I hear a knock?

While a thicker oil might temporarily mask a slight knock caused by worn bearings or piston slap by increasing oil pressure and film strength, it is not a solution. It's a temporary measure at best and can lead to other issues, such as reduced oil flow in colder temperatures. The underlying problem needs to be diagnosed and repaired.

In conclusion, a bottom end knock in a Mazda MX-5 is a serious issue that requires prompt attention. By understanding the potential causes, symptoms, and the importance of preventative maintenance, MX-5 owners can take proactive steps to ensure their beloved roadster remains a reliable and enjoyable driving machine for years to come. Always consult a qualified mechanic if you suspect any engine problems.
