MSD's Returnless Fuel Systems Explained

In the realm of automotive performance, particularly with high-powered Electronic Fuel Injection (EFI) systems, the choice of fuel system configuration can significantly impact installation ease, operational efficiency, and overall performance. MSD, a well-respected name in the performance automotive industry, has notably embraced returnless fuel systems in their advanced offerings, such as the Atomic EFI. This decision isn't arbitrary; it's a strategic move driven by a desire to simplify the installation process and enhance the performance capabilities of their systems. This article will delve into the reasons behind MSD's adoption of returnless fuel systems, exploring the advantages they offer to both the installer and the end-user.

The Evolution of Fuel Delivery

Traditionally, most fuel injection systems have employed a return-style fuel system. In a return-style system, fuel is pumped from the tank to the fuel rail, and any excess fuel not used by the injectors is returned to the tank via a fuel return line. This system maintains a consistent fuel pressure at the rail, regardless of engine load, by regulating the flow back to the tank. While effective, this setup often involves running an additional fuel line, which can complicate installation, especially in custom builds or vehicles with limited space. Furthermore, the constant circulation of fuel can lead to increased heat in the fuel tank, which can, in turn, affect fuel density and potentially lead to vapor lock issues in extreme conditions.

Introducing the Returnless Advantage

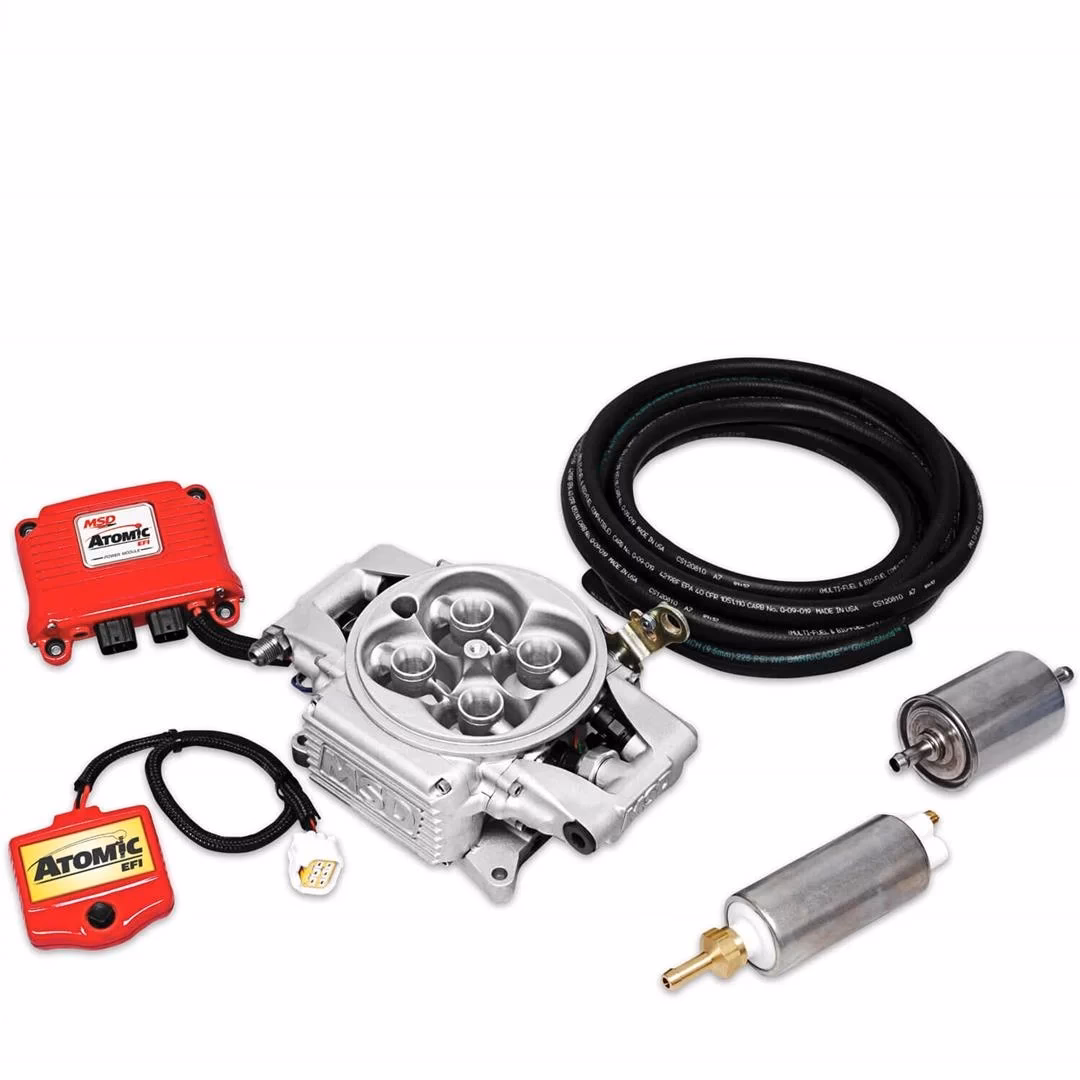

MSD's Atomic EFI system represents a significant step forward by utilising a returnless fuel system. The core principle here is that fuel is pumped from the tank at a pressure sufficient to meet the demands of the engine, and there is no dedicated return line to send unused fuel back to the tank. Instead, the fuel pressure is regulated at the pump or within the throttle body itself. This design choice brings several key benefits:

Simplicity in Installation

One of the primary drivers for MSD's returnless approach is the dramatic simplification of the installation process. As highlighted in the development of the Atomic EFI, the goal was to make installation achievable within a single weekend, from Saturday morning to cruising that night. A returnless system significantly contributes to this goal by:

• Eliminating the need for a return fuel line: This is arguably the biggest advantage. It means no need to run a second fuel line from the engine bay back to the fuel tank. This saves considerable time and effort, especially in vehicles where routing a new line can be challenging due to chassis modifications or existing components.
• No tank modifications required (in most applications): Traditional return systems often necessitate specific fittings or modifications to the fuel tank to accommodate the return line. A returnless system, by its nature, bypasses this requirement, making it a more plug-and-play solution for many vehicles.

Performance Enhancements

While simplicity is a major draw, MSD's commitment to performance means that returnless systems are not a compromise. In fact, they can offer distinct performance advantages:

• Reduced heat in the fuel: By not constantly circulating fuel back to the tank, the fuel remains cooler. Cooler fuel is denser, which can lead to more consistent and efficient combustion, potentially improving power output and fuel economy.
• Optimised fuel pressure regulation: Modern returnless systems often feature integrated fuel pressure regulators, either within the throttle body or at the fuel pump assembly. This allows for precise control of fuel pressure, ensuring the injectors receive the optimal pressure for atomisation and delivery, crucial for high-powered applications.

Under-Hood Clutter Reduction

MSD's design philosophy for the Atomic EFI also prioritises a clean and organised engine bay. The returnless fuel system contributes to this by:

• Fewer fuel lines: With only one primary fuel line needed, the engine bay appears much tidier. This not only looks better but also makes troubleshooting and future maintenance easier.
• Integrated ECU and sensors: MSD took this a step further by incorporating the Engine Control Unit (ECU) directly into the throttle body and housing the main sensors within the ECU. This drastically reduces the amount of wiring and external components that would typically be present in a more traditional EFI setup, leading to a significantly cleaner and more professional-looking installation.

How Returnless Systems Work

A typical MSD returnless EFI system operates with a high-pressure fuel pump, often located within the fuel tank. This pump delivers fuel directly to the throttle body, which houses the fuel injectors and the fuel pressure regulator. The regulator maintains a constant, elevated fuel pressure. When the engine requires more fuel, the injectors simply open for a longer duration. When less fuel is needed, they open for a shorter duration. There is no need to bypass excess fuel, as the system is designed to deliver precisely what is needed. The throttle body, in this configuration, acts as the central hub for fuel delivery and management.

Comparison: Return vs. Returnless Fuel Systems

To better understand the benefits, let's compare the two systems:

Frequently Asked Questions

Q1: Is a returnless fuel system suitable for all high-performance applications?

For many high-powered applications, especially those designed with this system in mind like the MSD Atomic EFI, it is very suitable. However, in extreme cases of very high fuel flow demands or specific tuning requirements, a return-style system might still be preferred by some tuners. MSD's design aims to cover a broad spectrum of high-performance needs with the simplicity of a returnless setup.

Q2: Does a returnless system mean I can't tune my fuel pressure?

No, not at all. While there isn't a separate return line to adjust, the fuel pressure is managed through the integrated regulator. For advanced tuning, specific components or recalibration of the system might be necessary, but the ability to precisely control fuel pressure is inherent in a well-designed returnless EFI system.

Q3: What are the potential drawbacks of a returnless system?

The primary potential drawback, in very niche scenarios, could be related to managing fuel temperature under extremely prolonged high-load conditions if the system isn't adequately designed for airflow or heat dissipation. However, for the vast majority of street and track performance applications, the benefits of simplicity and reduced clutter far outweigh this potential concern.

Q4: Can I convert my existing return-style system to a returnless system?

Converting an entire existing system might be complex and often requires replacing the fuel pump assembly, fuel rails, and potentially other components to match the specific design of a returnless EFI system like the MSD Atomic EFI. It's generally more practical to opt for a complete returnless EFI kit if that is the desired configuration.

Conclusion

MSD's decision to implement returnless fuel systems in their high-powered EFI units like the Atomic EFI is a testament to their focus on user experience and performance. By streamlining the installation process, reducing under-hood complexity, and offering potential improvements in fuel cooling and density, these systems provide a compelling solution for enthusiasts seeking a simpler yet highly effective fuel delivery method. The absence of a return line not only makes installation quicker and less intrusive but also contributes to a cleaner, more organised engine bay, enhancing the overall aesthetic and practicality of performance upgrades.
