Fuel Hose Couplers: The Quick-Release Solution

Working on a vehicle's fuel system can often be a messy and potentially hazardous affair. Traditional methods of disconnecting fuel lines typically involve clamps and barbed fittings, which, while functional, often lead to spillage, lingering fuel odours, and the inherent risks associated with handling flammable liquids. However, a clever innovation has emerged to transform this process, making it cleaner, safer, and remarkably more efficient: the fuel hose coupler. These ingenious inline devices are designed to provide a swift and secure disconnection point in your fuel lines, ensuring that when separated, the flow of fuel is instantly and completely isolated, preventing any unwanted spills.

At its core, a fuel hose coupler is a two-part mechanism. Each half houses a sophisticated valve system. When the two parts are connected, these valves open, allowing for an unimpeded flow of fuel through the line. The moment these parts are disconnected, the valves immediately snap shut, effectively sealing off both ends of the fuel line. This 'double shut-off' feature is what makes these couplers so invaluable, eliminating the need for pinching lines or dealing with drips and leaks during maintenance or modifications. It's a simple yet profoundly effective solution for anyone working on a vehicle's fuel system, from routine servicing to complex custom builds.

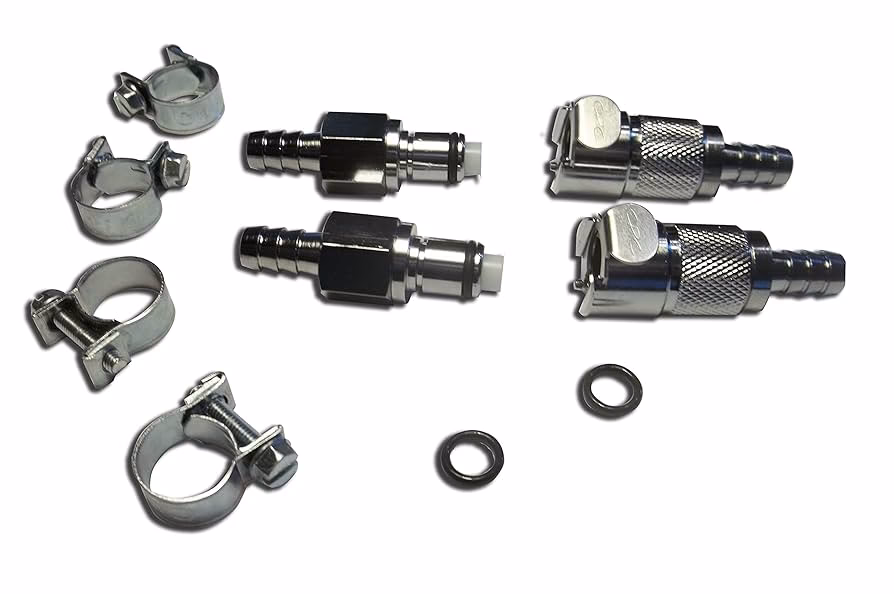

What Exactly Is a Fuel Hose Coupler?

A fuel hose coupler, often referred to as a quick-release fuel line connector, is an inline fitting designed to allow for rapid, leak-free disconnection of a fuel line. Imagine needing to remove a fuel tank for servicing or swapping out an engine; without a coupler, you'd be faced with the challenge of clamping off lines and still likely dealing with residual fuel. A coupler elegantly solves this. It comprises two distinct halves: a male end and a female end, which securely click or screw together.

The magic lies within the internal valve mechanisms. Each half contains a spring-loaded valve. When the male and female ends are engaged, they push against each other, compressing the springs and opening the valves. This creates a clear pathway for fuel to flow. The moment these halves are pulled apart, the spring tension immediately forces the valves shut. This simultaneous closure on both sides ensures that no fuel escapes from either the vehicle's fuel system or the disconnected hose segment. This design not only prevents spillage but also significantly enhances safety by minimising exposure to volatile fuels and reducing the risk of fire.

Why Are They Indispensable? Common Applications

The utility of fuel hose couplers extends far beyond mere convenience. They are rapidly becoming an indispensable component in a variety of automotive and even non-automotive applications due to the significant advantages they offer in terms of efficiency, cleanliness, and safety.

• Engine Swaps and Removals: One of the most common scenarios where couplers shine is during engine replacement or removal. Instead of wrestling with stubborn hose clamps and trying to contain fuel, a simple push or twist disengages the fuel line, allowing the engine to be lifted out with minimal fuss.
• Fuel Tank Servicing and Removal: Removing a fuel tank for repair, cleaning, or pump replacement can be a nightmare without quick-disconnect fittings. Couplers make this process straightforward, enabling the tank to be isolated and removed without draining it completely or risking a large spill.
• Aftermarket Fuel System Upgrades: Enthusiasts upgrading their fuel systems with larger pumps, fuel cells, or custom lines find couplers invaluable. They allow for easy integration and future modifications without the need to cut and re-clamp hoses every time.
• Motorsport Applications: In racing, every second counts. Fuel hose couplers facilitate rapid refuelling (though often with specialised dry-break systems, the principle is similar) and quick component changes during pit stops, contributing to competitive advantage. They also enhance safety in the event of a crash by instantly sealing off fuel lines.
• Motorcycles and Marine Applications: Space constraints and the need for frequent maintenance or winterisation make these couplers perfect for motorcycles, ATVs, and boats, where quick and clean fuel line disconnection is highly beneficial.

Anatomy of a Coupler: Types and Materials

Fuel hose couplers come in various designs, distinguished primarily by their material construction, connection type, and the sophistication of their valving. Choosing the right one depends on the specific demands of your application, including pressure, temperature, fuel type, and budget.

Materials:

• Plastic Couplers: These are often found in OEM (Original Equipment Manufacturer) applications, particularly in modern vehicles. They are lightweight, corrosion-resistant, and cost-effective. However, their temperature and pressure tolerances are generally lower than metal alternatives, making them less suitable for high-performance or extreme environments. They are typically designed for specific hose sizes.
• Aluminium Couplers: A popular choice for aftermarket and performance applications, aluminium couplers offer a good balance of strength, light weight, and corrosion resistance. They can handle higher pressures and temperatures than plastic and are often anodised for added durability and aesthetic appeal. They are commonly found with AN (Army-Navy) fittings.
• Stainless Steel Couplers: For the ultimate in strength, durability, and corrosion resistance, stainless steel is the material of choice. While heavier and more expensive than aluminium, they are virtually indestructible and can withstand extreme pressures, temperatures, and aggressive fuel types (like E85) without degradation. Ideal for professional motorsport and heavy-duty industrial applications.

Connection Types:

• Barbed/Push-Lock Couplers: These feature a barbed end that inserts directly into a rubber or reinforced fuel hose, secured typically with a hose clamp. They are simple to install and common for lower-pressure applications.
• AN (Army-Navy) Fittings: Predominantly used in high-performance and racing applications, AN fittings are threaded connections that provide a secure, leak-free seal without the need for clamps. Couplers designed for AN lines offer superior pressure ratings and are highly durable, often made from aluminium or stainless steel.

Valve Types:

While the prompt describes a system where both ends seal, it's worth noting the distinction:

• Single Shut-off: Only one side of the coupler seals when disconnected. The other side remains open. Less common for fuel applications due to spillage risk.
• Double Shut-off: As described, both halves of the coupler seal off when disconnected. This is the preferred and most common type for fuel lines, ensuring zero spillage and maximum safety.

The Unseen Benefits: Safety, Convenience, and Efficiency

The advantages of integrating fuel hose couplers into your vehicle's system are multifaceted, offering improvements across the board for anyone involved in maintenance or modification.

Enhanced Safety:

Perhaps the most critical benefit is the significant boost in safety. Fuel is highly volatile, and even a small spill can pose a substantial fire hazard, not to mention the health risks associated with skin contact and inhalation of fumes. Couplers prevent spills by instantly sealing both ends of the line upon disconnection. This minimises exposure to fuel, reduces the risk of ignition, and keeps your workspace cleaner and safer.

Unparalleled Convenience:

Imagine a scenario where you need to repeatedly connect and disconnect a fuel line, perhaps during diagnostic testing or while fine-tuning a custom fuel system. Without a quick-release coupler, each connection would involve tightening clamps, and each disconnection would mean dealing with drips. Couplers eliminate this tedium. Their 'click-and-go' design means you can connect or disconnect in seconds, saving valuable time and effort. This convenience extends to routine servicing, making tasks like fuel filter replacement far less daunting.

Improved Efficiency:

Time is money, especially for professional mechanics or racing teams. The speed and cleanliness offered by fuel hose couplers translate directly into increased efficiency. Less time spent cleaning up spills, less time fumbling with clamps, and quicker assembly/disassembly mean projects are completed faster. This streamlined workflow is a major advantage for both professional workshops and enthusiastic DIYers.

Choosing the Right Coupler for Your Vehicle

Selecting the appropriate fuel hose coupler is crucial for ensuring reliability and safety. Several factors must be considered beyond just the material and connection type:

• Hose Compatibility and Size: Ensure the coupler's size matches your fuel hose's internal diameter (ID) or your AN line's dash size. Using the wrong size can lead to leaks or an improper fit.
• Pressure Rating: Fuel systems operate under varying pressures. Choose a coupler rated to handle the maximum pressure of your specific fuel system, with a comfortable safety margin. High-performance or forced-induction engines will require higher-rated couplers.
• Fuel Type Compatibility: Modern fuels, especially those with high ethanol content like E85, can be corrosive to certain materials and seals. Always verify that the coupler's internal components and O-rings are compatible with the fuel you use to prevent premature degradation and leaks. Viton O-rings are typically recommended for ethanol-rich fuels.
• Temperature Range: Consider the operating temperature range of your engine bay. While most couplers can handle standard automotive temperatures, extreme conditions (e.g., near exhaust components) might necessitate higher-temperature rated fittings.

Installation: A Step-by-Step Guide

Proper installation is paramount to the safe and reliable operation of any fuel system component. While the specifics may vary slightly depending on the coupler type (barbed vs. AN), the general principles remain the same.

1. Safety First: Before beginning, ensure the vehicle's battery is disconnected. Relieve any fuel system pressure by following your vehicle's service manual (e.g., pulling a fuel pump fuse and cranking the engine). Work in a well-ventilated area, and have a fire extinguisher nearby. Wear appropriate PPE, including gloves and eye protection.
2. Prepare the Fuel Lines: If using barbed couplers, carefully cut your existing fuel hose to the desired length using a sharp hose cutter to ensure a clean, straight cut. Avoid using knives or side cutters that can deform the hose. For AN lines, ensure the hose ends are correctly assembled onto the braided hose.
3. Install Coupler Halves: Push the barbed ends of the coupler firmly into the prepared fuel hoses. For barbed connections, secure with high-quality fuel injection clamps (not standard worm-drive clamps, which can damage the hose). For AN couplers, thread the AN hose ends onto the coupler halves, ensuring they are tightened to the manufacturer's specifications.
4. Connect and Test: Once both halves are securely attached to their respective fuel lines, connect the male and female ends of the coupler. Listen for a positive click if it's a push-to-connect type, or ensure threaded types are fully tightened. Reconnect the battery and prime the fuel system (turn the ignition to 'on' several times without starting to allow the pump to build pressure). Carefully inspect the coupler and all connections for any signs of leaks. Address any leaks immediately before operating the vehicle.

Maintaining Your Fuel Hose Couplers

Even the most robust components benefit from periodic inspection and maintenance to ensure their longevity and reliable performance. Fuel hose couplers are no exception.

• Regular Visual Inspection: Periodically check the coupler for any signs of physical damage, such as cracks, corrosion, or deformation. Pay close attention to the connection point for any evidence of fuel weeping or leaks.
• Check O-Rings and Seals: The internal O-rings are critical for preventing leaks. Over time, these can harden, crack, or become compressed. If you notice any signs of leakage or difficulty in connecting/disconnecting, the O-rings may need to be replaced. Many reputable manufacturers offer O-ring service kits.
• Keep Clean: Dirt, dust, and debris can impede the proper functioning of the internal valve mechanisms and potentially damage the seals. Keep the coupler clean, especially around the connection point.
• Lubrication: A tiny dab of fuel-compatible lubricant on the O-rings can help maintain their flexibility and ease connection/disconnection, but only if recommended by the manufacturer.

By following these simple maintenance tips, you can ensure your fuel hose couplers continue to provide safe, spill-free operation for many years.

Comparative Overview of Coupler Materials

Frequently Asked Questions (FAQs)

Are fuel hose couplers universal?

No, fuel hose couplers are not universal. They come in various sizes (to match specific hose IDs or AN dash sizes) and designs (barbed, AN, different locking mechanisms). Always ensure you select a coupler that is compatible with your specific fuel line size and type.

Can they be used with E85 or other alternative fuels?

It depends on the specific coupler's material and, crucially, its internal seals (O-rings). Many modern metal couplers are designed to be compatible with E85, but you must verify this with the manufacturer's specifications. Look for couplers with Viton or equivalent fuel-resistant seals if you plan to use E85 or other aggressive fuels.

Do fuel hose couplers restrict fuel flow?

When properly sized for the fuel line, a high-quality fuel hose coupler should cause minimal, if any, measurable restriction to fuel flow. Manufacturers design them to have an internal bore that matches or closely approximates the hose's internal diameter. Significant restriction would only occur if an undersized coupler is used.

How much pressure can a fuel hose coupler withstand?

The pressure rating varies significantly between different types and manufacturers. Plastic couplers typically handle lower pressures (e.g., up to 50-100 PSI), while high-end aluminium and stainless steel AN couplers can withstand several hundred PSI, making them suitable for high-pressure fuel injection systems. Always check the manufacturer's specifications for the exact pressure rating.

Are fuel hose couplers reusable?

Yes, the primary advantage of fuel hose couplers is their reusability. They are designed for repeated connection and disconnection. However, the internal O-rings and seals may wear over time and might need periodic replacement to ensure a leak-free seal. Always inspect the coupler for any signs of wear or damage before reuse.

What's the difference between AN and push-lock fuel hose couplers?

AN (Army-Navy) couplers use threaded, precision-machined connections, typically with braided stainless steel or nylon hose, and are popular in high-performance and racing applications for their superior strength and leak-proof seal. Push-lock (or barbed) couplers have a barbed end that pushes into a rubber or reinforced hose and is secured with a clamp. They are simpler, often found in OEM applications, and generally suitable for lower-pressure systems.

In conclusion, the fuel hose coupler is a highly practical and beneficial addition to any vehicle's fuel system, offering a blend of safety, convenience, and efficiency that traditional methods simply cannot match. Whether you're a professional mechanic or a dedicated DIY enthusiast, understanding and utilising these clever devices can significantly improve your experience when working with fuel lines, making what was once a dreaded task a straightforward and clean process.
