Mastering Car Alignment: The Laser Advantage

In the intricate world of automotive maintenance, few procedures are as critical yet often overlooked as wheel alignment. It's more than just ensuring your steering wheel is straight; proper wheel alignment is fundamental to your vehicle's safety, performance, and the longevity of its tyres. While traditional methods have served us for decades, the advent of laser technology has revolutionised the precision and efficiency with which we can align a car's wheels, bringing unparalleled accuracy to the workshop.

Understanding what wheel alignment entails and why it's so vital can save you a significant amount of money and hassle in the long run. Misaligned wheels can lead to a host of problems, from accelerated and uneven tyre wear to poor fuel economy and compromised handling. This comprehensive guide will delve into the mechanics of laser wheel alignment, exploring how this advanced technology works to keep your vehicle running smoothly and safely on the UK's roads.

What Exactly is Wheel Alignment?

Wheel alignment refers to the adjustment of your vehicle's suspension components, which connect the vehicle to its wheels. The goal is to ensure that the wheels are positioned at the precise angles specified by the manufacturer. There are three primary angles that technicians adjust:

• Toe: This is the most critical and frequently adjusted angle. Toe refers to how much your wheels turn inward or outward when viewed from above. Imagine looking down at your car's front wheels; if their front edges are closer together than their rear edges, that's 'toe-in'. If the rear edges are closer, it's 'toe-out'. Incorrect toe settings are the primary cause of rapid and uneven tyre wear.
• Camber: Camber is the inward or outward tilt of the tyre when viewed from the front of the vehicle. If the top of the tyre leans outwards, it's positive camber; if it leans inwards, it's negative camber. Proper camber ensures even tyre contact with the road, optimising grip and reducing wear. Incorrect camber can lead to wear on one edge of the tyre.
• Caster: This angle refers to the forward or backward tilt of the steering axis when viewed from the side of the vehicle. Caster significantly influences steering stability, especially at higher speeds, and the steering wheel's ability to self-centre after a turn. While not directly affecting tyre wear as much as toe or camber, incorrect caster can make a car feel unstable or heavy to steer.

All these angles work in harmony to ensure your vehicle handles predictably, maintains optimal tyre contact with the road, and provides a comfortable driving experience.

Why Proper Wheel Alignment is Crucial for Your Vehicle

The benefits of maintaining correct wheel alignment extend far beyond just a straight steering wheel. They directly impact your safety, your wallet, and your vehicle's overall performance. Let's explore these in more detail:

• Enhanced Safety: A correctly aligned vehicle provides predictable handling and steering response. This is paramount in emergency situations, allowing you to maintain control and react effectively. Misalignment can cause your vehicle to pull to one side, requiring constant steering correction, which can be dangerous, especially at speed or in adverse weather conditions.
• Extended Tyre Lifespan: Tyres are a significant investment. Incorrect toe or camber settings cause tyres to scrub against the road surface rather than rolling freely, leading to premature and uneven wear. By ensuring proper alignment, you maximise the life of your tyres, delaying the need for costly replacements. This is a direct saving on your maintenance budget.
• Improved Fuel Efficiency: When wheels are misaligned, they create increased rolling resistance. This means your engine has to work harder to propel the vehicle forward, consuming more fuel in the process. A properly aligned vehicle rolls more efficiently, leading to tangible improvements in fuel economy, which adds up over time, especially with rising fuel costs.
• Optimised Vehicle Performance: Correct alignment ensures your vehicle handles as the manufacturer intended. You'll experience smoother driving, better steering response, and improved stability, particularly at higher speeds. This translates to a more enjoyable and less fatiguing driving experience.
• Reduced Wear on Suspension Components: Misaligned wheels put undue stress on various suspension components, including ball joints, bushings, and steering linkages. By correcting alignment, you reduce this stress, helping to extend the life of these expensive parts and prevent premature failures.

Given these compelling benefits, it becomes clear that wheel alignment is not merely an optional service but a vital aspect of routine vehicle maintenance.

The Evolution of Alignment: From Traditional to Laser Precision

For many years, wheel alignment was performed using methods that, while effective, were prone to human error and lacked the pin-point accuracy of modern systems. Early methods often involved string lines, spirit levels, and optical instruments to measure angles. These techniques required significant skill and experience from the technician and could be time-consuming.

The leap to computerised alignment systems marked a significant advancement, but the true revolution came with the integration of laser technology. Laser wheel alignment systems offer a level of precision that was previously unattainable, dramatically improving the accuracy and speed of the alignment process. These systems remove much of the guesswork, providing digital, real-time feedback that allows technicians to make exact adjustments.

How Laser Wheel Alignment Works for Cars

Modern laser wheel alignment systems are sophisticated pieces of equipment designed for ultimate accuracy. Here’s a breakdown of how they typically work:

1. Vehicle Positioning: The car is driven onto a level alignment ramp or lift, ensuring a stable and flat surface for accurate measurements.
2. Sensor Attachment: Brackets or clamps, equipped with high-resolution cameras or laser emitters/reflectors, are securely attached to each of your vehicle's four wheels. These sensors are robust and designed to not scratch or damage your wheels.
3. Data Collection via Lasers and Cameras: The system then uses laser beams projected between the sensors, or cameras that capture precise images of targets on the wheels. These lasers and cameras work in conjunction with a central computer. For instance, a light might be shone from one wheel to another, creating a precise measurement of the angles.
4. Computerised Analysis: The data collected by the sensors or cameras is fed into a sophisticated computer system running specialised software. This software instantly calculates the current alignment angles (toe, camber, caster) for all four wheels.
5. Real-Time Feedback: The computer displays these measurements on a screen, often with live, colour-coded graphics that clearly indicate which angles are out of specification. This real-time feedback is invaluable for the technician, guiding them through the adjustment process. The system compares the current measurements against the vehicle manufacturer's precise specifications stored in its database.
6. Adjustments: Based on the computer's recommendations, the technician then makes precise adjustments to the suspension components, typically using adjustable tie rods for toe, and sometimes shims or eccentric bolts for camber and caster. As adjustments are made, the live display updates, allowing the technician to fine-tune each angle to within the manufacturer's exact tolerances.
7. Printout and Verification: Once all adjustments are complete and the readings are within specification, a detailed printout is generated. This report typically shows the 'before' and 'after' alignment readings, providing tangible proof of the work done and the successful correction of any misalignment.

The key advantage here is the sheer accuracy and repeatability. The laser beams provide incredibly precise measurements, eliminating the subjectivity and potential errors associated with older methods. This ensures that your wheels are aligned perfectly, leading to all the benefits discussed earlier.

The Role of Computer Software

The "clever software" mentioned in the context of FSC Service Centre is the brain of the laser alignment system. It contains an extensive database of vehicle specifications, allowing it to compare your car's current alignment readings against its ideal factory settings. This software also guides the technician through the adjustment process, often providing step-by-step instructions and visual aids. It’s this combination of precise laser measurement and intelligent software that makes modern alignment so effective.

Signs Your Car Needs a Wheel Alignment

While annual checks are recommended, certain symptoms clearly indicate that your vehicle is due for an alignment check. Being aware of these signs can prevent further damage and ensure your safety:

• Uneven or Rapid Tyre Wear: This is often the most telling sign. If you notice one side of your tyre wearing down faster than the other, or if your tyres are wearing out much quicker than expected, misalignment is a likely culprit.
• Vehicle Pulling to One Side: If your car consistently drifts or pulls to the left or right when you're driving on a straight, flat road, even when your steering wheel is centred, it’s a strong indicator of misalignment.
• Off-Centre Steering Wheel: When driving straight, if your steering wheel isn't perfectly centred (i.e., it's turned slightly to the left or right), your alignment is off.
• Loose or Vibrating Steering: While vibrations can indicate other issues, a loose or vibrating steering wheel, especially at higher speeds, can sometimes be caused by severe misalignment.
• Squealing Tyres: If your tyres squeal, particularly when turning, it could be a sign that they are not making proper contact with the road due to alignment issues.

If you experience any of these symptoms, it's advisable to get your alignment checked by a professional as soon as possible.

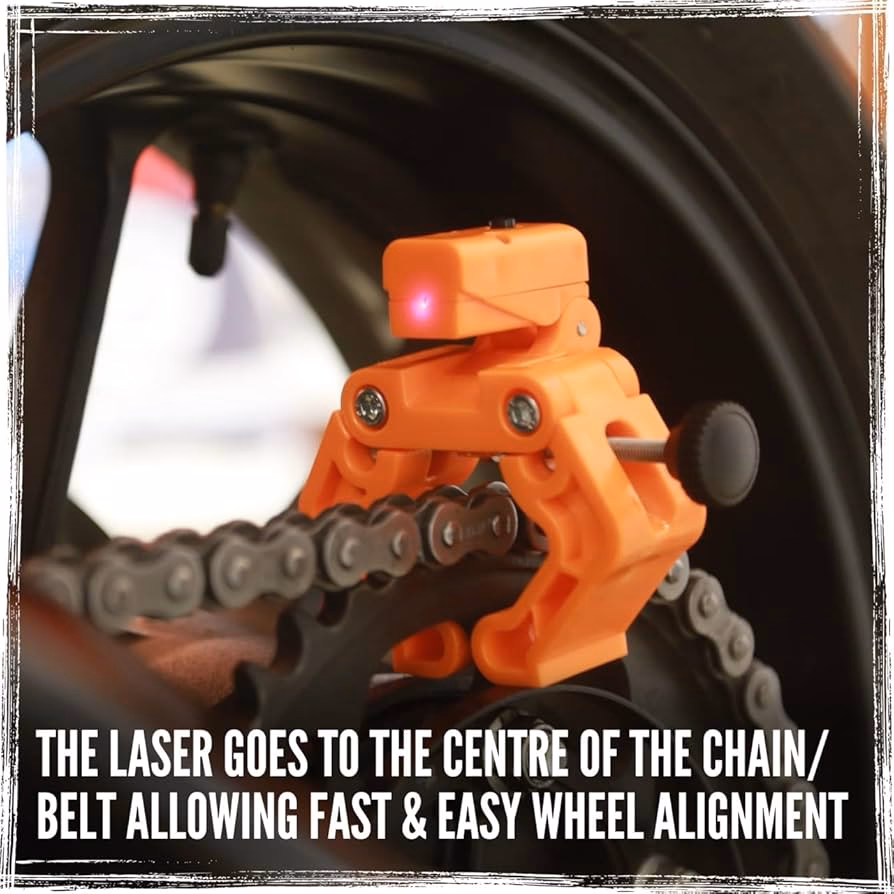

An Example of Laser Precision: The Laser Monkey for Motorcycles

While our primary focus is on car wheel alignment, it's worth noting how laser technology is also applied to other vehicles where precision is paramount. The Laser Monkey by Tru-Tension is an excellent example of a highly engineered laser alignment tool, though specifically designed for motorcycles, particularly belt-driven ones like a Harley. This illustrates the versatility and efficiency of laser technology across different vehicle types.

The Laser Monkey is praised for its outstanding accuracy. It uses a laser to project a clear, precise path along the motorcycle's belt, allowing the user to align the rear wheel perfectly with the front pulley. This eliminates the guesswork often associated with relying on inconsistent swingarm markers. Users report a noticeable difference in the bike's handling and power delivery after using it, underscoring the impact of proper alignment.

Its ease of use is a key feature; it simply clamps onto the rear pulley, and the laser beam helps align the wheel. The design is straightforward, setup is quick, and it even includes a power saver mode to preserve battery life. Crucially, it works flawlessly with both belt-driven and chain-driven motorcycles and is compatible with any make or model. This tool exemplifies how laser technology brings precision and simplicity to critical maintenance tasks, whether for two wheels or four.

When Should You Get Your Wheel Alignment Checked?

Beyond the warning signs, there are several situations where a wheel alignment check is highly recommended:

• Annually or Every 10,000-12,000 Miles: Even without obvious symptoms, general wear and tear from everyday driving can gradually knock your alignment off.
• After Hitting a Pothole or Kerb: Any significant impact can easily disrupt your vehicle's alignment.
• After Replacing Suspension Components: If you've had new tyres fitted, or any work done on your steering or suspension components (e.g., tie rods, ball joints, shock absorbers), an alignment is essential to ensure everything is set correctly.
• When Fitting New Tyres: To ensure you get the maximum life and performance out of your new tyres, an alignment check is crucial.
• After an Accident: Even minor collisions can affect your vehicle's alignment.

Laser Alignment vs. Traditional Methods: A Comparison

To highlight the advantages of modern laser alignment, let's compare it with more traditional methods:

Frequently Asked Questions About Laser Wheel Alignment

How long does a laser wheel alignment take?

Typically, a laser wheel alignment for a car can be completed within 30 minutes to an hour, depending on the vehicle's condition and how many adjustments are needed. The speed is one of the key benefits of laser systems due to the rapid data acquisition and real-time feedback.

Is laser wheel alignment expensive?

The cost of laser wheel alignment can vary depending on your location and the service centre, but it's generally a mid-range service. However, when you consider the potential savings on tyre replacement (which can be hundreds of pounds) and improved fuel economy, it's a worthwhile investment in your vehicle's longevity and efficiency.

Can laser alignment fix steering issues like pulling or vibrations?

Yes, laser alignment is specifically designed to correct issues like vehicle pulling to one side and can often resolve steering wheel off-centre problems. It can also reduce certain types of vibrations that stem from misaligned wheels, though vibrations can also be caused by unbalanced tyres or worn suspension components.

Can I perform a wheel alignment myself at home?

While basic string or tape measure methods exist for very rough toe checks, performing a precise and comprehensive wheel alignment that includes camber and caster requires specialised laser equipment and expert knowledge. It's not a DIY job for the average car owner if you want genuine accuracy and long-term benefits. Attempting it yourself could lead to worse problems.

What's the difference between 2-wheel and 4-wheel alignment?

A 2-wheel alignment typically only adjusts the front wheels, usually focusing on toe. A 4-wheel alignment, which is standard with laser systems, measures and adjusts all four wheels. Even if your car only has adjustable front suspension, the rear wheel angles are still measured to establish a thrust line, ensuring that all four wheels are parallel to each other and the centreline of the vehicle. For modern cars, a 4-wheel alignment is almost always recommended for optimal results.

Does laser alignment fix suspension problems?

No, laser alignment corrects the angles of the wheels. It doesn't fix worn or damaged suspension components. If a component is worn (e.g., a ball joint or bush), it must be replaced first, and then an alignment should be performed to set the angles correctly with the new parts.

Conclusion

In the realm of car maintenance, wheel alignment stands as a critical procedure that directly influences your vehicle's safety, performance, and running costs. The advent of laser wheel alignment technology has transformed this service, offering unparalleled precision and efficiency. By accurately measuring and adjusting the intricate angles of your wheels, laser alignment ensures optimal tyre wear, improves fuel economy, enhances handling, and most importantly, contributes significantly to your overall driving safety.

Don't wait for uneven tyre wear or a pulling steering wheel to prompt an alignment check. Regular laser alignment, particularly after significant impacts or tyre changes, is a proactive step that protects your investment and ensures a smooth, stable, and economical driving experience. Consult with a reputable service centre that utilises advanced laser alignment technology to keep your vehicle in prime condition on the road.
