Motorcycle Brake Pads: Know When To Replace

For any motorcyclist, the braking system isn't just a component; it's your primary safety net. When you're out on the open road, navigating through traffic, or simply enjoying a leisurely ride, the ability to stop effectively and reliably is paramount. Worn brake pads can compromise this critical function, leading to reduced stopping power, increased stopping distances, and, most importantly, a heightened risk of accidents. Knowing when your motorcycle brake pads need replacing isn't just about maintenance; it's about ensuring your safety and the safety of others around you. This comprehensive guide will walk you through the key indicators that suggest your pads are nearing the end of their life, delve into the intricacies of motorcycle braking systems, and explain the rigorous professional testing methods used to guarantee your brakes are performing at their peak.

Signs Your Motorcycle Brake Pads Need Replacing

Identifying worn brake pads often involves a combination of auditory cues, visual inspections, and changes in the feel of your brakes. Paying close attention to these indicators can save you from a potentially dangerous situation.

Audible Cues: The Sounds of Wear

• Squealing or Chirping: Many brake pads are designed with a small metal wear indicator that produces a high-pitched squeal when the pad material wears down to a critical level. This sound is often heard when the brakes are applied, but can sometimes be constant. It's a clear signal that it's time for an inspection.
• Grinding Noise: A much more severe sound, a grinding noise typically indicates that the brake pad material has completely worn away, and the metal backing plate of the pad is now rubbing directly against the brake disc (rotor). This not only severely compromises braking performance but also rapidly damages the brake disc, leading to much more costly repairs. If you hear grinding, stop riding immediately and have your brakes checked.

Visual Inspection: What to Look For

• Pad Thickness: The simplest visual check is to look at the thickness of the friction material on your brake pads. Most manufacturers recommend a minimum thickness, often around 1mm to 2mm, though this can vary. If you can see that the pad material is very thin, or if it appears thinner than the metal backing plate, it's likely time for replacement. You might need a torch and to get down on your knees to get a good look through the caliper.
• Wear Indicators: Some pads have grooves or wear indicators built into the friction material. If these grooves are no longer visible, or if the indicator marks are almost gone, it's a sign of significant wear.
• Uneven Wear: Inspect both the inner and outer pads in each caliper. Uneven wear can indicate a sticking caliper piston or slider pins, which should also be addressed.

Brake Feel: Changes in Performance

• Spongy Brake Lever/Pedal: If your brake lever or pedal feels softer or travels further than usual before engaging the brakes, it could indicate air in the brake lines, low brake fluid, or severely worn pads. While not exclusively a pad issue, it warrants immediate investigation.
• Reduced Stopping Power: If your motorcycle isn't stopping as quickly or effectively as it used to, requiring more pressure on the lever or pedal, your pads are likely worn. This gradual degradation can be hard to notice until it becomes critical.
• Pulsating or Vibrating: A pulsating sensation through the brake lever or pedal, or vibrations felt through the bike when braking, can indicate warped brake discs. While not a direct pad wear sign, worn pads can exacerbate this or be a symptom of underlying issues with the disc that also affect pad life.

Mileage and Time: General Guidelines

While the actual lifespan of brake pads varies significantly based on riding style, terrain, and pad material, general guidelines exist. For typical road riding, front brake pads might last anywhere from 10,000 to 20,000 miles, while rear pads, often used less aggressively, might last longer. However, if you're a heavy braker, ride in stop-and-go traffic frequently, or engage in track riding, your pads will wear much faster. It's always best to rely on the actual condition of the pads rather than just mileage.

Understanding Your Motorcycle's Braking System

Modern motorcycles primarily utilise disc brake systems for their superior stopping power and heat dissipation. While other systems like drum brakes, linked braking, and Anti-lock Braking Systems (ABS) exist, our focus for understanding component wear will be on the ubiquitous disc brake system.

A disc brake system on a motorcycle comprises several key components:

• Brake Lever/Pedal: The rider's input point for activating the brakes.
• Master Cylinder: Converts the mechanical force from the lever/pedal into hydraulic pressure.
• Brake Line: A hose that carries the hydraulic fluid from the master cylinder to the caliper.
• Brake Caliper: Houses the brake pads and pistons. When hydraulic pressure is applied, the pistons push the pads against the brake disc.
• Brake Pads: The friction material that clamps onto the brake disc to create stopping force.
• Brake Disc (Rotor): A metal disc attached to the wheel that the brake pads squeeze against.

The Importance of Professional Brake Performance Testing

Beyond your personal inspection, professional brake performance testing is crucial, especially as part of the annual MOT test in the UK. These tests ensure that your motorcycle's braking system meets stringent safety standards and can perform reliably under various conditions. They are designed to identify subtle defects or inefficiencies that might not be apparent during a casual inspection.

Common Motorcycle Brake Testing Methods

Professional workshops and MOT testing stations employ several methods to accurately assess your motorcycle's braking performance. Each method has its specific application and provides vital data about the system's efficiency and condition.

1. Decelerometer Test

A decelerometer test is often used when a primary brake tester (like a roller brake tester) isn't suitable, or for certain linked braking systems. This test measures the motorcycle's deceleration rate directly. It's a practical, real-world assessment conducted on a suitable road surface.

• Procedure: The decelerometer is mounted on the motorcycle according to the manufacturer's instructions. The motorcycle is ridden on a reasonably flat, level road with a good surface and minimal traffic, at a steady speed of around 20 mph (32 km/h). The tester gradually applies one brake control to bring the motorcycle to a controlled stop, aiming to achieve the required passing percentage rather than maximum effort. The progression of application and any grabbing of the brake are observed. The brake efficiency is recorded for that control. The test is then repeated for the other brake control.
• Safety: Decelerometer testing is potentially hazardous and requires a suitable motorcycle licence and familiarity with the controls. If the motorcycle isn't deemed safe for the test, it should be refused.
• Efficiency: For a decelerometer test, the recorded efficiencies are directly entered, and the MOT testing service automatically determines pass or fail.

2. Roller Brake Tester

The roller brake tester is a common method for assessing brake performance in a controlled environment. It measures the braking effort exerted by each wheel independently.

• Procedure: The motorcycle's front wheel is positioned in the rollers, ensuring it's straight and settled. The rollers are started, rotating the wheel forward. With the rear brake fully applied (unless it's a linked system), the front brake is gradually applied until maximum effort is achieved or the wheel locks and slips. The maximum reading is recorded. The process is repeated, observing the build-up and reduction of braking effort and checking for fluctuations. For linked systems, the steps are repeated for each control operating the front wheel brake. The procedure is then repeated for the rear wheel brake and any fitted sidecar brake.
• Multi-Wheel Motorcycles: For motorcycles with two front and/or rear wheels, each braked wheel may need independent testing if both cannot fit in the roller brake tester.
• Linked Systems: Some linked systems are designed to only work above 10 km/h and will not work on a roller brake tester. In such cases, a decelerometer test may be required if the motorcycle fails the roller test.

3. Plate Brake Tester

Plate brake testers provide a quick assessment of braking effort by measuring the force exerted when a wheel drives onto a high-friction plate.

• Procedure: The motorcycle is driven onto the plate tester at a steady speed of around 4 mph. As soon as the front wheel is on the high-friction braking surface, the front brake is gradually applied until maximum effort is achieved or the wheel locks and skids. The increase in brake effort and the maximum value are noted. The procedure is then repeated for the rear wheel brake and any sidecar brake fitted.
• Confirmation: If a motorcycle fails any aspect of the plate brake test, the check should be repeated to confirm the result.

4. Floor Tester (Spring Balance)

This method assesses braking effort by measuring the force required to move the motorcycle forward while a brake is applied.

• Procedure: The motorcycle is held upright and straight. A cable from a spring balance is attached to the front of the motorcycle (e.g., around the front forks). The tester sits on the motorcycle and applies one brake control, while an assistant operates the spring balance system. The effort required to move the motorcycle and rider forward is recorded. The test is repeated for the other brake control.

5. Gradient Tester

A gradient tester is used to check if the brakes can hold the motorcycle stationary on an incline, typically at a 30% or 25% gradient.

• Procedure: The platform is set to 30%. The tester sits on the motorcycle, facing 'downhill'. Each brake is applied in turn to confirm the motorcycle can be held stationary without any other retarding force. If it cannot be held stationary by either control, the process is repeated with the platform set to a 25% gradient. If only one control struggles, that control is re-tested on the 25% gradient.

Brake Efficiency Requirements and Calculations

For most motorcycles, two brake controls are present: one for the front wheel and one for the rear. For MOT purposes, one control must achieve an efficiency of at least 30%, and the other control must achieve at least 25%. If a wheel locks during a roller brake test, the 30% efficiency requirement is considered met for that control.

The MOT testing service typically calculates brake efficiencies automatically. However, the calculation involves adding the brake efforts from each wheel operated by the control under test and then applying a specific formula based on the total weight of the motorcycle and rider.

Common Brake Defects Identified During Testing

During these rigorous tests, several defects can be identified, each categorised by its severity:

• Grabbing Brakes: A brake on any wheel grabbing severely is a major defect, indicating an inconsistent application of force.
• Abnormal Lag: Excessive delay in brake operation on a wheel is also a major defect, compromising reactive stopping.
• Excessive Fluctuation: Significant variation in brake effort through each wheel revolution indicates issues with the disc or caliper, a major defect.
• Binding Brakes: Significant brake effort recorded with no brake applied indicates a binding brake, which can lead to overheating and accelerated wear. This is a major defect.

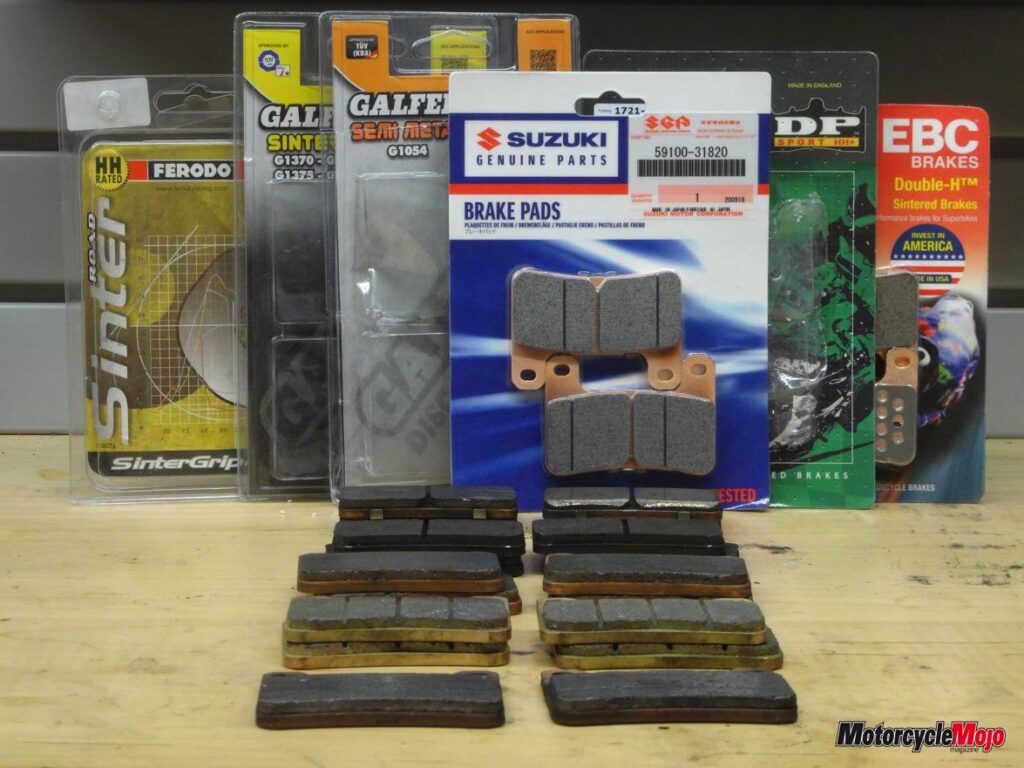

Brake Pad Types: A Quick Look

While the focus is on identifying wear, it's useful to know that brake pads come in different materials, each with unique characteristics that affect performance and longevity:

DIY Checks vs. Professional Service

While you can and should perform regular visual and auditory checks of your brake pads, certain aspects require professional attention. If you're unsure about the thickness of your pads, hear any grinding noises, or experience a significant change in brake feel, it's always best to consult a qualified mechanic. Professional testing, particularly for MOT compliance, ensures your motorcycle meets the rigorous safety standards required for road use in the UK.

Frequently Asked Questions About Motorcycle Brakes

How often should I check my motorcycle brake pads?

It's recommended to visually inspect your brake pads every 3,000-5,000 miles or at least annually, and certainly before any long trips. More frequent checks are advisable if you ride aggressively or in challenging conditions.

What is the minimum thickness for a motorcycle brake pad?

The minimum recommended thickness typically ranges from 1mm to 2mm, depending on the manufacturer and specific pad. Always refer to your motorcycle's service manual for the exact specification.

Can I replace my motorcycle brake pads myself?

Replacing brake pads can be a DIY task for experienced home mechanics, but it requires specific tools, knowledge of your bike's braking system, and proper bleeding procedures if the caliper pistons are pushed back. If unsure, it's always safer to have a professional do it, as incorrect installation can be dangerous.

Why are my brakes making a grinding noise?

A grinding noise typically means the brake pad material has completely worn away, and the metal backing plate is rubbing against the brake disc. This is a serious issue that requires immediate attention to prevent damage to the disc and ensure safety.

What does a spongy brake lever mean?

A spongy brake lever, where it feels soft and travels further than usual, often indicates air in the brake lines or low brake fluid. It can also be a sign of worn master cylinder seals or, less commonly, severely worn pads. This issue needs prompt diagnosis and repair.

Maintaining your motorcycle's braking system is non-negotiable for safe riding. By understanding the signs of wear, being aware of the different types of pads, and appreciating the value of professional testing, you can ensure your bike's brakes are always in optimal condition. Regular checks and timely replacements are small investments that pay huge dividends in safety and peace of mind on every journey.
