Optimising 2-Stroke Ignition Timing: UK Insights

Delving into the intricate world of two-stroke engine tuning reveals a fascinating interplay of mechanical precision and dynamic forces. Unlike their four-stroke counterparts, two-stroke engines present a unique set of challenges and opportunities, particularly when it comes to optimising ignition timing. This isn't merely about setting a static spark point; it's a dynamic art heavily influenced by the engine's exhaust system, load conditions, and even the ambient temperature. Mastering this can unlock significant performance gains, ensuring your engine runs efficiently, powerfully, and reliably.

The exhaust pipe is, without doubt, the beating heart of a two-stroke's performance. Its design and operating temperature wield an enormous influence over the engine's power delivery and, consequently, the ideal ignition timing. This intricate relationship means that a 'one-size-fits-all' timing setting simply doesn't exist. Instead, the ignition curve must be meticulously matched to the specific pipe being used, its operating temperature, and the engine's intended ramp-up times – the speed at which it accelerates through its rev range.

The Delicate Dance Between Advance, Retard, and Pipe Heat

Understanding the fundamental relationship between ignition timing and exhaust pipe heat is paramount for any two-stroke enthusiast. Generally speaking:

• More advance: Leads to less exhaust pipe heat. Advancing the ignition means the spark occurs earlier in the combustion cycle. This allows more time for the combustion process to complete, extracting more energy from the fuel-air mixture before the exhaust port opens. The exhaust gases are therefore cooler when they exit, resulting in less heat transferred to the pipe.
• Less advance: Results in MORE exhaust pipe heat. Retarding the ignition means the spark occurs later. Combustion continues for a longer duration as the exhaust port begins to open, leading to hotter exhaust gases entering the pipe. This increased heat is crucial for making the expansion chamber work effectively, particularly for certain RPM ranges.

The impact of this heat on the exhaust pipe's resonance is profound. Less pipe temperature generally correlates with better performance in the lower RPM range, as it helps to scavenge gases more effectively at these speeds. Conversely, higher pipe temperatures are often beneficial for optimal performance in the higher RPM range, where the pipe's tuning becomes critical for maximising power output. Because the exhaust pipe's influence is so immense, the slight compromises in combustion efficiency and cylinder pressure that might arise from non-optimum ignition timing are often overlooked in favour of ensuring the pipe operates as perfectly as possible.

Precision Tuning: A Methodical Approach to Ignition Timing

Achieving optimal ignition timing is not a guessing game; it requires a systematic approach. A well-regarded two-stroke theorist, Frits Overmeier, details a highly effective test method for honing in on the perfect ignition curve. This method acknowledges that while a baseline exists, fine-tuning is always necessary for peak performance.

Starting with a Baseline

Most well-built two-stroke engines, featuring properly designed ports, cylinder heads, and exhaust pipes, can typically tolerate around 15 degrees of ignition advance at any point in their rev range without encountering detonation. Detonation, or 'knocking,' is a destructive uncontrolled combustion event that can severely damage an engine. While 15 degrees serves as a solid starting point for testing, it's crucial to remember that not all engines are equally tolerant. Therefore, this figure acts as a safe initial benchmark.

The testing process begins by setting the ignition timing to a straight 15 degrees across the entire RPM curve. Following this, the engine is tested using your preferred method – be it a dynamometer for precise power measurements or real-world track testing. The objective is to establish a baseline performance profile.

Iterative Refinement

Once the baseline is established, the iterative refinement process begins:

1. Increase Advance: Repeat the test with 16 degrees of advance. Observe how the engine performs across its RPM range.
2. Decrease Advance: Then, repeat the test with 14 degrees of advance. Again, carefully note any changes in performance.

The goal here is to identify specific RPM points where each ignition setting performs better. You'll likely notice "crossover points" where one setting becomes superior or inferior to another. For instance, 16 degrees might be better at lower RPMs, while 14 degrees might excel at higher RPMs. Any parts of the curve where a particular ignition setting clearly yields better results should be retained.

Fine-Tuning for Specific RPM Ranges

The next step involves tailoring the ignition curve more precisely:

• Lower RPMs: At the lower end of the RPM range, where the engine might benefit from more initial punch, try bumping the advance to 17 degrees. Test this new setting up to the identified crossover point where performance previously started to degrade. Crucially, do not go beyond this point, as you already know it's detrimental and increases the risk of detonation.
• Higher RPMs: Conversely, at higher RPMs, where the engine might be more prone to detonation or benefit from increased pipe heat, try retarding the ignition, perhaps down to 13 degrees.

This process of adding advance at lower RPMs and retarding at higher RPMs continues until a fairly optimum dyno result is achieved. The idea is to create a dynamic ignition curve that provides the best possible performance across the entire rev range.

Essential Tuning Tools

To truly hone in on the optimal settings, advanced instrumentation is invaluable:

• An EGT sensor (Exhaust Gas Temperature sensor) provides real-time data on exhaust gas temperatures, offering crucial insights into combustion efficiency and pipe heating.
• A detonation sensor is a critical safeguard. It detects the onset of uncontrolled combustion, allowing tuners to back off timing before engine damage occurs.

Used in conjunction, these sensors allow for rapid and precise identification of what works best for your specific engine and setup.

Load Conditions: A Game Changer for Ignition Curves

It is incredibly important to understand that the engine's intended use and its ramp-up time are colossal factors in determining the optimal ignition curve. The ideal curve for a road racing application, which involves frequent, short bursts of acceleration and rapid changes in load, will be vastly different from one designed for steady state operation, such as sustained high-speed cruising or dyno testing under constant load.

Consider a simple, albeit poor, example to illustrate this point: an engine primarily used in road racing, where it experiences load times of perhaps only 2 seconds between gear shifts. This engine would typically benefit from more ignition advance in the early parts of its power curve. The retard curve would then come in a little earlier to "lead the pipe" into generating more heat, quickly bringing the exhaust system into its optimal operating window. Compare this to an engine with, say, a 3-second load time between shifts. This engine might require a slightly different approach, as it has more time to build pipe heat naturally. In a perfect world, the ignition curve would be unique for each specific ramp time, allowing for the precise application of heat to the exhaust pipe.

The Influence of Fuel Delivery Systems

The choice of fuel delivery system also profoundly impacts ignition timing strategies. Modern engines often employ Electronic Fuel Injection (EFI) or Direct Injection (DI), offering a level of control that carburettors simply cannot match. With EFI/DI, the Air-Fuel Ratio (AFR) can be precisely managed across the entire RPM and load range, which hugely influences the effective ignition timing.

For instance, with EFI/DI, you can influence pipe heat by running the engine richer at lower than peak torque RPMs. Around and near peak torque, a 'normal' AFR of 11.5-13:1 is typically targeted. However, past peak torque, the mixture can be leaned out. If the Direct Injection system delivers fuel directly into the cylinder after the exhaust port closes, your AFR readings will be quite accurate. If not, particularly when not near peak torque and trapping efficiency is low, you should exercise caution and not fully trust your AFR readings, as scavenging losses can skew the data.

Carburettors, despite best efforts, often tend to run richer past peak power. This characteristic necessitates a greater degree of ignition retard in those upper RPM ranges compared to an EFI setup, simply to manage the combustion and heat generation effectively.

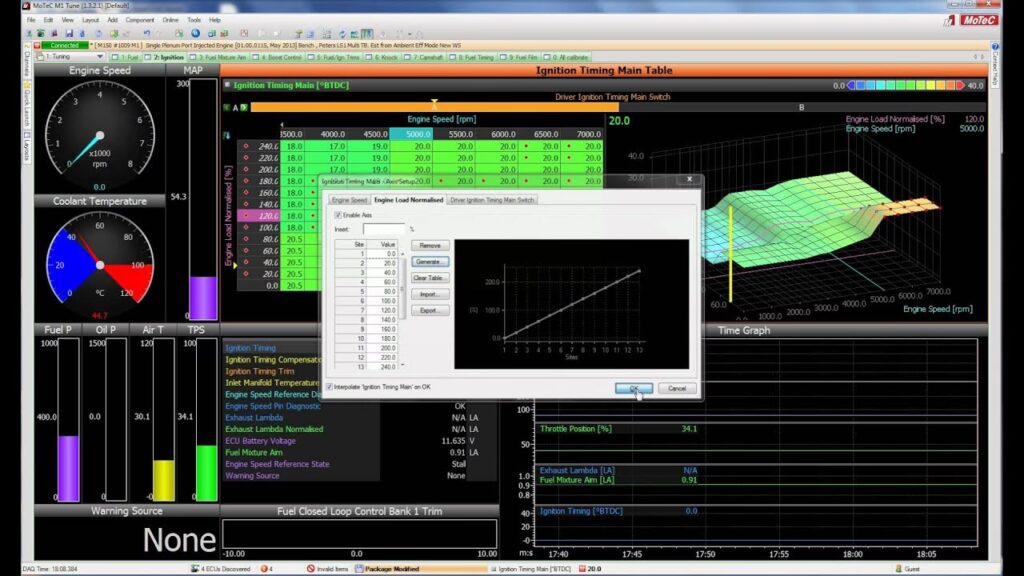

Part-Throttle vs. Wide-Open Throttle (WOT) Maps

One of the most significant revelations in two-stroke tuning is the difference in optimal ignition timing between part throttle and wide-open throttle (WOT) conditions. Our testing has consistently shown that engines prefer significantly more advance at lower RPMs under throttle openings less than 3/8ths. At half-throttle, the ideal timing curve tends to be roughly halfway between the WOT map and the low-throttle opening map. However, as the engine approaches peak torque and power, the part-throttle map typically converges closely with the WOT map.

The power gains achievable by correctly mapping part-throttle ignition are substantial. To illustrate, consider an example from a 250cc single-cylinder motocross engine, equipped with a power valve and carburettor. The WOT and 1/8th throttle curves show just how divergent the optimal timings can be:

Example Ignition Timing Curves (Degrees Before Top Dead Centre - BTDC)

Wide-Open Throttle (WOT) Curve:

1/8th Throttle Curve:

As evident from the tables, the curves for different throttle openings progressively get closer to the WOT curve as the throttle opening increases. This particular engine, due to its power valve and a slightly longer exhaust pipe designed for a wider power spread, exhibits ignition timing less than 15 degrees around peak torque (where torque and power typically coincide very closely on a tuned pipe two-stroke).

The Nuances of Optimisation and Inherent Challenges

If truly optimised, an ignition curve will display all sorts of "hips and shelves." These seemingly irregular deviations are not errors but rather precise adjustments tailored to specific resonance points and combustion characteristics of the engine at various RPMs and loads. A truly optimised map, derived from meticulous steady-state testing, will rarely look like a straight line.

Furthermore, challenges persist, especially with carburetted engines. Despite the best efforts in jetting and needle selection, carburettors often run richer past peak power. This necessitates a greater degree of ignition retard in those upper RPM ranges than might be required with a more precisely controlled EFI system, simply to manage the combustion and prevent excessive heat or detonation.

Frequently Asked Questions About 2-Stroke Ignition Timing

Q1: Can I just use a standard ignition timing setting for my 2-stroke?

While a standard setting might allow your engine to run, it's highly unlikely to be optimal. Two-stroke engines are incredibly sensitive to their exhaust pipe design, load conditions, and intended use. A generic setting could lead to reduced power, increased fuel consumption, higher operating temperatures, or even engine damage due to detonation.

Q2: What is "detonation" and why is it so bad for a 2-stroke?

Detonation (or 'knocking') is an uncontrolled, explosive combustion of the fuel-air mixture in the cylinder, occurring after the initial spark. It creates extremely high pressure spikes and heat, leading to significant stress on engine components. In a 2-stroke, it can rapidly cause piston crown erosion, damaged rings, cylinder scoring, and even crank bearing failure. It's crucial to avoid it at all costs.

Q3: How does exhaust pipe temperature affect ignition timing?

The exhaust pipe's temperature directly influences its ability to create the necessary pressure waves for efficient scavenging and supercharging within the cylinder. More advanced timing generally results in cooler exhaust gases and a cooler pipe, which might be better for lower RPMs. Retarded timing leads to hotter exhaust gases and a hotter pipe, often beneficial for higher RPM performance by enhancing the pipe's resonance. Tuning ignition helps to manage this heat to keep the pipe in its optimal operating window.

Q4: Is it possible to tune ignition timing without a dynamometer?

While a dynamometer provides the most accurate and repeatable data for tuning, it is possible to make progress without one, especially with an EGT sensor and a keen ear for engine behaviour. Road or track testing with careful logging of RPMs, EGTs, and observing throttle response can yield good results. However, without a detonation sensor, caution is paramount. It's always advisable to start with conservative timing and gradually advance, listening intently for any signs of knocking.

The world of two-stroke engine tuning, particularly concerning ignition timing, remains full of surprises and requires a blend of scientific methodology and practical experience. Be prepared to continuously learn and adapt your approach, as each engine and setup presents its own unique characteristics. The journey to optimal performance is an ongoing one, but the rewards in power and efficiency are well worth the effort.
