MOT Type 1 Aggregate: The Foundation of Strength

Every robust construction, be it a bustling motorway, a quiet residential driveway, or the sturdy foundation of a new building, relies on a strong and stable base. In the world of British groundworks, one material stands out as the undisputed champion for this critical role: MOT Type 1 aggregate. Often referred to simply as 'Type 1', this versatile aggregate is the backbone of countless projects, providing the essential load-bearing sub-base that ensures longevity and stability. But what exactly is MOT Type 1, and why is it so indispensable for anyone tackling a significant landscaping or construction endeavour?

This comprehensive guide will delve deep into the characteristics, applications, and benefits of MOT Type 1 aggregate, providing you with all the knowledge you need to understand its importance and effectively utilise it in your next project. From its origins in Ministry of Transport specifications to practical advice on calculating quantities and ensuring proper compaction, we'll cover everything that makes this material a cornerstone of modern construction.

What Exactly is MOT Type 1 Aggregate?

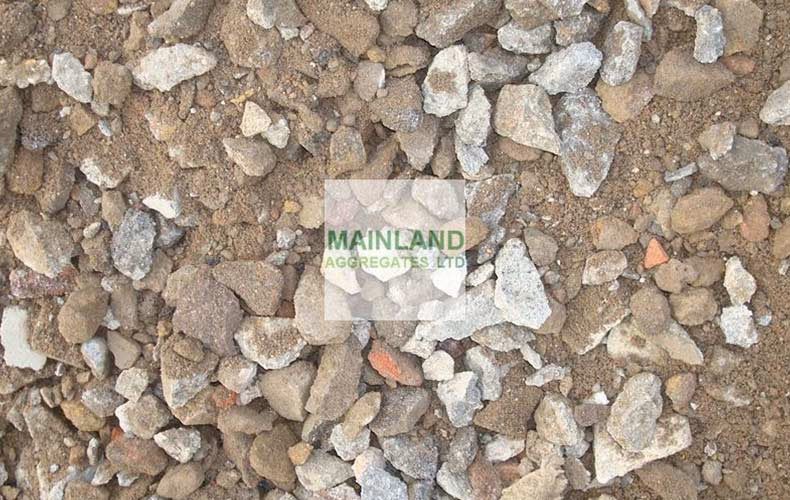

At its core, MOT Type 1 is a high-quality, crushed granular material specifically engineered to meet the stringent standards set by the UK's Ministry of Transport (now the Department for Transport). This designation ensures its suitability for use as a sub-base in heavily trafficked areas, such as public roads and highways. It's typically composed of a blend of crushed rock, concrete, asphalt, and sometimes even brick, all crushed down and screened to a specific particle size distribution. The maximum particle size is usually 63mm, with a significant proportion of fines (smaller particles) down to dust.

The key characteristic of Type 1 is its 'well-graded' nature. This means it contains a broad range of particle sizes, from large stones down to fine dust. When compacted, these varying sizes interlock tightly, creating a dense, stable, and virtually impermeable layer. This interlocking action is crucial for distributing weight evenly over a larger area, preventing localised settlement and ensuring the long-term integrity of the surface built upon it.

Why is it Called 'MOT Type 1'?

The 'MOT' in MOT Type 1 refers to the Ministry of Transport, the government body that originally established the specifications for road construction materials in the UK. These specifications, detailed in the 'Specification for Highway Works' (SHW), ensure that materials used in public infrastructure meet rigorous standards for performance, durability, and safety. Type 1 is specifically outlined as a premium granular sub-base material suitable for roads carrying heavy traffic loads, hence its robust composition and grading requirements. While the Ministry of Transport itself has evolved, the 'MOT' designation remains a widely recognised hallmark of quality and compliance in the construction industry.

Key Characteristics and Benefits

MOT Type 1 aggregate boasts several properties that make it an ideal choice for sub-base applications:

• Excellent Load-Bearing Capacity: Due to its well-graded nature and ability to compact densely, Type 1 provides exceptional strength, effectively spreading the load from the surface (e.g., vehicles) over a wider area of the underlying ground. This prevents rutting, cracking, and subsidence, crucial for high-traffic areas.
• Superior Stability: The interlocking of various particle sizes creates a highly stable base that resists movement and displacement, even under significant pressure. This inherent stability is vital for maintaining the integrity of pavements, driveways, and building foundations.
• Good Drainage Properties: While it compacts densely, Type 1 still allows for some water permeability, preventing water from pooling and causing damage through freeze-thaw cycles or hydrostatic pressure build-up. It helps to divert water away from the surface and underlying ground.
• Ease of Compaction: Its unique grading allows it to be easily compacted using standard vibrating plate compactors or roller equipment, achieving the required density relatively quickly. Proper compaction is paramount to achieving its full potential.
• Cost-Effectiveness: As a recycled or quarried aggregate, MOT Type 1 is generally an economical choice for bulk sub-base requirements, offering high performance without prohibitive costs.
• Versatility: While primarily known for roads, its properties make it suitable for a wide array of applications, from domestic driveways to large commercial projects.

Primary Applications of MOT Type 1 Aggregate

The versatility of MOT Type 1 aggregate means it's used in a vast array of construction and landscaping projects. Its primary function is always as a non-decorative, load-bearing sub-base. Here are some of its most common applications:

Roads and Highways

This is arguably its most famous application. MOT Type 1 forms the critical sub-base layer beneath the asphalt or concrete surface of roads. It provides the necessary strength and stability to withstand the constant pounding of heavy traffic, ensuring the road surface remains level and intact for many years.

Driveways and Pathways

For residential or commercial driveways and pathways, whether surfaced with block paving, tarmac, or gravel, a robust sub-base of MOT Type 1 is essential. It prevents sinking, rutting, and ensures a durable surface that can handle vehicle weight and pedestrian traffic without deteriorating.

Building Foundations and Slabs

Before laying a concrete slab for a garage, shed, or even a house extension, a compacted layer of MOT Type 1 is often used as a sub-base. It provides a level, stable, and well-drained platform, protecting the concrete from ground movement and moisture ingress.

Patios and Paved Areas

For patios constructed with paving slabs or block paving, Type 1 provides a stable foundation that prevents uneven settling and cracking over time. It ensures that the patio remains level and aesthetically pleasing for years to come.

Sports Pitches and Play Areas

Even under artificial turf pitches or rubberised play surfaces, MOT Type 1 can be used to create a firm, level, and well-drained base, ensuring the integrity and longevity of the surface above.

Calculating Your MOT Type 1 Needs

Accurately calculating the amount of MOT Type 1 you need is crucial to avoid over-ordering or, worse, running out mid-project. Our bulk bags are designed for convenience, providing a good approximation for many domestic and smaller commercial projects. Each bulk bag of MOT Type 1 aggregate will cover approximately 5 square metres (m²) at a depth of 100mm (4 inches). This is a common minimum depth for driveways and patios, but for heavier loads or more critical applications, a deeper sub-base may be required.

A bulk bag typically contains around 0.8 cubic metres (m³) of aggregate, weighing approximately 800-900kg, depending on moisture content and material density.

Practical Calculation Example:

Let's say you're building a new driveway that is 10 metres long and 3 metres wide, and you want a 150mm (0.15m) deep sub-base of MOT Type 1.

1. Calculate the area: Length × Width = 10m × 3m = 30m²
2. Calculate the volume needed: Area × Depth = 30m² × 0.15m = 4.5m³
3. Calculate the number of bulk bags: Volume Needed / Volume per Bulk Bag = 4.5m³ / 0.8m³ per bag ≈ 5.625 bags

In this scenario, you would need to order 6 bulk bags to ensure you have enough material. Always round up to the nearest whole bag to account for compaction and minor variations.

Working with MOT Type 1: Compaction is Key

Simply laying down MOT Type 1 is not enough; proper compaction is absolutely critical to achieving its full strength and stability. Without adequate compaction, the aggregate will not interlock effectively, leading to subsidence and failure of the surface above. Here's a basic guide:

• Preparation: Ensure the ground beneath is firm, level, and free of organic matter. If the ground is very soft, a geotextile membrane may be laid first to prevent the aggregate from mixing with the soil.
• Layering: For depths greater than 100mm, it's advisable to lay the MOT Type 1 in layers (lifts) of no more than 100-150mm at a time. This ensures thorough compaction throughout the depth.
• Spreading: Spread the aggregate evenly using rakes or shovels.
• Compaction: Use a vibrating plate compactor (often called a 'wacker plate') for smaller areas or a roller for larger projects. Pass over the area multiple times in different directions until the aggregate is visibly stable and no longer moving under the compactor. You'll notice the surface becoming very firm and tightly packed.
• Moisture: A slight amount of moisture can aid compaction, but avoid saturating the material.

Comparing MOT Type 1 to Other Aggregates

While MOT Type 1 is incredibly versatile, it's important to understand that not all aggregates are created equal, and some are suited for different purposes. Here's a brief comparison with other common types:

Sourcing and Delivery of MOT Type 1

When purchasing MOT Type 1, you'll typically find it available in two main formats: bulk bags or loose tipped. Bulk bags are ideal for smaller to medium-sized projects, offering convenience and easier handling, especially if access is restricted or if you need to store the material for a short period. Loose delivery is generally more cost-effective for larger projects where significant quantities are required and you have the space for a large pile of aggregate.

Many suppliers, including ourselves, offer express delivery options, often allowing for next-day delivery to keep your project moving forward without delay. The delivery cost is usually calculated at checkout, taking into account your location and the quantity ordered. It's important to note that while we offer various products, different products are often only delivered in bulk bags to ensure efficient and organised delivery.

Frequently Asked Questions About MOT Type 1 Aggregate

Can MOT Type 1 be used for decorative purposes?

No, MOT Type 1 aggregate is explicitly not suitable for decorative purposes. Its appearance is rough, unwashed, and utilitarian, designed purely for its functional properties as a sub-base. It contains a lot of fine dust and varying colours of crushed materials, making it unattractive for visible areas. For decorative finishes, you would typically use gravel, shingle, or decorative chippings.

How deep should I lay MOT Type 1?

The ideal depth depends on the intended load and application. For light-duty domestic driveways or patios, a minimum compacted depth of 100mm (4 inches) is generally recommended. For areas with heavier vehicle traffic or commercial use, depths of 150mm to 300mm (6 to 12 inches) or more may be necessary. Always consult project specifications or a professional if unsure.

Is MOT Type 1 permeable?

Yes, to a degree. While it compacts very densely, the well-graded nature of MOT Type 1 allows for some water to drain through it, preventing hydrostatic pressure build-up and aiding overall site drainage. However, if a highly permeable sub-base is required (e.g., for SUDS-compliant paving), then MOT Type 3, with its lower fines content, would be a more appropriate choice.

Can I use MOT Type 1 for a shed base?

Absolutely. MOT Type 1 is an excellent material for creating a stable, level, and well-drained sub-base for shed bases, garden rooms, or even smaller outbuildings. It provides a solid foundation that prevents the shed from sinking or shifting over time.

What's the difference between MOT Type 1 and hardcore?

'Hardcore' is a broader, more generic term that refers to any inert, bulky material used as a fill or sub-base. This could include crushed brick, concrete, or mixed demolition waste. While MOT Type 1 is a type of hardcore, it is a very specific, high-quality, and well-graded type of hardcore that meets strict Ministry of Transport specifications. Generic hardcore may not have the same consistent grading or load-bearing capabilities as certified MOT Type 1.

Do I need a membrane under MOT Type 1?

It's often recommended to lay a geotextile membrane (also known as a weed membrane or ground stabilisation fabric) beneath the MOT Type 1, especially if the underlying soil is soft or clayey. This membrane serves two main purposes: it prevents the aggregate from mixing with the sub-soil (preventing contamination and loss of stability) and acts as a barrier against weed growth from below. It's a small additional cost that can significantly improve the longevity and performance of your sub-base.

Can MOT Type 1 be used for drainage?

While MOT Type 1 does allow for some water passage, it is not primarily a drainage aggregate. Its high fines content means it's designed to compact tightly for stability rather than rapid water flow. For dedicated drainage applications, such as French drains or soakaways, a clean, single-sized aggregate like 20mm pipe bedding gravel is more effective.

Conclusion

In the realm of groundworks and construction, MOT Type 1 aggregate is truly an unsung hero. Its unique composition and grading make it the go-to choice for creating strong, stable, and durable sub-bases for a vast array of projects, from major infrastructure to domestic landscaping. Understanding its properties and how to properly utilise it is fundamental to achieving professional, long-lasting results. By investing in quality MOT Type 1 and ensuring correct compaction, you are quite literally laying the groundwork for success, guaranteeing that your roads, driveways, and foundations stand firm against the test of time and traffic. It's not just aggregate; it's the foundation of strength.
