When embarking on any construction project that requires a stable and load-bearing foundation, understanding the materials involved is paramount. One such crucial material, particularly in the UK, is the MOT Type 1 sub-base. You might have encountered it referred to as 6N or Adoptable Type 1, and its significance lies in its ability to provide a robust and dependable layer beneath your final surfacing. This article will delve into what an MOT Type 1 sub-base is, its composition, its numerous applications, and why it's the go-to choice for professionals and DIY enthusiasts alike seeking a durable groundwork solution.
What Exactly is MOT Type 1 Sub-Base?
MOT Type 1 sub-base, often simply called Type 1, is a specific type of aggregate that conforms to the standards set by the Ministry of Transport (MOT). Its primary function is to create a stable and compacted layer that can adequately support the weight of subsequent construction layers and the loads they will bear. It's essentially the foundation upon which your driveway, patio, pathway, or even larger infrastructure projects are built. The key characteristic of MOT Type 1 is its ability to achieve excellent compaction, resulting in a dense and impermeable layer with minimal voids.
The Composition of MOT Type 1

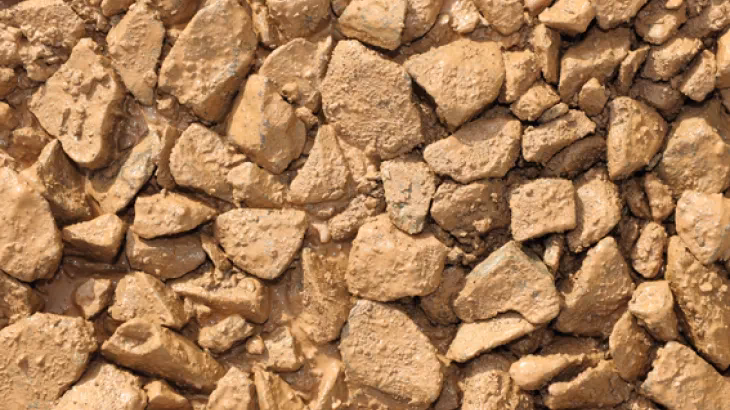

The effectiveness of MOT Type 1 lies in its carefully graded composition. It is typically made from crushed stone and recycled aggregates, with common materials including limestone, granite, and sometimes concrete. The aggregate is crushed to a maximum size of 40mm. What makes it particularly suitable for sub-base applications is the blend of particle sizes, ranging from coarse to fine. This mix ensures that when compacted, the material interlocks effectively, filling any potential voids and creating a solid, cohesive layer. This graded nature is crucial for its load-bearing capabilities and its resistance to water ingress.
The grading of MOT Type 1 is critical. The ideal mix will have a good proportion of larger stones for structural integrity, medium-sized aggregates to fill the gaps, and fine material (dust) to bind everything together upon compaction. This granular structure allows for excellent compaction, creating a firm and stable platform. When delivered, it should appear as a uniform blend, free from excessive dust or large, uncrushed lumps.
Why is Compaction So Important?
Compaction is the process of consolidating the aggregate material to reduce air voids and increase its density. For MOT Type 1, effective compaction is absolutely vital. When properly compacted using vibrating rollers or plate compactors, the angular particles of the aggregate are forced into close contact. This creates a strong, interlocking matrix that can distribute weight evenly across the sub-base. A well-compacted MOT Type 1 layer will resist movement, prevent subsidence, and provide a stable surface for whatever is laid on top. Insufficient compaction will lead to a weaker sub-base, prone to settlement, cracking, and failure of the overlying material.
Key Applications of MOT Type 1 Sub-Base
The versatility and reliability of MOT Type 1 have made it a staple in various construction and landscaping projects. Its primary use is as a sub-base where a load-bearing, stable layer is required. Here are some of its most common applications:
- Driveways: MOT Type 1 provides the essential foundation for both domestic and commercial driveways, whether they are to be surfaced with block paving, tarmac, or concrete. It ensures the driveway can withstand the weight of vehicles and resist the effects of weather.
- Patios: For patios, especially those that will be paved with heavy flagstones or subject to foot traffic, a solid sub-base is crucial. MOT Type 1 prevents uneven settling and ensures the longevity of the patio surface.
- Pathways and Footpaths: Similar to patios, pathways require a stable base to prevent them from becoming uneven and hazardous. MOT Type 1 offers the necessary support for pedestrian traffic.
- Access Roads: In construction sites or areas requiring temporary or permanent access roads, MOT Type 1 is used to create a durable surface that can handle vehicle movement and varying weather conditions.
- Building Foundations: While not a primary foundation material for large structures, it can be used as a sub-base in smaller building projects or as part of the ground preparation for foundations.
- Hardstanding Areas: Any area that needs to be a firm, level surface, such as for sheds, storage, or play areas, can benefit from an MOT Type 1 sub-base.
Benefits of Using MOT Type 1
Choosing the right sub-base material is critical for the success of any groundwork project. MOT Type 1 offers several distinct advantages:
- Excellent Compaction: As mentioned, its graded nature allows for superior compaction, leading to a very stable and durable base.
- Load Bearing Capacity: It is designed to distribute weight effectively, making it suitable for areas that will experience significant traffic or load.
- Durability: When properly installed, MOT Type 1 creates a long-lasting foundation that resists movement and degradation.
- Versatility: It can be used with a wide range of final surfacing materials.
- Cost-Effectiveness: While quality materials come at a price, MOT Type 1 offers excellent value for money when considering its performance and longevity.
- Compliance: Adhering to Ministry of Transport standards ensures a predictable and reliable material performance.
Comparison with Other Sub-Base Materials
While MOT Type 1 is a popular choice, it's useful to understand how it compares to other sub-base materials. The choice often depends on the specific project requirements and budget.
| Sub-Base Type | Typical Composition | Key Characteristics | Best For |
|---|---|---|---|
| MOT Type 1 | Crushed stone (limestone, granite), recycled aggregates (up to 40mm) | Excellent compaction, high load-bearing, durable, graded mix | Driveways, patios, pathways, access roads, areas requiring significant stability |
| MOT Type 2 | Similar to Type 1 but with a higher proportion of clean, single-sized aggregate (e.g., 20mm clean stone) | Good drainage, less inter-locking than Type 1, can be less stable if not compacted well | Areas where drainage is paramount, such as under permeable surfaces or where water run-off needs to be managed. |
| Crushed Concrete (Recycled Aggregate) | Crushed concrete, often with fines. Size can vary. | Can be cost-effective, good for general fill, compaction can vary depending on grading. | General fill, bulk excavation backfill, less critical sub-bases. |
| Ballast (Pea Shingle) | Rounded gravel, typically 10-20mm | Good drainage, poor compaction, can be prone to movement | Drainage layers, blinding layers, under concrete slabs where load-bearing is minimal. |
As you can see from the table, MOT Type 1 stands out for its superior compaction and load-bearing capabilities, making it the preferred choice for many demanding applications. MOT Type 2 is more suited for drainage-focused scenarios, while crushed concrete and ballast have their own niche uses.
Installation Best Practices
To ensure you get the most out of your MOT Type 1 sub-base, follow these best practices during installation:
- Excavation: Excavate the area to the required depth, ensuring you account for the thickness of the sub-base and the final surfacing material. Aim for a consistent depth.
- Ground Preparation: Remove any topsoil, roots, or debris from the excavated area. Ensure the sub-grade (the ground beneath the sub-base) is firm and stable.
- Laying the Sub-Base: Spread the MOT Type 1 aggregate evenly across the prepared area to the desired thickness, typically between 100mm and 150mm for driveways and patios.
- Compaction: This is the most critical step. Compact the aggregate in layers, ideally no more than 100mm at a time, using a vibrating roller or a heavy-duty plate compactor. Ensure thorough compaction across the entire area, working systematically. Multiple passes are usually necessary.
- Checking Levels: Throughout the process, check that you are maintaining the correct levels and falls for drainage.
- Final Surface: Once the MOT Type 1 is fully compacted and stable, you can proceed with laying your chosen final surfacing material.
Frequently Asked Questions
What is the difference between MOT Type 1 and Type 2?
MOT Type 1 is a graded aggregate mix designed for maximum compaction and load-bearing. MOT Type 2 is typically a cleaner, single-sized aggregate, often used where better drainage is required.
Can I use MOT Type 1 for a garden path?
Yes, MOT Type 1 is an excellent choice for garden paths, providing a stable and durable base that will prevent the path from becoming uneven over time.
How thick should the MOT Type 1 layer be?
For most domestic applications like driveways and patios, a thickness of 100mm to 150mm is recommended. For heavier load-bearing applications, a thicker layer might be necessary, and professional advice should be sought.
Where can I buy MOT Type 1?
MOT Type 1 is widely available from reputable builders' merchants and aggregate suppliers. Companies like Marshalls, mentioned in the initial prompt, offer it for bulk deliveries or collection from their quarries.
Is MOT Type 1 suitable for drainage?
While MOT Type 1 does offer some drainage due to its aggregate nature, it is not specifically designed for drainage purposes. MOT Type 2 or other clean, single-sized aggregates are more suitable if drainage is the primary concern.
Conclusion
In summary, MOT Type 1 sub-base is a fundamental material in modern construction and landscaping, providing the essential stable foundation for a wide array of projects. Its carefully graded composition, adherence to Ministry of Transport standards, and excellent compaction characteristics make it the superior choice for driveways, patios, pathways, and access roads. By understanding its properties and following best installation practices, you can ensure the longevity and structural integrity of your finished project. Whether you are a seasoned professional or undertaking a DIY project, specifying and correctly installing MOT Type 1 will undoubtedly contribute to a durable and successful outcome.
