MOT Test: Do Testers Remove Your Tyres?

Every vehicle over three years old in the UK requires an annual MOT test to ensure it meets minimum road safety and environmental standards. While most drivers understand the necessity of the MOT, the intricate details of the testing process, particularly concerning tyres and wheels, often remain a mystery. A common question that arises is: do MOT testers actually remove your wheels to inspect them? The short answer might surprise you, but the full scope of what is checked, even without removal, is extensive and crucial for your vehicle's roadworthiness.

The MOT Test: A Non-Invasive Inspection

It's a widely held misconception that MOT testers dismantle parts of your vehicle for a thorough examination. However, the reality is quite different. MOT testers are strictly prohibited from removing any component of the vehicle they are inspecting. This means that, contrary to popular belief, your wheels will remain firmly attached to your vehicle throughout the entire MOT test. This regulation ensures that the vehicle is tested in its operational state and avoids any potential issues arising from reassembly.

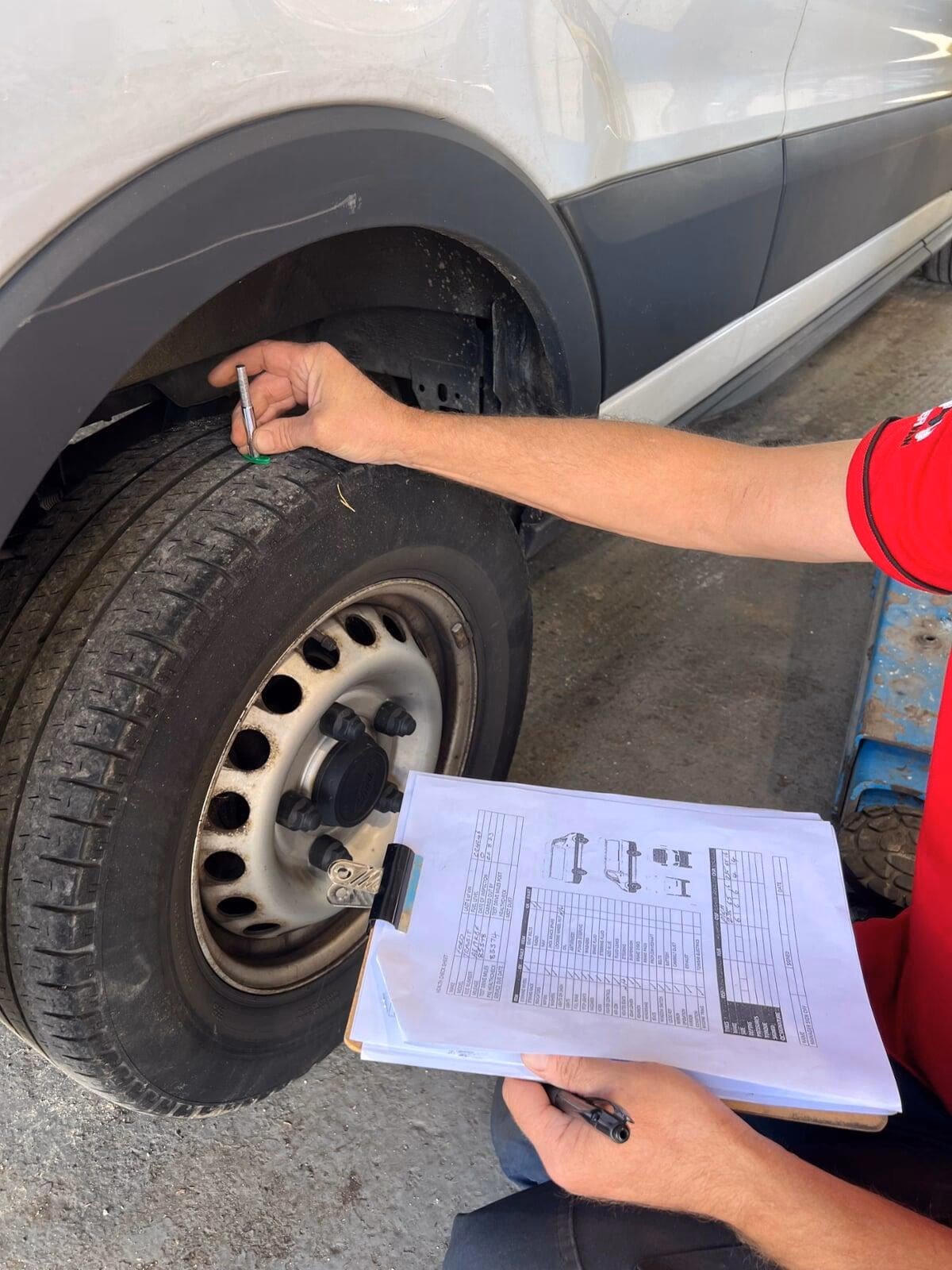

While the wheels aren't removed, this certainly doesn't imply a superficial check of your tyres and wheels. Far from it. The MOT test includes a comprehensive visual and functional assessment of these critical components, designed to identify any defects that could compromise safety or roadworthiness. The focus is on identifying defects that are visible or detectable without dismantling, but the criteria are incredibly stringent.

Tyre Tread Depth: The Foundation of Road Safety

One of the most fundamental checks during the MOT test is the tyre tread depth. This is a critical safety feature, as adequate tread is essential for grip, especially in wet conditions. For most passenger vehicles and light goods vehicles (those first used on or after 3 January 1933), the legal minimum tread depth is 1.6mm. This measurement must be present across the central three-quarters of the tyre's breadth and around its entire outer circumference.

You can easily perform a quick check yourself using a 20 pence coin. Insert the coin into the main grooves of your tyre. If the outer band of the coin is obscured by the tread, your tyre tread is likely above the 1.6mm legal limit. If you can see the outer band, your tyres might be illegal and require immediate replacement. While 1.6mm is the legal minimum, experts often recommend a minimum of 3mm for optimal performance and safety, particularly in adverse weather conditions, as braking distances can significantly increase with shallower tread.

The MOT also defines what constitutes a "tread pattern" for assessment. Primary grooves are those containing tread wear indicators (TWI) or grooves that were cut as deep as the TWIs when the tyre was new. Secondary grooves, which are shallower, are not considered when assessing the minimum tread depth. The 'breadth of tread' refers to the part of the tyre that contacts the road under normal conditions, measured at 90 degrees to the peripheral line of the tread.

MOT Tread Depth Requirements by Vehicle Type

Beyond Tread: Comprehensive Tyre Condition Checks

Beyond simply measuring tread depth, MOT testers meticulously inspect the overall condition of your tyres for any signs of damage or deterioration. This is where the structural integrity of the tyre becomes paramount.

• Visible Damage: Any signs of splitting, cracking, or bulging on the tyre wall will lead to a fail. These indicate a breakdown in the tyre's internal structure and pose a significant safety risk.
• Cuts: Testers will carefully examine any cuts. A cut is considered a defect if any ply or cord can be seen without touching the tyre, or if by folding back rubber or opening a cut with a blunt instrument (without causing further damage), exposed ply or cord becomes visible. Furthermore, if a cut exceeding 25mm or 10% of the section width (whichever is greater) reveals cords upon opening with a blunt instrument (even if not visible), it will result in a fail.
• Lumps or Bulges: These can indicate internal structural damage, such as a broken cord. Testers distinguish between normal manufacturing undulations and genuine lumps or bulges caused by deterioration.
• Stretched Tyres: Tyres fitted in a 'stretched' manner (where the tyre is narrower than the wheel rim) are noted as being more prone to sidewall damage and are subject to close scrutiny.
• Recut Tyres: These are only permitted on specific heavy vehicles (over 3,050kg ULW, or goods/passenger vehicles over 2,540kg ULW with certain wheel diameters/passenger capacities). They are generally not permitted on standard cars.
• Special Markings: Tyres marked "NHS" (Not for Highway Use) or similar are only acceptable if they also bear an 'E' marking (indicating compliance with European standards) and a six-digit number.
• Directional and Asymmetric Tyres: These tyres are designed to be fitted in a specific orientation (e.g., "outside" for asymmetric, or with a rotation arrow for directional). While incorrect fitment of an asymmetric tyre is an advisory, not a direct fail, it's crucial for optimal performance and safety.

Tyre Compatibility and Fitment

The MOT test also scrutinises whether the tyres fitted are suitable for the vehicle and are correctly matched. This includes:

• Size: The tyre size, including aspect ratio, is checked. Dual markings (e.g., 185/75R14 also marked 185R14) are acceptable.
• Load Rating: For Classes 5 and 7 vehicles, the tyre's load rating must be suitable for the axle weight. This information is typically found on the manufacturer's plate.
• Speed Rating: For Classes 5 and 7, the speed rating (e.g., 'H' or 'V') indicated on the sidewall is checked. Speed ratings from A to K are generally unacceptable, with the exception of 'H'. Lower speed ratings (J, K) are permitted for Class 5 vehicles up to 70mph, but with a reduced carrying capacity.
• Structure: A critical rule is that tyres of different structures (e.g., radial-ply and cross-ply) must never be mixed on the same axle. Steel and fabric radial-ply tyres are considered the same structure. While conventional and run-flat tyres can technically be mixed on the same axle, it's strongly not recommended due to differences in handling characteristics.
• Fouling: If a tyre is found to be fouling (rubbing against) any part of the vehicle at the time of the test, it will result in a fail. This includes contact due to suspension movement or steering lock stops if they are not properly maintained.

Wheel Integrity: More Than Just the Tyre

The condition of the wheels themselves is also a key part of the MOT. Issues with the wheel can be just as dangerous as tyre defects.

• Wheel Fixings: Loose or missing wheel nuts, bolts, or studs are serious defects. Even one loose fixing can be a Major defect, while more than one constitutes a Dangerous defect, meaning the vehicle poses an immediate threat to road safety.
• Wheel Condition: Any fractures, cracks, or welding defects on the wheel itself are considered Dangerous. A badly distorted wheel or excessive wear between the wheel and hub at the spigot mounting can be a Major defect, becoming Dangerous if the wheel or tyre is likely to become detached.
• Compatibility: The wheel and its fixings must be compatible with each other and the vehicle. Incompatible parts will lead to a Major defect.
• Hub Caps: Testers are not permitted to remove wheel hub caps, so any defects underneath them would not be identified unless visible.
• Tyre Retaining Rings: On certain types of wheels, the tyre is held in place by a retaining ring. If this ring is not correctly fitted, it's a Major defect. If it's likely to come off, it's a Dangerous defect.

Tyre Pressure Monitoring Systems (TPMS): The Modern Eye

For M1 category vehicles (most passenger cars) first used on or after 1 January 2012, the Tyre Pressure Monitoring System (TPMS) is a mandatory check. This system alerts the driver to a significant drop in tyre pressure in one or more tyres.

The TPMS warning lamp (usually an amber symbol resembling a tyre cross-section with an exclamation mark) should illuminate briefly when the ignition is switched on and then go off. If the lamp remains illuminated, it indicates either low tyre pressure or a system malfunction. If the lamp flashes a number of times and then remains on, it typically signifies a system malfunction. While a warning message on the dashboard display isn't a defect in itself, it helps the tester determine if the lamp indicates a malfunction. If it's unclear whether the lamp signifies a malfunction or simply low pressure, an advisory will be issued. However, if a clear malfunction is indicated, it will result in a Major defect.

The Ageing Tyre: A Silent Threat

A relatively newer aspect of the MOT test concerns tyre age, recognising that even unused tyres can degrade over time. This check primarily applies to vehicles with more than 8 passenger seats, excluding vehicles of historical interest.

The age of a tyre is identified by its date code, a three or four-digit number found in a 'window' on the sidewall, often at the end of the DOT number. A three-digit code indicates a tyre manufactured before 2000 and is automatically over 10 years old. For four-digit codes, the first two digits represent the week of manufacture, and the last two represent the year (e.g., '3516' means week 35 of 2016).

Tyres that are over ten years old at the time of the test will result in a fail if they are fitted to:

• Any front steered axle.
• Any rear axle of a minibus with a single wheel fitment.

Tyres without a visible date code will also fail. For retreaded tyres, the most recent date code (either the original or the retreading date) is used. If a date code is illegible due to damage or tampering, a major or minor defect will be recorded depending on the tyre's location.

Your Pre-MOT Checklist: Avoiding Unnecessary Fails

While you can't remove your wheels for a deep dive, there are numerous simple checks you can perform at home to significantly increase your chances of a first-time MOT pass and ensure your vehicle is safe on the road:

• Lights: Ensure all lights are working correctly, including sidelights, dipped and main beam headlights, indicators, brake lights, reverse lights, fog lights (if fitted), and number plate lights. Have someone help you check the brake lights by pressing the pedal.
• Windscreen and Wipers: Inspect your windscreen for any chips or cracks, especially those larger than 10mm in the driver's central view or 40mm elsewhere. Remove any stickers or parking permits that could obstruct your view. Check that your windscreen wipers operate effectively and aren't damaged or torn. Ensure your washer fluid reservoir is topped up.
• Seating and Seatbelts: The driver's seat must be securely fitted and able to adjust forwards and backwards. All seatbelts must be checked for damage, cuts, or fraying. Buckles should engage and release smoothly, and the belt should retract properly.
• Horn: Give your horn a quick blast to ensure it's working and loud enough.
• Handbrake: Check the handbrake operates correctly and holds the vehicle securely.
• Suspension: Perform a simple "bounce test." Push down firmly on each corner of your vehicle and then release quickly. If the corner continues to bounce more than once or twice, it could indicate worn shock absorbers, which will likely result in an MOT fail.
• Tyre Pressure: While not a direct MOT failure item (unless it triggers a TPMS warning), correctly inflated tyres are essential for safety, fuel efficiency, and tyre longevity. Check your vehicle handbook or door jamb for the correct pressures.

Understanding MOT Defects: Minor, Major, Dangerous

The MOT test classifies defects into different categories, each with specific implications for your vehicle's roadworthiness and the test outcome. Understanding these categories, particularly concerning tyres and wheels, can help you grasp the severity of potential issues:

Frequently Asked Questions (FAQs)

Here are some common questions drivers have about tyre and wheel checks during the MOT:

Q: Can MOT testers remove tyres from my wheels?

A: No, MOT testers are not permitted to remove any part of your vehicle, including the wheels or tyres from the rims, during the test.

Q: What is the legal minimum tyre tread depth for an MOT pass?

A: For most vehicles, the legal minimum is 1.6mm across the central three-quarters of the tyre's breadth and around its entire outer circumference.

Q: Do old tyres affect my MOT test result?

A: Yes, tyre age is now a factor. Tyres over ten years old on front steered axles, or on any rear axle of a minibus with single wheel fitment, will result in an MOT fail. Tyres without a visible date code will also fail.

Q: Can I mix different types of tyres on my car?

A: You must not mix radial-ply and cross-ply tyres on the same axle. While run-flat and conventional tyres can technically be mixed on the same axle, it is not recommended for optimal handling and safety.

Q: What if my TPMS warning light is on during the MOT?

A: If your vehicle is an M1 category car first used on or after 1 January 2012, an illuminated TPMS warning lamp indicating a system malfunction will result in a Major defect and an MOT fail.

Q: What are the most common reasons for tyre-related MOT failures?

A: The most frequent reasons include insufficient tread depth, visible damage to the tyre wall (such as cuts, bulges, or cracks), incorrect tyre type or size for the vehicle, and issues with wheel integrity like loose fixings or fractures.

Conclusion

While the wheels of your vehicle remain firmly in place during an MOT test, the inspection of your tyres and wheels is incredibly thorough. From minute checks of tread depth and sidewall condition to assessing the integrity of the wheel itself and the functionality of modern TPMS, every aspect is scrutinised to ensure your vehicle is safe and roadworthy. Understanding these checks and performing regular pre-MOT inspections yourself can save you time, money, and most importantly, ensure your safety on the road. Regular maintenance and attention to your tyres are not just about passing the MOT; they are fundamental to safe driving.
