It's a common sight for many Fiat Punto owners: the dreaded airbag warning light illuminating on the dashboard. This isn't just a minor annoyance; it signifies a potential issue with a critical safety system designed to protect you and your passengers in the event of a collision. When your Fiat Punto starts up, its airbag module, often referred to as the Supplemental Restraint System (SRS) module, performs a comprehensive self-diagnostic check. If any of these checks reveal a fault or an anomaly, the airbag warning light will activate, serving as your notification. Depending on your Punto's model year and the region it was manufactured for, this warning might appear as 'SRS', a graphic of a person with a deployed airbag, or simply the word 'AIRBAG'. Regardless of its specific presentation, it should always be treated with the utmost seriousness, indicating that the airbags may not function as intended during an accident.
Understanding the Airbag System
To grasp why the airbag light might be on, it's helpful to understand the fundamental workings of the airbag system itself. This sophisticated system is a network of interconnected components designed to deploy airbags rapidly in response to a significant impact.
Key Airbag System Components
Your Fiat Punto's airbag system relies on several key components to function correctly:

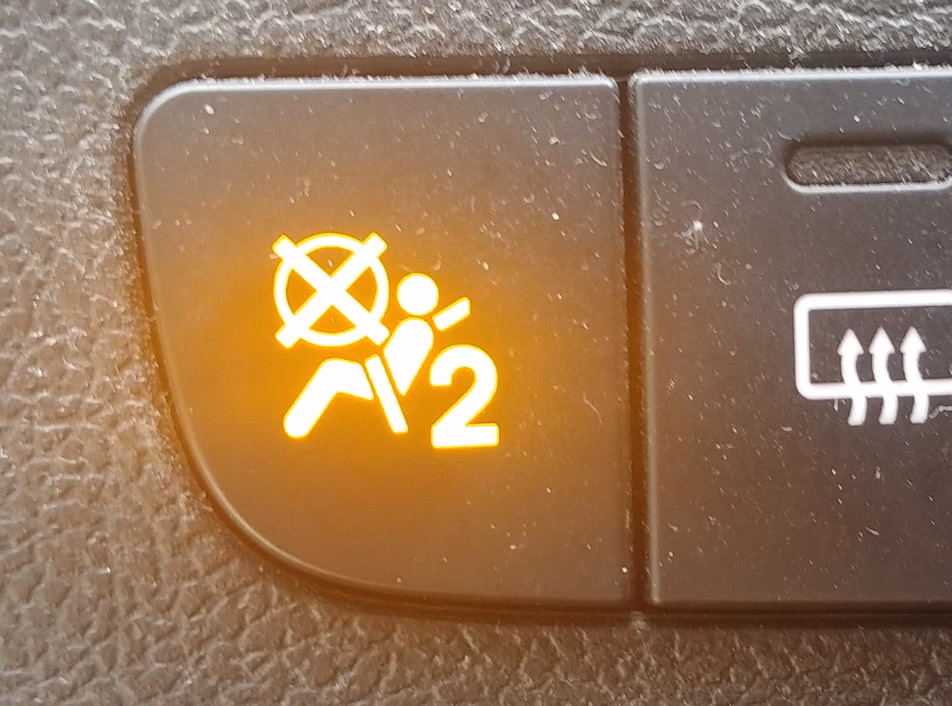

- Passenger Airbag Switch/Occupant Sensor: Some Fiat Punto models are equipped with a manual switch to disable the passenger airbag, often operated by the ignition key. More commonly, a sensor is located beneath the front passenger seat. This sensor weighs the occupant; if the occupant is too light (e.g., a small child), the system may prevent the passenger airbag from deploying to avoid potential injury.
- Clock Spring: Nestled within the steering column, the clock spring is a crucial, yet often overlooked, component. It's essentially a flexible rotary electrical connector that allows the steering wheel's electrical components – including the airbag, horn, and steering wheel controls – to remain connected to the vehicle's main electrical system as the steering wheel turns. A faulty clock spring is a frequent culprit for the airbag light.
- Airbag Modules: These are the actual airbags themselves, typically located in the steering wheel, dashboard, and seats. Upon receiving a signal from the control module, a small, controlled chemical explosion rapidly inflates the airbag in milliseconds, providing a protective cushion for occupants.
- Sensors: The airbag control module gathers data from a variety of sensors throughout the vehicle. These can include wheel speed sensors, brake pressure sensors, seat occupancy and seatbelt buckle sensors, gyroscopic sensors (to detect vehicle movement and rotation), and impact or crash sensors (often referred to as MEMS sensors) designed to detect the severity of a collision.
How the System Utilises These Components
The central airbag control module acts as the brain of the system. It continuously monitors the data fed by the various sensors. When the data indicates a collision of sufficient force, the control module sends a signal to deploy the relevant airbags. The system is designed to be highly responsive, making every component's correct functioning vital.
Diagnosing the Airbag Light
When the airbag light illuminates, it signifies that the airbag control module has detected a fault during its self-diagnostic routine. These faults are stored as diagnostic trouble codes (DTCs) within the module, providing valuable information about the specific problem. However, accessing these codes isn't always straightforward. Standard OBD-II scanners may not be equipped to read airbag-specific codes. Therefore, you might need a more advanced scanner or, more commonly, professional diagnostic equipment found at a reputable garage to retrieve these codes. Once the codes are retrieved, a technician can pinpoint the exact cause of the issue.
Common Causes for the Fiat Punto Airbag Light
While a diagnostic scan is the most definitive way to identify the problem, several common issues frequently trigger the airbag warning light in a Fiat Punto. Understanding these can help you anticipate potential problems or recognise symptoms:
- Seat Belt Issues: Seat belts remain the primary safety restraint. Modern cars integrate sensors into the seat belt mechanisms to confirm they are buckled. If a seat belt is jammed in the locked position or if its sensor fails to register that it's buckled or unbuckled correctly, this can trigger the airbag light. Try gently tugging on the seat belt to ensure it moves freely. A simple test involves sitting in each seat with the engine running and in park, then buckling and unbuckling the seatbelt. If the system doesn't recognise the unbuckling action when you get up, the seatbelt sensor could be the culprit.
- Seat Sensors and Wiring: This is arguably the most frequent reason for the airbag light to illuminate in many vehicles, including the Fiat Punto. The wiring harnesses located underneath the front seats are susceptible to damage or becoming dislodged, especially with frequent seat adjustments or general wear and tear. These wires connect to the seat occupancy sensors (which detect if someone is sitting in the seat) and the seatbelt buckle sensors. If these wires short out or become disconnected, the airbag system will register a fault. A tell-tale sign is if the seatbelt warning light also fails to activate when a seat is occupied but the belt is not fastened. Inspecting the wiring under the seats for any visible damage, loose connections, or signs of corrosion is a good first step.
- Clock Spring Failure: As mentioned earlier, the clock spring is vital for maintaining electrical continuity to the steering wheel components. Due to its location and constant flexing, it's prone to wear and tear over time. When the clock spring fails, it interrupts the signal path to the airbag in the steering wheel, causing the airbag light to illuminate. This can sometimes be accompanied by other symptoms like a non-functional horn or steering wheel buttons.
- Airbag Component Failure: The airbag system is designed to self-monitor. If the control module cannot communicate with one or more of the airbags, or if an airbag itself is faulty, the system will flag this as an error and keep the airbag light on until the issue is rectified and the system reset.
- Airbag Module / Crash Sensor Malfunction: The central airbag control module itself can fail. This is more common after a minor impact or fender bender that was not severe enough to deploy the airbags. In such instances, one or more crash sensors might have been triggered or experienced a minor fault. These sensors can also fail independently due to manufacturing defects, water damage, or age. Buying a car with a history of flood damage is particularly risky, as water ingress can wreak havoc on sensitive electronic systems like the airbag module and sensors.
- System Not Reset After Deployment: If your Fiat Punto's airbags have deployed in a previous accident, the system requires a professional reset after the damaged airbags and potentially other components have been replaced. The airbag light will remain illuminated until this reset procedure is performed, as the system needs to be recalibrated to confirm its readiness.
Common Fault Codes
While a comprehensive list is extensive, some common airbag fault codes (often starting with 'B') relate to:
| Potential Fault Area | Description of Issue |
|---|---|
| Driver's Airbag Circuit | Open circuit, short to ground, short to power |
| Passenger's Airbag Circuit | Open circuit, short to ground, short to power |
| Seat Belt Pretensioner Circuit | Faulty circuit or component |
| Occupant Classification System Fault | Issues with seat sensors |
| Control Module Internal Fault | Failure within the airbag control unit |
Frequently Asked Questions
How Do You Reset the Fiat Punto’s Airbag Light?
The airbag light will typically reset itself automatically once the underlying fault has been repaired and the system has passed its diagnostic checks. In some cases, a professional diagnostic tool may be required to clear the fault codes from the airbag control module after the repair is completed.
Is it Safe to Drive Your Punto with the Airbag Warning Light On?
No, it is not safe to drive your Fiat Punto with the airbag warning light illuminated. The illuminated light indicates that at least one component of the airbag system is not functioning correctly. This means that in the event of a collision, the airbags may not deploy as intended, significantly increasing the risk of serious injury or fatality. You would be relying solely on your seat belts, which, while crucial, are not as effective as a properly deployed airbag system in mitigating impact forces.
What Does the Airbag Light Mean?
The airbag warning light is a clear indicator that your Fiat Punto's Supplemental Restraint System (SRS) has detected a malfunction in one or more of its critical components. This malfunction prevents the airbags from deploying automatically during a crash, compromising your safety.
Conclusion
The airbag system in your Fiat Punto is a complex and vital safety feature. While the causes of an illuminated airbag warning light can range from simple issues like a loose wire under a seat to more complex component failures, it's crucial to address the problem promptly. Ignoring the airbag light can have severe consequences for your safety and that of your passengers. Due to the safety-critical nature of this system, it is highly recommended to have any airbag-related issues diagnosed and repaired by a qualified mechanic or a specialist Fiat service centre. They have the necessary expertise and equipment to accurately identify the fault and ensure your airbag system is fully operational and ready to protect you when you need it most.
