Understanding MOT Brake Imbalance: What You Need to Know
The MOT test is a crucial annual inspection designed to ensure your vehicle meets road safety and environmental standards. One of the key checks during the MOT is the braking system. A common reason for a vehicle to fail its MOT relating to brakes is 'brake imbalance'. But what exactly does this mean, and how can you ensure your car passes this vital test? This article delves into the intricacies of brake imbalance, its implications for your vehicle's performance, and what you can do to address it.
What is Brake Imbalance?
Brake imbalance occurs when one side of a braking axle (either the front or the rear) applies significantly less braking force than the other. Essentially, one wheel on an axle is not stopping as effectively as its counterpart on the same axle. During an MOT, brake efficiency is measured on a rolling road or with a plate tester. This test quantifies the braking force applied by each wheel. The results are then compared, and a significant disparity between the two sides of an axle is flagged as an imbalance.
The 25% Rule: Passing Your MOT
For a vehicle to pass its MOT, the braking force on each side of an axle must be within a specified tolerance. The general rule of thumb is that the difference in braking force between the two sides of an axle should not exceed 25%. For example, if one side of the front axle is applying 100kg of braking force, the other side must be applying at least 75kg (which is 25% less than 100kg). If the difference is greater than 25%, the vehicle will likely fail the MOT on this point. The 23% figure mentioned in the initial query refers to a specific instance where one side was found to be 23% less effective than the other, which, while close to the limit, would still be within the acceptable range for an MOT pass.
Why Does Brake Imbalance Happen?
The causes of brake imbalance can be varied and often stem from issues within the braking system. Some common culprits include:
- Sticking Brake Calipers: If a caliper is seized or sticking, it may not apply the brake pad evenly or with the correct force. This can lead to one pad dragging or not engaging properly.
- Worn Brake Pads or Discs: Uneven wear on brake pads or discs can create an imbalance. If one pad is significantly more worn than the other, or if a disc is heavily grooved or warped on one side, braking efficiency will be affected.
- Air in the Brake Lines: Air in the hydraulic system can lead to a spongy pedal and inconsistent braking force. If air is present in the lines feeding one side of the axle more than the other, it can cause an imbalance.
- Seized or Corroded Brake Lines: Obstructions or corrosion in the brake lines can restrict the flow of brake fluid, leading to reduced braking force on one side.
- Faulty Brake Master Cylinder or Proportioning Valve: While less common, issues with the master cylinder or a faulty proportioning valve (which regulates brake pressure between the front and rear axles) can contribute to imbalances.
- Issues with Drum Brakes: For vehicles with drum brakes, problems like worn brake shoes, contaminated drums, or faulty wheel cylinders can cause imbalances.
Will Brake Imbalance Affect My Car's Braking?
Yes, absolutely. Even a slight brake imbalance can affect how your car brakes. At higher levels of imbalance, such as the 23% mentioned, you might notice the vehicle pulling to one side when you brake. This is because the side with more braking force is slowing the car down more effectively than the other side. While 23% might not be severe enough to cause a complete loss of control, it certainly compromises the overall braking performance and stability of the vehicle. In emergency braking situations, this imbalance can lead to longer stopping distances and a less predictable response from the car.
What Can You Do About Brake Imbalance?
Addressing brake imbalance requires a systematic approach to diagnose the root cause. Here’s a general guide:
Inspection and Diagnosis
The first step is a thorough inspection of the braking system on the affected axle. This typically involves:
- Checking Brake Pads: Inspect the thickness and evenness of wear on the brake pads on both sides.
- Examining Brake Discs/Rotors: Look for signs of wear, scoring, glazing, or warping on the brake discs.

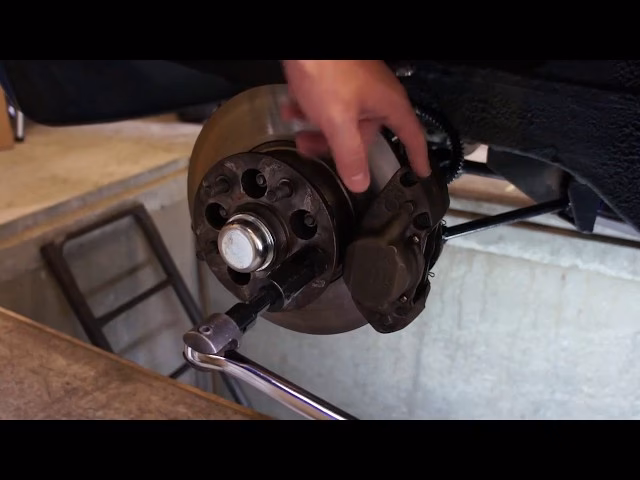

- Assessing Caliper Function: Ensure the brake calipers are free to move and that the pistons are not seized. Check the condition of the caliper sliders.
- Inspecting Brake Lines and Hoses: Look for any leaks, kinks, or signs of corrosion in the brake lines and flexible hoses.
- Bleeding the Brakes: If air is suspected, a brake bleed may be necessary.
Common Fixes
Depending on the diagnosis, the fixes might include:
- Replacing Worn Brake Pads and Discs: This is a common maintenance task and often resolves minor imbalances. It's crucial to replace pads and discs in pairs on the same axle to maintain even braking.
- Servicing or Replacing Calipers: If a caliper is sticking, it may need to be serviced (cleaned and lubricated) or replaced entirely.
- Repairing or Replacing Brake Lines: Damaged or corroded brake lines need to be repaired or replaced.
- Bleeding the Brake System: Properly bleeding the brake system can remove air and restore consistent hydraulic pressure.
It is important to remember that for MOT purposes, the braking system should be balanced. If you have disc brakes, ensure the calipers are functioning correctly, the pads are in good condition and evenly worn, the rotors are not excessively worn, and the calipers can slide freely.
Should You Leave a Minor Imbalance?
While an imbalance of 23% might technically pass the MOT as an advisory, it's generally not recommended to leave it unaddressed. The MOT is a minimum standard for roadworthiness. A competent mechanic would aim for a much tighter brake bias, ideally below 10% difference between the sides of an axle. Leaving a minor imbalance could mean that the issue will worsen over time, potentially leading to a fail at the next MOT or, more importantly, compromising your car's safety in everyday driving and emergency situations. It's always best practice to investigate and rectify any imbalance to ensure optimal braking performance and safety.
Table: Common Brake Imbalance Causes and Solutions
| Symptom/Issue | Potential Cause | Likely Solution |
|---|---|---|
| Car pulls to one side when braking | Brake imbalance (one side stronger) | Inspect and service/replace calipers, pads, or discs on the weaker side. |
| Spongy brake pedal | Air in brake lines | Bleed the brake system. |
| Brake judder or vibration | Warped brake discs, loose components | Replace warped discs, check mounting hardware. |
| Brake noise (squealing, grinding) | Worn pads, debris, glazed discs | Replace worn pads, clean components, or replace discs. |
| Reduced braking force | Low brake fluid, air in lines, worn components | Check fluid level, bleed system, inspect and replace worn parts. |
| Brake binding or dragging | Seized caliper, faulty brake hose | Service or replace caliper, inspect and replace brake hose. |
Frequently Asked Questions (FAQs)
Q1: What is the acceptable brake imbalance for an MOT?
A1: The general acceptable limit for brake imbalance on an MOT is typically no more than 25% difference in braking force between the two sides of an axle.
Q2: Can I fix brake imbalance myself?
A2: If you have good mechanical knowledge and the correct tools, you may be able to diagnose and fix some common brake issues like replacing pads and discs. However, brake systems are critical safety components, and if you are unsure, it's always best to consult a qualified mechanic.
Q3: Does brake imbalance affect steering?
A3: Yes, a significant brake imbalance can affect steering, particularly during braking, as the uneven forces can cause the vehicle to pull to one side.
Q4: What is brake bias?
A4: Brake bias refers to the distribution of braking force between the front and rear axles, or between the left and right sides of an axle. An imbalance in this distribution is what we've been discussing.
Q5: If my car fails the MOT for brake imbalance, what should I do?
A5: You will need to have the issue diagnosed and repaired by a qualified mechanic. Once the repairs are completed, you will likely need to present the vehicle for a partial re-test to confirm the brakes are now functioning correctly and meet the MOT standards.
Ensuring your vehicle's braking system is in good order is paramount for safety. A brake imbalance, even if it doesn't cause an immediate MOT failure, is a sign that your braking system is not performing optimally. Regular maintenance and prompt attention to any suspected issues will not only help you pass your MOT but, more importantly, keep you and others safe on the road. Don't hesitate to seek professional advice if you have any concerns about your car's brakes.
