BMW Parking Brake Malfunction: Your UK Guide

A 'Parking Brake Malfunction' warning on your BMW's dashboard can be unsettling. Modern BMWs, especially those equipped with an electronic parking brake (EPB) system, offer convenience but can sometimes present errors that leave owners puzzled. This comprehensive guide will walk you through the evolution of BMW's parking brake systems, help you understand the common culprits behind these warnings, and provide detailed, model-specific procedures for diagnosis and reset, ensuring you're well-equipped to tackle these issues head-on.

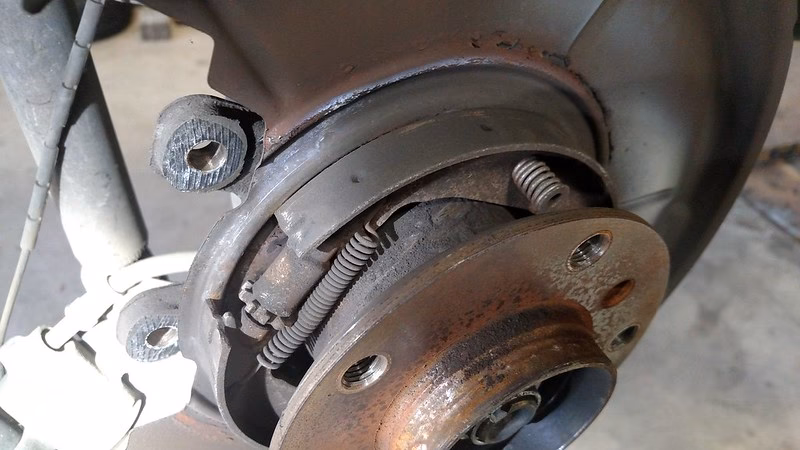

The Evolution of BMW's Parking Brake Systems

Understanding how BMW's parking brake system has developed over the years is crucial to correctly diagnose and address any issues. From traditional manual handbrakes to sophisticated electronic systems, BMW has consistently integrated new technologies for enhanced safety and convenience.

Early Manual Systems (Pre-2007)

Older BMW models, particularly those produced before 2007 like the E53 X5, utilised a conventional manual parking brake. This system typically involved a hand lever in the cabin connected via cables to a set of small brake shoes located within the rear brake disc 'hat' area. While robust and mechanically straightforward, these systems required manual adjustment and were susceptible to cable stretching or seizing over time. Maintenance primarily involved adjusting cable tension and inspecting the brake shoes.

First-Generation Electronic Parking Brakes (Approx. 2007-2013)

The introduction of models like the E70/E71 X5/X6 marked BMW's transition to early electronic parking brake systems. These systems replaced the manual lever with a simple button and utilised electric motors (actuators) directly on the rear brake calipers or a central actuator unit to apply the brakes. While offering greater convenience, these initial EPBs were somewhat standalone, with limited integration into the vehicle's broader control systems. Malfunctions often stemmed from actuator failures or basic electrical glitches, and resets sometimes involved simple button sequences or basic diagnostic tool access.

Integrated Electronic Systems (Approx. 2014-2018)

With the F-series models (e.g., F15/F16 X5/X6), BMW's EPB technology became more sophisticated and deeply integrated with other vehicle systems, such as the Dynamic Stability Control (DSC) and ABS. This integration allowed for features like automatic release when driving off and hill-hold assist. However, it also meant that EPB issues could be linked to problems within these interconnected systems. Diagnosing and resetting these later F-series EPBs almost always requires dedicated diagnostic tools to communicate with the complex modules and perform necessary calibrations, especially after component replacement.

Advanced Integrated Systems (Approx. 2019-Present)

The latest G-series BMWs (e.g., G05 X5) feature the most advanced and highly integrated brake systems. Here, the parking brake is an intrinsic part of a complex dynamic stability network, often working seamlessly with automatic hold functions and adaptive cruise control. These systems offer unparalleled convenience and safety, but their complexity means that troubleshooting and resets demand advanced diagnostic software like BMW's ISTA+ and often involve multiple calibration steps. Issues are less likely to be purely mechanical and more often related to software, sensor data discrepancies, or communication errors across the network.

Understanding BMW Parking Brake Malfunctions: Common Causes

When that dreaded 'Parking Brake Malfunction' warning lights up your dashboard, it's typically a sign that the electronic parking brake (EPB) system has detected an anomaly. Several culprits could be responsible:

Low Battery Voltage

Your BMW's electronic parking brake is incredibly voltage-sensitive. When battery power drops below optimal levels, even slightly, the EPB system may trigger a malfunction warning. This is a common occurrence in vehicles that sit unused for extended periods, especially during colder months, or in those with aging batteries. The EPB requires steady, adequate power to operate correctly, and voltage fluctuations can trick the system into thinking there's a fault with the actuators or control module.

Actuator Motor Issues

The EPB uses electric motors, known as actuators, which are often built directly into the rear brake calipers to physically apply and release the brakes. These components are exposed to harsh conditions, enduring heat, moisture, and mechanical stress, which can lead to failure over time. Common actuator problems include corroded motor windings, seized internal gears, damaged electrical connections, or worn mechanical parts preventing proper movement. A grinding noise from the rear wheels when operating the parking brake is often a tell-tale sign of actuator motor issues.

Software Glitches

Just like your smartphone occasionally needs a restart, your BMW's parking brake system can experience software hiccups. These electronic gremlins may appear after software updates, battery disconnections, control module resets, or due to general communication failures between various vehicle systems. Sometimes, a simple system reset can clear these transient errors.

Brake Pad Wear and Hydraulic Issues

The EPB system monitors brake pad thickness and, indirectly, hydraulic pressure. When brake pads wear excessively thin, or if air enters the brake lines causing a drop in hydraulic pressure, the system may disable itself as a safety measure to prevent damage or unsafe operation. While less common, a hydraulic fluid leak can also trigger EPB warnings.

Sensor and Wiring Problems

Your BMW’s EPB relies on multiple sensors to function properly, including wheel speed sensors and position sensors within the actuators themselves. Damaged wiring harnesses, corroded connectors, or faulty sensors can disrupt the flow of crucial data to the control module, triggering malfunction alerts. Damage can occur due to road debris, animal chewing, or simply age and exposure to the elements.

BMW Parking Brake Reset: Model-Specific Procedures

The reset process for your BMW's parking brake varies significantly depending on your vehicle's generation and specific model. It's crucial to identify your BMW's series (E, F, or G) before attempting any procedure.

E-Series Models (Approx. 2000-2013)

These models often feature either a manual system or an early electronic system.

• E53 X5 (2000-2006): This first-generation X5 uses a manual parking brake with a cable-operated system. A reset or adjustment involves:
1. Raise the rear of the vehicle securely using appropriate jack stands.
2. Locate the 7mm adjustment hole on the brake rotor shield.
3. Turn the rotor until you can see the star wheel adjuster through the hole.
4. Use a screwdriver to tighten the adjuster clockwise until the rotor locks.
5. Back off by one to two notches to ensure proper operation and prevent drag.
6. Repeat for the other side and then check the handbrake lever travel.
• E70/E71 X5/X6 (2007-2013): These models introduced an early electronic parking brake system that sometimes allows for a basic reset:
1. Turn the ignition to the 'On' position (do not start the engine).
2. Press and hold the parking brake button for approximately 10-15 seconds.
3. Wait for the dashboard indicator to flash or change, indicating a reset attempt.
4. Test by engaging and disengaging the brake several times.

For more stubborn issues on E70/E71, you'll typically need a diagnostic tool to access 'EMF Workshop Mode' to fully retract and recalibrate the actuators.

F-Series Models (Approx. 2014-2018)

The F15/F16 X5/X6 and other F-series BMWs require a diagnostic tool for proper EPB resets and servicing, due to their integrated nature:

1. Connect an OBD-II scanner with BMW-specific capabilities (e.g., Foxwell, Autel, or software like ISTA+).
2. Navigate to the EPB/EMF (Electronic Parking Brake/Electromechanical Parking Brake) control module.
3. Select 'Service Mode' or 'Brake Pad Replacement Mode' to retract the actuators. This is essential before any manual work on the rear brakes.
4. After servicing (e.g., brake pad replacement), use the tool to reactivate or 'close' the parking brake.
5. Run a function test or calibration routine within the diagnostic tool to verify proper operation and clear any lingering fault codes.

G-Series Models (Approx. 2019-Present)

The latest G05 X5 and other G-series BMWs feature a highly integrated EPB system that works extensively with the Dynamic Stability Control (DSC) and other modules. These systems almost always require advanced diagnostic software for resets and calibrations:

1. Enter diagnostic mode (usually by pressing the start button three times without pressing the brake pedal, or by following specific tool instructions).
2. Use BMW-specific diagnostic software (like ISTA+ or a professional-grade scanner capable of G-series programming).
3. Perform a full system reset, including actuator calibration and potentially a DSC system recalibration, as per the software's instructions.
4. Test the system thoroughly after the reset, ensuring all warning lights are off and the brake engages and disengages smoothly.

DIY Reset Using Diagnostic Tools

For BMW owners, several diagnostic tools can empower you to reset your parking brake without a trip to the dealership, offering significant cost savings.

BimmerLink and BimmerCode (Smartphone Apps)

These popular smartphone apps, when paired with a compatible OBD-II adapter (such as OBDLink CX, VGate iCar Pro, or UniCarScan), provide excellent DIY access to your BMW’s EPB system:

1. Connect your OBD-II adapter to your vehicle's diagnostic port (usually under the dashboard).
2. Launch the BimmerLink app and ensure it connects to your car.
3. Navigate to the 'Electronic Parking Brake' or 'EMF' menu.
4. Select 'Activate Service Mode' (or similar wording) to retract the actuators. This is crucial for brake pad replacement.
5. After completing any mechanical work, use 'Deactivate Service Mode' to recalibrate and close the actuators.
6. The app can also read and clear fault codes related to the EPB system.

Dedicated Scan Tools (e.g., Autel MaxiCOM, Foxwell, Launch)

Professional-grade or enthusiast-level scanners like Autel MaxiCOM, Foxwell NT510/NT530, or Launch X431 offer more comprehensive EPB management capabilities:

1. Connect the scan tool to your BMW's OBD-II port.
2. Access the 'Electronic Parking Brake' (EPB) or 'Electromechanical Parking Brake' (EMF) control module within the tool's menu.
3. Initiate 'Brake Pad Replacement Mode,' 'Service Position,' or 'Actuator Retraction.'
4. Follow the on-screen instructions to complete the reset or calibration procedure.
5. After the process, perform validation tests (often an option within the tool) and clear any stored fault codes. These tools typically provide live data monitoring, which can be invaluable for diagnosing intermittent issues.

Parking Brake Reset Without Tools (Limited Success)

If you're in a pinch and don't have access to diagnostic equipment, you can try these manual methods. However, be aware that they typically only work for minor electronic glitches and are unlikely to resolve mechanical failures or complex software issues.

Battery Reset Method

This method can sometimes clear transient electronic faults by fully cycling the vehicle's electrical system:

1. Ensure your vehicle is parked on level ground and the wheels are chocked for safety.
2. Locate your vehicle's battery (often in the boot or under the bonnet).
3. Using a wrench, disconnect the negative terminal first, followed by the positive terminal.
4. Wait for 15-30 minutes to allow all control modules and capacitors to fully discharge.
5. Reconnect the battery, positive terminal first, then the negative terminal. Ensure connections are tight.
6. Start the vehicle and test the parking brake functionality by engaging and disengaging it several times. Observe if the warning light has cleared.

Button Combination Reset

Some BMW owners have reported success with specific button sequences, although this is model-dependent and not officially endorsed:

1. Turn the ignition to position II (all dashboard lights on, but engine not started).
2. Press and hold the parking brake button while simultaneously pressing and holding the main brake pedal (foot brake).
3. Hold both for 20-30 seconds. You might notice a change in dashboard indicators, a click, or a whirring sound from the rear.
4. Release both the button and pedal.
5. Test the system by engaging and disengaging the parking brake.

Note: These manual methods are a last resort for minor glitches. If the issue persists, a diagnostic tool or professional intervention is necessary.

Critical Parking Brake Reset Precautions

Before attempting any BMW parking brake reset, whether DIY or professional, it's paramount to follow these important precautions to prevent further damage or safety hazards.

Ensure Voltage Stability

The electronic parking brake system is highly sensitive to voltage fluctuations. Always connect your BMW to a reliable battery maintainer or ensure the battery is fully charged before performing any reset or diagnostic procedure. A significant voltage drop during the process can corrupt the EPB module's programming, leading to more severe issues that require professional reprogramming.

Protect the Actuators

Never force retracted actuators manually! The EPB actuators contain delicate electric motors and gears. Attempting to manually push or pull the brake calipers into a service position without using the correct diagnostic tool function can strip internal gears, damage the motor, or break the housing. This will inevitably lead to costly repairs and actuator replacement.

Thorough Testing

After any reset procedure, whether successful or not, thorough testing is essential:

• Engage and disengage the parking brake 5-10 times. Listen for any unusual noises (grinding, clunking).
• Verify that the brake engages firmly and releases completely without any drag. You should be able to push the car slightly when released.
• Check that all warning lights related to the parking brake remain off during operation and when the brake is disengaged.
• If possible, perform a short, slow test drive to ensure no issues arise under load.

Safe Working Environment

Safety should always be your top priority. When working on your vehicle:

• Always park your BMW on level ground.
• Chock the front wheels securely if working on the rear, or vice versa.
• If lifting the vehicle, always use proper, rated jack stands on BMW-specified lifting points. Never rely solely on a jack.
• Ensure the vehicle is stable before going underneath.

When Professional Help Is Needed

Despite your best DIY efforts, some parking brake issues are beyond a simple reset and require professional intervention. Knowing when to call in the experts can save you time, frustration, and potentially more expensive repairs down the line.

Hardware Failures Requiring Dealership Service

If your diagnostic tool indicates a specific hardware fault, or if you observe physical symptoms, it's often best to seek professional help. Replacing certain components requires specialist tools and coding.

Complex Issues Requiring Specialized Tools or Expertise

• Adaptive Recalibration: After replacing certain components (like a new control module or even a brake caliper), the system often requires adaptive recalibration using dealership-level software (ISTA+) to ensure all sensors and actuators are correctly synchronised.
• Integrated System Resets: In newer BMWs, the EPB is deeply integrated with other systems like DSC, ABS, and even engine management. A fault in one can cascade, requiring a comprehensive system reset affecting multiple modules.
• Firmware Updates: Sometimes, the malfunction is due to a known software bug that can only be resolved by a firmware update performed by a dealership or a specialist garage with access to BMW's online programming tools.
• Intermittent Faults: If faults appear and disappear randomly, it can indicate a wiring issue, a poor connection, or a failing sensor that's difficult to pinpoint without advanced diagnostic equipment and experience.

Preventing Future Parking Brake Malfunctions

After successfully resetting your BMW parking brake, adopting some preventative measures can significantly reduce the likelihood of future malfunctions and extend the life of your EPB system.

Regular Maintenance

• Brake Fluid Changes: Keep brake fluid fresh with changes every 2 years, as per BMW's recommendations. Old, contaminated fluid can lead to corrosion in brake lines and calipers, potentially affecting EPB function.
• Brake Pad & Rotor Inspection: Regularly inspect brake pad thickness and rotor condition. Worn pads can trigger EPB warnings and put excessive strain on actuators. Address wear promptly.
• Test Parking Brake Functionality: Make it a habit to engage and disengage your parking brake monthly, even if you primarily use 'P' in automatic cars. This keeps the actuators moving and prevents them from seizing due to disuse.

Battery Health

Given the EPB's sensitivity to voltage, maintaining optimal battery health is paramount:

• Trickle Charger for Storage: If your BMW sits unused for extended periods (e.g., over a week), connect it to a high-quality trickle charger or battery maintainer. This prevents voltage drops that can trigger EPB errors.
• Replace Aging Batteries: Replace aging batteries before they cause voltage issues. BMW batteries typically last 4-6 years. Don't wait for starting problems before considering a replacement.
• Proper Battery Registration: After replacing the battery, ensure it is properly registered with your BMW's ECU. Failure to do so can lead to improper charging and various electrical system faults, including EPB issues.

Cautious Operations

• Allow Full Cycle: Always allow the EPB system to fully engage or disengage before driving off. Don't rush the process or attempt to drive while it's still operating.
• Avoid Harsh Use: While the EPB is designed for safety, avoid using it excessively or harshly on very steep inclines with a cold engine. Excessive strain can accelerate wear on the actuators.
• No Manual Forcing: As mentioned, never manually force the parking brake in emergency situations or during maintenance. Always use the proper diagnostic tools or methods.

Technical Specifications for Common BMW Models

Here's a quick reference for common BMW models and their EPB system characteristics:

Frequently Asked Questions (FAQs)

Can I drive my BMW with a parking brake malfunction warning?

It depends on the specific nature of the malfunction. If the parking brake is stuck on, you definitely cannot drive. If it's merely a warning light but the brake is disengaged and seems to be driving normally, you might be able to drive a short distance to a safe location or garage. However, it's not recommended for extended driving as the parking brake could engage unexpectedly, or the main braking system might be compromised. Always proceed with extreme caution.

How much does it cost to fix a BMW parking brake malfunction?

The cost varies significantly depending on the cause. A simple software reset might be free if you do it yourself with an app, or around £50-£100 at a specialist. If an actuator needs replacing, expect £300-£600 per side. A new EPB control module can range from £500-£1200 including coding. Always get a diagnostic check first to pinpoint the exact issue.

Is it safe to use a manual reset method without tools?

Manual reset methods (like battery disconnection or button combinations) are generally safe to attempt for minor electronic glitches. However, they are not guaranteed to work and will not fix mechanical issues. If the warning persists after a manual attempt, or if you suspect a mechanical fault, stop immediately and use a diagnostic tool or seek professional help. Never force anything.

What is 'EMF Workshop Mode' and why do I need it?

'EMF Workshop Mode' or 'Service Mode' is a function within diagnostic software that retracts the electronic parking brake actuators. This is absolutely necessary before you can physically remove the rear brake calipers or replace brake pads, as it prevents damage to the actuators and allows the calipers to be pushed back. Without it, you risk breaking the EPB system.

How often should I test my parking brake?

Even with an electronic parking brake, it's a good practice to engage and disengage it at least once a month. This helps to keep the actuators lubricated and moving freely, preventing them from seizing up due to prolonged inactivity, especially if you routinely rely on the 'P' (park) position in an automatic transmission.

By following this comprehensive guide to BMW parking brake malfunction resets, you’ll be able to address most common issues and determine when professional help is necessary. The electronic parking brake system, while occasionally challenging, represents a significant advancement over traditional handbrakes in both convenience and safety.
