Understanding the VW Golf R32 Haldex System
The Volkswagen Golf R32, a performance icon, is renowned for its potent engine and, crucially, its sophisticated all-wheel-drive system. At the heart of this system lies the Haldex coupling, a clever piece of engineering that intelligently distributes power between the front and rear axles. This dynamic distribution is key to the R32's exceptional traction and handling capabilities, especially during spirited driving and in adverse weather conditions. However, like any mechanical component, the Haldex unit requires regular maintenance to ensure its longevity and optimal performance. Neglecting this crucial service can lead to premature wear, reduced efficiency, and potentially very expensive repairs. This guide will walk you through the process of servicing your R32's Haldex system, focusing on the oil and filter change, a vital step in keeping your beloved Golf R32 in peak condition.
Why Haldex Maintenance is Crucial
The Haldex coupling operates using a special type of oil that not only lubricates the internal components but also acts as a hydraulic fluid for the clutch pack. Over time, this oil degrades due to heat and shear forces, accumulating microscopic metal particles from the wear of gears and clutches. These contaminants can clog the filter, reduce the oil's lubricating properties, and ultimately lead to increased wear on the Haldex unit's internal parts. A blocked filter can also impede the flow of oil, affecting the system's responsiveness and potentially causing overheating. Regular oil and filter changes remove these contaminants, ensuring the Haldex system operates smoothly and efficiently, preserving its performance and preventing costly breakdowns. Many R32 owners, especially those who have purchased their vehicles second-hand without a full service history, may have missed these vital services. For instance, a common symptom of neglected Haldex maintenance is vibrations felt when turning the steering wheel to full lock, often mistaken for differential issues. Addressing the Haldex service promptly can often resolve these symptoms and save you from unnecessary, expensive component replacements.
What You'll Need: Tools and Supplies
Before you begin, ensure you have the correct tools and parts. This is not a job for the faint-hearted, but with the right preparation, it's achievable for the competent DIY mechanic.
Essential Tools:
- 5mm Allen Key: This is the specific size required for the drain and fill plugs.
- Torque Wrench: Essential for tightening the plugs to the correct specification to avoid leaks or damage.
- Drainage Pan: Large enough to capture all the old Haldex oil.
- Syringe or Pump: To refill the new oil, especially if access is tight.
- Gloves: To protect your hands from the oil.
- Rags and Cleaning Supplies: For wiping away excess oil.
- Wheel Chocks: For safety.
- Jack and Axle Stands: To safely lift and support the vehicle.
- Haldex Tool (Optional but Recommended): A specific tool to help extract and reinsert the oil tube.
Essential Supplies:

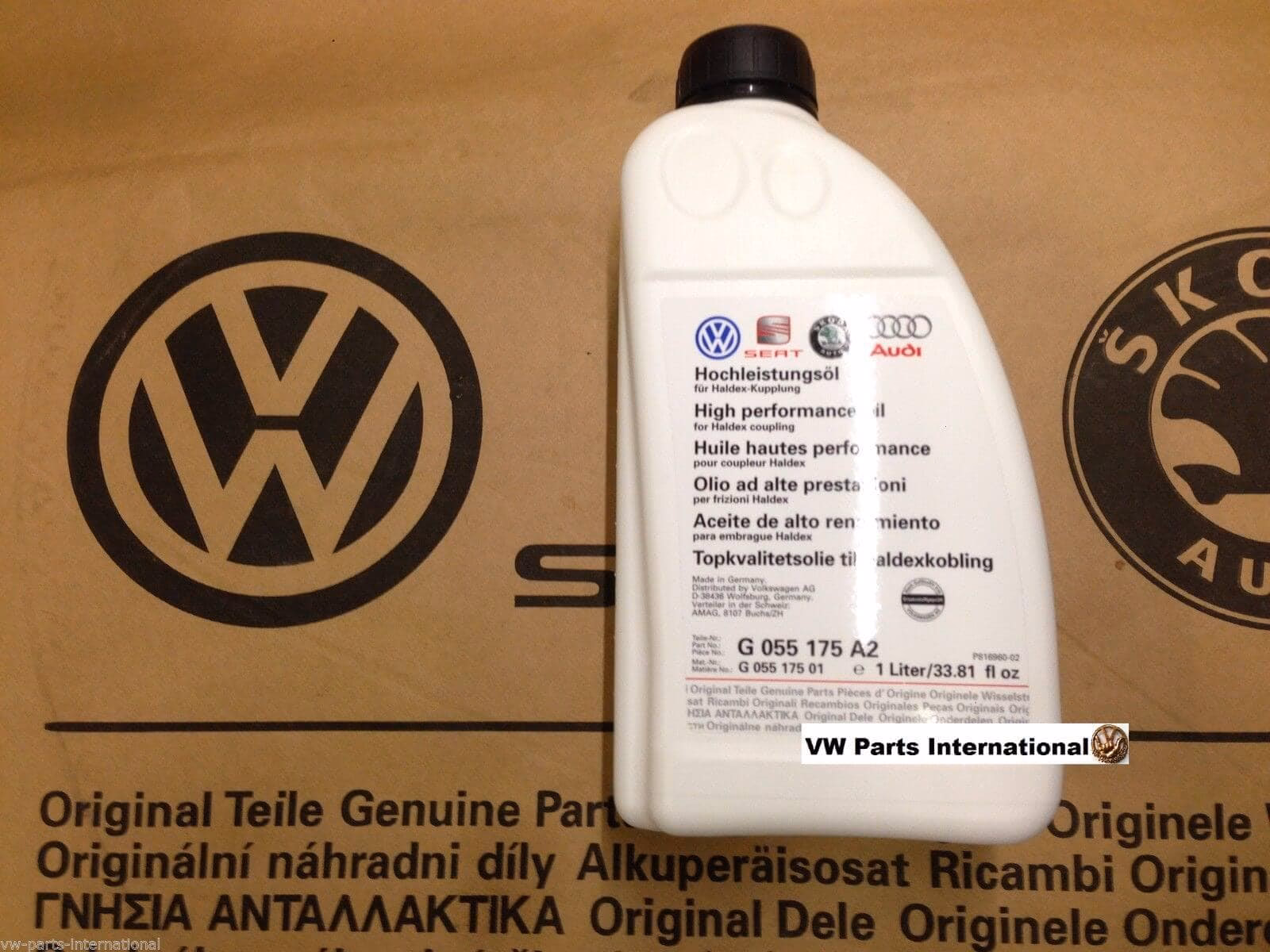

- Genuine VW Haldex Oil: It is crucial to use the correct, specified Haldex oil. Using the wrong type can damage the unit. Check your vehicle's manual or consult a dealer for the exact specification.
- Haldex Filter Kit: This should include the filter and the O-ring for the filter housing.
Step-by-Step Haldex Oil and Filter Change
Here's a breakdown of the process. Remember to work safely and consult your vehicle's specific workshop manual for precise torque settings and any model-specific variations.
1. Prepare the Vehicle
Ensure the vehicle is parked on a level surface. Engage the handbrake and use wheel chocks for added safety. Safely lift the rear of the vehicle using a jack and support it securely on axle stands. Locate the Haldex unit, which is typically found attached to the rear differential.
2. Drain the Old Oil
Locate the drain plug on the Haldex unit. It's usually a hexagonal bolt requiring a 5mm Allen key. Place your drainage pan beneath the plug. Carefully unscrew the drain plug. Allow the old oil to drain completely. This may take several minutes.
3. Remove and Replace the Filter
Once the oil has drained, locate the Haldex filter. It's often housed within a protective cover. Carefully remove the filter. This might involve unscrewing a housing or simply pulling the filter out. Be prepared for a small amount of residual oil to spill out. Fit the new filter, ensuring it's seated correctly. If a new O-ring is supplied with the filter, replace the old one to ensure a good seal.
4. Refill with New Oil
This is often the trickiest part. The fill point is usually at the bottom of the unit, where the drain plug is located. You'll need to refill the Haldex unit with the specified new oil. One method, as described by an experienced owner, involves using a bent pipe from an oil tube to reach the fill point. You'll need to be quick to minimise oil loss. Push the oil in using the Haldex tool or a suitable pump. The goal is to fill the unit until oil starts to spill out of the fill hole (which is the same as the drain hole when the plug is out). Be as quick as possible when refilling to minimise spillage. Once filled to the correct level, quickly reinsert the drain/fill plug and tighten it to the manufacturer's specified torque. You might lose a small amount of oil during this process, which is generally considered acceptable if it's only a tablespoon or so.
5. Check for Leaks and Lower the Vehicle
After tightening the plug, double-check for any leaks. Once you are satisfied, carefully lower the vehicle back to the ground.
Common Issues and Troubleshooting
As mentioned, vibrations during full lock can be a tell-tale sign of neglected Haldex maintenance. If you've experienced this, performing the oil and filter change is the first step to rectifying the issue. If the problem persists after a successful service, other components of the drivetrain may need inspection, but the Haldex service is a highly recommended preventative measure and often a cure.
When to Service Your Haldex
The service interval for the Haldex unit can vary depending on the manufacturer's recommendations and driving conditions. However, a general guideline often cited by R32 owners and specialists is to service the Haldex unit every 30,000 to 40,000 miles, or every two to three years, whichever comes first. If you've bought a used R32 and there's no record of the Haldex being serviced, it's highly advisable to do so as soon as possible. Even if it has been serviced, if it's approaching the recommended interval, don't delay. As one owner noted, they purchased their car at 95,000 miles with no prior Haldex service records. After experiencing vibrations, they performed the service, which partially cured the issue. A subsequent service resolved it entirely. This highlights the importance of regular maintenance, even if you've missed a few intervals.
Cost-Saving and Performance Benefits
The cost of a Haldex oil and filter change is relatively low, especially when compared to the potential cost of repairing or replacing a damaged Haldex unit. The parts are generally inexpensive, and if you're comfortable with DIY, the only cost is the parts and your time. Even if you opt for a professional service, it's a worthwhile investment. Maintaining the Haldex system not only prevents costly repairs but also ensures that your Golf R32 continues to deliver the exhilarating performance and all-wheel-drive capability it's famous for. You'll benefit from optimal traction, improved handling, and the peace of mind that comes from knowing your vehicle is properly maintained.
Frequently Asked Questions (FAQ)
Q1: How often should I service my Haldex unit?
As a general rule, every 30,000-40,000 miles or 2-3 years. Check your specific vehicle manual for precise intervals.
Q2: Can I use a different type of oil?
No, it is crucial to use the specific Haldex oil recommended by Volkswagen. Using the wrong oil can cause significant damage.
Q3: What are the symptoms of a neglected Haldex unit?
Vibrations, especially during full lock turns, a feeling of the rear wheels binding, or a loss of all-wheel-drive function can indicate issues.
Q4: Is it difficult to change the Haldex oil and filter myself?
It requires some mechanical aptitude and the correct tools. The refilling process can be a little fiddly. If you're not confident, it's best to have it done by a qualified mechanic.
Q5: My car has no service history for the Haldex. What should I do?
It's highly recommended to perform a Haldex oil and filter change as soon as possible. It's a proactive step to prevent future problems.
By following this guide, you can confidently service your VW Golf R32's Haldex unit, ensuring its continued performance and longevity. Regular maintenance is key to enjoying your R32 for years to come!
