MINI Oil Leaks: Crankshaft Sensor & More

It's a common and often frustrating discovery for MINI owners: that tell-tale patch of oil appearing beneath your beloved vehicle. If you're driving a first-generation MINI (R50, R52, or R53), you might be experiencing oil leaks, and the culprit is often more specific than you might think. While many assume a leaky oil pan or a failing rear main seal, the reality for these models is frequently a much smaller, yet equally significant, component: the crankshaft position sensor O-ring. This article will delve into why this seemingly minor part is a frequent offender and explore other common leak points in these early MINIs, providing a comprehensive guide to identifying and rectifying these issues.

The Ubiquitous Crankshaft Position Sensor O-Ring Leak

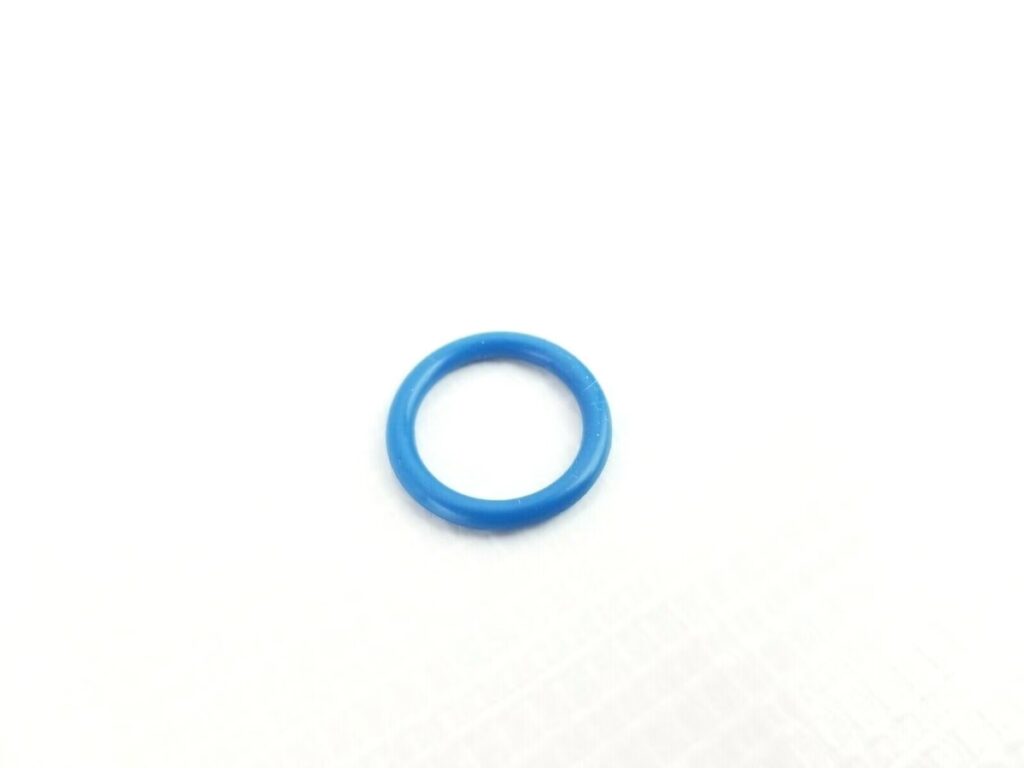

If you own an R50, R52, or R53 MINI, the chances are overwhelmingly high that its crankshaft position sensor O-ring is the source of an oil leak. This isn't just a possibility; it's a near certainty. The O-ring on the crankshaft position sensor is notorious for shrinking and hardening over time, especially after repeated exposure to engine heat. This degradation typically begins to manifest around 30,000 miles. When this happens, the O-ring loses its ability to create a proper seal, allowing oil to seep past the sensor.

A crucial detail about this particular leak is that it often only occurs when the engine is running. This is because oil pressure builds up when the engine is on, forcing the oil out. When the car is parked, even at an angle, the oil level is usually below the sensor, so you won't see any drips. The oil that escapes typically runs down the front of the engine block. Over time, dirt and road debris, often drawn in through the radiator, accumulate around the sensor and the front of the engine, creating a messy, grimy appearance. This oil then continues its journey down the front of the motor, eventually reaching the oil pan. It can even be blown off the underside of the car as you drive, leading to the impression of a larger leak originating from lower down.

Addressing this leak requires a proactive approach. While it might not cause immediate catastrophic failure, it's a persistent issue that will likely worsen. The fix involves accessing the crankshaft position sensor, cleaning the area thoroughly, removing the sensor, applying a suitable RTV sealant (Room Temperature Vulcanizing) around it, and then reinstalling it. The catch? Gaining access to the sensor necessitates removing the front end of the car, a process that often involves putting the vehicle into 'front end service mode' or completely removing the radiator and associated components. This is a significant undertaking, but one that is essential for resolving this common MINI oil leak.

Beyond the Crank Sensor: Other Leak Hotspots

While the crankshaft position sensor O-ring is the most frequent offender, it's not the only place where oil can escape from your first-generation MINI. Understanding these other potential leak points can save you from misdiagnosis and unnecessary repairs.

The Crank Seal/Gasket: A More Serious Concern

Another significant source of oil leaks in these MINIs is the crank seal, also referred to as the crank gasket. This seal is located behind the crankshaft damper, right at the oil pump. Unlike the sensor O-ring, this seal is directly exposed to oil pressure from the pump. Over time, this seal can dry out, crack, and eventually work its way out of its housing, leading to a substantial oil leak.

When the crank seal fails, oil can be pumped out of the engine at a significant rate. This leak often affects both the Cooper and Cooper S models. The oil expelled from this seal can spread across the front cover of the engine and down onto the oil pan, making it appear as though the oil pan gasket itself is the primary problem. This is a critical distinction because while the crank seal itself is relatively inexpensive (often around £10-£15), replacing it is a labour-intensive job that requires removing the crankshaft pulley.

Given its location and the mess it can create, it's often recommended to address the crank seal as a preventative measure, especially if you're already undertaking other front-end work. Replacing this seal first, as it's a relatively cheap part and an easier fix compared to dropping the oil pan, can sometimes resolve what appears to be an oil pan leak. If the leak persists after replacing the crank seal, then you can proceed to investigate the oil pan gasket.

The Oil Pan Gasket: A Big and Messy Job

The oil pan gasket is indeed a potential leak source, and when it fails, it's a job that is both time-consuming and messy. This gasket seals the oil pan to the bottom of the engine block. Over time, the gasket material can degrade, leading to oil seeping out. The repair for a leaky oil pan gasket is considered a major undertaking.

To access the oil pan gasket, you'll need to remove the front end of the car, similar to accessing the crankshaft sensor. Furthermore, you'll often need to remove the air conditioning compressor to gain sufficient clearance. The oil pan gasket for MINIs is a specific, MINI-only part, meaning you won't find aftermarket alternatives. The cost of the gasket itself is relatively modest (around £25-£30), but the labour involved in its replacement is substantial. This is why it's crucial to correctly diagnose the leak source. If the crank seal is also failing, it's far more economical to replace both at the same time, given the extensive dismantling required.

Oil Cooler Seals (Cooper S): A Critical Failure Point

For those driving the Cooper S models, there's another potential leak point to be aware of: the oil cooler seals. The oil cooler in the Cooper S is subjected to high temperatures, which can cause the specific square-section O-rings used in its seals to dry out and become brittle.

A failure in these seals can start as a minor drip, perhaps only noticeable on your driveway. However, in more severe cases, these seals can fail entirely, leading to a rapid and catastrophic loss of engine oil. This is a critical situation that can quickly lead to severe engine damage if not addressed immediately. Fortunately, these seals are very inexpensive (often around £3-£4 each, and you'll need two), and the repair is relatively straightforward, typically taking about an hour.

The procedure involves gaining access through the driver's side wheel well. To minimise oil loss during the repair, it's essential to remove the oil filter first to stop the flow of oil into the work area. While the part is cheap, the correct square O-ring is specific and not readily available from general auto parts stores, so sourcing them from a MINI specialist is recommended.

Summary Table of Common MINI Oil Leaks

To help you identify the potential source of your MINI's oil leak, here's a comparative table:

Frequently Asked Questions

Q1: How do I know if it's definitely the crankshaft position sensor O-ring leaking?

A: The most telling sign is that you don't see any oil drips when the car is parked, but you do notice oil running down the front of the engine block, often accompanied by a build-up of dirt and grime. This leak only becomes apparent under oil pressure when the engine is running.

Q2: Can I just ignore a small oil leak from the crankshaft sensor?

A: While a small leak might seem insignificant, it's a sign of a deteriorating seal. Over time, the leak is likely to worsen. Furthermore, the oil can attract dirt, which can interfere with the sensor's function or simply make the engine bay look unsightly. It's best to address it proactively.

Q3: Is it worth replacing the crank seal if I'm not experiencing leaks yet?

A: If you are undertaking significant front-end work, such as addressing the crankshaft sensor or other components that require front end removal, it can be a wise preventative measure to replace the crank seal. It's a relatively inexpensive part, and the labour is already accounted for in the other work.

Q4: What happens if the oil cooler seals fail on my Cooper S?

A: A failure of the oil cooler seals can lead to a dramatic and rapid loss of engine oil. This is a dangerous situation that can cause severe engine damage, including potential seizure, if not rectified immediately. It's crucial to check for leaks in this area, especially on higher-mileage Cooper S models.

Q5: Can I do these repairs myself?

A: These repairs, particularly those involving front-end removal, are considered advanced DIY tasks. They require specific tools, a good understanding of vehicle mechanics, and a safe working environment. If you are not confident in your abilities, it is highly recommended to have these repairs carried out by a qualified mechanic.

Understanding these common oil leak points on your first-generation MINI is key to maintaining its health and avoiding costly misdiagnoses. While the crankshaft position sensor O-ring is a frequent culprit, always consider the other possibilities, especially the crank seal and, for Cooper S models, the oil cooler seals, to ensure your MINI remains a reliable and enjoyable driving machine.
