RS5F41A Gearbox Oil Level Guide

It's a common scenario for any DIY mechanic: you embark on a seemingly straightforward task, only to find yourself staring at a stubborn component, questioning your life choices. For those working on vehicles equipped with the RS5F41A gearbox, a frequent point of contention is the correct oil level and, for some, the removal of the speedometer drive unit. This guide aims to demystify these processes, drawing on common user experiences and providing actionable advice to get your gearbox properly serviced.

Understanding the RS5F41A Gearbox

The RS5F41A is a manual transaxle commonly found in various Nissan models, particularly from the late 1990s and early 2000s. Known for its robustness, it requires specific attention to its lubrication and oil levels to ensure optimal performance and longevity. When working on this unit, especially when draining the oil as described, precision is key.

The Crucial Question: Gearbox Oil Level

A fundamental aspect of gearbox maintenance is ensuring the correct oil level. Too little oil can lead to increased wear, overheating, and eventual failure, while overfilling can cause similar issues due to increased internal pressure and churning. For the RS5F41A, the prevailing method for determining the correct oil level is the 'fill until it overflows' or 'level fill' method. This typically involves locating a specific fill plug on the gearbox casing.

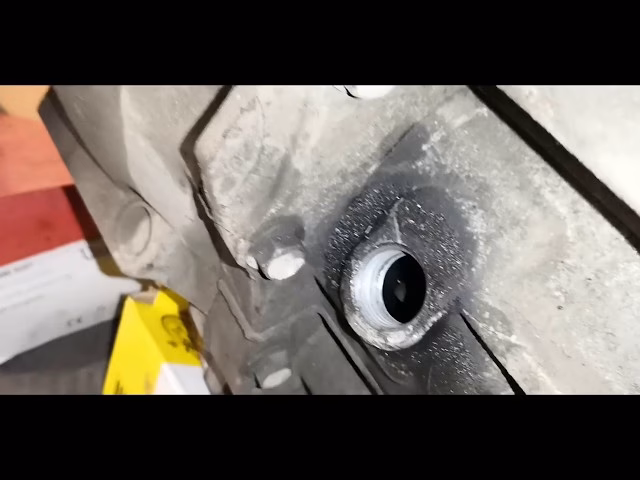

Locating the Fill Point

This is where confusion often arises, as highlighted by the user's experience. The RS5F41A, particularly in earlier models like the '95 mentioned, might not have a distinctly labelled fill plug in the most obvious location. Often, the fill point is integrated into the gearbox casing itself. The key is to find a plug that is positioned at the level where the oil should reach.

How to Find It:

• Identify the Fill Plug: Look for a plug, usually hexagonal and requiring a socket or wrench to remove, situated on the side of the gearbox casing. The critical factor is its vertical position.
• The 'Level Fill' Principle: For many manual gearboxes, including the RS5F41A, the correct oil level is achieved when the oil, upon filling, reaches the bottom edge of the fill plug opening. This means when you remove the fill plug, a small amount of oil should immediately begin to seep out. If no oil comes out, you need to add more. If a significant amount gushes out, you've likely overfilled it.
• The Yellow Sticker Clue: The user's mention of a yellow sticker pointing to the speedometer cable area and referencing 'high and low positions' is an interesting, albeit potentially misleading, detail. While it might relate to oil level indicators in some contexts, for a standard fill procedure, focus on the fill plug's location. It's possible this sticker is related to a specific sensor or a *very* niche fill procedure, but the most common and reliable method relies on the fill plug's position.

Recommended Oil for the RS5F41A

While the specific oil type can vary slightly depending on the exact vehicle application and manufacturer recommendations, a common specification for the RS5F41A is a 75W-90 GL-4 manual transmission fluid. Always consult your vehicle's owner's manual or a reputable parts catalogue to confirm the exact fluid type and capacity. The capacity is typically around 2.0 to 2.5 litres, but again, confirm this.

Tackling the Stubborn Speedometer Drive Unit

The user's predicament with the speedometer drive unit is a classic automotive frustration. Once the cable is disconnected, the drive unit itself, often a plastic or metal gear housed within a casing that screws or bolts into the gearbox, can be seized or difficult to extract.

Common Removal Techniques:

• Leverage Points: As the user noted, there isn't always an obvious lip to pry against. If you've removed the retaining bolt (often 10mm) and the cable, the unit should ideally slide or unscrew out.
• Gentle Persuasion: Try wiggling the unit gently while applying a slight upward or outward pulling force. Sometimes, a bit of movement in different directions can help break any minor corrosion or binding.
• Threaded Removal: If it's a screw-in type, ensure you're turning it in the correct direction (usually anti-clockwise). The user mentioned trying mole grips around the thread section. This is a valid approach, but caution is paramount to avoid damaging the threads or the unit itself.
• Penetrating Oil: Applying a good quality penetrating oil (like WD-40 Specialist Penetrant or similar) to the area where the unit meets the gearbox casing and letting it soak for a good 15-30 minutes can work wonders. Reapply if necessary.
• Heat (Use with Extreme Caution): In stubborn cases, a controlled application of heat from a heat gun (NOT a blowtorch, which can damage seals and surrounding components) to the gearbox casing around the unit can help expand the metal slightly, potentially loosening its grip. This should be a last resort and done with extreme care, ensuring no flammable materials are nearby.
• Specialised Tools: For certain types of speedometer drives, there might be a specific puller tool designed for their extraction. If the above methods fail, research if a tool exists for your specific application.
• The 'Cable Re-attach' Trick: The user tried reattaching the cable and pulling. While this sometimes helps if the cable itself is binding the mechanism, if the unit is truly stuck in the housing, this is unlikely to work.

Preventing Future Speedo Unit Issues

When refitting a new or the old speedometer drive unit, it's good practice to:

• Clean the housing thoroughly.
• Apply a small amount of high-temperature grease or anti-seize compound to the threads or mating surfaces to prevent future seizing.
• Ensure the retaining bolt or clip is securely fastened.

Summary and Best Practices

Working on your gearbox can be a rewarding experience. When dealing with the RS5F41A:

Don't let a tricky component dampen your spirits. With patience and the right approach, you can successfully service your RS5F41A gearbox and keep your vehicle running smoothly. Remember, if you're ever unsure, consulting a professional mechanic is always a wise option.

Frequently Asked Questions

Q1: How much oil does the RS5F41A gearbox typically take?
A1: The capacity is usually around 2.0 to 2.5 litres, but it's essential to verify this with your vehicle's specific manual or a reliable parts source. The fill-to-level method is more critical than exact capacity.

Q2: Can I use a different weight oil?
A2: It is strongly recommended to use the manufacturer-specified oil grade (typically 75W-90 GL-4). Using an incorrect grade can lead to poor lubrication, increased wear, and potential damage to the gearbox synchronisers and gears.

Q3: My speedometer is inaccurate, could it be the drive unit?
A3: Yes, a worn or damaged speedometer drive gear, or a loose cable connection, can certainly cause inaccurate speedometer readings. Ensure the drive unit is properly seated and the cable is securely attached.

Q4: What if the fill plug is also stuck?
A4: Similar techniques for the speedometer drive apply. Ensure you are using the correct size socket or wrench. Penetrating oil and patience are key. If it's severely rounded, a locking wrench or a bolt extractor might be necessary, but proceed with extreme caution to avoid damaging the gearbox casing.

Q5: Is the yellow sticker on my gearbox important for filling?
A5: While the sticker might indicate something, the standard and most reliable method for filling the RS5F41A is to fill until the oil reaches the bottom of the fill plug opening. The sticker's reference to 'high and low positions' might pertain to a specific sensor or a different type of fluid level check, but for a standard oil change, focus on the fill plug.
