Mazda Miata Fuel Injector Upgrade Guide

Upgrading Your Mazda Miata's Fuel Injectors for Enhanced Performance

As any enthusiast knows, pushing the boundaries of your Mazda Miata often involves a series of carefully considered upgrades. One of the most impactful modifications, especially when preparing for forced induction or simply aiming for improved efficiency and power delivery, is upgrading the fuel injectors. This guide will delve into the options available, the process of installation, and how to identify and diagnose issues with your existing fuel injectors.

Why Upgrade Your Fuel Injectors?

The stock fuel injectors in your Mazda Miata are designed to meet the demands of a naturally aspirated engine. However, when you start modifying your car, particularly with the addition of a turbocharger or supercharger, the engine requires a significantly greater volume of fuel to maintain the correct air-fuel ratio. Failure to provide adequate fuel can lead to lean conditions, which can cause severe engine damage. Upgrading to higher-flow injectors ensures that your engine receives the precise amount of fuel it needs, even under increased boost pressures, leading to more power, better throttle response, and improved overall drivability.

Miata Fuel Injector Options: Finding the Right Fit

When it comes to upgrading your Miata's fuel injectors, you have several avenues to explore, each with its own set of advantages:

1. OEM Mazda Injectors (RX-8 Yellow Injectors)

For those on a tighter budget, swapping in larger OEM injectors from other Mazda models is a viable option. The RX-8 yellow injectors are a popular choice. While they offer a step up in flow rate compared to stock Miata injectors, they may not provide the most technologically advanced spray pattern or the best fuel atomization. However, they are a readily available and cost-effective solution for moderate upgrades.

2. Bosch EV-14 Type Injectors

Considered by many to be the pinnacle of fuel injector technology, Bosch EV-14 type injectors are renowned for their superior performance. They boast the most technologically advanced design, resulting in an incredibly efficient spray pattern and exceptional fuel atomization. This translates to better fuel economy, smoother engine operation, and potentially more power due to more complete combustion. While typically more expensive, the performance benefits often justify the cost for serious tuners.

3. FlowForce Fuel Injectors

FlowForce has emerged as a popular provider of high-quality fuel injector kits for the Miata. They offer a range of sizes to suit different performance goals. A significant advantage of FlowForce is their development of kits that include injectors with pre-molded connectors that match OEM Mazda plugs, eliminating the need for wiring adapters. This simplifies the installation process considerably. For many Miata owners preparing for forced induction, 640cc injectors from FlowForce are considered more than sufficient to handle considerable boost levels on stock engine internals. It's worth noting that excessively large injectors, when not managed correctly by the ECU, can lead to issues such as overheating due to insufficient duty cycle, as the flowing fuel helps cool the injector.

Important Consideration: If you are not planning to run E85 fuel, which requires significantly more fuel volume, choosing injectors that are only slightly larger than your needs can be more beneficial for maintaining optimal injector duty cycles and cooling.

Installation: A Step-by-Step Guide

Upgrading your fuel injectors is a task that can be undertaken by a competent DIYer. However, it's crucial to follow the correct procedures to ensure safety and proper installation.

1. Depressurise the Fuel System: Before disconnecting any fuel lines, it is absolutely essential to de-pressurise the fuel system. This prevents fuel from spraying out under high pressure, which can be a fire hazard. Consult your Miata's service manual for the specific procedure for your model.
2. Access the Fuel Rail: This typically involves removing the engine cover and any other components obstructing access to the fuel rail.
3. Disconnect Fuel Lines: Carefully disconnect the fuel lines from the fuel rail. Have a rag or shop towels ready to catch any residual fuel.

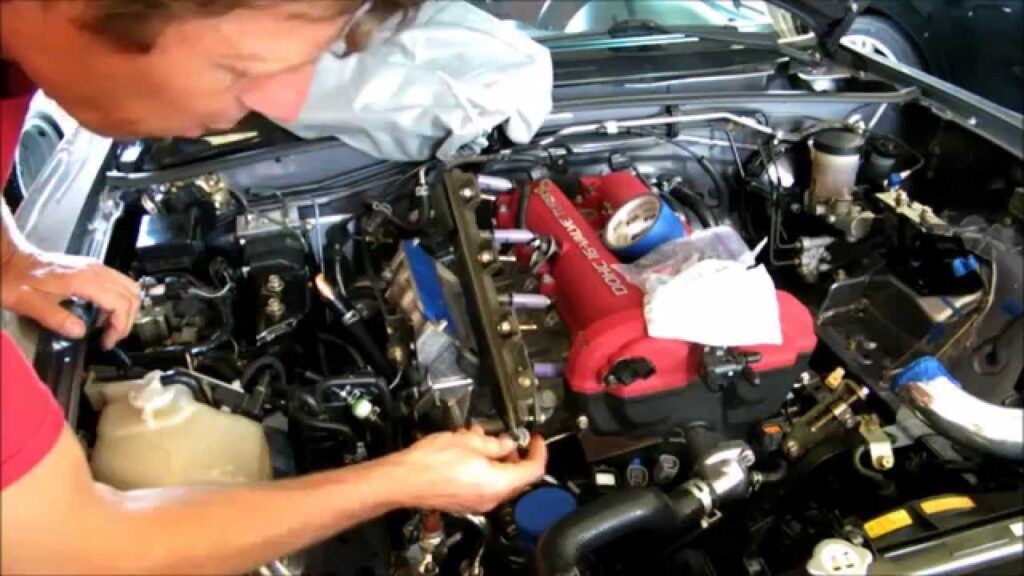

4. Remove the Fuel Rail: Unbolt the fuel rail from the intake manifold. Be mindful of any plastic spacers or clips that hold the fuel rail in place; these are critical for proper alignment.
5. Remove Stock Injectors: Gently pull the fuel rail away from the engine, and the stock injectors should come with it. You may need to twist them slightly to break the seal. Note the orientation of the injectors and any O-rings or seals.
6. Prepare New Injectors: If using a kit like FlowForce, assemble each new injector with the provided rubber O-rings and the small filter basket. Ensure the O-rings are properly seated and lubricated with a small amount of engine oil or silicone grease to prevent tearing during installation.
7. Install New Injectors: Fit the new injectors into the fuel rail, ensuring they are correctly oriented. If using injectors that require wiring adapters, connect these now.
8. Reinstall Fuel Rail: Carefully place the fuel rail back onto the intake manifold, ensuring the new injectors seat correctly in their respective ports. Reinstall any removed spacers or shims provided with your new injectors to ensure proper height. Re-bolt the fuel rail.
9. Reconnect Fuel Lines: Reconnect the fuel lines to the fuel rail, ensuring a secure and leak-free connection.
10. Check for Leaks: Before starting the engine, turn the ignition key to the 'on' position (without starting the engine) to allow the fuel pump to prime the system. Carefully inspect all fuel line connections for any signs of leaks. Repeat this process a couple of times.
11. Start the Engine: Once you are confident there are no leaks, start the engine and let it idle. Listen for any unusual noises and check again for fuel leaks.
12. ECU Tuning: After installation, the engine's ECU will need to be tuned to properly utilise the new injectors. FlowForce kits, for example, typically come with a flow rate measurement card that provides the necessary data for your tuner to input into the ECU's software. This tuning is critical for optimal performance and to prevent potential engine damage.

Symptoms of Bad Fuel Injectors

Fuel injectors, like any component in your vehicle, can degrade over time or fail prematurely. Recognizing the symptoms of malfunctioning injectors is key to preventing further damage and maintaining your Miata's performance. Here are some common indicators:

• Rough Idle: Inconsistent fuel delivery from one or more injectors can cause the engine to run unevenly, leading to a noticeable roughness at idle. It can feel similar to having a bad spark plug, with the engine struggling to maintain a stable RPM.
• Poor Fuel Economy: When injectors aren't delivering the correct amount of fuel, the engine's air-fuel ratio is thrown off, resulting in decreased fuel efficiency.
• Misfires and Loss of Power: Incorrect fuel delivery can cause cylinders to misfire, leading to a significant loss of power, especially during acceleration.
• Difficulty Starting: Clogged or damaged injectors may not provide enough fuel to initiate combustion, making the engine difficult to start.
• Engine Stalling: In severe cases, faulty injectors can cause the engine to stall, particularly at idle.
• Poor Acceleration: If the injectors aren't supplying the right fuel volume, your Miata's acceleration will feel sluggish and unresponsive.
• Unusual Exhaust Smell: A strong smell of unburned fuel from the exhaust can indicate leaking injectors or an overly rich fuel mixture.
• Check Engine Light: Many injector-related issues will trigger the check engine light, often accompanied by misfire codes.

Causes of Bad Fuel Injectors

Understanding why fuel injectors fail can help in their maintenance and longevity:

• Clogged Injectors: Over time, debris, sediment, or contaminants in the fuel can accumulate within the injector's nozzle, restricting fuel flow and affecting the spray pattern.
• Leaking Injectors: If an injector fails to seal properly when closed, it can leak fuel into the combustion chamber, leading to a rich condition, fuel odor, and wasted fuel.
• Electrical Issues: Faulty wiring, damaged connectors, or internal electrical faults within the injector itself can prevent it from receiving the correct signal from the ECU, leading to improper operation. A thorough inspection of the wiring harness is often a good first step.

Diagnosing Bad Fuel Injectors

Several diagnostic methods can help pinpoint injector problems:

• Fuel Pressure Test: A fuel pressure gauge connected to the fuel rail can determine if the fuel pump and filter are functioning correctly. If fuel pressure is within specifications, the issue is more likely with the injectors.
• Visual Inspection: Inspecting the injectors for any signs of external leaks or damage is a straightforward step. Unusual fuel odours around the engine bay can also be a clue.
• On-Board Diagnostics (OBD): Connecting an OBD-II scanner can retrieve error codes related to misfires or fuel system performance. Misfire codes for specific cylinders can help identify which injector might be faulty.

Miata Fuel Pump Considerations for Forced Induction

When upgrading your fuel system, the fuel pump is as crucial as the injectors. For a forced-induction Miata, the demands on the fuel pump are significantly higher.

Understanding LPH Ratings: Fuel pumps are rated in Liters Per Hour (LPH), indicating their flow capacity, not necessarily their maximum pressure. The stock Miata fuel pump is generally adequate for mild boost levels (around 5-6 psi) as its maximum pressure can reach 78-85 PSI. However, for more significant forced induction setups or when running higher boost pressures, an upgrade is necessary.

The Walbro 255 lb/h Dilemma: For a long time, the Walbro 255 lb/h fuel pump was the go-to for many forced induction Miatas. However, on Miatas with a return-style fuel system, the 255 can sometimes flow more fuel than needed at certain pressure levels. This can overwhelm the stock Fuel Pressure Regulator (FPR), leading to a richer-than-desired fuel mixture, even under vacuum. This can manifest as higher idle pressures (e.g., 40 psi instead of 35 psi) and reduced pressure under boost.

The Ideal Choice: Walbro 190 lb/h HP: For many forced induction applications, the Walbro 190 lb/h HP (High Pressure) fuel pump is considered the superior choice. The 'HP' designation signifies its ability to maintain consistent fuel delivery at higher pressures, often up to 130 PSI. Standard 190 lb/h pumps are typically maxed out at 90 PSI, and standard 255 lb/h pumps at 80 PSI. The 190 HP unit can comfortably supply sufficient fuel for around 400 horsepower with 700cc injectors running at 40-50 PSI in the fuel rail. Crucially, it often outperforms the 255 HP model at pressures above 100 PSI, making it more versatile for high-boost scenarios or when using an FMU (Fuel Management Unit) to raise fuel pressure with smaller injectors.

Aftermarket ECUs and Stock Pumps: It's worth noting that if you are running an aftermarket ECU and your Miata is producing up to 300 rear-wheel horsepower (rwhp) without significant modifications to the fuel system beyond the ECU, the stock fuel pump might still be sufficient. Changing only the fuel pump without addressing other fueling components and tuning might not yield the desired results.

Frequently Asked Questions

How does a Mazda Miata behave when a fuel injector is going out?

When a fuel injector begins to fail in your Mazda Miata, you might notice symptoms such as rough cold starts, an unstable idle when cold, poor throttle response, and hesitation during acceleration when the engine is cold. You could also experience a drop in fuel economy and potentially observe black soot buildup in the exhaust. It's important to remember that these symptoms can overlap with issues related to the fuel pump or fuel filter, so a proper fuel pressure check is advisable.

Will a malfunctioning fuel injector trigger a diagnostic code in a Mazda Miata?

Yes, a malfunctioning fuel injector will often trigger a diagnostic code in your Mazda Miata. A common indicator is the check engine warning light illuminating on your dashboard, often accompanied by misfire codes for a specific cylinder. Using an OBD-II scanner that can read misfire data is highly recommended to accurately identify the affected cylinder and avoid replacing parts unnecessarily.

What occurs when a single fuel injector fails in a Mazda Miata?

When a single fuel injector fails in your Mazda Miata, the engine may start to misfire, leading to a noticeable reduction in overall performance. This occurs because the cylinder associated with the faulty injector is not receiving the correct amount of fuel. This can manifest as engine vibrations at idle, rough acceleration, and a general decrease in responsiveness. If left unaddressed, a failed fuel injector can potentially lead to more significant damage in other engine components.

By understanding these aspects of fuel injector and fuel pump upgrades, you can make informed decisions to enhance your Mazda Miata's performance and reliability.
