Understanding the MEUI Fuel System
In the realm of modern diesel engines, efficiency, power, and emissions control are paramount. At the heart of achieving these goals lies a sophisticated fuel injection system. One such system, the Mechanically Actuated Electronically Controlled Unit Injector (MEUI), has played a significant role in the evolution of diesel technology. While newer systems like High Pressure Common Rail (HPCR) are prevalent, understanding the MEUI provides valuable insight into the progression of engine management and the robust engineering that underpins many durable workhorses.
The MEUI system represents a clever integration of mechanical actuation and electronic control. Unlike older, purely mechanical systems, the MEUI leverages the power of an Electronic Control Module (ECM) to fine-tune fuel delivery. However, it still relies on the engine's mechanical components, specifically the camshaft and push rods, to generate the high pressures required for effective fuel injection into the cylinders. This hybrid approach allows for a balance of robust mechanical design and precise electronic management, leading to improved combustion and reduced emissions compared to earlier generations of diesel engines.
How MEUI Injectors Work
The fundamental principle behind a MEUI system is straightforward, yet the execution is complex. The engine's camshaft, driven by the crankshaft, actuates push rods. These push rods, in turn, operate a plunger within the unit injector. As the plunger moves, it compresses the fuel, building significant pressure. This pressure is crucial for atomising the fuel effectively, allowing it to mix thoroughly with the incoming air for a cleaner and more complete combustion.
What sets the MEUI apart is its electronic control. While the *actuation* is mechanical, the *control* over the amount of fuel injected is managed by the ECM. The ECM receives data from various sensors positioned throughout the engine – such as engine speed, load, temperature, and manifold air pressure. Based on this real-time information, the ECM precisely dictates when and how much fuel is injected by controlling the timing and duration of the injector's operation. This electronic oversight is what allows for optimised performance across different operating conditions, from idling to full throttle.
The Role of the MEUI-C Injector
Within the MEUI family, the MEUI-C injector represents an advancement, particularly in its application within Caterpillar's Tier 4 compliant engines. The 'C' designation often signifies enhancements in performance and emissions control. A key feature of the MEUI-C is its sophisticated injection timing control. This isn't just about injecting fuel; it's about injecting it at precisely the right moment and in carefully timed microbursts.
This precise timing allows for a more controlled combustion process. By staging the fuel injection – delivering small amounts of fuel before the main injection event – the MEUI-C can manage the rate of pressure rise within the cylinder. This leads to a cleaner, more efficient fuel burn, significantly reducing the formation of soot and other harmful emissions. This advancement is critical for meeting stringent emissions regulations like Tier 4, which demand substantial reductions in pollutants.
Caterpillar engineers have strategically implemented fuel systems based on the specific power and performance demands of each engine model. For their Tier 4 engines, such as the C4.4 ACERT, C6.6 ACERT, C7.1 ACERT, and C9.3 ACERT, the benefits of High Pressure Common Rail (HPCR) systems are highlighted, offering improved precision and reduced soot. However, for larger, more demanding applications like the C13 ACERT, C15 ACERT, C18 ACERT, C27 ACERT, and C32 ACERT, advanced MEUI-C injector platforms were specified. These platforms are designed to handle the higher injection pressures and more precise fuel metering required for these powerful engines. The durability of these MEUI-C injectors is a significant advantage, enhancing engine responsiveness while maintaining strict control over soot emissions.
Components of a MEUI Fuel System
A MEUI fuel system, like any sophisticated electronic control system, can be broken down into three core functional categories: input, control, and output.
- Input Components: These are the sensors that gather information about the engine's operating conditions. Examples include crankshaft position sensors, camshaft position sensors, engine coolant temperature sensors, intake manifold air pressure sensors, and throttle position sensors.
- Control Component: This is the brain of the operation – the Electronic Control Module (ECM). The ECM processes the data from all the input sensors and uses complex algorithms to determine the optimal fuel injection strategy.
- Output Components: These are the components that execute the ECM's commands. In a MEUI system, the primary output components are the unit injectors themselves. The ECM sends electrical signals to the injectors, controlling their operation.
Beyond these functional categories, the MEUI fuel system has several key mechanical and hydraulic components:

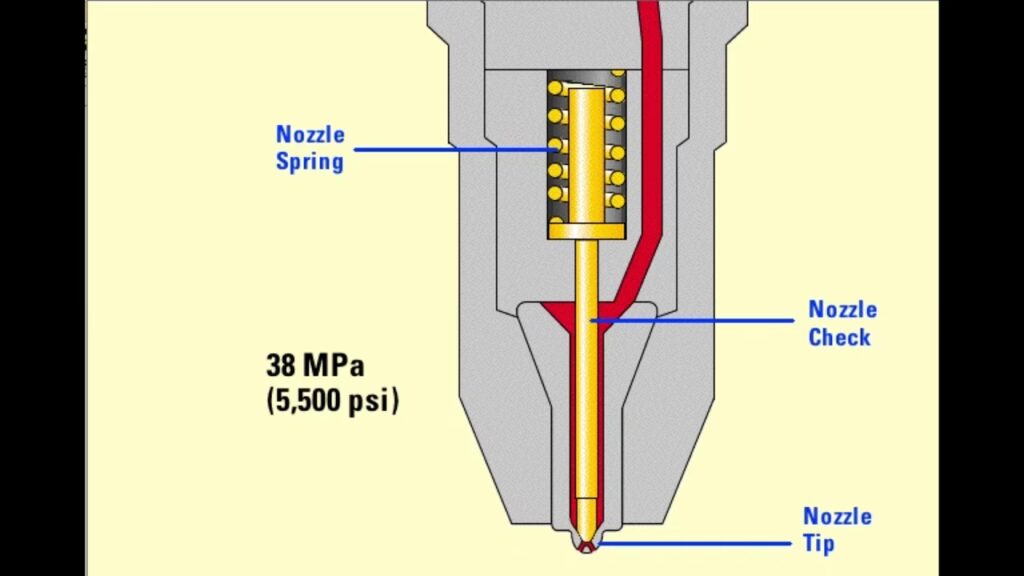

- Unit Injector: The core component, housing the plunger, barrel, and needle valve. It performs both the pumping and injecting functions.
- Camshaft: Driven by the engine's timing gears, it provides the mechanical lift to operate the injector plungers.
- Push Rods/Rocker Arms: These mechanical linkages transmit the camshaft's motion to the injector plungers.
- Fuel Supply Pump: A low-pressure pump that supplies fuel to the unit injectors.
- High-Pressure Fuel Lines: Though less prominent than in common rail systems, these carry fuel under pressure to the injectors.
- Return Lines: Used to return excess fuel back to the tank or filter.
The sheer power generated within a MEUI system is impressive. These injectors are capable of producing fuel injection pressures reaching as high as 207,000 kPa (approximately 30,000 psi). To achieve optimal combustion across a wide range of engine speeds, the MEUI can fire up to 19 times per second when the engine is operating at its rated speed. This rapid and precisely controlled injection is fundamental to the system's ability to deliver both power and efficiency.
MEUI vs. Common Rail: A Comparison
While MEUI systems have served many engines well, it's useful to compare them with the more modern High Pressure Common Rail (HPCR) systems. Both aim for precise fuel delivery, but their architecture differs significantly.
| Feature | MEUI (Mechanically Actuated Electronically Controlled Unit Injector) | HPCR (High Pressure Common Rail) |
|---|---|---|
| Pressure Generation | Each injector generates its own high pressure using a mechanical plunger actuated by the camshaft. | A high-pressure fuel pump generates pressure, which is stored in a common rail (a manifold) and distributed to the injectors. |
| Injection Control | ECM controls the *amount* and *timing* of fuel injected by regulating the injector's operation. Mechanical lift is the primary driver of pressure. | ECM controls the *amount*, *timing*, and *pressure* of fuel delivered from the common rail by precisely controlling the injectors. |
| Pressure Capability | Can achieve high pressures (e.g., up to 30,000 psi), but generally lower peak pressures than advanced HPCR. | Capable of significantly higher and more consistent rail pressures (often exceeding 30,000 psi, with modern systems reaching much higher). |
| Complexity & Cost | Mechanically robust, potentially simpler in some aspects but can be more complex to service due to integrated nature. | High-pressure pump and common rail add complexity and cost, but often offer finer control. |
| Emissions Control | Good control, especially MEUI-C, but HPCR generally offers finer tuning for ultra-low emissions. | Excellent control, enabling precise multiple injection events for superior emissions reduction. |
| Engine Applications | Widely used in many older and some current heavy-duty diesel engines, known for durability. | Dominant in modern diesel engines, from passenger cars to heavy equipment, for performance and emissions. |
Common Issues and Maintenance
Like any complex mechanical and electronic system, MEUI injectors can experience issues over time. Regular maintenance and prompt attention to symptoms can prevent costly repairs. Some common problems include:
- Injector Nozzle Clogging: Poor fuel quality or contaminants can lead to the nozzle becoming blocked, resulting in poor atomisation, rough running, and reduced power.
- Internal Wear: Over time, the plunger and barrel within the injector can wear, leading to a loss of injection pressure and improper fuel delivery.
- Electronic Control Issues: Faults in the ECM, sensors, or wiring harnesses can affect the injector's performance.
- Leaking Injectors: Seals within the injector or its connections can fail, causing fuel leaks.
Symptoms of failing MEUI injectors can include:
- Difficulty starting the engine.
- Rough idling or misfiring.
- Loss of engine power.
- Increased fuel consumption.
- Excessive black smoke (soot) from the exhaust.
- Unusual engine noises.
- Check Engine Light illumination.
Maintenance typically involves:
- Using high-quality, clean diesel fuel.
- Regularly changing fuel filters as per manufacturer recommendations.
- Performing diagnostic checks using appropriate tools to monitor injector performance.
- Professional servicing and testing of injectors if problems are suspected.
Frequently Asked Questions (FAQs)
Q1: Can MEUI injectors be rebuilt?
Yes, MEUI injectors can often be rebuilt by specialised diesel fuel injection shops. This involves disassembly, cleaning, inspection, and replacement of worn internal components.
Q2: How do I know if my MEUI injectors are failing?
Symptoms like rough running, loss of power, increased smoke, and difficulty starting can indicate injector problems. A diagnostic scan by a qualified technician is the best way to confirm.
Q3: Are MEUI systems still relevant?
While newer technologies like HPCR are more common in the latest engines for stringent emissions standards, MEUI systems, particularly the advanced MEUI-C variants, remain a robust and reliable solution in many heavy-duty applications known for their durability and performance.
Q4: What is the primary advantage of the MEUI-C injector?
The MEUI-C's primary advantage is its enhanced control over injection timing, allowing for multiple, precisely timed microbursts of fuel to optimise combustion and reduce emissions.
Q5: How does the ECM control the MEUI injector?
The ECM controls the injector by sending precise electrical signals that dictate the start and duration of the injection event, thereby controlling the amount and timing of fuel delivered.
Conclusion
The Mechanically Actuated Electronically Controlled Unit Injector (MEUI) system, with its evolution into variants like the MEUI-C, represents a significant chapter in diesel engine technology. By combining robust mechanical actuation with intelligent electronic control, these systems provide a powerful and efficient means of fuel delivery. Understanding their operation, components, and potential issues is crucial for anyone involved in the maintenance or operation of engines equipped with this technology. While the landscape of fuel injection continues to evolve, the principles of precise fuel control pioneered by systems like the MEUI remain fundamental to achieving the power, efficiency, and environmental responsibility demanded of modern machinery.
