Reviving Your MerCruiser 3.0: A Complete Guide

Embarking on a MerCruiser 3.0 engine rebuild is a significant undertaking, one that demands more than just a casual approach to part selection. The common query, 'should I get the master kit, which includes new pistons and new camshaft and lifters, or can I get by with just the basic kit that includes just the bearings, rings, oil pump and gasket set?' highlights a crucial misunderstanding: you simply cannot determine your parts list until you've meticulously inspected and measured every critical component of your engine. This isn't a task for guesswork; it's a job for precision and thorough evaluation.

A marine engine, particularly a MerCruiser 3.0, endures unique stresses that differ from automotive counterparts. Saltwater, continuous high-load operation, and specific cooling demands mean that wear patterns can be unforgiving. A successful rebuild isn't just about replacing worn parts; it's about restoring the engine to, or exceeding, its original factory specifications for reliable and powerful performance on the water. This comprehensive guide will walk you through the nuances of rebuilding your MerCruiser 3.0, ensuring you make informed decisions every step of the way.

Understanding the MerCruiser 3.0 Engine

The MerCruiser 3.0-litre, 4-cylinder engine, often referred to by its 181 cubic inch displacement, has been a workhorse in countless recreational boats for decades. Its robust design and relatively straightforward mechanics have made it a popular choice for both new installations and repowers. Tracing its lineage back to the mid-1960s with Renault engines and evolving through various iterations, including the 'L' and 'LX' series, the 3.0L has proven its durability. Early models, like the 2.5L, were eventually superseded by the 3.0L, which itself saw design changes, such as the exhaust manifold evolving from a one-piece design to later two-piece versions. Understanding the specific model year and series of your 3.0L is crucial for sourcing correct parts, as cylinder head port designs and other components varied.

The Core Dilemma: Basic vs. Master Rebuild Kit

The question of whether to opt for a 'basic' or 'master' rebuild kit is central to any engine overhaul. However, the answer is never as simple as choosing one over the other without prior investigation. The 'basic' kit typically includes bearings, piston rings, an oil pump, and a full gasket set. A 'master' kit expands on this, adding new pistons and sometimes a new camshaft and lifters. The critical point often missed is that these kits are generic groupings; your engine's actual needs are dictated by its wear and tear, which can only be determined through meticulous measurement.

Why Measurements Are Non-Negotiable

Before you even think about ordering a single part, your engine must be completely disassembled and thoroughly cleaned. Every critical surface and dimension must then be measured with precision instruments like micrometers, bore gauges, and plastigauge. Here’s why:

• Cylinder Bores: You need to assess the wear, taper, and out-of-roundness of each cylinder. If wear exceeds service limits, the block will need to be bored out to an oversize (e.g., .010", .020", .030", up to .070" in some cases). Only then can you select the appropriate oversize pistons and matching piston rings. Following boring, the cylinders must be properly honed to achieve the correct crosshatch pattern, which is vital for piston ring seating and oil retention.
• Crankshaft Journals: Both main and connecting rod journals must be measured for wear, taper, and out-of-roundness. If worn, the crankshaft will need to be ground to an undersize (e.g., .010", .020"). This dictates the size of your new main and rod bearings.
• Camshaft and Lifters: As highlighted in the initial query, camshafts and lifters are a matched set. If the camshaft lobes show any signs of wear, pitting, or flat-spotting, both the camshaft and all lifters must be replaced together. If the camshaft is in good condition, the original lifters can sometimes be reinstalled, but only in their *exact original positions* to maintain their wear patterns. Mixing or misplacing old lifters can lead to rapid cam lobe wear.
• Valve Train Components: Valve guides, valve stems, valve seats, and valve springs all need inspection and measurement. Worn guides or stems can lead to oil consumption and poor compression. Worn valve seats may require regrinding or replacement.
• Oil Pump: While often included in basic kits, the oil pump should always be inspected for wear, particularly in the gears and housing. A failing oil pump can lead to catastrophic engine failure.

Without these measurements, you're merely guessing, which can lead to ordering incorrect parts, premature component failure, or a rebuild that simply doesn't perform as expected. This is where professional machine shop services often become invaluable, providing the necessary expertise and equipment for accurate machining and measurement.

Key Components for a MerCruiser 3.0 Rebuild

A comprehensive rebuild often involves replacing or reconditioning a wide array of parts. Here's a breakdown of the typical components you'll consider:

• Bearings: Main, connecting rod, and camshaft bearings are crucial for smooth rotation and oil film maintenance.
• Piston Rings: Essential for sealing combustion pressure and controlling oil. Must match piston and bore size.
• Pistons: Replaced if cylinders are bored oversize, or if original pistons are damaged or worn.
• Camshaft and Lifters: Replaced as a set if wear is present.
• Oil Pump: Critical for lubrication; replacement is often recommended as a preventative measure.

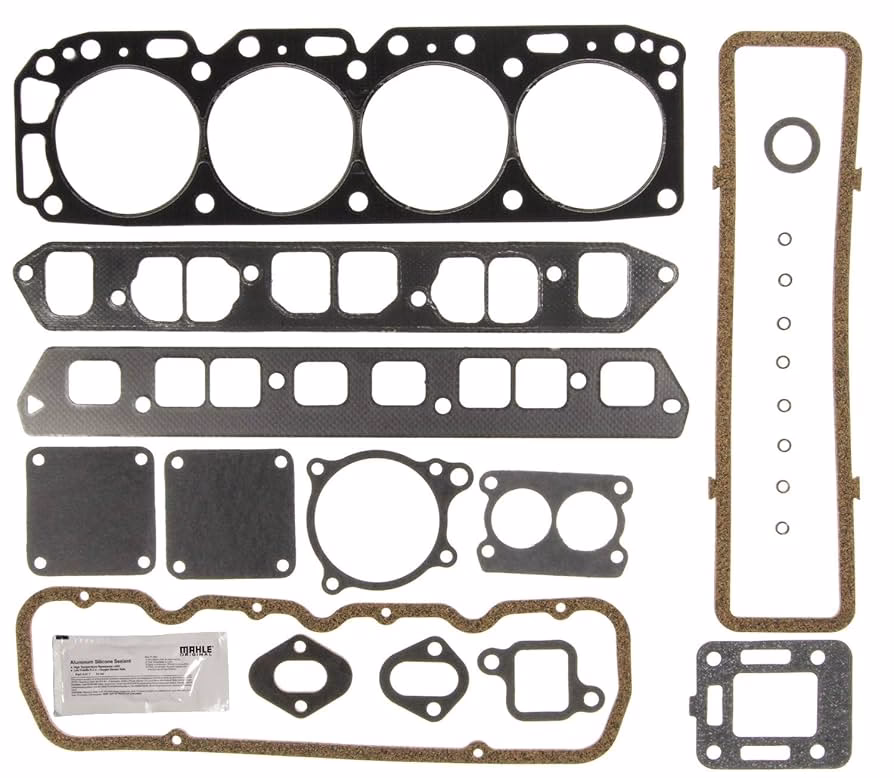

• Gasket Set: A complete set is vital for sealing all engine components and preventing leaks.
• Timing Components: Includes the timing gear/chain and sprockets. Inspect for wear and replace if necessary.
• Valve Train Components: Valves, valve springs, retainers, keepers, and valve stem seals.
• Cylinder Head Components: Often includes new valve guides (if needed) and a valve job to ensure proper sealing.
• Water Pump/Circulation Pump: Essential for engine cooling. Consider replacing it during a major overhaul.
• Freeze Plugs: Replace these during a rebuild to prevent future leaks.

Tools and Equipment for the Job

Beyond standard hand tools, a successful engine rebuild requires specialised equipment:

• Precision Measuring Tools: Micrometers (inside and outside), bore gauges, telescoping gauges, plastigauge.
• Torque Wrenches: Essential for applying correct fastener torque, preventing stripped threads or loose components.
• Piston Ring Compressor: For installing pistons into cylinders without damaging rings.
• Valve Spring Compressor: For removing and installing valve springs.
• Engine Stand: Makes working on the engine much safer and easier.
• Honing Tool: If you're doing light honing yourself, though professional boring and honing is often preferred.
• Cleaning Tanks/Brushes: For thoroughly cleaning all components.
• Assembly Lubricants: Specific oils and greases for initial lubrication during assembly.

Common Pitfalls and How to Avoid Them

Rebuilding an engine can be complex, and errors can be costly. Here are some common mistakes and how to prevent them:

1. Inadequate Measurement: As stressed, this is the biggest pitfall. Always measure, measure, and re-measure. Do not rely on visual inspection alone.
2. Improper Cleaning: Any dirt, old gasket material, or metal shavings left in oil passages or on mating surfaces can lead to premature wear or leaks. Cleanliness is paramount.
3. Incorrect Torque: Over-tightening can strip threads or warp components; under-tightening can lead to leaks or component failure. Always follow the manufacturer's torque specifications using a calibrated torque wrench.
4. Mismatched Camshaft and Lifters: If reusing old lifters, ensure they go back into their exact original positions. If replacing the cam, always replace all lifters with it.
5. Incorrect Piston Ring Orientation: Piston rings often have a specific 'top' side or orientation. Installing them upside down can lead to poor sealing and oil consumption.
6. Ignoring Small Details: Things like new freeze plugs, correct assembly lube, or ensuring all oil passages are clear can make the difference between a successful rebuild and a rapid failure.
7. Lack of Professional Assistance: Don't hesitate to consult a reputable marine engine machine shop for critical tasks like boring, honing, crankshaft grinding, or cylinder head work. Their expertise saves time and prevents costly errors.

Rebuild Kit Comparison Table

To help clarify the 'basic' vs. 'master' kit dilemma, here's a comparative overview, alongside the option of a full custom rebuild:

Frequently Asked Questions (FAQs)

How do I know if my MerCruiser 3.0 needs a rebuild or a complete replacement?

Look for persistent signs of trouble such as significant loss of power, excessive blue or black exhaust smoke, consistent overheating, loud knocking or banging noises, or extremely low oil pressure. While some issues might be minor, a combination of these often points to internal engine wear necessitating a rebuild. A complete replacement is usually considered if the engine block or crankshaft is severely damaged beyond economic repair, or if you desire a newer, more powerful engine.

How many hours can I expect from a rebuilt MerCruiser 3.0 engine?

A properly rebuilt MerCruiser 3.0, with quality parts and meticulous assembly, can realistically last another 1200-1500 hours, similar to a new engine's lifespan, provided it receives regular and diligent maintenance. The key factors are the quality of the machine work, the parts used, and adherence to maintenance schedules post-rebuild.

What kind of maintenance is critical after a MerCruiser 3.0 rebuild?

Post-rebuild maintenance is crucial for longevity. A break-in period with specific oil changes (often at 20-50 hours) is essential to properly seat the new piston rings and bearings. After break-in, adhere to the standard MerCruiser maintenance schedule: oil and filter changes every 100 hours or annually (whichever comes first), fuel filter replacement, spark plug inspection, and drive service. Regular checks of cooling system components and fluid levels are also vital.

Can I rebuild a MerCruiser 3.0 myself, or do I need a professional?

While some mechanically inclined individuals might attempt a rebuild, it's a complex task requiring specialised tools, technical manuals, and a deep understanding of engine mechanics. Critical steps like cylinder boring, crankshaft grinding, and valve seat work absolutely require professional machine shop services. Attempting these without the right equipment or expertise will likely lead to failure. For most, a hybrid approach – performing disassembly/assembly but outsourcing machining – is the most sensible option.

Is rebuilding a MerCruiser 3.0 more cost-effective than buying a remanufactured engine?

Often, yes, rebuilding can be more cost-effective, particularly if the core engine components (block, crankshaft) are in good condition and only require standard machining. A rebuild allows you to control the quality of individual components. However, if significant damage requires extensive machining or replacement of major components, the cost can approach that of a remanufactured unit. Always get quotes for both options and weigh the total cost, including labour and potential downtime.

What are the 'L' and 'LX' Series MerCruiser 3.0 engines?

MerCruiser produced several versions of the 3.0L engine. The 'L' series engines typically used a cylinder head with larger ports, while the 'LX' models utilised a smaller, rectangular port cylinder head. Around 1995-1996, the 'L' model was discontinued, and the 'LX' became the sole 4-cylinder sterndrive option. These differences are critical when ordering cylinder head components or exhaust manifolds.

Conclusion

Rebuilding your MerCruiser 3.0 engine is a rewarding project that can significantly extend the life of your boat's powerplant. However, it is not a task to be rushed or undertaken without proper preparation. The key to a successful rebuild lies in meticulous inspection, precise measurements, and a thorough understanding of your engine's specific needs. Avoid the temptation to simply order a 'kit' without first assessing the extent of wear. By investing time in proper diagnosis and, where necessary, leveraging the expertise of a professional machine shop, you can ensure your MerCruiser 3.0 runs reliably and powerfully for many seasons to come, offering countless hours of enjoyment on the water.
