Mercedes Wheel Bolts & Alignment Explained

When it comes to maintaining your Mercedes-Benz, often the smallest components hold the greatest significance. From the seemingly simple wheel bolts that secure your alloys to the intricate alignment of your suspension, understanding these elements is crucial not only for your vehicle's performance but, more importantly, for your safety. This comprehensive guide delves into the specifics of Mercedes wheel bolts and the vital role of correct wheel alignment, ensuring you're well-equipped to keep your luxury vehicle running smoothly and safely on the UK's roads.

Understanding Mercedes Wheel Bolts: Nuts or Bolts?

One of the first things to clarify about Mercedes-Benz vehicles is their approach to wheel fastening. Unlike many other manufacturers that utilise wheel nuts to secure wheels onto studs, Mercedes predominantly employs alloy wheel bolts. This design choice means the bolt itself threads directly into the hub, offering a secure and robust connection. However, this system also introduces specific requirements regarding bolt specifications, which vary significantly across models and generations.

The Critical Role of Thread Size and Length

It might seem straightforward, but selecting the correct wheel bolt for your Mercedes is anything but. The two primary thread sizes you'll encounter are M12 and M14. Generally speaking, older Mercedes models tend to utilise the thinner M12 bolts, while newer, more modern vehicles have transitioned to the more robust M14 thread size. This distinction is vital, but it's not the only factor to consider.

Beyond thread size, the bolt's length is equally critical. Getting caught out by incorrect bolt length is a common pitfall. For instance, a Mercedes C-Class W203 typically requires an M12x1.5 bolt with a 40mm thread length. In stark contrast, its successor, the C-Class W204, uses an M14x1.5 bolt, but with a significantly shorter 27mm thread. Using bolts that are too long can damage brake components or even the hub, while bolts that are too short may not provide sufficient thread engagement, leading to a dangerous failure.

It's important to note that this guide focuses on standard fitments for Mercedes alloy wheel bolts. If your vehicle has aftermarket wheels fitted or you're using wheel spacers, you will almost certainly require extended bolts to ensure proper and safe fitment. Always consult a specialist or your vehicle's manual if you are unsure about the exact specifications for your particular model, as variations are extensive and precise fitment is paramount for safety.

Why the Right Bolt Matters

The consequences of using incorrect wheel bolts can range from annoying vibrations to catastrophic wheel detachment. Incorrect thread pitch can damage the hub, leading to expensive repairs. Improper length can cause the wheel to become loose or put undue stress on the hub and wheel studs. Always ensure you're using bolts that match the manufacturer's specifications for your exact model, year, and wheel type. When in doubt, always seek professional advice.

Frequently Asked Questions About Mercedes Wheel Bolts

Do all Mercedes models use the same wheel bolts?

No, Mercedes wheel bolts vary significantly by model and year, primarily in thread size (M12 or M14) and thread length. It's crucial to use the correct bolts for your specific vehicle.

How do I know if I have M12 or M14 bolts?

Generally, older models use M12, and newer models use M14. However, the most accurate way is to check your vehicle's manual, measure an existing bolt, or consult a Mercedes specialist.

What happens if I use the wrong length wheel bolts?

Using bolts that are too long can damage brake components or the hub. Bolts that are too short won't provide enough thread engagement, leading to a dangerous failure and potential wheel detachment.

Do I need special bolts for aftermarket wheels or spacers?

Yes, if you have aftermarket wheels or wheel spacers, you will almost certainly need extended wheel bolts to ensure proper and safe fitment. Always verify the required length.

Are Mercedes wheel bolts reusable?

Generally, yes, unless they are damaged, corroded, or show signs of stretching. Always inspect bolts before re-use, and replace any questionable ones. Torque them to the manufacturer's specifications.

The Intricacies of Wheel Alignment: Beyond the Basics

While wheel bolts secure your wheels, it's the precise geometry of your suspension system, known as wheel alignment, that dictates how those wheels interact with the road. Proper alignment is fundamental to your Mercedes' handling, tyre longevity, and overall driving safety. A misaligned vehicle can lead to rapid and uneven tyre wear, poor fuel economy, and compromised handling, making it feel unstable or difficult to steer.

Deciphering Alignment Readings: Toe, Camber, and Caster

An alignment report can look like a complex array of numbers, but understanding the key parameters – toe, camber, and caster – can help you diagnose issues and appreciate the necessity of accurate adjustments.

Rear Alignment: The Foundation of Stability

Many drivers overlook the rear alignment, but it's just as crucial as the front. Parameters like rear toe, rear camber, and thrust angle must be spot on. If the rear alignment is incorrect, your car might experience excessive rear tyre wear or even 'crab walk' – where the vehicle appears to drive slightly sideways. The good news is that rear adjustments are often straightforward and don't typically require additional adjusting bolts, meaning there's no excuse for these numbers not to be correct.

Front Alignment: Steering and Handling Precision

The front alignment significantly impacts steering feel and stability:

• Caster: This refers to the forward or backward tilt of the steering axis when viewed from the side. Caster profoundly affects steering stability, self-centring, and high-speed handling. A significant difference in caster between the left and right sides (known as 'cross caster') will cause the vehicle to pull strongly in one direction. For instance, if your cross caster is 1.5 degrees, as sometimes seen, your car will likely pull to the right quite noticeably. While high cross caster might not directly cause tyre wear, it certainly makes for an uncomfortable driving experience. Ideally, caster settings should be matched, or within half a degree, with a slightly higher caster on the right side. This subtle difference can counteract the natural crown of UK roads, which tends to pull vehicles to the right, helping the car track straight.
• Camber: This is the inward or outward tilt of the wheel when viewed from the front. Negative camber means the top of the wheel tilts inwards, while positive camber means it tilts outwards. Excessive negative or positive camber leads to uneven tyre wear – the inner or outer edge of the tyre will wear out prematurely. Control arm bolts can be used to adjust camber; typically, the front bolt of the control arm influences camber. For optimal tyre wear and handling, you generally want to see camber values no more than half a degree negative.
• Toe: This is the most critical alignment parameter for tyre wear. Toe refers to how much the front of the wheels points inward or outward relative to each other. Even a small deviation can cause rapid tyre feathering or scrubbing. Toe adjustments are usually made via the tie rods.

Identifying the Root Cause of Misalignment

If your Mercedes struggles with persistent alignment issues, despite adjustments, it's essential to look beyond just the alignment numbers. Often, the underlying problem lies with worn or damaged suspension components. Common culprits include:

• Worn Lower Control Arm Bushings: These can lead to excessive play, affecting camber and caster.
• Worn Upper or Lower Ball Joints: Play in these joints can drastically alter wheel angles under load.
• Bent Control Arms: An impact (e.g., hitting a pothole) can bend a control arm, making proper alignment impossible until replaced.

For example, if your caster numbers are significantly off on one side (e.g., 2 degrees on the right when they should be around 4 degrees, similar to the left), it strongly suggests a problem on that side, such as a worn bushing or a bent control arm.

The DIY Dilemma: Why Professional Re-Alignment is Essential

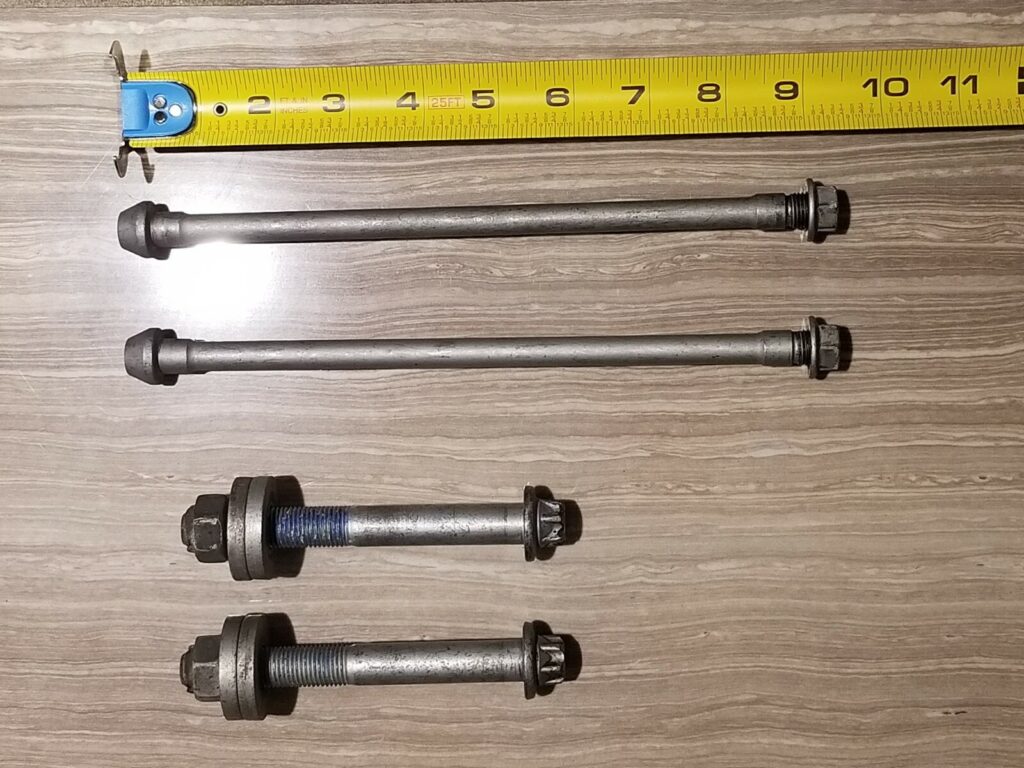

While some enthusiasts might attempt to adjust camber or caster using aftermarket control arm bolts – which often offer about 0.25 degrees of adjustment – it's crucial to understand that such modifications are rarely a complete fix. Even if you manage to get your camber and caster numbers closer to specification, you'll still require a full professional alignment. Why? Because altering camber or caster, whether at the front or rear, or adjusting the thrust angle, invariably changes your toe or steer ahead. And as established, toe is the single most important number to get right to prevent premature tyre wear.

A skilled alignment technician strives for precision, ensuring all numbers are within the manufacturer's specified range. If you provide them with bolts but then decline a full, corrective alignment, you might find that some technicians are reluctant to proceed. It's a matter of professional pride; they want to ensure the job is done correctly and safely for their customers.

Frequently Asked Questions About Control Arm Bolts & Alignment

What are control arm bolts used for in alignment?

Control arm bolts, particularly eccentric ones, are used to adjust specific alignment parameters like camber and caster by changing the position of the control arm relative to the subframe or chassis.

Can I adjust my Mercedes alignment myself?

While you can install adjustable control arm bolts, achieving a precise and balanced alignment requires specialised equipment and expertise. DIY adjustments often alter toe, necessitating a professional re-alignment afterwards to prevent severe tyre wear.

How often should my Mercedes alignment be checked?

It's recommended to have your alignment checked annually or every 10,000-12,000 miles, whichever comes first. You should also get it checked after hitting a significant pothole, replacing suspension components, or noticing uneven tyre wear or steering issues.

What are the signs of a bad alignment?

Common signs include uneven or rapid tyre wear, the vehicle pulling to one side, a crooked steering wheel when driving straight, or a loose/unresponsive steering feel.

Do worn bushings affect alignment?

Absolutely. Worn control arm bushings, ball joints, or other suspension components introduce excessive play, making it impossible to hold an accurate alignment. These components must be replaced before a proper alignment can be performed.

Is it normal for a car to pull slightly to the right on UK roads?

Due to the natural crown of UK roads (designed for water drainage), vehicles can sometimes have a slight tendency to pull to the left. If your car consistently pulls to the right, especially strongly, it often indicates an alignment issue, particularly with caster.

From the precise fit of your wheel bolts to the intricate dance of alignment parameters, understanding these mechanical nuances is key to ensuring your Mercedes-Benz delivers the performance, safety, and comfort it was designed for. Regular checks and professional attention to these crucial areas will not only prolong the life of your tyres but also enhance your overall driving experience on the UK's diverse road network.
