Resetting Your Sprinter's Brake Wear Light

The Mercedes-Benz Sprinter is a cornerstone of many businesses and a reliable companion for countless drivers across the UK. As a workhorse, its braking system is under constant demand, making its proper functioning paramount for both safety and operational efficiency. One of the most important dashboard indicators related to braking is the brake pad wear light. When this yellow symbol illuminates, it's your Sprinter's way of telling you that its brake pads have reached their limit and require attention. Ignoring this warning can lead to significantly reduced braking performance, potential damage to your brake discs, and, most critically, compromised safety for you and other road users.

Understanding Your Sprinter's Brake Pad Wear Indicator Light

The yellow brake pad wear indicator light typically appears as a circle with dashed lines on either side, resembling a brake pad. For Mercedes Sprinter models, particularly the second generation (MK2, 906 chassis built between 2006 and 2018), this light is directly linked to a sensor embedded within the brake pads themselves. When the brake pad material wears down to a critical level, the sensor comes into contact with the brake disc, completing an electrical circuit that triggers the warning light on your dashboard.

The illumination of this light is a definitive sign that your brake pads are nearing the end of their service life. While the warning suggests there's approximately 1000 miles of travel remaining before the pads become dangerously worn, it is crucial to understand that this is a general guideline. Aggressive driving, frequent heavy braking, and carrying heavy loads can accelerate wear significantly, meaning that the actual safe mileage remaining could be considerably less. Therefore, immediate action upon seeing this light is highly recommended.

The Essential First Step: Brake Pad Replacement

It's vital to grasp that the brake wear light is not merely a reminder to check your brakes; it's an indication that the brake pads themselves are worn out and require replacement. The light will not reset until new brake pads, and crucially, new brake wear sensors, have been fitted. Attempting to reset the light without replacing the worn components is futile and dangerous.

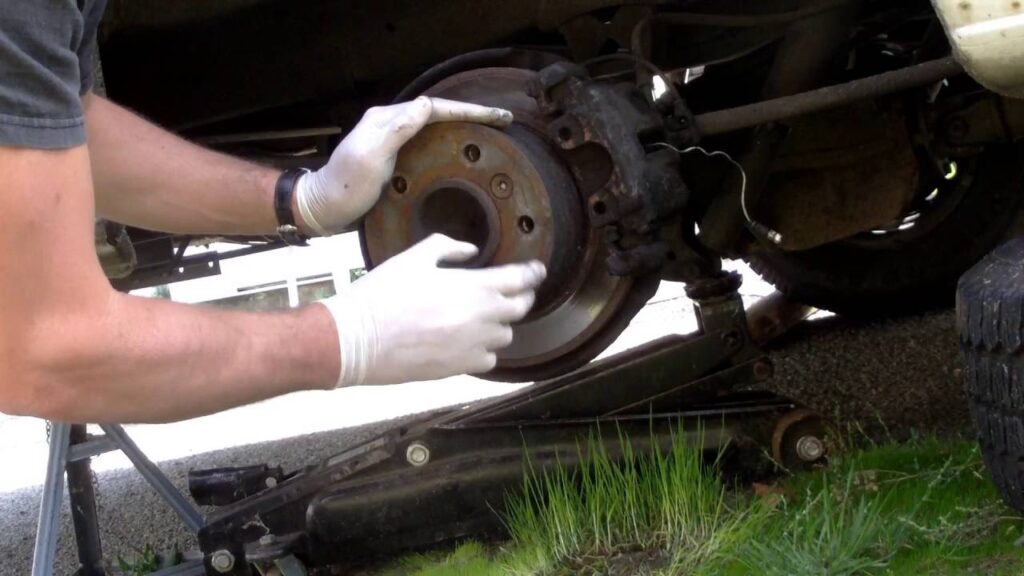

Replacing brake pads on a Mercedes Sprinter involves several key steps:

1. Safe Vehicle Jacking: Ensure the vehicle is securely lifted and supported on axle stands.
2. Wheel Removal: Take off the wheels to gain access to the brake calipers.

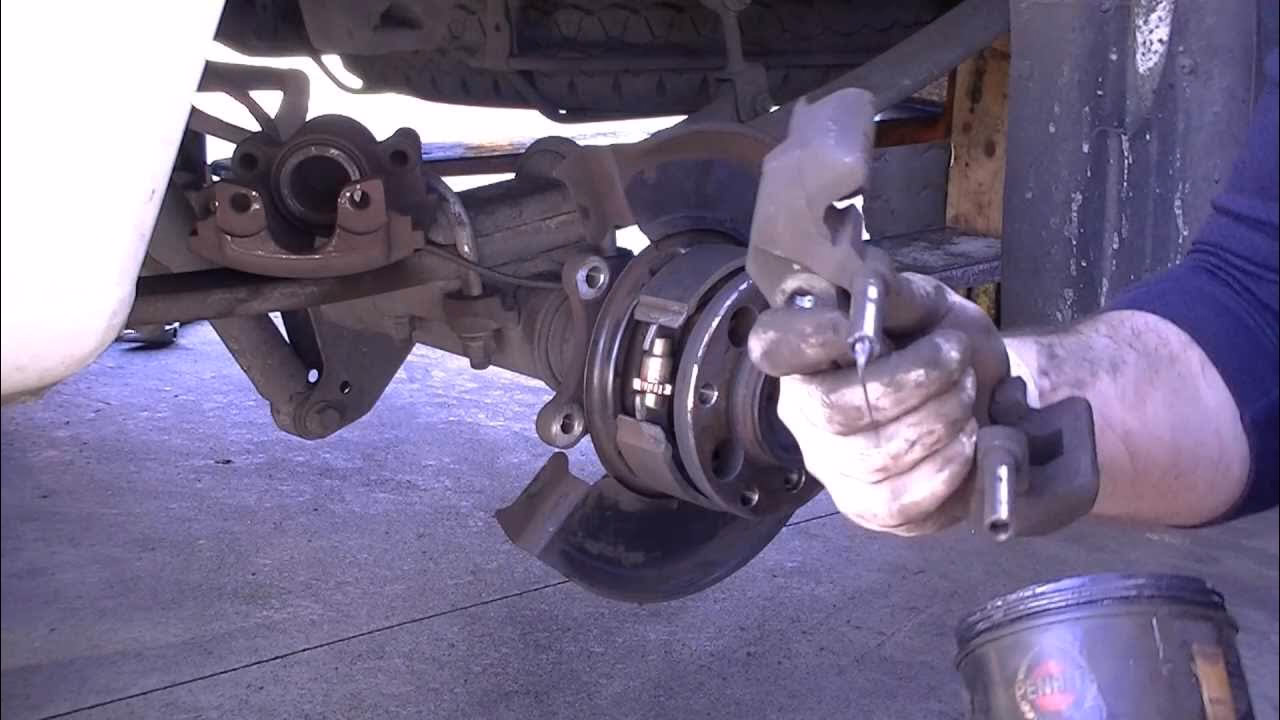

3. Caliper Removal: Carefully unbolt and remove the brake caliper, ensuring it is supported and not left hanging by the brake hose.
4. Old Pad Removal: Slide out the worn brake pads. This is also when the old brake wear sensor will be disconnected.
5. Piston Retraction: Use a brake piston compressor tool to retract the caliper piston(s) back into the caliper body, making space for the thicker new pads.
6. New Pad Installation: Insert the new brake pads, ensuring they are correctly seated.
7. New Sensor Connection: Connect the new brake wear sensor to its dedicated slot on the new brake pad and route the wiring correctly, ensuring it's secured and won't snag.
8. Caliper Reinstallation: Reattach the brake caliper, tightening all bolts to the manufacturer's specified torque.
9. Wheel Reinstallation: Put the wheels back on and lower the vehicle.
10. Brake Pedal Pumping: Before driving, pump the brake pedal several times until it feels firm. This seats the pads against the discs and pushes the caliper pistons back out.

Always use high-quality replacement brake pads and sensors that are compatible with your specific Sprinter model. While DIY replacement is possible for those with mechanical experience, if you are unsure, it is always best to consult a professional mechanic.

How to Reset the Mercedes Sprinter Brake Wear Light

Once the new brake pads and wear sensors have been correctly installed, resetting the warning light on your Mercedes Sprinter is a straightforward process. Unlike some other warning lights that might require complex diagnostic tools, the brake wear light typically resets automatically through a simple ignition cycle.

Here’s the procedure:

1. Ensure all brake pad replacement and sensor connections are complete and secure.
2. Get into the driver's seat and close all doors.
3. Insert your key into the ignition.
4. Turn the ignition to position 2 (all dashboard lights illuminate, but the engine is not started).
5. Wait for a few seconds. The brake wear light should now turn off.
6. Turn the ignition off.
7. Start the engine as normal. The brake wear light should no longer be illuminated.

The system recognises the new sensor, which completes the circuit, signalling that the brake pads are no longer worn. If the light remains on after following this procedure, re-check the sensor connection. Ensure it’s fully seated and that the wiring isn't damaged. If the issue persists, there might be a fault with the new sensor itself or a wiring issue further up the line, requiring professional diagnostics.

Beyond the Wear Light: Other Critical Sprinter Brake System Warnings

While the brake pad wear indicator is specific to pad wear, your Mercedes Sprinter has several other warning lights related to the braking system. Understanding these can help you react appropriately to different scenarios.

The General "BRAKE" Warning Light

This red light, often simply spelling out "BRAKE", is a more serious warning than the yellow brake pad wear indicator. It is commonly associated with critically low brake fluid levels. It can also indicate a malfunction with the Electronic Brakeforce Distribution (EBD) system or a trailer brake force booster malfunction. If this light comes on, it suggests an immediate issue with your braking system's integrity or performance. It is always a good idea to have a can of extra brake fluid in your boot at all times, especially for a commercial vehicle like the Sprinter, to top up in an emergency, though a persistent low level indicates a leak that requires professional attention.

ABS (Anti-lock Braking System) Warning Light

This yellow light indicates a fault with the Anti-lock Braking System. When the ABS light is on, the system is either malfunctioning or temporarily unavailable. Crucially, if ABS is not working, then related systems like ESP (Electronic Stability Program), ASR (Acceleration Skid Control), and BAS (Brake Assist System), along with cruise control, will also be unavailable. While your normal brakes will still function, there's an increased risk of wheel lock-up, particularly under heavy braking, which will also impair steering control. If this light comes on, drive with care and have the system checked by a professional as soon as possible. Sometimes, driving above 20 km/h (13 mph) for a short distance can complete a self-diagnosis and turn the light off if it was a temporary glitch, but if it persists, it could point to a battery issue or a wheel speed sensor fault.

ASR (Acceleration Skid Control) / BAS (Braking Assist System) Warning Light

The ASR/BAS light can either flash or stay constantly on. If it flashes, perhaps alongside a warning triangle, it indicates that one or more tyres have reached the limit of their grip – meaning the system is actively working to prevent wheel spin or assist with braking. This is normal during challenging conditions. If the light stays constantly on, it signifies a malfunction within the ASR system itself, often linked to a faulty ABS wheel speed sensor. In this scenario, the system has been disabled.

ESP (Electronic Stability Program) Warning Light

When the ESP dashboard light is constantly on, it indicates that the Electronic Stability Program has been deactivated due to a malfunction. Similar to ASR, issues with ABS wheel speed sensors or the ESP module itself can cause this. ESP is vital for maintaining vehicle stability, especially during cornering or sudden manoeuvres, so a persistent light warrants professional inspection.

Mercedes Sprinter Brake System Warning Lights at a Glance

Here's a quick reference table for various brake-related warning lights you might encounter on your Sprinter's dashboard:

Maintaining Your Sprinter's Braking System for Longevity and Safety

Proactive maintenance is key to extending the life of your Sprinter's braking system and ensuring its reliability. Beyond reacting to warning lights, incorporating regular checks into your vehicle care routine can save you time and money in the long run.

• Routine Visual Inspections: Periodically inspect your brake pads and discs through the wheel spokes. Look for visible wear on the pads (they should have sufficient material), cracks or deep grooves on the discs, and any signs of fluid leaks around the calipers.
• Brake Fluid Level Checks: Check your brake fluid reservoir regularly. The level should be between the 'min' and 'max' marks. If it's consistently low, it could indicate a leak in the system or severely worn pads. While topping up with that spare can of fluid is helpful in an emergency, a persistent drop requires professional investigation.
• Driving Habits: Your driving style significantly impacts brake wear. Smooth acceleration and deceleration, anticipating traffic, and avoiding unnecessary hard braking can dramatically extend the life of your brake pads and discs. Overloading your Sprinter can also put extra strain on the braking system, leading to quicker wear.
• Professional Servicing: Regular servicing by qualified technicians is invaluable. They can perform comprehensive brake inspections, check for any underlying issues, and ensure all components are in optimal condition. This includes bleeding the brake fluid periodically to remove moisture and contaminants, which can degrade braking performance.

Common Questions About Sprinter Brake Lights and Maintenance (FAQs)

Can I drive with the brake wear light on?

While the light indicates approximately 1000 miles of remaining pad life, it is strongly advised to address it as soon as possible. Continuing to drive on worn pads risks metal-on-metal contact, which can severely damage your brake discs, leading to much more costly repairs. More importantly, it compromises your vehicle's braking performance and safety.

How often should I check my Sprinter's brake fluid?

It's good practice to check your brake fluid level at least once a month, or during your regular engine oil checks. Pay attention to any significant drops, as this almost always indicates a problem that needs immediate attention.

What causes premature brake pad wear on a Sprinter?

Several factors can lead to premature wear, including aggressive driving (frequent hard braking), carrying consistently heavy loads, driving in stop-and-go traffic, and contaminated brake fluid. Even seized caliper pistons can cause one pad to wear faster than others.

Is a brake wear sensor included with new pads?

Not always. While some premium brake pad sets may include new sensors, it's common for them to be sold separately. Always check the product description or ask your supplier to ensure you purchase a new sensor along with your pads, as the old sensor will likely be worn or damaged and won't reset the light.

Why might my brake light still be on after pad replacement?

If the light remains on after replacing pads and following the reset procedure, the most common reasons are: the new sensor is not correctly plugged in, the sensor itself is faulty, the wiring leading to the sensor is damaged, or in rare cases, there's a more complex electrical fault within the braking system. A thorough re-check of connections or professional diagnostics would be required.

What are the signs of failing brake pads besides the warning light?

Other indicators include a squealing or grinding noise when braking (often metal-on-metal), a pulsating brake pedal, your Sprinter pulling to one side when braking, or a noticeable increase in stopping distance. If you experience any of these, have your brakes inspected immediately, regardless of whether a warning light is on.

Are all Sprinter models the same for brake system warnings?

While the basic principles of brake wear indicators and common brake system warnings (ABS, ESP, ASR) are consistent across generations, the exact symbol designs and specific diagnostic nuances can vary slightly between Sprinter generations (e.g., MK1, MK2, VS30). However, the underlying message – that your brakes require attention – remains universal.

Conclusion

The brake pad wear indicator light on your Mercedes Sprinter is a critical safety feature designed to give you ample warning before your brakes become dangerously worn. While the reset procedure is simple, it's paramount to remember that it only works *after* worn brake pads and their associated sensors have been correctly replaced. By understanding the various brake system warnings and committing to regular maintenance, you ensure your Sprinter remains a reliable, safe, and efficient vehicle on the road, ready for whatever demands your work or adventures place upon it.
