DIY Brake Pad Replacement: A UK Guide

Understanding how your car's braking system works and knowing when and how to replace components like brake pads is not only crucial for your safety on the road but can also save you a significant amount of money. Brake pads are a wear-and-tear item, designed to be replaced periodically as they wear down from the friction generated during braking. Ignoring worn brake pads can lead to reduced stopping power, damage to other braking components like discs, and potentially dangerous driving conditions. This comprehensive guide will walk you through the entire process of replacing your brake pads, empowering you to tackle this essential maintenance task yourself, safely and efficiently.

Why Brake Pads Are So Important

Brake pads are a critical part of your vehicle's disc braking system. When you press the brake pedal, hydraulic pressure forces the brake caliper to clamp the pads against the rotating brake disc (or rotor). This friction converts the kinetic energy of the moving vehicle into heat, slowing it down and eventually bringing it to a stop. Over time, this friction wears down the pad material. Once the material becomes too thin, braking performance is severely compromised, and metal-on-metal contact can occur, leading to damage, noise, and a dangerous lack of stopping power.

When Should You Replace Your Brake Pads?

Knowing when to replace your brake pads is key to maintaining a safe vehicle. Here are the common indicators:

• Squealing or Chirping Noises: Many brake pads have a small metal tab called a wear indicator. When the pad material wears down to a certain point, this tab makes contact with the rotor, producing a high-pitched squeal. This is usually the first sign.
• Grinding Noises: If you hear a grinding sound when you brake, it's a serious indicator that the pad material has completely worn away, and you're experiencing metal-on-metal contact. This means your brake discs are likely being damaged.
• Dashboard Warning Light: Some modern vehicles have electronic wear sensors that illuminate a warning light on your dashboard when pads are worn.
• Visual Inspection: You can often visually inspect your brake pads through the wheel spokes. If the pad material looks thin (typically less than 3mm), it's time for replacement.
• Reduced Braking Performance: If your car takes longer to stop, or the brake pedal feels spongy or requires more effort, it could indicate worn pads, though these symptoms can also point to other braking system issues.

Tools and Materials You'll Need

Before you begin, gather all the necessary tools and replacement parts. Having everything ready will make the process much smoother and safer.

Safety First: Essential Precautions

Working on your car's braking system requires utmost care. Follow these safety guidelines:

• Always work on a flat, level surface.
• Engage the parking brake and place wheel chocks behind the wheels that will remain on the ground.
• Use sturdy jack stands to support the vehicle once lifted. Never rely solely on the jack.
• Wear safety glasses to protect your eyes from brake dust and debris.
• Wear gloves to protect your hands and avoid contact with brake fluid and grease.
• Do one wheel at a time to keep the other side as a reference and to ensure you don't mix up parts.
• Never allow brake fluid to come into contact with painted surfaces, as it can damage paint.

Step-by-Step Brake Pad Replacement Guide

This guide assumes you are replacing pads on a typical disc brake system. Procedures may vary slightly depending on your vehicle model.

Step 1: Prepare the Vehicle

1. Loosen the wheel nuts on the wheel you'll be working on while the car is still on the ground. Just a half-turn or so to break them loose.
2. Lift the vehicle safely using your jack and position the jack stands securely under the vehicle's designated lift points. Ensure the car is stable before proceeding.
3. Remove the wheel nuts completely and carefully remove the wheel, setting it aside.

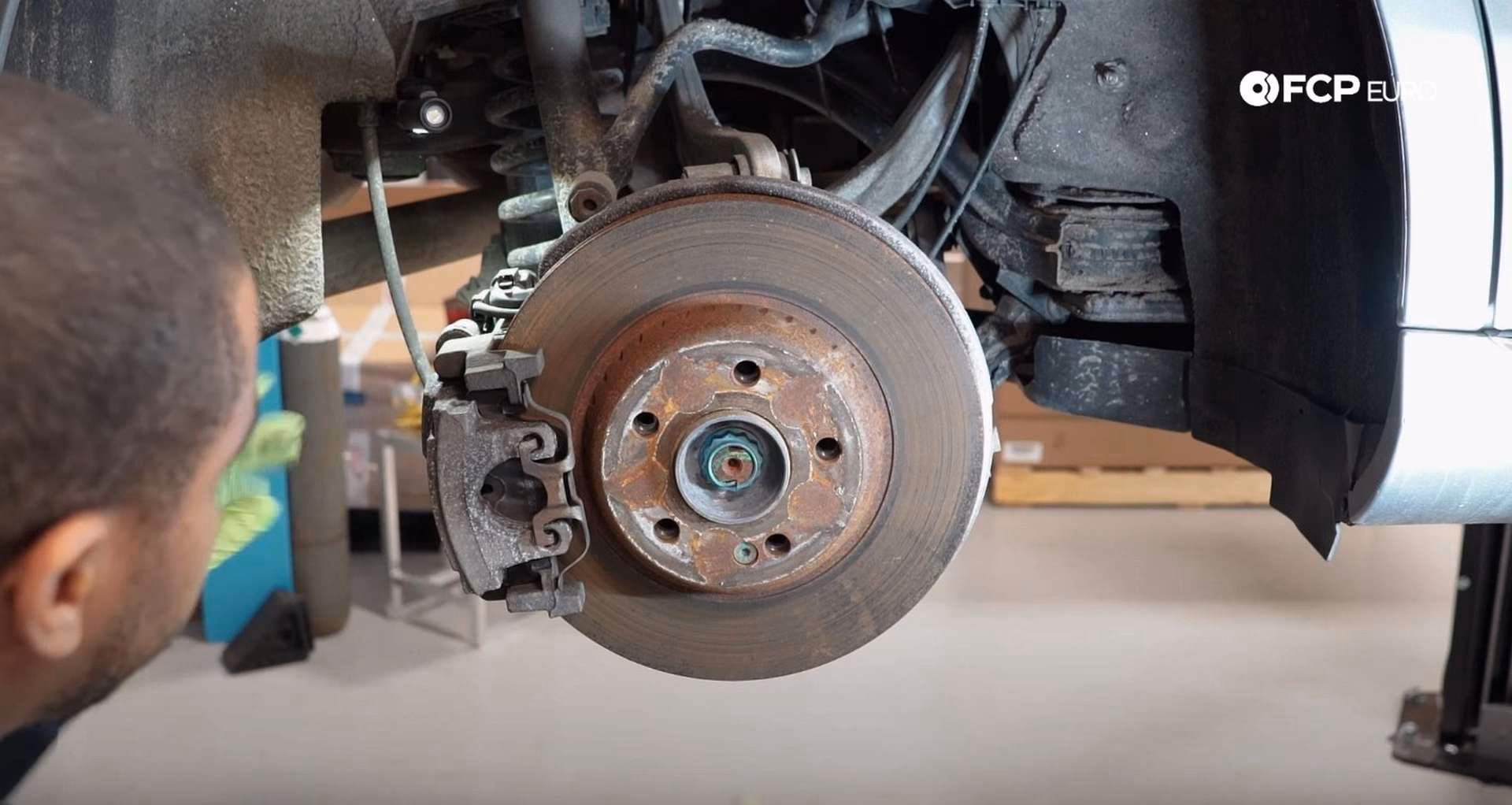

Step 2: Inspect the Brake System

With the wheel off, you'll have a clear view of the brake caliper, pads, and disc. Take a moment to inspect:

• Brake Pad Thickness: Visually confirm that the pads are indeed worn. Compare the inner and outer pads, as they can wear unevenly.
• Brake Disc Condition: Check the disc for deep grooves, scoring, cracks, or excessive rust. If the disc is heavily grooved or has a significant lip on the edge, it might need to be machined (skimmed) or replaced. It's generally good practice to replace discs when replacing pads, especially if they are worn.
• Caliper Leaks: Look for any signs of brake fluid leaks around the caliper or brake lines.
• Brake Fluid Level: Open your car's bonnet and locate the brake fluid reservoir. As you compress the caliper piston, the fluid level will rise. If it's already at or near MAX, you may need to remove a small amount of fluid to prevent overflow.

Step 3: Remove the Caliper and Old Pads

1. Locate the two caliper guide pin bolts (sometimes called slider pins) on the back of the caliper. These are usually 12mm, 14mm, or 15mm bolts. You may need a spanner or socket wrench.
2. Loosen and remove the lower caliper guide pin bolt.
3. Pivot the caliper upwards, using the upper guide pin bolt as a hinge. Some calipers might require removing both bolts to remove the caliper entirely. If you remove both, ensure the caliper is supported and not hanging by the brake hose. You can use a bungee cord or wire to suspend it from the suspension strut.
4. Once the caliper is pivoted up or removed, you can easily slide out the old brake pads. Note their orientation, especially if they have wear indicators.
5. Remove any anti-rattle clips or shims from the caliper bracket. These should be cleaned or replaced with the new ones supplied with your new pads.

Step 4: Clean and Lubricate

This step is crucial for smooth operation and longevity of your new pads.

1. Using a wire brush and brake cleaner, thoroughly clean the caliper bracket where the pads sit. Remove all rust, dirt, and old lubricant.
2. Clean the caliper guide pins. Inspect them for rust or damage. If they are corroded, they may need replacing.
3. Apply a thin, even coat of high-temperature brake caliper grease to the cleaned guide pins. Ensure they slide freely within their boots.
4. Apply a very thin layer of the same grease to the contact points on the caliper bracket where the new pads will slide. Also, apply a tiny amount to the back of the new pads where they contact the caliper piston and outer caliper body (if shims are not used), being careful NOT to get any grease on the pad friction material or the disc.

Step 5: Compress the Caliper Piston

Before installing new, thicker pads, you need to push the caliper piston(s) back into the caliper housing to make room. This is where your C-clamp or brake piston compressor tool comes in.

1. Place an old brake pad (or a piece of wood) against the piston face to protect it.
2. Position the C-clamp (or compressor tool) with one end against the old pad/wood and the other against the back of the caliper.
3. Slowly and steadily tighten the C-clamp, pushing the piston back into its bore. Watch the brake fluid reservoir to ensure it doesn't overflow. If it does, use a turkey baster or syringe to remove some fluid.
4. Once the piston is fully retracted (flush with the caliper body), remove the tool.

Step 6: Install New Brake Pads

1. Install any new anti-rattle clips or shims onto the caliper bracket according to the manufacturer's instructions.
2. Carefully slide the new brake pads into the caliper bracket. Ensure they fit snugly but can still slide freely within their channels. Make sure the wear indicator (if present) is on the correct side (usually the inner pad).

Step 7: Reassemble the Caliper

1. Pivot the caliper back down over the new pads and disc. Make sure the guide pins align properly.
2. Reinsert and tighten the caliper guide pin bolt(s). Consult your car's service manual or reliable online resources for the correct torque specifications for these bolts. Over-tightening can strip threads, and under-tightening can lead to loose calipers.
3. Ensure the brake hose is not twisted or kinked.

Step 8: Reinstall the Wheel and Final Checks

1. Remount the wheel, ensuring it's properly seated on the hub.
2. Hand-tighten the wheel nuts.
3. Lower the vehicle until the tyre just touches the ground, then fully tighten the wheel nuts in a star pattern to the manufacturer's specified torque using your torque wrench.
4. Lower the vehicle completely.
5. Repeat the entire process for the other side of the vehicle. It's highly recommended to replace brake pads on both sides of an axle (front or rear) simultaneously to ensure even braking.
6. Crucially, before starting the engine, go into the car and slowly pump the brake pedal several times until it feels firm. This represses the caliper pistons against the new pads, taking up the slack. Do NOT skip this step – driving without pumping the pedal will result in no brakes on the first press!
7. Check the brake fluid reservoir again. Top up if necessary, but do not overfill.

Bedding-In New Brake Pads

After replacing your brake pads, a crucial step often overlooked is the bedding-in process. This procedure optimises performance by transferring a thin, even layer of pad material onto the brake disc and properly seating the pads to the disc surface. Skipping this can lead to reduced performance, noise, and premature wear.

A typical bedding-in procedure involves:

1. Find a safe, open road with minimal traffic.
2. Accelerate to about 35-40 mph (approx. 55-65 km/h) and then apply moderate braking pressure (not hard braking) to slow down to about 5-10 mph (approx. 8-16 km/h). Do not come to a complete stop.
3. Release the brakes and drive for a short distance (about 30 seconds) to allow the brakes to cool slightly.
4. Repeat this process about 8-10 times. You might notice a slight smell from the brakes, which is normal.
5. After the series of stops, drive normally for several minutes without heavy braking to allow the brakes to cool down completely.
6. Avoid harsh braking or prolonged heavy braking for the first 200-300 miles (320-480 km) after installation.

Types of Brake Pads

Different materials offer varying performance characteristics:

Professional vs. DIY: Which is Right for You?

While replacing brake pads yourself can be a rewarding and cost-saving endeavour, it's not for everyone. Here’s a quick comparison:

• DIY (Do It Yourself):
  Pros: Significant cost savings on labour, satisfaction of doing it yourself, learning new skills.
  Cons: Requires specific tools, time-consuming, potential for mistakes if not careful, safety risks if done incorrectly.
• Professional Garage:
  Pros: Peace of mind with expert installation, warranty on parts and labour, quick turnaround, no need for tools or disposal of old parts.
  Cons: Higher cost due to labour charges.

If you're unsure at any point during the process, or if you lack the necessary tools or confidence, it's always best to consult a qualified mechanic. Your brakes are not a component to take chances with.

Frequently Asked Questions (FAQs)

Q1: Can I just replace one brake pad?

No, you should always replace brake pads in pairs on an axle (both front wheels or both rear wheels). Replacing only one can lead to uneven braking, pulling to one side, and premature wear on the new pad and disc.

Q2: Do I need to replace my brake discs when I replace pads?

Not always, but it's highly recommended, especially if your discs are worn, grooved, or have a significant lip. New pads need a perfectly flat and smooth surface to bed into properly. If discs are too thin or warped, they should definitely be replaced. Many mechanics recommend replacing both discs and pads together for optimal performance and longevity.

Q3: Why do my new brakes make a squealing noise?

New brakes can sometimes squeal for various reasons: improper bedding-in, cheap pad material, lack of lubrication on caliper contact points, or not replacing anti-rattle clips. Ensure you follow the bedding-in procedure and apply brake grease correctly. Persistent squealing can also indicate other issues.

Q4: How long do brake pads last?

The lifespan of brake pads varies significantly based on driving style, vehicle type, pad material, and driving conditions (e.g., city driving with frequent stops vs. motorway driving). Typically, they can last anywhere from 20,000 to 70,000 miles (32,000 to 112,000 km). Aggressive driving and heavy traffic will reduce their lifespan.

Q5: What if my brake pedal feels spongy after replacing pads?

A spongy pedal usually indicates air in the brake lines or that you haven't pumped the pedal enough after installation. Before driving, pump the pedal repeatedly until it firms up. If it remains spongy, you may need to bleed the brake system to remove any trapped air.

Q6: Is brake fluid important when replacing pads?

Yes, brake fluid is vital. As you compress the caliper pistons, fluid is pushed back into the reservoir. It's important to monitor the fluid level to prevent overflow and to ensure it's at the correct level after the job is complete. Brake fluid also needs to be flushed periodically as part of routine maintenance.

Q7: What does a grinding noise mean when braking?

A grinding noise is a serious indicator that your brake pads are completely worn down, and you have metal-on-metal contact between the brake pad backing plate and the brake disc. This will rapidly damage your brake discs and is a dangerous condition requiring immediate attention.

Conclusion

Replacing your car's brake pads is a manageable DIY task for the mechanically inclined, offering significant savings and a deeper understanding of your vehicle. By following this detailed guide, prioritising safety, using the correct tools, and paying attention to crucial steps like cleaning, lubrication, and bedding-in, you can ensure your car's braking system remains in top condition. Remember, if in doubt, always seek professional assistance. Safe driving starts with reliable brakes!
