Checking Your Mercedes-Benz Automatic Transmission Oil Level

Maintaining the correct oil level in your Mercedes-Benz automatic transmission is crucial for its longevity and smooth operation. However, a common point of confusion for owners of certain Mercedes-Benz models, particularly those equipped with the 5-speed automatic transmission (often referred to by its internal code, 722.6), is the absence of a factory-fitted oil dipstick. This can make routine checks and post-service verification a bit more challenging. Fortunately, with the right knowledge and tools, you can confidently ensure your transmission is adequately lubricated.

Why is Transmission Oil Level Important?

Automatic transmission fluid (ATF) serves multiple vital functions within the gearbox. It acts as a hydraulic fluid, transmitting power from the engine to the transmission components, allowing for gear changes. It also provides lubrication to the moving parts, reducing friction and wear. Furthermore, ATF helps to cool the transmission, dissipating the heat generated during operation. An incorrect oil level, whether too low or too high, can lead to a range of problems, from slipping gears and delayed engagement to overheating and premature component failure. Therefore, performing regular checks, especially after an oil change or if you suspect a leak, is a fundamental aspect of vehicle maintenance.

The Challenge: No Factory Dipstick

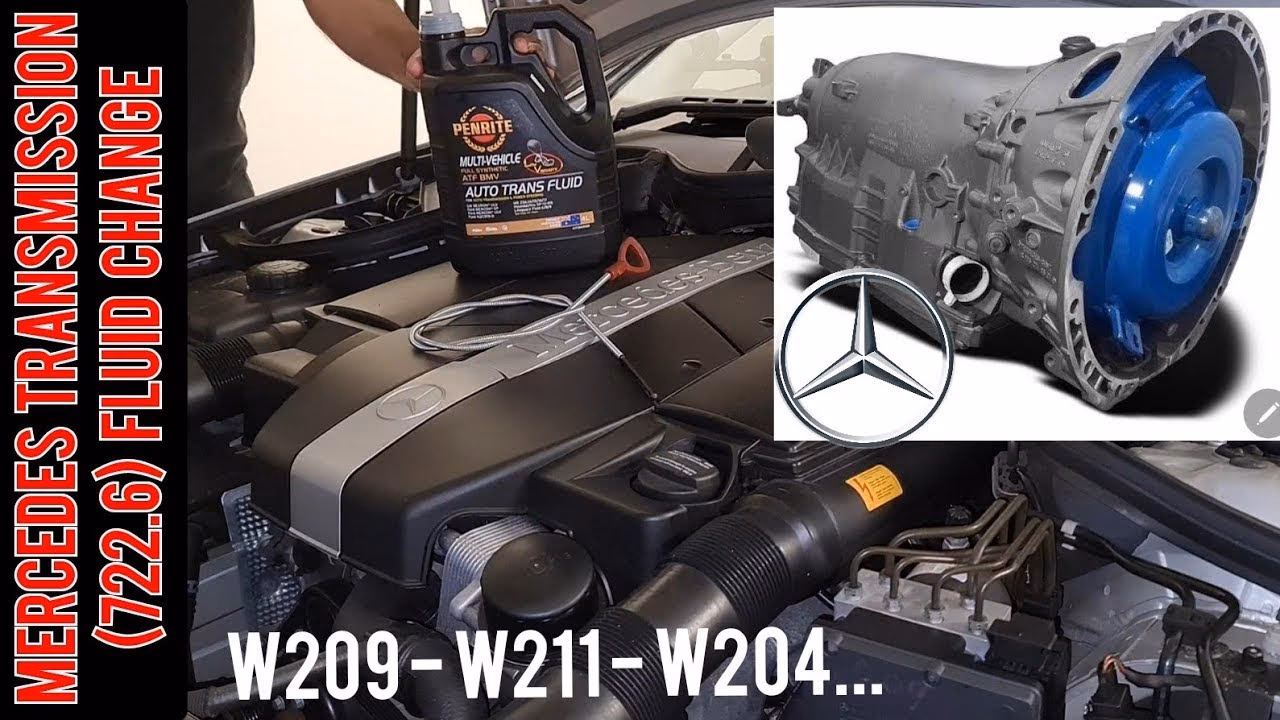

As mentioned, models with the 722.6 transmission were manufactured without an accessible dipstick. This design choice, while perhaps aimed at simplifying the engine bay or encouraging professional servicing, leaves many owners in a quandary when it comes to verifying the fluid level. Fortunately, the aftermarket provides a solution in the form of dedicated transmission oil dipsticks. Reputable suppliers, such as febi, offer these tools, which are specifically designed to fit the transmission's filler tube.

What You'll Need

• A dedicated transmission oil dipstick for your Mercedes-Benz model (ensure it's compatible with the 722.6 transmission).
• A level, flat surface for your vehicle.
• Gloves and rags for cleanliness.
• Possibly a tool to break the seal on the filler tube cap.

Step-by-Step Guide to Checking the Transmission Oil Level

Before you begin, it’s essential to understand that the transmission oil level needs to be checked when the fluid is at a specific temperature, typically around 25 degrees Celsius (cold state). This is crucial for accurate readings, as the fluid expands when hot.

1. Prepare the Vehicle

Park your Mercedes-Benz on a perfectly horizontal surface. This is non-negotiable for an accurate measurement. Ensure the vehicle is stable and secure.

2. Locate the Filler Tube

The filler tube for the automatic transmission is usually located in the engine compartment. It's often a metal tube, sometimes with a coloured cap or seal. Consult your vehicle's manual if you're unsure of its exact location.

3. Access the Filler Tube

The end cap of the filler tube is designed to prevent accidental opening. It is typically secured with a locking pin. You will need to carefully break off the plate that secures the locking pin using an appropriate tool. Once the plate is broken, you can remove the locking pin and then loosen the end cap.

4. Initial Oil Filling (If Applicable)

If you are performing an oil change, it is recommended to initially pour approximately 5 litres of the correct transmission fluid into the filler tube before starting the engine. This ensures there's a base level of fluid for the pump to circulate.

5. Start the Engine and Cycle Through Gears

Start the engine and let it run for a short period while the vehicle is still parked in the 'P' (Park) gear. Then, with the engine idling, briefly shift through all the gear positions (P, R, N, D, etc.), pausing for a few seconds in each gear. Finally, return the gear selector to the 'P' position.

6. Insert the Dipstick and Measure

Now, carefully insert the aftermarket dipstick into the filler tube. It is vital to push the dipstick all the way to the end point. A critical point to remember is that the 722.6 transmission is used across various Mercedes-Benz models, and the filler tube lengths can differ. It is possible that even when the bottom of the transmission has been reached, a portion of the dipstick might still be visible sticking out of the tube. Do not be alarmed by this; it is normal for some models.

7. Read the Oil Level

Carefully withdraw the dipstick and examine the oil level. The dipstick will have markings indicating the correct oil level range for a cold (approximately 25°C) transmission. The ideal level should be between the minimum and maximum marks on the dipstick.

8. Adjust the Oil Level

• If the oil level is too low: Add more ATF through the filler tube, a little at a time, repeating steps 5, 6, and 7 until the correct level is reached.
• If the oil level is too high: You will need to drain some fluid. This can be done by carefully removing the filler plug (if accessible) or by using a suction device to extract fluid from the pan. Again, repeat steps 5, 6, and 7 after any adjustments.

9. Reassemble

Once you have confirmed the oil level is correct, remove the dipstick. Secure the sealing cap back onto the filler tube. It is advisable to use a new locking pin, which can also be purchased from replacement part suppliers, to ensure the cap remains securely fastened.

Important Considerations and Tips

• Transmission Fluid Type: Always use the specific type of automatic transmission fluid recommended by Mercedes-Benz for your vehicle. Using the wrong fluid can cause significant damage. Refer to your owner's manual.
• Temperature is Key: Reiterate the importance of checking the level at the specified temperature. Checking a hot transmission will result in an artificially high reading.
• Cleanliness: Keep the area around the filler tube clean to prevent dirt and debris from entering the transmission.
• Don't Overfill: Overfilling can be just as detrimental as underfilling, leading to foaming and potential damage to seals and clutches.
• Professional Help: If you are uncomfortable performing this procedure or are unsure about any step, it is always best to consult a qualified Mercedes-Benz technician.

Frequently Asked Questions (FAQ)

Q1: My dipstick shows the oil level is high when the transmission is hot. Is this normal?
Yes, transmission fluid expands when hot. The correct procedure is to check the level when the transmission is cold (around 25°C). If you check it hot, the reading will naturally be higher.

Q2: Can I use a generic dipstick?
It is highly recommended to use a dipstick specifically designed for your Mercedes-Benz model and the 722.6 transmission. Generic dipsticks may not have the correct markings or fitment, leading to inaccurate readings or difficulty in use.

Q3: How often should I check my transmission oil level?
While Mercedes-Benz often lists transmission fluid as a 'lifetime' fill, it's good practice to check the level periodically, especially if you notice any changes in shifting behaviour or suspect a leak. A recommended interval might be every 30,000 to 50,000 miles, or as per your vehicle's service schedule.

Q4: What happens if my transmission oil is low?
Low transmission oil can lead to poor shifting performance, slipping gears, overheating, and eventually, severe internal damage to the transmission components. It's crucial to address low levels promptly.

Q5: Where can I buy a transmission dipstick for my Mercedes?
These specialized dipsticks are available from various online automotive parts retailers and specialist Mercedes-Benz parts suppliers. Ensure you purchase one that explicitly states compatibility with the 722.6 transmission.

By following these guidelines, you can effectively manage the transmission oil level in your Mercedes-Benz, contributing to the overall health and performance of your vehicle.
