Bosch Fuel Injection Pumps: The Art of Drip Timing

For any diesel engine enthusiast or mechanic, the precise timing of fuel injection is not merely an option; it's the bedrock of optimal performance, efficiency, and indeed, the very longevity of the engine. Without accurate fuel delivery, a diesel engine simply cannot run as intended, leading to a myriad of issues from poor fuel economy to significant mechanical failure. One traditional, yet highly effective, method for achieving this critical accuracy, particularly with older inline fuel injection pumps, is known as drip timing. So, to directly answer the question: yes, Bosch fuel injection pumps, especially the inline types, are indeed timed using this time-honoured drip timing method, also commonly referred to as flow timing.

Understanding the Drip Timing Method for Fuel Injection Pumps

The drip timing method is a meticulous procedure used to calibrate the start of fuel injection for each individual element within a multi-cylinder inline fuel injection pump. Each "element" consists of a plunger and barrel assembly responsible for pressurising and delivering fuel to a specific cylinder. The precision of this method ensures that fuel is delivered at the exact moment required by the engine's combustion cycle, allowing for efficient and powerful operation.

This technique has stood the test of time, proving its reliability and accuracy in the rebuilding and servicing of a vast array of inline fuel injection pumps. Beyond Bosch, nearly all other inline type fuel injection pumps utilise this very same principle for their intricate calibration.

The Process of Drip Timing Explained

The core of drip timing involves observing the precise moment fuel begins to flow (or "drip") from an element as the fuel injection pump's camshaft rotates. Here’s a breakdown of the typical steps involved:

• Setup: The fuel injection pump is mounted either on a dedicated test stand or securely on a workbench. A degree wheel is essential, attached either to the pump's drive end or integrated into the test stand's drive mechanism. This wheel allows for incredibly accurate measurement of the camshaft's rotation.
• Fuel Supply: A consistent and pressurised fuel supply is crucial. This is typically achieved via an electric fuel pump on a test stand, or through a simple gravity feed setup when performing the procedure on a bench. The fuel fills the pump's internal galleries.
• Rotation and Observation: The fuel injection pump camshaft is slowly rotated. As each element reaches its specific injection point, fuel will begin to drip from its outlet. The operator carefully observes this initial drip against the markings on the degree wheel.
• Adjustment: If the observed drip point does not align with the specified degrees of camshaft rotation, adjustments are necessary. For many pumps, this involves adjusting the tappets, much like setting valve clearances on an engine. Alternatively, some designs use shims or plates of varying thicknesses that are exchanged to alter the effective stroke of the plunger, thus modifying the start of injection.
• Alternative Methods: While drip timing is prevalent, a few companies, such as CAT, achieve similar precision using highly accurate measuring tools like a depth micrometer or a dial indicator setup, bypassing the visual drip observation.

The Paramount Importance of Diesel Engine Timing

The timing of fuel injection in a diesel engine is arguably one of its most critical parameters. Unlike petrol engines, which ignite a pre-mixed air-fuel charge with a spark plug, diesel engines rely on compression ignition. Fuel is injected into highly compressed, hot air, causing it to spontaneously combust. This process demands absolute precision.

Incorrect timing can lead to a cascade of detrimental effects:

• Reduced Performance: If fuel is injected too early or too late, combustion will not occur at the optimal point in the piston's stroke, leading to a significant loss of power and poor throttle response.
• Decreased Fuel Efficiency: Sub-optimal combustion translates directly into wasted fuel. The engine will consume more diesel to produce less power, increasing running costs.
• Increased Emissions: Incomplete combustion due to poor timing results in higher levels of harmful pollutants, including particulate matter and nitrogen oxides.
• Engine Damage: Early injection can lead to excessive cylinder pressures and temperatures, stressing components like pistons, connecting rods, and crankshafts, potentially causing premature wear or even catastrophic failure. Late injection can result in unburnt fuel washing down cylinder walls, diluting engine oil and damaging piston rings.
• Rough Running and Noise: An incorrectly timed diesel engine will often run roughly, vibrate excessively, and produce a characteristic knocking or clattering noise.

Therefore, ensuring that your fuel injection pump is meticulously timed is not just about getting the engine to run, but about ensuring it runs cleanly, efficiently, powerfully, and reliably for its intended longevity.

Maintaining Your Fuel Injection Pump: Essential Oil Supply and Care

While precise timing is crucial, the mechanical health and proper lubrication of the fuel injection pump itself are equally vital. Many inline fuel injection pumps, particularly older designs, have their own self-contained oil sumps that require regular checking and replenishment, separate from the engine's main oil supply. This dedicated lubrication ensures the smooth operation and longevity of the pump's intricate moving parts.

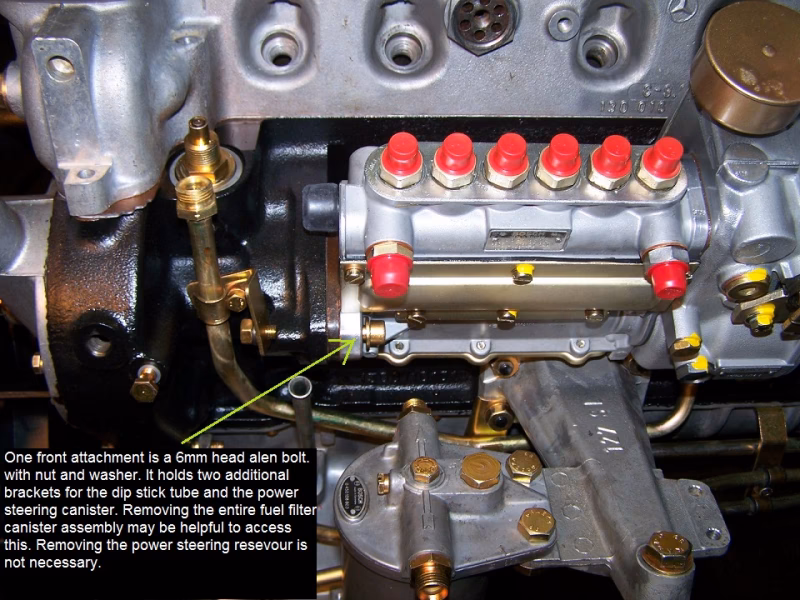

For classic vehicles like certain Mercedes-Benz models, such as those from the W113 series (230SL, 250SL, 280SL), understanding the fuel injection pump's oil requirements is paramount. Owners of these iconic "Pagoda" roadsters often face specific challenges due to the pump's design and age.

Checking and Changing Fuel Injection Pump Oil (Mercedes W113 Example)

Accessing and servicing the oil in these pumps can be a fiddly task, but it's essential. Here's a general guide based on common practices for models like the Mercedes W113:

• Locating the Dipstick: On many of these pumps, what might appear to be a simple nut (e.g., a 14mm nut with a slotted top) is actually the dipstick. Earlier versions might have a metal cap, while later ones, like the 250SL, often feature a distinctive red plastic cap. This cap typically covers the oil filler hole.
• Checking the Level: Remove the dipstick/nut. The oil level is usually indicated on the dipstick itself. For pumps that use engine oil for lubrication, there might be a small steel line connecting the pump to the engine block, signifying a constant oil supply from the engine. However, many pumps have a separate, self-contained sump.
• Oil Removal: Draining the oil from the bottom of these pumps is often not possible. Instead, a siphoning or pumping method is required. Small pumps, such as those from window cleaner bottles, or specialised syringes, are commonly used to extract the old oil through the dipstick hole or the larger filler hole under the cap. Expect around 130ml of oil to be removed.
• Refilling: Adding new oil requires a very small funnel, often with an outer diameter of no more than 7mm, to fit into the filler hole. It's generally recommended to use the same grade of oil as the engine (e.g., 20W50), unless specified otherwise by the manufacturer. Add slowly and check the dipstick frequently.
• Avoiding Overfill: This is a critical warning. Overfilling the fuel injection pump can have serious consequences, particularly interfering with the delicate fly-weights that control fuel metering at higher RPMs, leading to erratic engine behaviour and potential damage.

Regular inspection and timely oil changes for your fuel injection pump will contribute significantly to its operational health and prevent costly repairs.

Historical Context: Mercedes-Benz SL Models and Their Fuel Systems

The Mercedes-Benz SL series, particularly the W113 "Pagoda" models and the later R107 series, are iconic vehicles that relied on sophisticated fuel injection systems for their performance. Understanding their production timelines provides context for the evolution of these mechanical marvels.

Mercedes-Benz W113 "Pagoda" Series (1963-1971)

The W113 series, affectionately known as the "Pagoda" due to its distinctive hardtop roofline, was produced from 1963 to 1971. This series included several variants, each with improvements in engine displacement and power. The fuel injection pumps on these models, as discussed, often required dedicated oil maintenance.

Here's a snapshot of the W113 production:

Notably, the 250SL replaced the 230SL, with its production beginning in 1966 and running through 1968. The 280SL then succeeded the 250SL, starting in 1967 and concluding the W113 series in 1971. The relatively lower production numbers of the W113 series compared to its successor, the R107, contribute to its higher resale value today.

Mercedes-Benz 280SL (R107 Series) Production (1974-1985)

It's important to distinguish the 280SL from the W113 series. The later Mercedes-Benz 280SL, with the series designation 107, was produced for 11 years, from May 1974 to 1985. This model represented a new generation, succeeding the W113 series. During its production run, 25,436 units of the 280SL (R107 Roadster) were built, with an introductory price of DM 32,445.

While these production details offer a glimpse into the evolution of Mercedes-Benz engineering, the underlying principles of precise fuel injection and its maintenance remained a constant, whether for mechanical or electronic systems.

Frequently Asked Questions About Fuel Injection Pump Timing and Maintenance

Are all modern fuel injection pumps drip timed?

No, the drip timing method is primarily used for older, mechanical inline fuel injection pumps, including many Bosch models. Modern diesel engines typically use sophisticated electronic fuel injection systems (e.g., Common Rail Direct Injection - CRDI) that are timed electronically by the engine control unit (ECU) and do not require manual drip timing.

What are the symptoms of incorrect fuel injection pump timing?

Symptoms can include difficult starting, particularly in cold weather, reduced engine power, excessive black or white smoke from the exhaust, increased fuel consumption, rough idle, knocking noises from the engine, and overheating.

How often should the oil in my self-contained fuel injection pump be checked or changed?

This depends on the vehicle manufacturer's recommendations. For classic cars with self-contained pumps, it's generally advisable to check the oil level with every engine oil change and replace it annually or every 10,000 to 15,000 miles, whichever comes first. Always consult your specific vehicle's service manual.

Can I perform drip timing at home without specialised equipment?

While the principle of drip timing is straightforward, performing it accurately requires specialised tools such as a degree wheel, a pressure test stand or a controlled gravity feed system, and the necessary shims or adjustment tools. It's a highly precise task that is best left to experienced mechanics or specialists with the correct equipment to ensure optimal engine performance and avoid potential damage.

What's the difference between "drip timing" and "flow timing"?

These terms are interchangeable. Both "drip timing" and "flow timing" refer to the same method of observing the initial flow or drip of fuel from the pump element to determine and adjust the start of injection.

In conclusion, the meticulous art of drip timing remains a cornerstone for the maintenance and rebuilding of many classic and older inline fuel injection pumps, including those from Bosch. This method, alongside diligent lubrication, ensures that the heart of your diesel engine—its fuel injection system—operates with the utmost efficiency and reliability, safeguarding performance, economy, and the overall health of your vehicle for years to come.
