MOT Type 1 Driveway Membranes Explained

When embarking on a driveway project, especially one involving MOT (Ministry of Transport) Type 1 aggregate, understanding the importance of a suitable membrane beneath is crucial. This foundational layer plays a significant role in ensuring the longevity, stability, and proper drainage of your new driveway or hard-landscaped area. In the UK, MOT Type 1 is a widely used sub-base material, typically consisting of crushed stone, gravel, and sand, which compacts to form a solid, load-bearing surface. However, without the correct geotextile membrane, issues like subsidence, weed growth, and contamination of the aggregate can arise, compromising the integrity of your investment.

What is MOT Type 1?

Before delving into membranes, it's helpful to understand what MOT Type 1 entails. It's a granular sub-base material that conforms to the specifications set out by the Department for Transport. It's designed to provide a stable and well-draining base for roads, driveways, patios, and other paved areas. Its composition allows it to be compacted effectively, creating a firm foundation that can withstand significant weight and traffic. The key to its success lies in its ability to drain water effectively and resist deformation over time.

Why Use a Membrane Under MOT Type 1?

The introduction of a geotextile membrane beneath your MOT Type 1 layer serves several critical functions:

• Separation: It prevents the finer soil particles from your subgrade (the natural ground beneath) from mixing with the MOT Type 1 aggregate. This contamination can lead to a reduction in the drainage capacity and overall stability of the sub-base.
• Stabilisation: The membrane acts as a reinforcing layer, helping to distribute loads more evenly across the subgrade. This is particularly important on softer or more unstable ground, preventing excessive settlement or rutting.
• Filtration: Geotextile membranes allow water to pass through while preventing the finer soil particles from migrating into the aggregate layer. This maintains the drainage efficiency of the MOT Type 1.
• Weed Suppression: While not its primary function when laid *under* MOT, some membranes offer an inherent level of weed suppression. However, for dedicated weed control, a heavier, often UV-resistant membrane is used on the *surface* of the aggregate before the final finish.

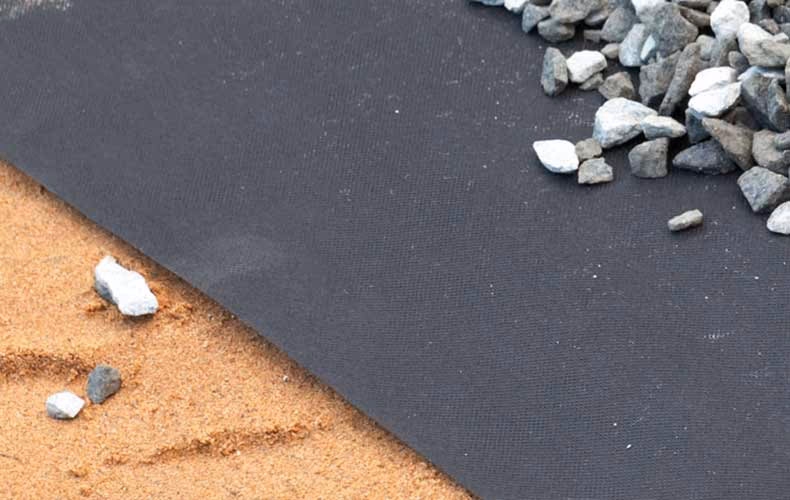

Types of Geotextile Membranes for MOT Type 1

There are two primary types of geotextile membranes commonly used in conjunction with MOT Type 1: woven and non-woven.

Woven Geotextile Membranes

Woven geotextiles are manufactured by interlacing yarns or fibres in a loom, similar to how traditional fabrics are made. This process results in a fabric with high tensile strength and good dimensional stability. For use under MOT Type 1, a heavy-duty woven geotextile is often recommended, particularly for areas subject to significant vehicular traffic.

Key characteristics of woven membranes:

• High Tensile Strength: Excellent at resisting stretching and tearing, making them ideal for load-bearing applications and ground stabilisation.
• Good Tear Resistance: Less prone to damage during installation.
• Dimensional Stability: They maintain their shape and structure under load.

Brands like GroundTex (100gsm) are examples of heavy-duty woven geotextiles suitable for stabilisation, especially under gravel driveways and paths. Their robust nature makes them a reliable choice for long-term weed suppression above ground and stabilisation below ground.

Non-Woven Geotextile Membranes

Non-woven geotextiles are produced by bonding or entangling fibres together using mechanical, thermal, or chemical means, rather than weaving. This process typically results in a more permeable and flexible fabric compared to woven types.

Key characteristics of non-woven membranes:

• Excellent Permeability: Highly effective at allowing water to pass through, crucial for drainage and filtration.
• Good Filtration Properties: Efficiently prevent fine particles from migrating.
• Flexibility: Can conform to ground contours more easily.
• Separation and Drainage: Ideal for applications requiring both separation and water management, such as wrapping land drains or soakaway crates.

For use with MOT Type 1, particularly in driveway applications, non-woven membranes are very popular due to their excellent drainage and separation capabilities. Products like DriveTex (90gsm) are specifically designed for this purpose, acting as a separator between aggregate and soil for brick or monoblock driveways. Similarly, DrainTex (80gsm) is a standard non-woven filter membrane with excellent drainage and filtration properties, suitable for ground stabilisation beneath type 1 aggregate.

For more demanding civil engineering projects, such as roads, highways, and car parks, with high traffic volumes, extra heavy-duty non-woven geotextiles like Earthworx NW1000 (100gsm) are often specified. These offer superior durability and mechanical resistance for ultimate performance in separation, filtration, drainage, and reinforcement.

GSM: What it Means and Why it Matters

GSM stands for 'Grams per Square Meter'. It is a measure of the fabric's weight, which often correlates with its strength and thickness. Generally, a higher GSM indicates a heavier, stronger, and more durable membrane. For MOT Type 1 applications, the required GSM will depend on the expected load and ground conditions. A 90gsm or 100gsm membrane is typically sufficient for domestic driveways, offering a good balance of strength and permeability. For more demanding commercial applications, higher GSM ratings might be necessary.

Comparing Woven vs. Non-Woven for MOT Type 1

The choice between woven and non-woven often comes down to the primary function required:

For most domestic driveway applications using MOT Type 1, a good quality non-woven geotextile like DriveTex (90gsm) provides an excellent balance of separation, filtration, and drainage. If the ground is particularly soft or the anticipated traffic is very heavy, a woven membrane might offer superior stabilisation.

Installation Tips

Proper installation is key to the effectiveness of your geotextile membrane:

1. Prepare the Subgrade: Ensure the ground is excavated to the required depth, compacted, and free from sharp objects.
2. Lay the Membrane: Unroll the geotextile membrane over the prepared subgrade. Ensure it lies flat without creases or folds.
3. Overlap: Overlap adjacent sections of the membrane by at least 150mm (6 inches) to ensure continuous coverage and prevent soil migration. For heavier duty applications, a larger overlap might be specified.
4. Secure: Use pegs or heavy aggregate to hold the membrane in place, especially in windy conditions or on slopes.
5. Lay the MOT Type 1: Carefully spread the MOT Type 1 aggregate over the membrane, avoiding the use of heavy machinery that could damage the fabric during the initial placement.
6. Compact: Compact the MOT Type 1 in layers to achieve the desired stability.

Frequently Asked Questions

Q1: Do I really need a membrane under my MOT Type 1 driveway?

A1: Yes, it is highly recommended. A membrane prevents your sub-base from mixing with the soil below, which maintains drainage and prevents premature failure like sinking or rutting. It also hinders weed growth from below.

Q2: What's the difference between woven and non-woven geotextiles for driveways?

A2: Woven fabrics are generally stronger and better for load-bearing stabilisation, while non-woven fabrics excel at filtration and drainage. For most driveways, a non-woven is sufficient and often preferred for its drainage properties.

Q3: Is 90gsm enough for a driveway membrane?

A3: For most domestic driveways carrying cars, a 90gsm or 100gsm membrane is generally considered adequate. Heavier duty applications might benefit from a higher GSM or a woven fabric.

Q4: Can I use the membrane for weed control on top of the MOT?

A4: While the membrane under the MOT prevents weeds from coming up from the soil, it doesn't typically provide significant weed suppression for the surface itself. For surface weed control, a separate, often UV-stabilised, membrane is laid on top of the aggregate before the final surface layer (e.g., gravel, paving slabs).

Q5: How much overlap do I need between membrane sections?

A5: A minimum overlap of 150mm is standard. Always check the manufacturer's specific recommendations, as some applications may require a larger overlap for optimal performance.

By understanding the role and types of geotextile membranes available, you can make an informed decision to ensure your MOT Type 1 driveway is built on a solid, stable, and long-lasting foundation.
