Mastering Mazda Wheel Alignment

Experiencing a persistent pull to one side, uneven tyre wear, or a steering wheel that isn't centred when driving straight? These are classic indicators that your Mazda might be suffering from wheel alignment problems. While alignment issues can be frustrating and potentially costly if left unaddressed, understanding the causes and solutions can empower you to get your Mazda back to its optimal driving condition. This comprehensive guide will delve into the common culprits behind Mazda alignment issues and provide practical advice on how to overcome them, ensuring a safer, more comfortable, and efficient driving experience.

Understanding Wheel Alignment: The Fundamentals

Before we dive into specific Mazda problems, it's crucial to grasp what wheel alignment actually is. Wheel alignment refers to the adjustment of your car's suspension so that the wheels are set to the correct angles. These angles dictate how your tyres make contact with the road, significantly impacting steering, handling, and tyre longevity. The key angles involved are:

• Camber: The inward or outward tilt of the top of the tyre when viewed from the front of the car. Positive camber means the top tilts outward, negative camber means it tilts inward, and zero camber means the tyre is perfectly vertical.
• Caster: The angle of the steering axis when viewed from the side of the car. It affects steering stability and the tendency of the wheels to return to centre after a turn.
• Toe: The inward or outward angle of the tyres when viewed from above. Toe-in means the front edges of the tyres are closer together than the rear edges, while toe-out means they are further apart.
• Thrust Angle: The direction in which the rear axle is pointing relative to the car's centreline. An incorrect thrust angle can cause the car to 'dog track' (move sideways).

When these angles are out of specification, your Mazda's handling can be severely compromised. Fortunately, most alignment angles can be adjusted by a qualified technician.

Common Causes of Mazda Wheel Alignment Problems

Several factors can knock your Mazda's alignment out of kilter. Identifying the root cause is the first step towards a successful resolution.

1. Potholes and Road Imperfections

This is perhaps the most common reason for alignment issues. Hitting a deep pothole or a particularly aggressive speed bump at speed can jolt your suspension components, bending or displacing them and altering the wheel angles. Even seemingly minor impacts can contribute to gradual misalignment over time.

2. Kerb Strikes

Maneuvering too close to kerbs, especially during parking or tight turns, can exert significant force on your wheels and suspension. A forceful kerb strike, particularly on the front wheels, can easily knock the toe and camber angles out of alignment.

3. Worn Suspension Components

Over time, various suspension parts can wear out. Bushings, ball joints, tie rod ends, and control arms are all susceptible to wear and tear. When these components become loose or develop excessive play, they can no longer hold the wheels at their intended angles, leading to alignment problems. Regular inspection and replacement of worn parts are crucial.

4. Accidents and Collisions

Even minor fender benders can cause structural damage or bend suspension components, directly impacting wheel alignment. If your Mazda has been in an accident, a thorough alignment check is always recommended, even if the damage doesn't appear significant.

5. Spring Sag or Breakage

While less common, a sagging or broken coil spring can alter the ride height of your Mazda, which in turn affects camber and caster angles. This can lead to noticeable pulling and uneven tyre wear.

Diagnosing Alignment Issues in Your Mazda

Recognising the symptoms is key to addressing alignment problems promptly. Pay close attention to these signs:

• Car Pulling to One Side: If your Mazda consistently drifts to the left or right when you're driving on a straight, level road (and you're not actively steering), it's a strong indicator of an alignment issue.
• Uneven Tyre Wear: This is a very tell-tale sign. Look for wear patterns on your tyres:
• Inner or Outer Edge Wear: Typically indicates a camber issue. If the inner edge is worn, you likely have excessive negative camber; if the outer edge is worn, it's likely excessive positive camber.
• Feathering (Sawtooth Pattern): Where the tread blocks are worn smooth on one edge and have a sharp edge on the other. This often points to a toe problem.
• Scuffing or Greasy Appearance: Can also be a sign of toe issues.
• Crooked Steering Wheel: If your steering wheel isn't centred when your Mazda is driving straight, your toe settings are almost certainly out of adjustment.
• Vibrations or Shaking: While often associated with wheel balancing, severe alignment issues can sometimes manifest as vibrations, particularly at higher speeds.
• Squealing Tyres: Misaligned tyres can scrub against the road surface, causing them to squeal even when you're not turning sharply.

When to Get Your Alignment Checked

It's not just about experiencing problems. Proactive checks are wise:

• After hitting a significant pothole or kerb.
• After an accident or collision.
• When replacing suspension components (e.g., shock absorbers, control arms).
• When replacing tyres (to ensure the new tyres wear evenly).
• As part of your regular vehicle maintenance schedule, perhaps annually or every 10,000-15,000 miles, especially if you drive on rough roads.

How to Overcome Mazda Alignment Problems: The Solutions

Once diagnosed, the solution usually involves a professional wheel alignment service. However, understanding the process and potential pitfalls is beneficial.

1. Professional Wheel Alignment Service

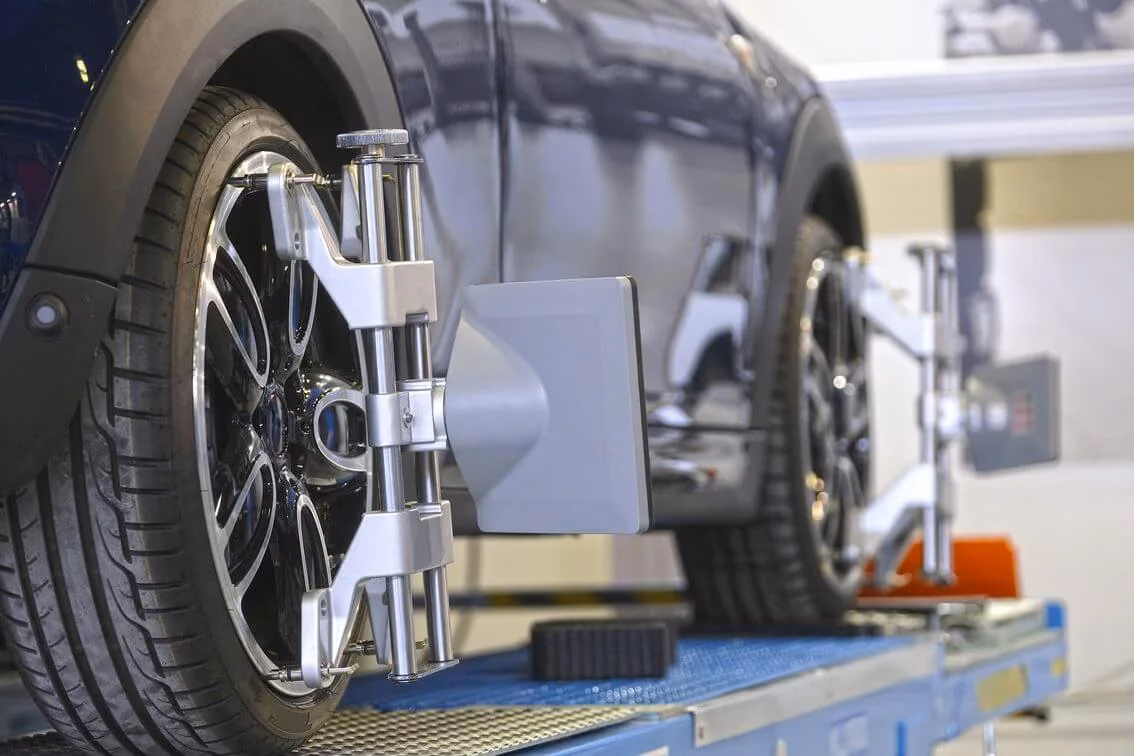

This is the most effective way to correct alignment issues. A reputable garage will use a sophisticated alignment rig, often employing lasers or cameras, to measure the precise angles of all four wheels. They will then adjust the various suspension components (like tie rods for toe, and cam bolts or eccentric adjusters for camber and caster) to bring these angles back within Mazda's specifications.

What to Expect During an Alignment Service:

A typical alignment service involves:

1. Pre-alignment Inspection: The technician will check for worn suspension parts, loose steering components, and tyre condition. If worn parts are found, they must be replaced before alignment can be performed effectively.
2. Measuring Existing Angles: The alignment rig measures the current camber, caster, and toe for each wheel.
3. Adjustments: Based on the measurements and Mazda's specifications, the technician will make adjustments. For example, turning the tie rod ends adjusts the toe angle. For camber and caster, adjustment points are often integrated into the suspension design (e.g., eccentric bolts).
4. Post-alignment Check: The technician will re-measure the angles to confirm they are within specification and provide you with a printout of the before-and-after readings.

2. Addressing Worn Suspension Components

As mentioned, worn suspension parts are a common barrier to achieving a proper alignment. If your inspection reveals worn ball joints, tie rod ends, bushings, or control arms, these must be replaced. Simply performing an alignment on a vehicle with worn components will only provide a temporary fix, as the play in the worn parts will cause the alignment to drift again quickly.

3. Repairing Structural Damage

If your Mazda has suffered damage from an accident, especially to the chassis or suspension mounting points, these issues must be repaired by a body shop before a proper wheel alignment can be carried out. Misalignment caused by bent chassis components requires structural repair, not just suspension adjustments.

4. Tyre Pressure and Condition

While not a direct cause of misalignment, incorrect tyre pressure or significantly uneven tyre wear can mask or exacerbate alignment symptoms. Always ensure your tyres are inflated to the correct pressure as per your Mazda's placard (usually found on the driver's side doorjamb) and check their condition before an alignment.

Preventative Measures to Maintain Mazda Alignment

The best way to deal with alignment problems is to prevent them from occurring in the first place. Consider these tips:

• Drive Carefully: Avoid hitting potholes, kerbs, and debris on the road whenever possible. Anticipate road conditions and slow down for bumps.
• Regular Inspections: Have your suspension and steering components checked periodically during routine servicing. This can catch wear before it leads to significant alignment issues.
• Tyre Rotation: Regularly rotating your tyres (as recommended in your Mazda's owner's manual) helps ensure even wear and can highlight any developing alignment problems.
• Mindful Parking: Be cautious when parking, especially in tight spaces, to avoid kerb strikes.

Mazda Specific Considerations

While the principles of wheel alignment are universal, some Mazda models might have specific alignment nuances or common issues. For instance, certain generations of the Mazda 3 or Mazda CX-5 might be more prone to specific types of wear or require particular adjustment procedures. Always refer to your Mazda's owner's manual or consult a dealership or specialist mechanic familiar with your specific model for any unique requirements.

Table: Common Symptoms and Their Likely Causes

Frequently Asked Questions (FAQs)

Q1: How much does a wheel alignment typically cost for a Mazda?

A1: The cost can vary depending on your location, the garage, and the specific Mazda model. Generally, a standard four-wheel alignment can range from £70 to £150 in the UK. However, if worn parts need replacing, this will add to the cost.

Q2: Can I adjust my Mazda's wheel alignment myself?

A2: While basic toe adjustments might be possible on some older vehicles, modern Mazdas often have complex suspension geometries that require specialised equipment and knowledge. It is strongly recommended to have alignment performed by a professional to ensure accuracy and prevent further damage.

Q3: How long does a wheel alignment take?

A3: A typical wheel alignment service, assuming no worn parts are found, usually takes between 45 minutes to 1.5 hours.

Q4: Will a wheel alignment improve my fuel efficiency?

A4: Yes, correct wheel alignment ensures your tyres roll more freely with less resistance, which can contribute to improved fuel economy. Misaligned tyres create drag.

Q5: My Mazda pulls to the left after hitting a pothole. What should I do?

A5: This is a clear sign of an alignment issue. Schedule an appointment with a reputable garage for a professional wheel alignment check as soon as possible to prevent further tyre wear and potential damage to your suspension.

In conclusion, maintaining proper wheel alignment in your Mazda is vital for safe handling, optimal tyre life, and overall driving comfort. By understanding the common causes, recognising the symptoms, and opting for professional servicing when needed, you can effectively overcome alignment problems and keep your Mazda performing at its best.
