Fuel Injector Cleaner: What It Does

Your car's engine relies on a precise delivery of fuel to operate efficiently. At the heart of this system lies the fuel injector, a sophisticated component responsible for atomising fuel and spraying it into the combustion chamber. Over time, these crucial parts can become clogged with carbon deposits, varnish, and other residues, leading to a host of performance issues. This is where a fuel injection cleaner comes into play. But what exactly does a fuel injection cleaner do, and how can it benefit your vehicle? Let's delve into the mechanics of fuel injection cleaning and the essential tools for diagnosing fuel system health.

The Role of Fuel Injectors

Fuel injectors are essentially small, electronically controlled valves. When the engine's computer (ECU) signals them, they open for a precisely timed duration, allowing fuel to be injected. For optimal combustion, the fuel needs to be atomised into a fine mist, ensuring it mixes thoroughly with air. This atomisation is critical for efficient burning, power output, and emissions control. However, as fuel circulates, especially with varying fuel qualities, deposits can build up on the injector nozzle and internal pintle. These deposits disrupt the spray pattern, reduce the amount of fuel injected, and can even cause the injector to stick open or closed.

What a Fuel Injection Cleaner Does

A fuel injection cleaner, often referred to as a fuel system cleaner or injector cleaner, is a chemical additive designed to dissolve and remove these harmful deposits from the fuel injectors. When added to your fuel tank, the cleaner circulates with the fuel, working its way through the fuel lines, fuel rail, and ultimately into the injectors themselves. The solvents within the cleaner break down the carbon, varnish, and gum that have accumulated on the injector tips and internal passages. This process helps to:

• Restore the spray pattern: By removing obstructions, the cleaner allows the injector to atomise fuel correctly, creating a fine, conical mist.
• Improve fuel atomisation: This leads to more complete combustion, maximising the energy extracted from each drop of fuel.
• Increase fuel flow: Cleaning allows the injectors to deliver the correct volume of fuel as specified by the ECU.
• Reduce engine knocking and hesitation: Uneven fuel delivery can cause these issues.
• Enhance fuel economy: With injectors working optimally, the engine consumes fuel more efficiently.
• Lower emissions: Better combustion leads to cleaner exhaust gases.
• Prevent future build-up: Many cleaners contain detergents that help keep the system clean after the initial cleaning.

Types of Fuel Injection Cleaners

There are generally two main ways fuel injection cleaners are applied:

1. In-Tank Additives

These are the most common type. You simply pour the bottle of cleaner into your fuel tank. As you drive, the cleaner mixes with the petrol or diesel and circulates through the fuel system. While convenient, their effectiveness can sometimes be limited as they might not achieve the high concentration needed to tackle severe build-up, and they rely on the fuel system itself to deliver the cleaner to the injectors.

2. Professional Cleaning Services (Canister Method)

This method involves directly connecting a canister filled with a concentrated fuel injection cleaner solvent to the vehicle's fuel rail, bypassing the fuel tank and pump. The engine then runs solely on this potent cleaning solution for a period. This is a much more aggressive and effective method for cleaning heavily fouled injectors and can often resolve issues that in-tank additives cannot. The kit you mentioned, with its adapters and gauge, is typically used for this type of service.

When Should You Use a Fuel Injection Cleaner?

While modern fuels often contain detergents, it's still beneficial to use a fuel injection cleaner periodically, especially if you notice any of the following symptoms:

• Reduced fuel economy
• Loss of engine power or acceleration
• Rough idling
• Engine hesitation or misfires
• Difficulty starting
• Increased exhaust emissions

A good preventative maintenance schedule might include using an in-tank cleaner every 3,000 to 5,000 miles, or at every oil change. For more stubborn issues, a professional canister cleaning might be necessary.

Understanding Fuel System Testing

While a fuel injection cleaner can resolve many issues, it's important to understand that fuel system problems can stem from various components. A comprehensive fuel system diagnosis often involves several tests to pinpoint the exact cause of poor performance. The kit you described is designed to facilitate these tests:

1. Fuel Pressure Testing

This is a fundamental test. A fuel pressure gauge (like the one in your kit, capable of reading 0-100 PSI) is connected to the fuel rail. The gauge measures the pressure at which the fuel is being delivered to the injectors. Low fuel pressure can indicate a weak fuel pump, a clogged fuel filter, a faulty fuel pressure regulator, or a leak in the system. Incorrect pressure means the injectors receive too little fuel, leading to a lean fuel mixture and potential engine damage.

2. Diagnosing Weak Fuel Pumps

A fuel pump is responsible for drawing fuel from the tank and sending it under pressure to the engine. If the pump is weakening, it won't be able to maintain the necessary pressure, especially under load. Fuel pressure testing is the primary way to diagnose a weak fuel pump. If the pressure drops significantly when the engine is under acceleration or high demand, the fuel pump is a likely culprit.

3. Restricted Fuel Filters

The fuel filter is designed to trap dirt, rust, and other contaminants before they reach the injectors. Over time, this filter can become clogged, restricting fuel flow and causing a drop in fuel pressure. A clogged fuel filter can mimic the symptoms of a weak fuel pump. Replacing the fuel filter is a relatively simple maintenance task that can often resolve fuel delivery issues.

4. Testing for Fuel Flow

While pressure testing tells you how hard the fuel is being pushed, fuel flow testing measures the actual volume of fuel the pump can deliver over a specific period. This is often done by disconnecting the fuel line and running the pump into a calibrated container for a set time. Low fuel flow, even with good pressure, indicates a problem with the fuel pump's capacity or a significant restriction upstream (like in the fuel pickup sock in the tank).

5. Performing Leak-Down Tests

A leak-down test for the fuel system typically refers to checking for leaks within the fuel rail and injector system. This can be done by monitoring the fuel pressure after the pump has shut off. If the pressure drops rapidly, it indicates a leak. This could be a faulty injector seal, a leaking fuel pressure regulator, or a problem with the fuel rail itself. The Schrader valve on the adapters allows for easy connection and disconnection of gauges to perform these checks.

The Importance of the Fuel Injection Service Application Manual

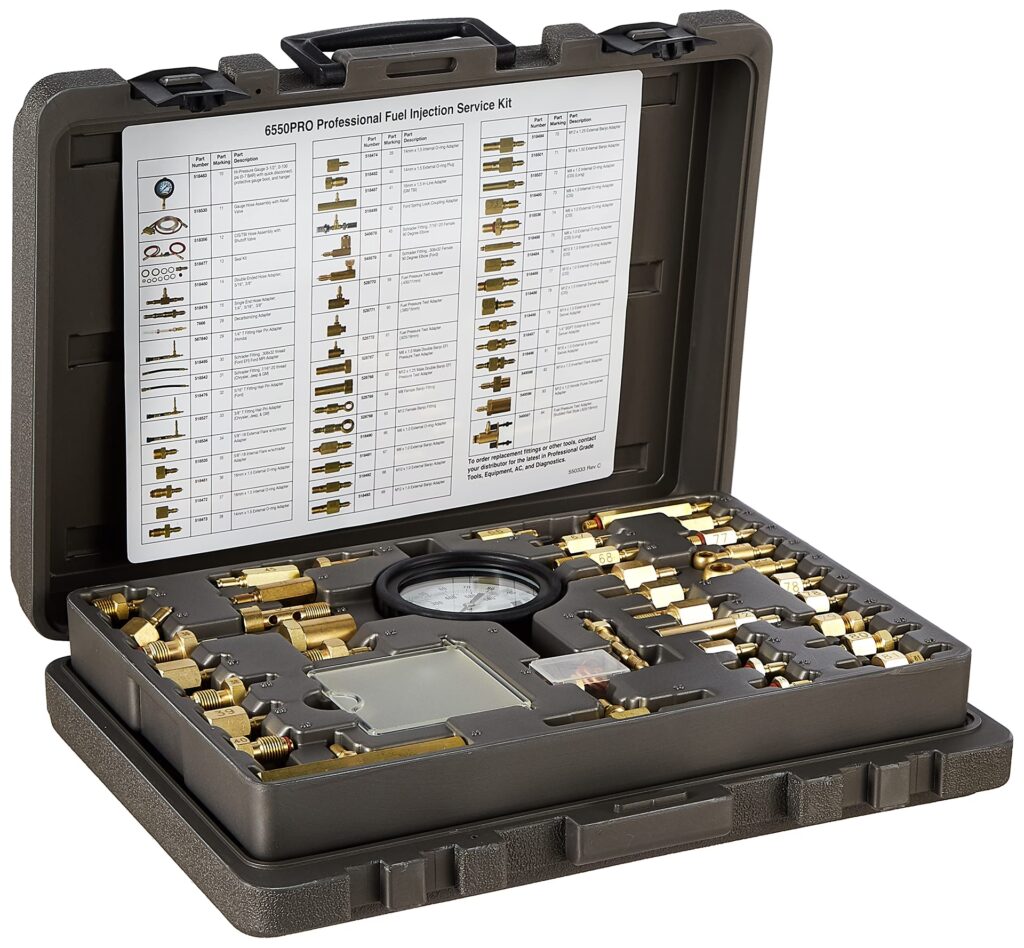

The inclusion of a 1997-2013 Fuel Injection Service Application Manual is invaluable. Modern vehicles have complex fuel systems, and each model and year can have specific procedures, connection points, and pressure specifications. This manual, covering vehicles from 1997 onwards, provides the necessary information on which of the 47 OTC fuel injection system adapters to use for specific vehicles, where to connect the pressure gauge, the correct fuel pressure readings to expect, and diagnostic flowcharts. Without the correct adapter and knowledge, attempting fuel system testing or cleaning can be ineffective or even damaging.

What's Not Included and Why It Matters

It's crucial to note that the Fuel Injection Cleaner Canister and Fuel Injection Cleaner Solvent are sold separately. This means that while you have the tools to test your fuel system and connect for a professional clean, you'll need to purchase the cleaning solution and potentially the canister itself if you don't already have one. The replacement seal kit is also a vital component, as seals can degrade over time and cause leaks, compromising the integrity of your fuel system tests and cleaning procedures.

Conclusion

A fuel injection cleaner is a powerful tool for maintaining your engine's health and performance. By dissolving harmful deposits, it restores optimal fuel atomisation, improves efficiency, and can help prevent costly repairs. Understanding how to test your fuel system using tools like a fuel pressure gauge, and having the correct application manual and adapters, is essential for accurate diagnosis. Whether you opt for a simple in-tank additive or a more intensive professional cleaning, keeping your fuel injectors clean is a vital part of preventative car maintenance.

Frequently Asked Questions

Q1: How often should I use a fuel injection cleaner?

For in-tank additives, using them every 3,000 to 5,000 miles or at every oil change is a good preventative measure. For professional cleaning, it depends on the vehicle's condition and symptoms, but it can be done as needed for noticeable performance issues.

Q2: Can fuel injection cleaners damage my engine?

When used as directed, fuel injection cleaners are generally safe. However, using an excessively concentrated or inappropriate cleaner, or performing a professional clean incorrectly, could potentially cause issues. Always follow manufacturer instructions and use quality products.

Q3: What are the signs of clogged fuel injectors?

Common signs include reduced fuel economy, loss of engine power, rough idling, hesitation during acceleration, and increased emissions.

Q4: Is a fuel pressure test the same as a fuel flow test?

No, they are different. A pressure test measures the force of the fuel delivery, while a flow test measures the volume of fuel delivered over time. Both are important for a complete diagnosis.

Q5: Why are adapters and a manual important for fuel system testing?

Different vehicles have different fuel system designs and connection points. The correct adapters and manual ensure you can safely and accurately connect testing equipment and interpret the results for your specific vehicle.
