When working with electrical machinery, understanding the specifics of each component is paramount. The MAA motor series, known for its robust design and versatility, presents a particular point of interest for many technicians and engineers: the number of terminals it possesses. This article delves into the details of MAA motor terminal configurations, offering clarity and practical insights for installation, maintenance, and troubleshooting.
Understanding MAA Motor Terminals

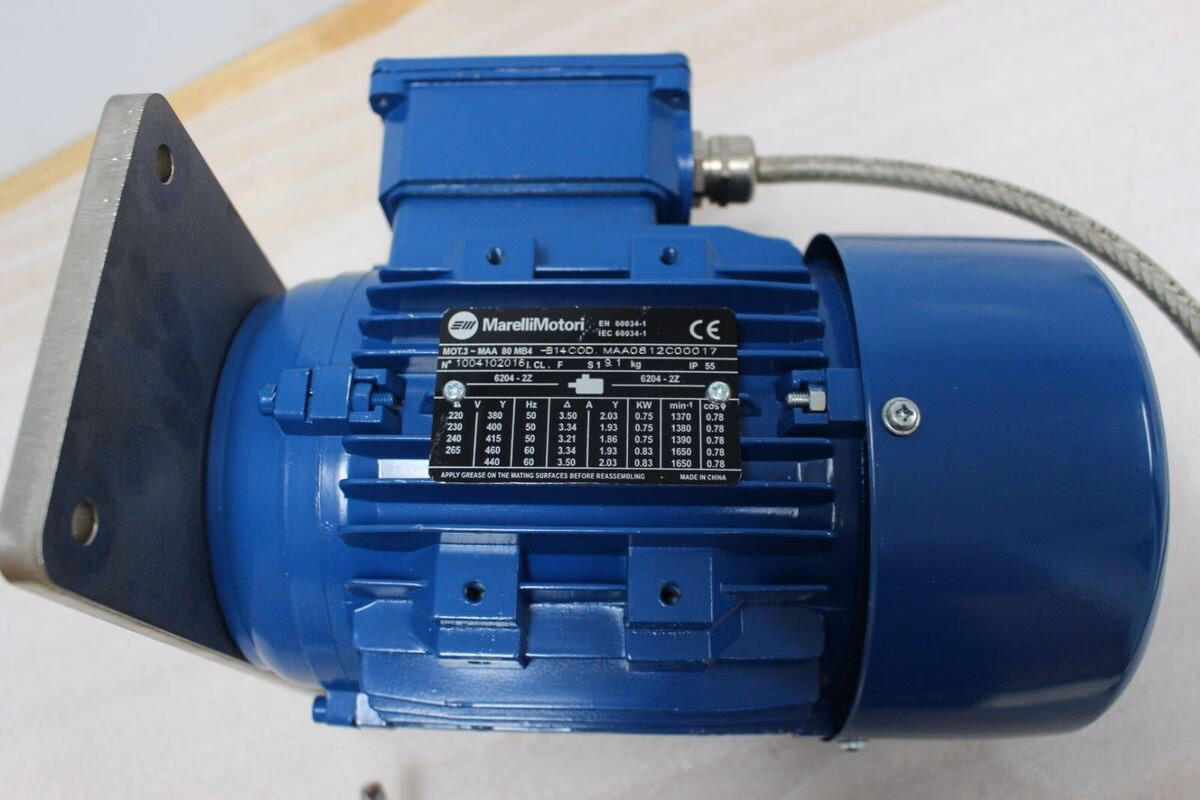

The MAA motor series is designed with user-friendliness and adaptability in mind. A key aspect of this design philosophy is the configuration of its terminal boxes. Typically, the terminal boxes for MAA motors are situated on the top of the electrical machine. When we consider the standard reference orientation, such as the IM 1001 - B3 configuration, these terminal boxes are usually equipped with six terminals. This standard configuration is designed to accommodate a wide range of common electrical connections and configurations.
Terminal Box Placement Flexibility
One of the notable features of MAA motors, particularly those within the frame sizes ranging from 100 up to and including 160, is the flexibility offered in terminal box placement. For these specific frame sizes, users have the option to mount the terminal box on either the right or the left side of the motor. This choice is made from the perspective of the D-end (drive-end) side of the motor. This adaptability allows for easier integration into various installation environments, where space constraints or existing wiring layouts might dictate a preferred side for the terminal box.
Why Six Terminals?
The standard provision of six terminals on MAA motors is not arbitrary. It is a deliberate design choice that caters to the most common motor connection methods, primarily the direct-on-line (DOL) start and star-delta (Y-Δ) starting methods.
Let's break down what these six terminals typically represent:
- Terminals U1, V1, W1: These are the primary connection points for the incoming power supply. They connect to the motor windings.
- Terminals U2, V2, W2: These are the corresponding connection points for the other end of the motor windings. In a star connection, these would be joined together. In a delta connection, they would be connected to the other phase lines.
This six-terminal arrangement is crucial for enabling different starting methods without requiring additional external junction boxes for basic configurations. For instance:
- Direct-On-Line (DOL) Start: In this method, the motor is connected directly to the power supply. The six terminals allow for straightforward connection where U1, V1, W1 are connected to the line phases (L1, L2, L3) and U2, V2, W2 are internally linked or can be externally linked to form the start of the windings.
- Star-Delta (Y-Δ) Start: This is a common method for reducing starting current. It requires connecting the motor windings in a star configuration initially and then switching to a delta configuration for full-speed operation. The six terminals are essential for facilitating this changeover, allowing the internal connections between U2, V2, and W2 to be made externally to form the star point, and then reconfigured for delta operation.
Identifying Terminals for Safe Connection
Proper identification of motor terminals is a critical safety and operational requirement. The standard markings on MAA motors are designed to be clear and unambiguous. While specific markings can vary slightly between manufacturers or over time, the general convention is as follows:
| Terminal Designation | Purpose |
|---|---|
| U1, V1, W1 | Incoming power supply connections (Phase A, B, C) |
| U2, V2, W2 | Other ends of stator windings (for star or delta connections) |
It is always recommended to consult the specific motor's nameplate and documentation for the most accurate terminal identification. The nameplate often provides crucial information about the motor's voltage ratings, current, speed, and sometimes even a wiring diagram or terminal markings.
Beyond the Basics: What If More Connections Are Needed?
While the standard six-terminal configuration covers most applications, some advanced setups or specific motor types might require additional connections. For instance, motors with internal thermal protection devices (thermistors or thermal cutouts) will have extra terminals. These extra terminals are usually clearly marked and provide a way to integrate the protection mechanism into the motor control circuit.
Important Note: Always ensure that any modifications or additional connections are performed by qualified personnel and in accordance with local electrical codes and safety standards. Incorrect wiring can lead to motor damage, system failure, and potential hazards.
Troubleshooting Terminal Issues
When troubleshooting an MAA motor, the terminals are often the first place to check for common issues:
- Loose Connections: Vibrations during operation can lead to loose terminal connections, causing intermittent power loss or complete failure. Regularly inspecting and tightening terminals is a good preventative maintenance practice.
- Corrosion: In environments with high humidity or exposure to chemicals, terminals can corrode, leading to poor conductivity and increased resistance. Cleaning corroded terminals with appropriate contact cleaner is essential.
- Incorrect Wiring: As mentioned, incorrect connections, especially during star-delta transitions, can prevent the motor from starting or cause it to run inefficiently and overheat. Double-checking wiring against the motor's diagram is vital.
- Damaged Terminals: Physical damage to the terminals themselves can occur during installation or maintenance. Damaged terminals may need to be repaired or replaced.
Summary of MAA Motor Terminal Configurations
To summarise, MAA motors, in their standard configuration, are equipped with six terminals. This allows for flexible connection methods like DOL and star-delta starting. Furthermore, motors in frame sizes 100-160 offer the added convenience of a reversible terminal box placement, enhancing installation flexibility. Understanding these features is key to successfully integrating and maintaining MAA motors in a variety of industrial and commercial applications.
Frequently Asked Questions
How many terminals does a standard MAA motor have?
A standard MAA motor is typically equipped with six terminals.
Can the terminal box on an MAA motor be moved?
Yes, for frame sizes 100 to 160, the terminal box can be mounted on either the right or left side, as viewed from the D-end.
What are the six terminals on an MAA motor used for?
The six terminals are used for connecting the incoming power supply (U1, V1, W1) and for configuring the motor windings for different starting methods like direct-on-line or star-delta (U2, V2, W2).
What should I do if my MAA motor has more than six terminals?
If your MAA motor has more than six terminals, it likely has additional features such as internal thermal protection devices. Refer to the motor's nameplate and documentation for specific details on these extra terminals.
Where are the terminal boxes usually located on an MAA motor?
The terminal boxes are normally placed on the top of the electrical machine, according to the IM 1001 - B3 reference.
