The Importance of Fuel Injector Valve Testing
Ensuring the optimal performance of your engine hinges on several critical components, and the fuel injector valve stands as a paramount element. These sophisticated devices are responsible for delivering a precise and atomised spray of fuel into the combustion chamber at the right moment. When an injector valve malfunctions, it can lead to a cascade of detrimental effects, including reduced engine power, increased fuel consumption, rough idling, and in severe cases, internal engine damage. MAN Diesel, a leading name in engine technology, strongly emphasizes the critical role of correct testing of fuel valves. This proactive approach is not merely a suggestion but a fundamental requirement for achieving and maintaining good performance from their engines. Regular testing and maintenance of these valves are key factors in preventing costly repairs and ensuring the longevity of your engine.
Why is Fuel Valve Testing Essential?
The rationale behind rigorous fuel valve testing is multifaceted. Firstly, it allows for the early detection of potential issues before they escalate into significant problems. A fuel injector valve can suffer from various ailments: it might become clogged with carbon deposits, its spray pattern could degrade, or the opening and closing pressures might deviate from the manufacturer's specifications. Each of these issues directly impacts the efficiency and effectiveness of combustion.
A clogged injector can lead to a poor or non-existent fuel spray, resulting in incomplete combustion and a loss of power. Conversely, an injector that leaks can cause unmetered fuel to enter the cylinder, leading to excessive smoke, increased fuel consumption, and potential hydraulic lock if the leakage is severe. A degraded spray pattern means fuel is not atomised correctly, leading to uneven combustion, increased emissions, and potential damage to piston crowns and cylinder liners due to hot spots.
MAN Diesel's experience with their engines has consistently shown that adhering to proper testing procedures during overhauls and adjustments significantly aids in maintaining the engine's intended performance characteristics. By integrating this information into your engine's instruction book, you ensure that these vital checks are not overlooked, contributing to a reliable and efficient operation.
Common Symptoms of Faulty Fuel Injector Valves
Recognising the signs of a failing fuel injector valve is the first step towards addressing the problem. Keep an eye out for the following:
- Engine Misfires: You might notice the engine running rough, with a noticeable lack of power or a stuttering sensation, especially during acceleration.
- Increased Fuel Consumption: If you're finding yourself filling up the tank more frequently than usual, and other factors remain constant, a faulty injector could be the culprit.
- Rough Idling: The engine may shake or vibrate excessively when idling, indicating an uneven fuel delivery to one or more cylinders.
- Black Smoke from Exhaust: This often signifies incomplete combustion, which can be caused by poor atomisation or an incorrect fuel-air mixture, often stemming from faulty injectors.
- Difficulty Starting: If the engine is hard to start, particularly when cold, it could be due to injectors that are not delivering fuel effectively.
- Reduced Engine Power: A general feeling of sluggishness and a loss of acceleration capability are common indicators.
How to Test a Fuel Injector Valve
Testing fuel injector valves typically requires specialized equipment and a degree of mechanical knowledge. The process generally involves removing the injector from the engine and connecting it to a test bench. Here’s a general overview of the steps involved:
1. Visual Inspection:
Before connecting to a test bench, a thorough visual inspection is crucial. Look for:
- External Damage: Check for any cracks, corrosion, or physical damage to the injector body or nozzle.
- Leakage: Inspect the injector tip for any signs of fuel weeping or dripping when the injector is not being actuated.

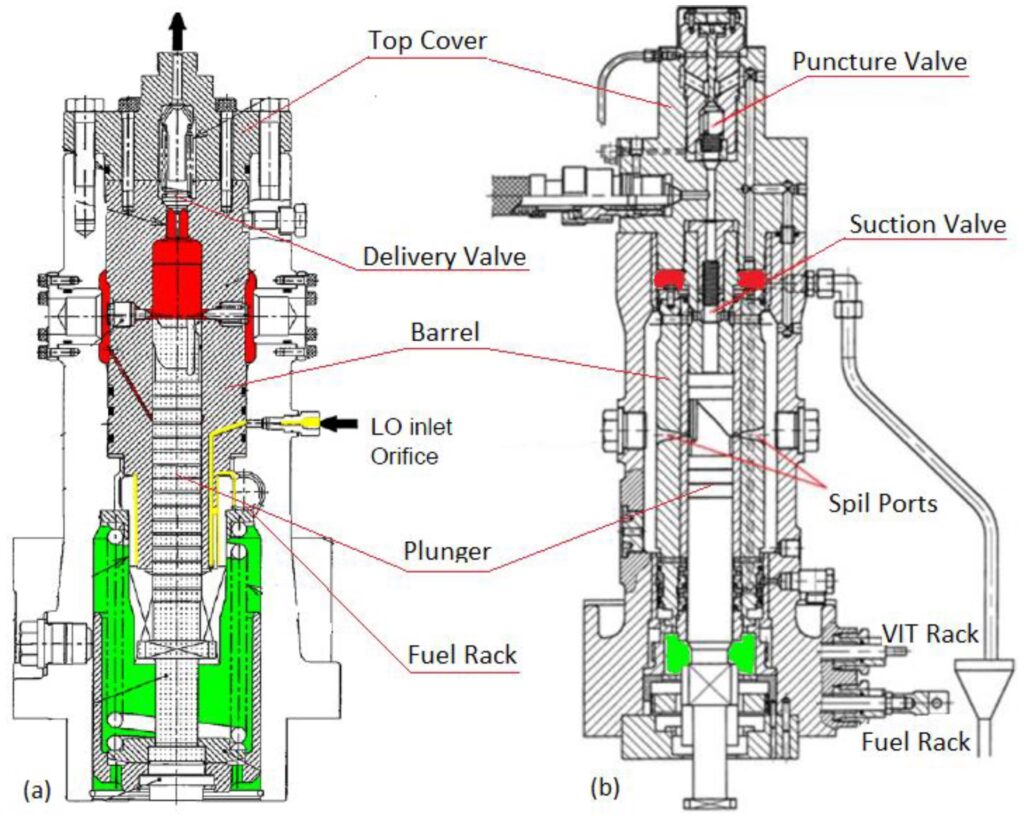

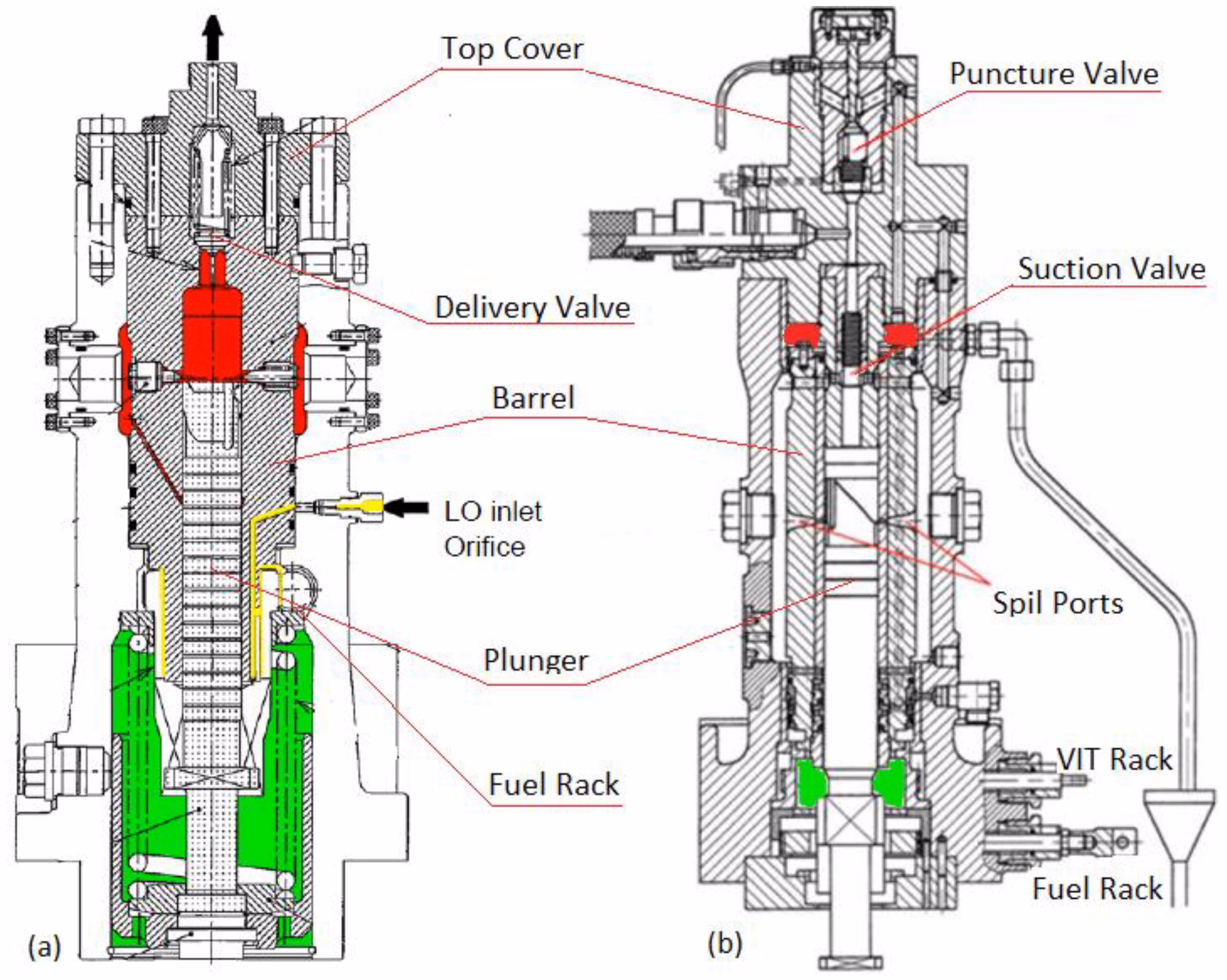

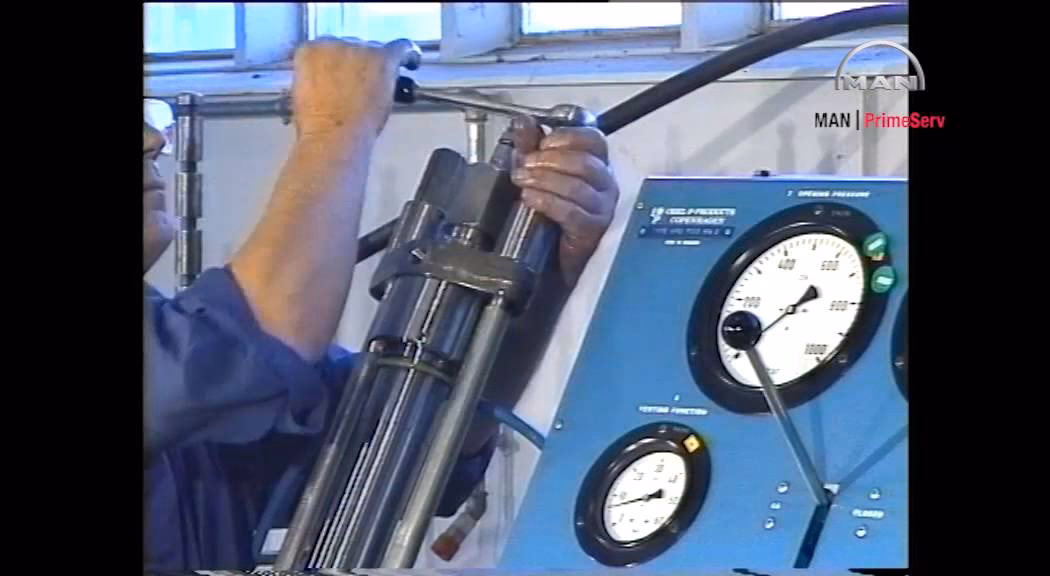

2. Bench Testing Procedures:
A fuel injector test bench allows for precise measurement of several key parameters:
a) Opening Pressure Test:
This test determines the pressure at which the injector nozzle opens and begins to spray fuel. The test bench applies increasing pressure to the injector until it opens. The pressure reading at this point should fall within the manufacturer's specified range. A pressure that is too low indicates a worn spring or valve seat, while a pressure that is too high might suggest carbon buildup or a faulty spring. This is a critical parameter for proper fuel delivery.
b) Spray Pattern Test:
The quality of the fuel spray is vital for efficient combustion. The test bench will actuate the injector, and the resulting spray pattern is observed. A good spray pattern should be fine, atomised, and evenly distributed, forming a conical or specific shape depending on the injector design. A distorted, dribbling, or uneven spray indicates a problem with the nozzle holes or the internal valve mechanism.
c) Leakage Test:
With the injector pressurized to just below its opening pressure, it should not leak fuel from the nozzle tip. Any sign of dripping or seeping indicates a worn valve seat or improper sealing, which can lead to pre-combustion or poor spray characteristics.
d) Flow Rate Test:
This test measures the amount of fuel the injector delivers over a specific period at a given pressure and actuation frequency. The flow rate should match the manufacturer's specifications. Variations in flow rate can significantly impact the fuel-air mixture and engine performance.
3. Electrical Resistance Test (for Solenoid Injectors):
For electronically controlled injectors (common in modern diesel and some petrol engines), the electrical resistance of the solenoid coil can be measured. This resistance should be within the specified range. An out-of-spec resistance can indicate a damaged coil, leading to improper actuation.
MAN B&W Specifics and New Test Criteria
MAN Diesel, in its commitment to engine efficiency and reliability, often updates its recommended testing procedures. While specific "new test criteria" for slide fuel valves might be detailed in proprietary documentation like the "LIFE & LIVING TRILOGY - PART (3) REALITY & MYSTERY.pdf," the general principles of testing remain consistent. For slide fuel valves, emphasis is placed on the precision of the sliding mechanism and the sealing integrity. Wear in the slide mechanism can lead to inconsistent fuel delivery and leakage. The test procedures will focus on ensuring smooth operation of the slide, accurate seating, and the absence of internal leakage under pressure. Always refer to the latest MAN B&W service bulletins and instruction manuals for the most up-to-date and specific test criteria relevant to your engine model.
Troubleshooting and Common Issues
When testing reveals issues, common problems and their potential causes include:
| Symptom | Potential Cause | Corrective Action |
|---|---|---|
| Low Opening Pressure | Worn valve spring, worn valve seat, carbon deposits | Clean, replace spring/valve seat, or replace injector |
| Poor Spray Pattern | Clogged nozzle holes, worn nozzle needle, damaged nozzle seat | Clean nozzle, replace nozzle, or replace injector |
| Leaking Nozzle | Worn valve seat, dirt on valve seat, weak spring | Clean valve seat, replace valve seat, or replace injector |
| Low Flow Rate | Partially clogged injector, worn internal components | Clean injector, or replace injector |
| High Flow Rate | Worn valve seat allowing excessive fuel flow | Replace valve seat or injector |
Maintenance and Prevention
Preventing injector valve issues is often more cost-effective than fixing them. Regular maintenance practices include:
- Using High-Quality Fuel: Contaminated or low-quality fuel can lead to premature wear and clogging.
- Regular Fuel Filter Replacement: A clean fuel filter is essential to prevent debris from reaching the injectors. This is a simple yet vital step.
- Adhering to Service Schedules: Follow the manufacturer's recommended intervals for injector inspection and testing.
- Using Appropriate Cleaning Solvents: When minor clogging is suspected, using manufacturer-approved fuel system cleaners can be beneficial.
Frequently Asked Questions (FAQs)
Q1: How often should I test my fuel injector valves?
It's recommended to test them according to your engine manufacturer's service schedule, which typically aligns with major overhaul periods or specific operating hour intervals.
Q2: Can I test fuel injector valves without a test bench?
While some very basic checks (like visual inspection and listening for unusual noises) can be done on the engine, accurate testing of pressure, spray pattern, and flow rate requires specialized test equipment. Attempting to test without proper tools can be inaccurate and potentially dangerous.
Q3: What happens if I don't test my fuel injector valves?
Neglecting fuel injector valve testing can lead to reduced engine efficiency, increased fuel consumption, potential engine damage, higher emissions, and ultimately, costly repairs or premature engine failure.
Q4: Is it possible to clean a clogged fuel injector valve?
Minor clogging can sometimes be resolved with professional ultrasonic cleaning or by using approved chemical cleaners. However, if the injector has worn internal components or significant damage, replacement is usually the only reliable solution.
Q5: Where can I find the specific test criteria for my engine?
Always refer to the official service manual or technical documentation provided by the engine manufacturer (e.g., MAN Diesel) for the most accurate and up-to-date specifications and testing procedures for your specific engine model.
Conclusion
The fuel injector valve is a precision component that plays an indispensable role in engine operation. Regular, accurate testing is not an optional maintenance task but a fundamental requirement for ensuring optimal performance, fuel efficiency, and the longevity of your engine. By understanding the symptoms of faulty injectors and adhering to proper testing and maintenance protocols, you can prevent costly issues and keep your engine running at its best.
