Magura Hydraulic Brakes: Pads & Rotors Explained

When it comes to the stopping power of your bicycle, particularly with the renowned precision of Magura hydraulic brakes, understanding the individual components is paramount. Many cyclists, especially those new to hydraulic systems or upgrading from mechanical setups, often wonder about the necessity of specific parts. A common query revolves around whether brake pads and disc rotors are indeed required for Magura hydraulic brakes. The straightforward answer is a resounding yes. Unlike older rim brake systems that work directly on the wheel rim, hydraulic disc brakes, including those from Magura, rely on a sophisticated interplay between brake pads and disc rotors to generate stopping force.

Understanding the Components: Pads and Rotors

To truly appreciate why these components are essential, let's delve into their roles within the Magura hydraulic braking system:

Brake Pads: The Friction Makers

Brake pads are the critical interface between the brake caliper and the disc rotor. When you pull the brake lever, hydraulic fluid is pushed through the brake line, actuating the pistons within the caliper. These pistons, in turn, push the brake pads against the spinning disc rotor. The friction generated between the pad material and the rotor is what slows and ultimately stops your bicycle.

Magura, like other reputable brake manufacturers, offers a variety of brake pad compounds, each designed for different riding conditions and preferences. These can generally be categorised into:

• Organic (Resin) Pads: These are typically softer and offer excellent initial bite and modulation. They are quieter and gentler on rotors but may wear out faster and perform less effectively in wet or muddy conditions.
• Metallic (Sintered) Pads: Composed of metal particles, these pads are more durable and offer consistent performance in a wider range of conditions, including wet and muddy trails. They tend to be noisier and can wear rotors faster than organic pads.
• Semi-Metallic Pads: As the name suggests, these offer a blend of organic and metallic materials, aiming to provide a balance of performance, durability, and noise reduction.

The selection of the correct brake pad for your Magura system is crucial for optimal performance and longevity. Always consult your Magura brake manual or a reputable bike shop to ensure compatibility with your specific brake model.

Disc Rotors: The Braking Surface

Disc rotors, also known as brake discs, are the metal discs that attach to your wheel hubs and rotate with the wheels. They provide the surface against which the brake pads apply pressure.

Magura rotors are engineered to work in conjunction with their brake pads and calipers. Key aspects of disc rotors include:

• Material: Most high-quality rotors are made from stainless steel, which offers good heat dissipation and wear resistance.
• Thickness: Rotor thickness can affect braking power and heat management. Thicker rotors generally offer more power and better heat dissipation but can add a small amount of weight.
• Diameter: Rotor diameter is a significant factor in braking power. Larger diameter rotors (e.g., 203mm or 180mm) provide more leverage, resulting in greater stopping power, which is often desirable for downhill riding or heavier riders. Smaller rotors (e.g., 160mm) are lighter and suitable for cross-country riding or lighter riders.
• Design: Rotors come in various designs, including solid, vented, and drilled patterns. These designs influence heat dissipation, weight, and mud clearance. Magura often employs designs that enhance cooling and reduce the risk of brake fade.

The condition and compatibility of your disc rotors are just as important as your brake pads. Damaged, warped, or excessively worn rotors can significantly compromise your braking performance and safety.

How Magura Hydraulic Brakes Work

The magic of Magura hydraulic brakes lies in their closed system. Here's a simplified breakdown:

1. Lever Actuation: When you squeeze the brake lever, you depress a piston within the lever assembly.
2. Fluid Displacement: This piston pushes hydraulic fluid (typically mineral oil for Magura systems) through a sealed brake line.
3. Caliper Engagement: The fluid pressure travels to the brake caliper, where it acts upon pistons within the caliper body.
4. Pad Application: These caliper pistons force the brake pads to clamp down onto the rotating disc rotor.
5. Friction and Deceleration: The friction between the pads and the rotor converts the kinetic energy of the wheel into heat, slowing the wheel down.

This system is efficient because it amplifies the force applied by your hand and transmits it directly to the braking surface with minimal loss of energy. Unlike cable-actuated brakes, hydraulic systems are less susceptible to contamination and require less force at the lever for powerful braking. The effectiveness of this system hinges entirely on the integrity of the pads and rotors.

When to Replace Brake Pads and Rotors

Regular inspection and maintenance are key to ensuring your Magura hydraulic brakes perform optimally and safely. Here's what to look out for:

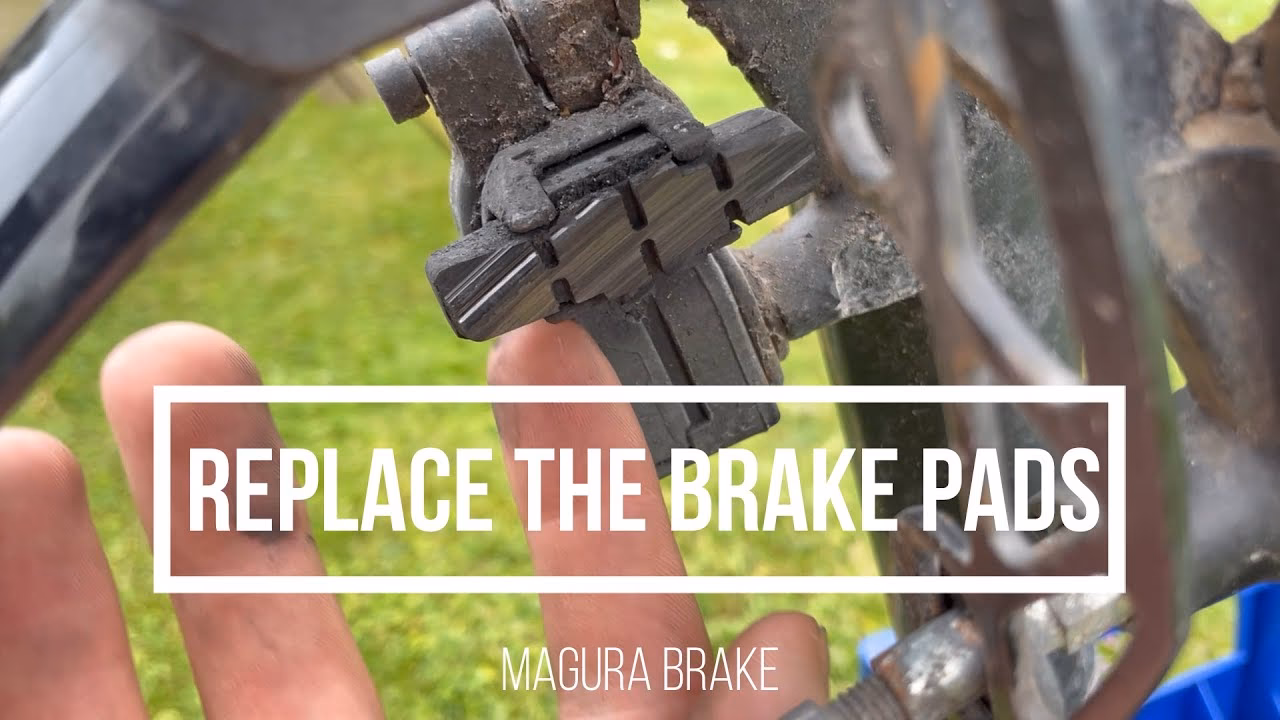

Brake Pad Wear

Brake pads are a consumable item and will wear down over time with use. Signs that your brake pads need replacing include:

• Reduced Braking Power: If you find yourself squeezing the levers harder than usual to achieve the same stopping effect, your pads are likely worn.
• Squealing or Grinding Noises: While some initial noise can be normal, persistent loud squealing or a metallic grinding sound often indicates worn-out pads, especially if a wear indicator is present. Some pads have a small metal tab that will scrape against the rotor when the pad material is nearly gone.
• Visible Pad Material Reduction: You can often visually inspect the brake pads through the caliper. If the friction material is less than 1-2mm thick, it's time for a replacement.
• Contamination: If your pads become contaminated with oil or grease, their effectiveness will be severely compromised. Contaminated pads often need to be replaced, as cleaning is rarely effective.

Disc Rotor Wear and Damage

Disc rotors are more durable but can also be subject to wear and damage:

• Grooving or Scoring: Deep grooves or scoring on the braking surface can reduce the contact area with the pads and impair braking.
• Warping: A warped rotor will cause the brake pads to repeatedly engage and disengage as the wheel spins, leading to a pulsing sensation at the lever and reduced braking efficiency. Warping can occur from overheating or impacts.
• Excessive Thinning: Rotors have a minimum thickness specification, usually printed on the rotor itself. If the rotor wears down to or below this minimum thickness, it must be replaced to prevent catastrophic failure.
• Cracking: While rare, cracks in the rotor can occur due to stress or manufacturing defects. Any sign of a crack necessitates immediate replacement.
• Glazing: Overheating can cause the pad material to glaze onto the rotor surface, creating a smooth, shiny finish that reduces friction.

Maintenance and Best Practices

To keep your Magura hydraulic brakes in top condition, consider these maintenance tips:

• Regular Cleaning: Clean your rotors regularly with a dedicated disc brake cleaner or isopropyl alcohol to remove dirt, oil, and debris. Avoid touching the rotor surface with your bare hands, as skin oils can contaminate them.
• Pad Bedding-In: New brake pads and rotors need to be "bedded in" to achieve optimal performance. This involves a series of controlled stops from a moderate speed, allowing the pad material to transfer evenly onto the rotor surface. Follow the manufacturer's specific bedding-in procedure.
• Inspect for Leaks: Periodically check the brake lines and caliper for any signs of hydraulic fluid leaks.
• Bleeding the System: Over time, air can enter the hydraulic system, leading to a "spongy" lever feel and reduced braking power. Bleeding the brakes removes air and replaces the fluid, restoring optimal performance. Magura systems often require specific bleeding kits and procedures.
• Torque Settings: Ensure that rotor bolts and caliper mounting bolts are torqued to the manufacturer's specifications to prevent loosening or damage.

Comparison Table: Pad Types

Here's a quick comparison of common brake pad types:

Frequently Asked Questions (FAQs)

Q1: Can I use brake pads from another brand with my Magura brakes?
While some aftermarket pads may be compatible, it's always recommended to use pads specifically designed for your Magura brake model. Using incompatible pads can lead to poor performance, premature wear, or even damage to your braking system. Always check compatibility.

Q2: How often should I check my brake pads and rotors?
It's a good practice to inspect your brake pads and rotors before every significant ride, especially if you're heading out for a long or demanding session. A more thorough inspection should be done every few months or after riding in particularly harsh conditions.

Q3: My brakes are making a squealing noise. What should I do?
Squealing can be caused by several factors, including worn pads, contaminated pads or rotors, or improper bedding-in. First, inspect your pads for wear and clean your rotors thoroughly. If the noise persists, try re-bedding your pads or consider replacing them.

Q4: Do I need to replace the rotors every time I replace the pads?
No, not necessarily. Rotors have a much longer lifespan than pads. You only need to replace rotors if they are excessively worn (below minimum thickness), warped, cracked, or severely grooved.

Q5: What is brake fade?
Brake fade is a temporary loss of braking performance that occurs when brake components overheat. This can happen during prolonged or aggressive braking, such as descending long hills. Good quality rotors and appropriate pad compounds help to mitigate brake fade.

In conclusion, your Magura hydraulic brakes absolutely require both brake pads and disc rotors to function. These components are the heart of your braking system, and their proper maintenance and timely replacement are essential for your safety and riding enjoyment. Understanding their roles and knowing when to service them will ensure you have reliable stopping power on every ride.
