Boosting Your M117: W126 SEC Power Gains

The Mercedes-Benz W126 SEC, particularly the Euro 500SEC, stands as a testament to automotive elegance and engineering prowess of its era. Owners cherish these coupes for their timeless design and robust build quality. However, as these magnificent machines age, the desire for modern performance often creeps in, pushing enthusiasts to seek more power from the venerable M117 V8 engine. Your current observation of a bit of smoke on hard acceleration suggests that before any serious performance modifications, a thorough assessment and potential remediation of your engine's base health, perhaps valve guide seals, is a sensible first step. A healthy foundation is paramount for any successful power upgrade.

Achieving a significant power increase, aiming for the 300-350+ horsepower mark, from an M117 engine, especially while trying to maintain authenticity, presents a fascinating challenge. Let's delve into the various avenues available, weighing their complexities, costs, and ultimate power potential.

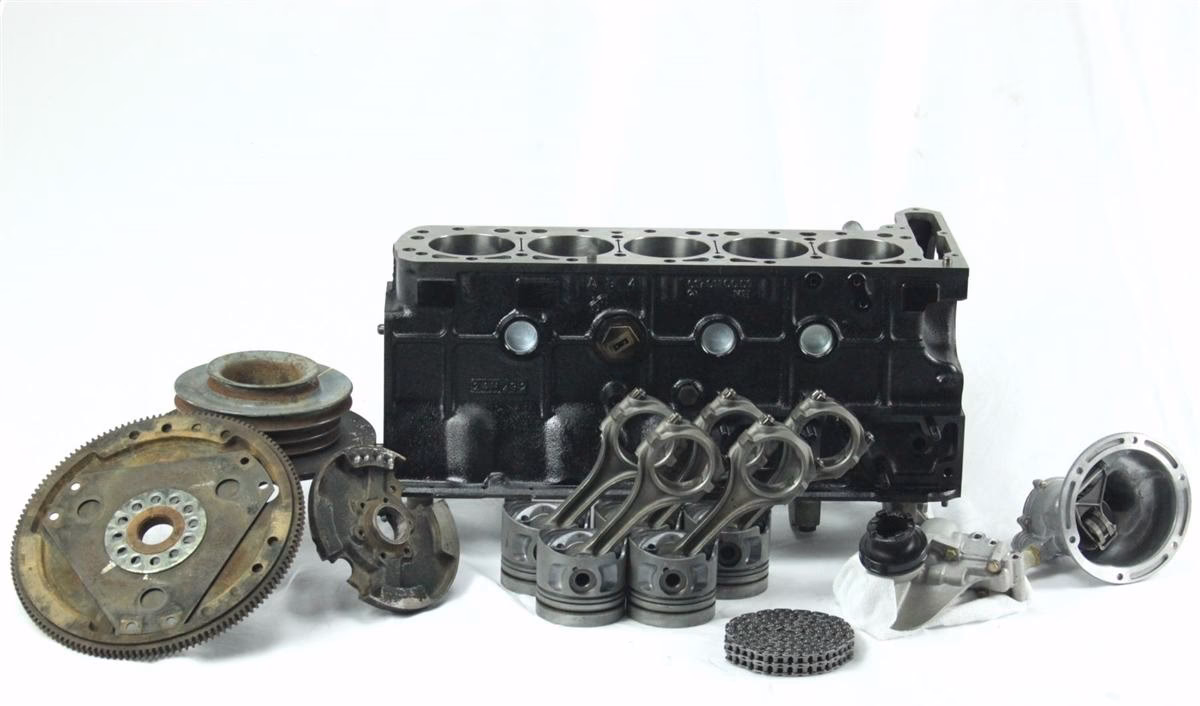

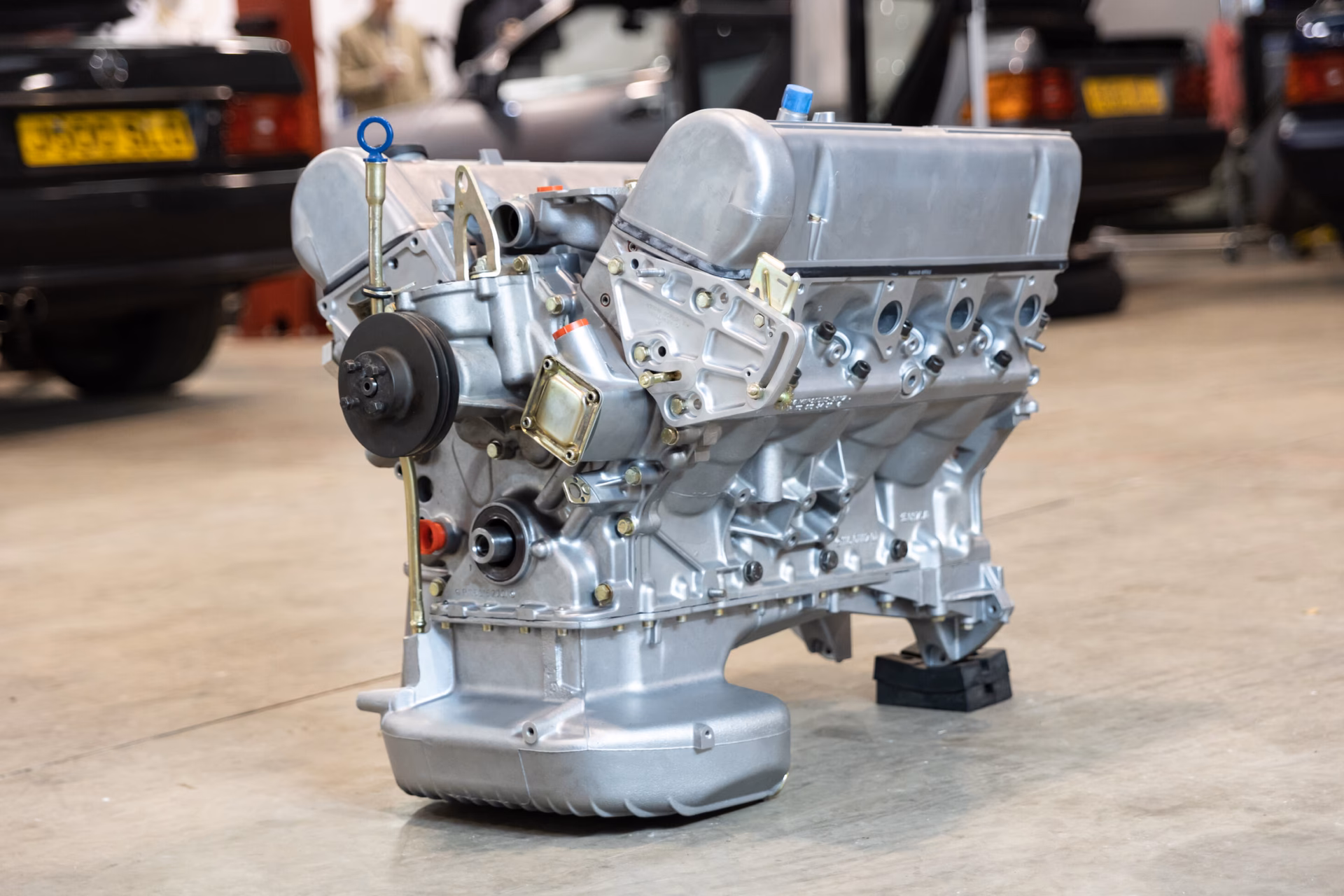

Rebuilding the 5.0L M117: Restoration and Mild Enhancement

Your first consideration, a rebuild of the 5.0-litre M117 with head work, is an excellent starting point for restoring your engine's original glory and perhaps extracting a little more. A comprehensive rebuild addresses wear and tear, bringing the engine back to factory specifications, often exceeding them with modern components and machining tolerances.

Head work typically involves:

• Valve Guide and Seal Replacement: Crucial for addressing your smoke issue. Worn valve guides and hardened seals are a common cause of oil consumption and smoke in older M117s.
• Porting and Polishing: Improving the flow of air and fuel into and out of the combustion chambers. This can yield modest gains in efficiency and power.
• Valve Seat Grinding: Ensuring perfect sealing for optimal compression.
• Camshaft Upgrades: Installing a slightly more aggressive camshaft profile can alter valve timing and lift, improving high-RPM breathing and power. However, extreme profiles can negatively impact low-end torque and idle quality.

While a meticulously executed 5.0L rebuild with head work will undoubtedly make your engine run smoother, more efficiently, and restore any lost horsepower, reaching 300-350+ HP through natural aspiration alone from this displacement is exceptionally difficult and cost-prohibitive. You might see figures closer to 230-250 HP, which is still a noticeable improvement if your current engine is tired. This option prioritises authenticity and engine longevity.

Increasing Displacement: Stroking or 5.6L Transplant

To extract more power naturally, increasing engine displacement is a time-honoured method. This can be achieved by 'stroking' your existing 5.0L M117 or, more commonly and perhaps more reliably, by transplanting a larger M117 variant.

Stroking the 5.0L M117 to 5.4L or 5.6L

Stroking involves fitting a crankshaft with a longer throw and often custom pistons to increase the engine's swept volume. While technically feasible, it's a specialist job requiring custom components, careful balancing, and sometimes block clearancing. This path can be very expensive and might not offer the same reliability as a factory-engineered larger displacement engine.

The M117 5.6L Engine Transplant

This is a highly popular and arguably the most 'authentic' path towards more power, as it involves an engine already designed by Mercedes-Benz for higher output. The M117 5.6-litre engine (M117.968 or M117.969) found in the 560SEL and 560SEC models offers a significant boost in power, typically ranging from 272 HP to 300 HP depending on the market and emissions equipment. This puts you much closer to your 300-350 HP goal without resorting to forced induction.

You mentioned hearing about "challenges" with a 560 transplant into a Gen 1 W126 (pre-1986). While it's not a direct 'drop-in' for a 1984 500SEC, it's certainly achievable for a skilled mechanic or enthusiast:

• Engine Mounts: Generally, the engine mounts are compatible as it's still an M117 block.
• Transmission: Your 500SEC likely has the robust 722.3 automatic gearbox. The 560SEL/SEC also used the 722.3. While physically compatible, it's crucial to ensure the torque converter matches the 5.6L engine's characteristics. An overhaul of your existing gearbox is recommended if it hasn't been done, especially with increased power.
• Electrical Systems: This is often the trickiest part. Your 1984 500SEC would typically use the Bosch K-Jetronic mechanical fuel injection system. Most 5.6L M117s (especially from later models) use the more sophisticated KE-Jetronic (electro-mechanical) or even LH-Jetronic (US-spec). Swapping to the 5.6L's fuel injection system requires adapting the wiring harness, ECUs (if applicable), and sensors. This is where professional help is often invaluable.
• Exhaust System: Minor modifications to the exhaust might be needed due to slightly different routing or manifold designs, but it's usually straightforward.
• Cooling System: The 5.6L engine generates more heat. Upgrading your radiator to a larger capacity unit (e.g., from a 560SEC) and ensuring all cooling components are in top condition is highly recommended.

The 5.6L transplant is an excellent compromise, offering a substantial power increase while maintaining the original engine family and a high degree of authenticity.

Forced Induction: Supercharging the M117

This is where your 300-350+ HP goal becomes most readily achievable, and often surpassed. Forced induction, whether supercharging or turbocharging, compresses the air entering the engine, allowing for a much greater volume of air-fuel mixture to be combusted, thus generating significantly more power.

For the M117, supercharging is generally preferred over turbocharging due to easier packaging and a more linear power delivery, though both are technically possible. Common supercharger types include centrifugal (like a snail, driven by a belt) or positive displacement (Roots or Twin-screw, mounted on top of the engine).

However, adding forced induction to an M117 is not for the faint of heart and requires significant engineering and financial investment. Crucially, your engine must be in perfect health before considering this. The smoking issue you mentioned would need to be rectified completely, as worn valve seals or piston rings would lead to catastrophic failure under boost pressure.

Key considerations for forced induction:

• Engine Strengthening: The M117, with its robust cast-iron block, can handle some boost, but for reliable 350+ HP, a lower compression ratio is advisable (e.g., via custom pistons) to prevent detonation. Stronger connecting rods and upgraded main bearings are also recommended. Head studs and a multi-layer steel head gasket are essential.
• Fuel System Upgrade: The stock fuel system (K-Jetronic or KE-Jetronic) cannot cope with the increased fuel demands under boost. You'll need larger fuel injectors, a higher-capacity fuel pump, and an adjustable fuel pressure regulator.
• ECU and Tuning: This is perhaps the most critical component. The original K-Jet/KE-Jetronic systems are purely mechanical or electro-mechanical and cannot dynamically adjust for boost. A standalone ECU tuning system (e.g., Megasquirt, Haltech, Link) is absolutely essential. This allows precise control over fuel delivery and ignition timing, crucial for both performance and engine safety under boost.
• Intercooling: Compressing air heats it up, reducing its density. An intercooler (air-to-air or air-to-water) is vital to cool the intake charge, making it denser and preventing pre-ignition (detonation).
• Packaging: Finding space for the supercharger, intake piping, intercooler, and associated plumbing can be challenging in the W126 engine bay. Custom brackets and fabrication will be required.

While supercharging offers the most direct route to your power goals, it's the most complex and expensive option, potentially costing upwards of £8,000-£15,000+ for a professional installation. It also significantly alters the engine's appearance, impacting the visual authenticity.

M119 Engine Transplant: The Modern Powerhouse

You mentioned the M119 as a last option, and for good reason. The M119, a four-valve per cylinder DOHC V8 (found in later Mercedes models like the 500E/E500 or S500), offers excellent power (275-322 HP) and modern reliability. However, transplanting it into a Gen 1 W126 is an undertaking of extreme complexity.

The challenges are far more significant than an M117 to M117 swap:

• Physical Fitment: While also a V8, the M119 is physically different, requiring custom engine mounts and potentially modifications to the transmission tunnel or firewall. Hood clearance can also be an issue.
• Electronics: This is the major hurdle. The M119 is fully electronic, requiring integration of its complex engine management system (including traction control, ABS, cruise control, etc.) with the much simpler electronics of a 1984 W126. This often means swapping entire wiring harnesses and adapting numerous sensors and modules, a task for highly experienced specialists.
• Transmission Compatibility: The M119 typically mates to a later 722.3, 722.4, or 722.6 electronic gearbox, which also needs to be integrated.
• Exhaust and Cooling: Custom exhaust fabrication and a completely new cooling system setup would be necessary.

While the M119 provides modern V8 performance, it drastically deviates from the original car's character and authenticity. It's an incredibly expensive and time-consuming project, often reserved for those who prioritise modern performance above all else in their classic.

Comparative Overview of Power Upgrade Options

To help you weigh your options, here's a comparative look:

Frequently Asked Questions

How important is the base engine condition for forced induction?

It is absolutely critical. Any existing issues like smoking, low compression, or worn components will be severely exacerbated by the added stress of forced induction, leading to rapid failure. Rectifying these issues first is a non-negotiable prerequisite.

What are the typical 'challenges' with a 560 transplant into a Gen 1 W126?

The main challenges revolve around integrating the later 5.6L engine's fuel injection and electrical system (often KE-Jetronic or LH-Jetronic) with the earlier K-Jetronic system of your 1984 500SEC. This requires careful wiring adaptation. Cooling system upgrades are also wise, and ensuring transmission compatibility (especially the torque converter) is important.

Can I keep my original K-Jetronic with a supercharger?

No. The K-Jetronic system is purely mechanical and cannot compensate for the increased air density and fuel requirements under boost. A modern, programmable standalone EFI system is essential for proper fuel and ignition control, ensuring both performance and engine safety.

Is 300-350 HP realistic for an M117?

Yes, it is very realistic, especially with forced induction. A well-executed 5.6L M117 transplant can get you very close to the 300 HP mark, and with a standalone EFI conversion on top, it could potentially exceed it. Forced induction is the most direct route to consistently achieve and surpass the 350 HP target.

What about the gearbox with increased power?

The 722.3 automatic gearbox found in these cars is generally robust. For power levels up to around 350 HP, a healthy 722.3 should cope, but an overhaul with upgraded clutch packs and a refreshed torque converter would be highly recommended to ensure longevity and crisp shifts.

Conclusion

Your journey to more power in your Euro 500SEC is an exciting one, but it's essential to approach it systematically. First and foremost, address the smoking issue. A healthy engine is the only foundation for reliable power gains. For your target of 300-350+ HP while aiming for a degree of authenticity, the most viable options are a 5.6L M117 transplant or adding forced induction to a completely rebuilt and strengthened M117. The 5.6L swap offers a factory-engineered solution that maintains the M117 family lineage, providing a significant boost. However, for truly transformative power beyond 300 HP, supercharging with a comprehensive standalone EFI conversion is the most effective, albeit most complex and costly, route. Weigh your budget, technical expertise, and ultimate vision for your classic coupe carefully before embarking on this thrilling upgrade.
