Decoding LS Rebuild Costs: Your UK Guide

The engine is, without doubt, the beating heart of any vehicle. It's the powerhouse that converts fuel into mechanical energy, driving movement and defining your car's character. Among the myriad of engines designed over the years, the LS series from General Motors has carved out a legendary status. Known for its remarkable blend of power, reliability, and compact design, the LS engine transformed the landscape for V8s, enabling vehicles like the fifth and sixth-generation Corvettes to compete globally as world-class sports cars.

From its debut in the 1997 Chevrolet Corvette with the all-aluminium LS1, through to the more potent Gen IV variants like the LS2, LS3, LS7, and the supercharged LS9 and LSA, these engines have found their way into everything from modern muscle cars to classic American pickups and even drift cars across the globe. But even a legendary engine needs attention, and sometimes, a full rebuild is the answer to restoring its former glory or unlocking even greater performance. So, if you're wondering, 'How much does an LS rebuild cost in the UK?' you've come to the right place. We'll break down the expenses, what's involved, and how to approach your LS engine's revival.

The Heart of Your Ride: Understanding the LS Engine Line-up

The LS engine series redefined the V8, moving beyond the traditional camshaft-in-block designs to an entirely new level of efficiency and power. The original 16-valve V8s simply couldn't keep pace with modern double overhead camshaft (DOHC) engines, but the lightweight and compact LS architecture proved to be a game-changer.

The journey began in 1997 with the LS1, a 5.7-litre, all-aluminium V8 featuring electronic fuel injection, initially producing 345 hp in its factory guise. This engine quickly replaced the older cast-iron LT1 in iconic models like the Chevrolet Camaro and Pontiac Firebird. By 2005, the fourth generation of LS engines arrived, boasting larger displacements, more efficient timing, and even optional partial cylinder shutdown systems for improved fuel economy.

Key powerful representatives from the Gen IV family include:

• LS2: 6.0 litres, 400 hp
• LS3: 6.2 litres, 430 hp
• LS7: 7.0 litres, 505 hp (a naturally aspirated beast)
• LS9: 6.2 litres, 638 hp (supercharged)
• LSA: 6.2 litres, 580 hp (supercharged)

These formidable powerplants were installed in various versions of the Corvette, Camaro, and Cadillac CTS-V, depending on their output. The LS series truly allowed American engineering to stand shoulder-to-shoulder with European high-tech engines, earning its place as a versatile and highly sought-after motor for a vast array of automotive applications.

Why Rebuild Your LS Engine? Common Indicators

Even the most robust engines eventually show signs of wear. A rebuild is often chosen for two primary reasons: to address existing wear and tear, or to significantly boost performance beyond factory specifications. The decision to rebuild often stems from issues such as:

• Wear to Motor Bearings: Over time, the bearings that support the rotating components within the engine can wear down, leading to increased friction, noise, and potential catastrophic failure if left unaddressed.
• Poorly Seating Piston Rings: Piston rings are crucial for sealing the combustion chamber and regulating oil. When they wear or lose their tension, you might experience reduced compression, excessive oil consumption, and noticeable power loss.
• General Loss of Performance: If your engine feels sluggish, lacks its usual power, or exhibits unusual noises, a rebuild can restore its original vigour.

For those looking to breathe new life into a tired engine, an engine rebuild kit presents a cost-effective solution. These kits are designed to provide all the necessary components in one package, often at a lower price than purchasing individual parts.

Deconstructing the Costs: What to Expect for an LS Rebuild

The cost of an LS engine rebuild can vary significantly depending on the extent of the work required, the quality of parts used (stock versus performance upgrades), and whether you opt for a DIY approach or professional workshop services. Here's a general breakdown of what you might expect:

Standard LS Rebuild Costs:

For a straightforward rebuild using stock or equivalent parts, aimed at bringing the engine back to its original specifications, the costs typically range from £2,000 to £3,000. This usually covers the essential components to address common wear issues.

Purchasing a Rebuilt or New LS Engine:

If you'd rather swap out your existing engine than rebuild it yourself, or simply want a fresh start, here are some approximate costs:

• Rebuilt LS1 or LS2: Expect to pay around £3,500 for a professionally rebuilt unit.
• New LS1 Motor: A brand-new LS1 engine can set you back a little over £4,000. This often includes everything you'd find in comprehensive Chevy engine rebuild kits, but assembled and ready to go.

It's important to remember that these figures are estimates, and the final price will depend on the specific malfunctions identified and the chosen parts. Labour costs, if you're not doing the work yourself, will also add to the overall expense.

Comparative Cost Estimates for LS Engines

What's in an Engine Rebuild Kit?

An engine rebuild kit is a comprehensive package designed to facilitate the restoration of a worn and ageing engine. Instead of sourcing individual components, these kits bundle together the essential parts needed for a thorough overhaul. Typically, a rebuild kit includes:

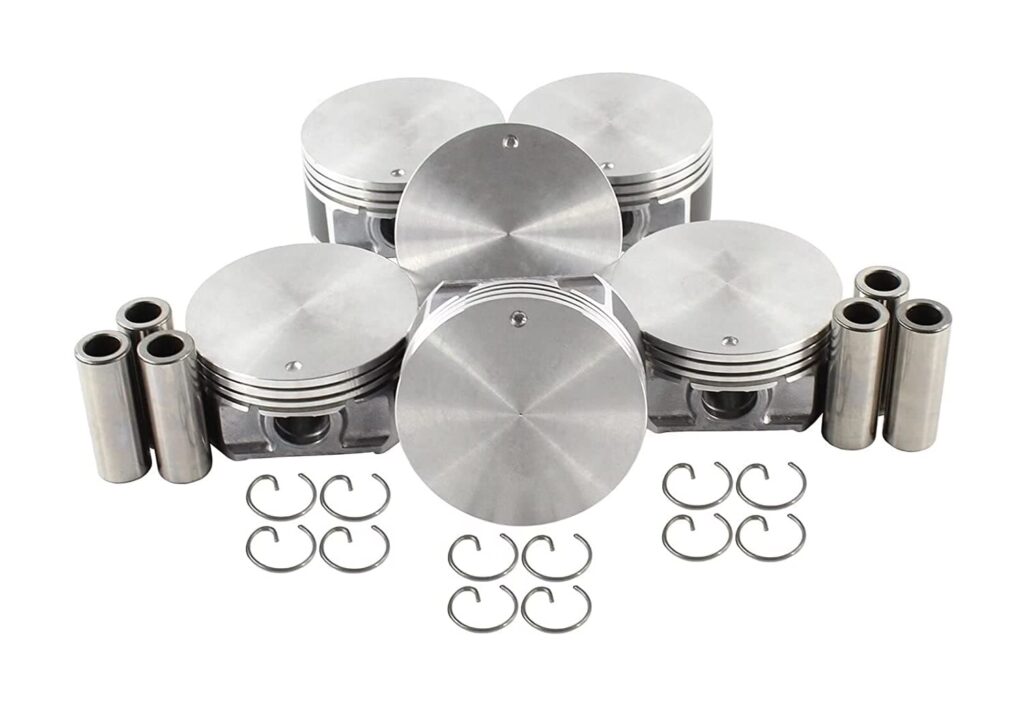

• Pistons: New pistons are fundamental for restoring compression and efficient combustion.
• Cams and Lifters: These components are critical for valve timing and ensuring proper engine breathing.
• Piston Rings: Essential for sealing the combustion chamber and controlling oil.
• Seals and Gaskets: A complete set of seals and gaskets is vital to prevent leaks and ensure proper sealing throughout the engine.
• Smaller Hardware: Often includes various bolts, bearings, and other minor components necessary for the rebuild.

Using a kit simplifies the purchasing process and often results in a lower overall cost compared to buying each part separately.

The Bottom End: A Deeper Dive into Critical Repairs

The 'bottom end' of an engine refers to the crankshaft, connecting rods, pistons, and the engine block itself. A bottom end rebuild is usually a more extensive undertaking, often necessitated by significant mechanical damage or severe wear to these crucial components. Due to its location, the engine's crankcase is susceptible to damage and often benefits from additional protection, such as steel, aluminium, or composite skid plates.

Replacing a motor crankcase 'pallet' (sump) might also be necessary for non-critical damage. For instance, if the part is deformed, it can compromise the seal, leading to persistent lubricant leaks, which can be detrimental to engine health. A bottom end rebuild typically implies a complete overhaul of these foundational components. This type of rebuild can cost anywhere from £2,000 to £4,000, reflecting the complexity and the critical nature of the parts involved.

Unlocking More Power: LS1 Upgrades and Their Impact on Rebuilds

While a standard rebuild aims to restore an LS engine to its factory state, many enthusiasts see a rebuild as an opportunity to significantly enhance performance. The LS1, in particular, serves as an excellent platform for modifications. Although the LS6 (introduced in 2001 for the Corvette Z06) came with more power from the factory, both the LS1 and LS6 are Gen III 5.7-litre aluminium-block V8s and can achieve similar power levels with the right upgrades. It's worth noting that while these aluminium blocks are lighter, they aren't as inherently strong as the iron-block Vortec truck engines (like the LQ4 and LQ9), though both LS1 and LS6 can be pushed to over 850 horsepower with upgraded internals.

Intake Manifold & Throttle Body Upgrades:

• LS1 to LS6 Intake: An inexpensive and popular upgrade. While LS1 and LS6 throttle bodies are both 78mm with a three-bolt mounting flange, aftermarket intakes often feature a four-bolt flange and can yield strong gains with a 90mm (LS2) throttle body.
• Runner Design: Short-runner intakes excel from 5500 rpm upwards, whereas long-runner intakes provide more power across the entire RPM range, making them generally better for cars with stock gearing and mild torque converters.
• Throttle Control: Be aware that F-body cars and the 2004 GTO used cable-operated throttles, while Corvettes featured electronic throttle control (drive-by-wire).
• Specialised Intakes: If hood clearance allows, tunnel rams can deliver significant gains at 6,000+ rpm. Single-plane intakes, while offering less torque and power than tunnel rams, become more sensible for engines operating at 5,500+ rpm or those prone to nitrous backfires.

Fuel System & Tuning Enhancements:

• Fuel Injectors: The standard 28-pound injectors are limited, supporting only about 390 hp at a 90-percent duty cycle. Upgrading to larger injectors is essential for any significant power increase.
• Fuel Pumps: The factory fuel pump becomes a limiting factor at around 450 hp. Drop-in dual fuel pumps are a common and effective upgrade.
• Custom Tuning: To properly adjust the fuel and ignition systems for new components, custom tuning is an absolute necessity. Given the popularity of LS upgrades, chassis dyno tuning with the factory ECU is the most common approach.

Cylinder Head Modifications:

Both LS1 and LS6 heads respond exceptionally well to custom machine work:

• Porting: CNC-machined factory heads (LS1 or LS6) can achieve airflow rates exceeding 320 cubic feet per minute (cfm).
• Milling/Decking: LS1 heads can be milled down to a 62cc chamber volume, and LS6 heads to 60cc, without modifying the intake manifold. This can increase compression to up to 11:1 on pump petrol, though it will reduce piston-to-valve clearance.
• Aftermarket Heads: These offer a wide range of runner and chamber volumes, often featuring additional deck thickness for improved head gasket sealing, especially with power adders. Lightweight LS3 valves can also be cut to fit the seats, and performance valve springs are crucial to reduce valve float. A four-corner steam kit can alleviate hot spots that cause the dreaded #7 piston ring gap 'butting' issue.

Camshaft & Valvetrain Upgrades:

LS engines are renowned for responding extremely well to camshaft swaps. However, it's vital to match the camshaft to your other chosen components, including intake, heads, exhaust, torque converter, and rear-end gears.

• Rocker Arms: The trunnion bearings in the stock rocker arms are a known weak point. Retrofit trunnion kits address this, but upgrading to full roller rockers is recommended for valve lifts exceeding 0.600 inches.

Rotating Assembly Improvements:

The stock pistons are a known weak point, particularly as horsepower and heat increase. Excessive heat can cause the top piston ring to expand, potentially closing the ring gap and causing the ends to butt together, leading to a broken ring land. This can occur with as little as 450 hp in road racing or 600 hp in drag racing. Furthermore, stock pistons lack valve reliefs, limiting piston-to-valve clearance. Forged pistons should be a high priority for any serious performance build.

• Connecting Rods: The 1997-2000 LS1 connecting rod bolts are another weak point. From 2001 onwards, the LS1 adopted the stronger LS6 bolts. Rods with the 2001+ bolts are generally good for 500 hp and 7,000 rpm in naturally aspirated applications. With boost or nitrous, they can handle over 700 hp if RPM is limited to 6,500. Forged connecting rods are a popular upgrade for increased durability.
• Crankshaft: The stock crankshaft can handle approximately 900 hp and 7,000 rpm for a limited time. A forged crankshaft upgrade adds significant strength to the bottom end. Stroker cranks also provide the benefit of increased displacement. If you're replacing rods and pistons, it makes sense to upgrade the crankshaft simultaneously. Performance-balanced rotating assemblies can simplify the installation process.

Engine Block Enhancements:

The engine block forms the foundation of your build:

• Cylinder Sleeves: 1997-1998 LS1 blocks had thinner cylinder sleeves, safely allowing only 0.005-inch oversized honing. Later blocks featured thicker sleeves, permitting 0.010-inch honing.
• Increasing Displacement: A four-inch stroke can increase displacement to 383 cubic inches (6.3 litres). Re-sleeving the block is another method to achieve greater displacement.
• Preferred Blocks: The 1999-2000 LS1 block is often the preferred starting point due to its solid main webbing and improved rear oil galley passage compared to earlier blocks. While 1997-1998 LS1 blocks also had solid main webbing, their oiling was less desirable.
• LS6 Blocks for Re-sleeving: LS6 blocks are generally not good candidates for re-sleeving because they have 'windows' cast into their bulkheads for improved breathing. When machining for larger liners, there's less material to support the cylinder, resulting in a weaker engine block.
• Extreme Builds: With the proper sleeves, the bore can be increased to 4.125 inches, and combined with a four-inch stroke, displacement can reach 427 cubic inches (7.0 litres). Sleeved blocks with added bracing, oiling upgrades, and provisions for six head studs per cylinder have been pushed to over 2,000 hp with boost.

Factors Influencing Your LS Rebuild Bill

As you can see, the cost of an LS rebuild isn't a single figure. It's a spectrum, influenced by several key factors:

• Extent of Damage: A minor refresh will naturally cost less than an engine that's suffered a catastrophic failure.
• Parts Quality: Opting for genuine OEM or high-quality aftermarket components will generally increase the cost compared to budget parts, but often guarantees better durability and performance. Performance-oriented forged internals, for example, are a significant investment.
• Labour Costs: If you're not performing the rebuild yourself, professional labour charges will be a substantial part of the bill. These rates vary by region and workshop.
• Performance Goals: A rebuild aimed at factory specifications is less expensive than one designed to handle 800+ horsepower, which requires extensive upgrades to the rotating assembly, block, heads, and fuel system.
• Ancillary Components: Don't forget costs for fluids, filters, new seals, gaskets, and potentially new sensors or wiring harnesses that might be needed during the process.

Frequently Asked Questions (FAQs)

What's typically included in an LS engine rebuild?

An LS engine rebuild typically involves disassembling the engine, inspecting components for wear, cleaning, machining (if necessary), and replacing worn parts. A rebuild kit often includes new pistons, piston rings, camshafts, lifters, main bearings, rod bearings, and a full gasket and seal set. The specific components included can vary based on the kit's purpose (e.g., standard refresh vs. performance build).

Is an LS engine rebuild worth the cost?

For many enthusiasts, an LS engine rebuild is absolutely worth the investment. It allows you to restore a beloved engine, often prolonging its life significantly. Furthermore, it provides an excellent opportunity to upgrade components, unlocking substantial horsepower and torque gains that would be far more expensive to achieve by buying a higher-tier engine outright. The LS platform's robust design makes it an ideal candidate for such work.

How much horsepower can a stock LS engine handle before needing upgrades?

A stock LS engine's ability to handle horsepower varies by specific model and application. For example, a stock LS1's fuel system (injectors and pump) can become a limitation at around 390-450 hp. The stock pistons are a known weak point and can fail from broken ring lands at as little as 450 hp in road racing or 600 hp in drag racing. The stock crankshaft is generally quite strong, capable of handling around 900 hp for limited periods. Beyond these figures, significant upgrades to the fuel system, rotating assembly (forged pistons, rods, crankshaft), and potentially the block itself are highly recommended.

What's the main difference between an LS1 and an LS6 engine?

Both the LS1 and LS6 are Gen III 5.7-litre aluminium-block V8s. The LS6, introduced in the 2001 Corvette Z06, was designed for higher performance from the factory. Key differences include improved cylinder heads (better flow), a more aggressive camshaft, a better intake manifold, and stronger connecting rod bolts (from 2001 onwards). While the LS6 offered more power stock, both engines can achieve similar power levels with common aftermarket upgrades due to their shared core architecture.

Can I increase my LS engine's displacement during a rebuild?

Yes, increasing displacement is a common goal during an LS rebuild, especially for performance builds. This can be achieved in several ways: by honing the cylinder sleeves oversized (up to 0.005-0.010 inch depending on the block year), by installing a stroker crankshaft (e.g., a 4-inch stroke can increase a 5.7L LS1 to 383 cubic inches or 6.3 litres), or by re-sleeving the block with larger bore sleeves (e.g., increasing bore to 4.125 inches with a 4-inch stroke yields 427 cubic inches or 7.0 litres). However, re-sleeving is more complex and not recommended for all LS blocks, particularly the LS6, due to its bulkhead design.

The Final Word on LS Rebuilds

Rebuilding an LS engine is a substantial undertaking, but it's one that offers immense rewards in terms of performance, longevity, and satisfaction. Whether you're aiming for a simple refresh to restore a tired engine or a full-blown build to push hundreds of horsepower, understanding the costs and the components involved is crucial. By making informed decisions about parts quality and the scope of work, you can ensure your LS engine rebuild is a successful and worthwhile investment, bringing your vehicle back to life with renewed vigour and precision.
