Rear Diff Oil Change: Time & Procedure

How Long Does a Rear Diff Oil Change Take?

The process of changing the rear differential oil, while crucial for the longevity of your vehicle's drivetrain, is often a point of curiosity for many car owners. Understanding the time commitment involved can help you plan your maintenance schedule effectively. While specific timings can vary depending on your mechanical aptitude, the tools at your disposal, and the particular vehicle model, a general estimate for a rear differential oil change is typically between 30 minutes to 1.5 hours. This includes preparation, draining the old oil, replacing the plug with a new gasket, refilling with the correct fluid, and a final check for leaks. It's a task that, with the right guidance, can be managed by a competent DIY enthusiast.

Why is Rear Differential Oil Important?

The differential is a vital component of your vehicle's drivetrain, especially in rear-wheel-drive and all-wheel-drive systems. It allows the wheels to rotate at different speeds when turning, preventing tyre scrubbing and improving handling. The oil within the differential serves several critical functions:

• Lubrication: It lubricates the gears, bearings, and other moving parts, reducing friction and wear.
• Cooling: As the gears mesh and rotate, they generate heat. The differential oil absorbs and dissipates this heat, preventing overheating.
• Cleaning: It helps to flush away small metal particles and debris that can be generated by normal gear wear.
• Corrosion Protection: The oil forms a protective film on metal surfaces, preventing rust and corrosion.

Over time, this oil can degrade due to heat, contamination, and shear forces. This degradation reduces its effectiveness, potentially leading to increased wear and damage to the differential components. Regular oil changes are therefore essential for maintaining the health and performance of your rear differential.

Factors Affecting the Time Taken

Several factors can influence how long a rear differential oil change will take:

1. Vehicle Accessibility

The ease with which you can access the differential drain and fill plugs is paramount. Vehicles with higher ground clearance, or those equipped with ramps or a lift, will make this process significantly quicker and easier than working under a vehicle supported only by jack stands. For some SUVs and trucks, especially those with robust underbody protection, removing skid plates might be an additional step that adds time.

2. Previous Maintenance History

If the differential has not been serviced for a long time, or if the drain plug has been overtightened or cross-threaded in the past, it might be more difficult to remove. This can add unexpected time to the process.

3. Tools and Equipment

Having the correct tools readily available is crucial. This includes the appropriate size of socket or wrench for the drain and fill plugs (often a 10mm or 12mm Allen/hexagon wrench, or a standard socket), a torque wrench for proper tightening, a fluid pump or funnel with a long hose for refilling, a drain pan, gloves, and safety glasses. If you are missing any of these, it will naturally extend the time as you'll need to acquire them.

4. Fluid Type and Quantity

Identifying the correct differential oil specification (e.g., Toyota genuine differential gear oil LT 75W-85 GL-5 or equivalent for some Lexus models) and having the correct quantity on hand (typically around 0.45 to 0.55 liters for many Lexus differentials) ensures you don't have to interrupt the process to purchase more fluid.

5. Experience Level

For a first-time DIYer, the process might take longer as they familiarise themselves with each step. Experienced mechanics or those who have performed this task before will likely complete it much faster.

Step-by-Step Guide to Changing Rear Differential Oil

Here’s a general procedure, keeping in mind that specific details may vary by vehicle model. Always consult your vehicle's repair manual for precise instructions.

Preparation:

• Ensure the vehicle is parked on a level surface. This is crucial for accurately draining and refilling the oil.
• If the vehicle has been driven recently, allow the differential to cool sufficiently. Hot oil can cause severe burns.
• Gather all necessary tools and supplies: new differential oil, new drain plug gasket (highly recommended), appropriate wrenches, drain pan, fluid pump/funnel, rags, gloves, and safety glasses.
• Safely raise the vehicle using ramps or a jack and jack stands, ensuring it is stable and secure.

1. Locate and Remove the Drain Plug:

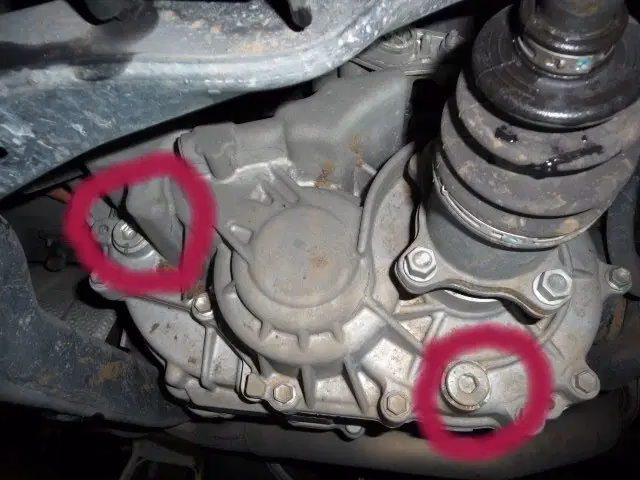

The differential housing is usually located at the centre of the rear axle. There will typically be two plugs: a drain plug at the bottom and a fill/level plug higher up on the housing. For models like the Lexus RX400h, it's important to differentiate between the differential drain plug and any other plugs, such as the one for the CVT coolant (which should not be removed unless servicing the inverter cooling system).

Using the correct wrench (e.g., a 10mm hexagon wrench for many Lexus models), carefully loosen and remove the drain plug. Position the drain pan underneath to catch the old oil.

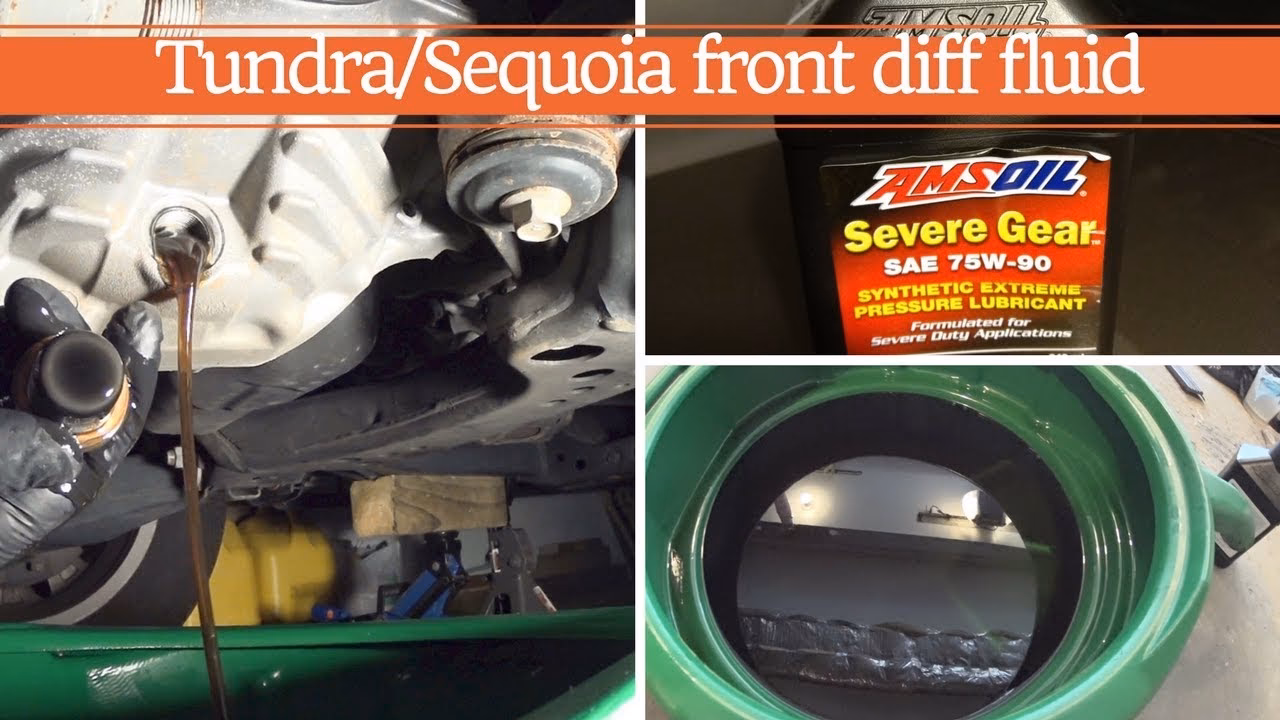

2. Drain the Old Oil:

Allow the old differential oil to drain completely. This may take several minutes. Once the flow has reduced to a trickle, you can proceed.

3. Replace the Drain Plug:

Clean the drain plug thoroughly. It's highly recommended to fit a new gasket to the drain plug before reinstalling it. This helps ensure a proper seal and prevents leaks. Reinstall the drain plug and tighten it to the manufacturer's specified torque. Do not overtighten, as this can damage the threads in the differential housing.

4. Refill with New Oil:

Locate the fill plug. This is usually on the side or front of the differential housing, positioned so that the oil level reaches the bottom of the fill hole when the vehicle is level. Remove the fill plug.

Using a fluid pump or a funnel with a long hose, carefully fill the differential with the correct type and amount of differential oil. For many Lexus models, this is around 0.45 to 0.55 litres of 75W-85 GL-5 oil. Continue filling until the oil level reaches the bottom of the fill plug opening. A common check is to insert your finger or a small tool into the fill hole; the oil should just begin to ooze out.

5. Check the Oil Level and Replace Fill Plug:

Once the correct level is reached, clean and reinstall the fill plug, again using a new gasket if applicable, and tighten it to the specified torque.

6. Final Checks:

Carefully lower the vehicle. Start the engine and drive the vehicle for a short distance (a few minutes). Park on a level surface again and re-check the drain and fill plugs for any signs of oil leaks. It's also good practice to check the oil level one more time after the initial drive, as the oil will have circulated.

Common Questions About Rear Diff Oil Changes

Q1: How often should I change my rear differential oil?
Refer to your vehicle's owner's manual for the recommended service interval. Generally, it's recommended every 30,000 to 60,000 miles, or more frequently if you frequently tow, drive in harsh conditions (e.g., off-roading, extreme temperatures), or have a performance vehicle.

Q2: Can I use a universal gear oil?
It's best to use the specific type of gear oil recommended by your vehicle manufacturer. Using the wrong type of oil, especially one that doesn't meet the correct GL rating (e.g., GL-5), can damage the gears, particularly the limited-slip differentials which require specific friction modifiers.

Q3: What happens if I don't change the differential oil?
Neglecting differential oil changes can lead to increased friction, overheating, accelerated wear of gears and bearings, potential differential failure, and a shortened lifespan for your drivetrain components.

Q4: Where is the drain plug on a Lexus RX400h?
On a Lexus RX400h, the drain plug is located at the bottom of the rear differential housing. Be mindful of other plugs, such as the one for the inverter coolant on the CVT, and ensure you are working on the correct component.

Q5: Do I need to change the differential oil on a Lexus RX400h?
Yes, like most vehicles with a rear differential, the Lexus RX400h requires periodic differential oil changes as part of its regular maintenance schedule to ensure optimal performance and longevity of the drivetrain.

Conclusion

While the exact time can vary, a rear differential oil change is a manageable maintenance task that typically takes between 30 minutes and 1.5 hours. By understanding the importance of this fluid, the factors influencing the time, and following a methodical procedure, you can effectively maintain this crucial part of your vehicle's drivetrain, ensuring its smooth operation and durability for years to come.
