Lexus LS500 Caliper Breakdown

When considering an upgrade to your vehicle's braking system, understanding the individual components of a high-performance kit is crucial. The Lexus LS500 caliper, often featured in Big Brake Kits (BBKs), represents a significant leap in stopping power and aesthetics. This article delves into the typical parts included in such a kit, focusing on the specifics of a popular offering designed for a range of Lexus and Toyota models. We'll explore what makes these calipers desirable, what else comes in the box, and what you need to know before making the switch.

Understanding the LS500 Caliper

The calipers themselves, typically sourced from later model Lexus LS vehicles (such as the 2007-2020 LS460, LS460L, LS600h, and even the LS500), are a key feature of these upgraded kits. Specifically, the 4-piston front calipers from the RWD, non-sport package K17 style are highly sought after. These calipers offer a substantial improvement over smaller, often 1 or 2-piston, factory units found on many performance cars. The increased piston count allows for more even pressure distribution across the brake pad, leading to better braking performance, reduced fade, and a more consistent pedal feel. While these kits often utilise used, professionally rebuilt calipers to offer a balance of cost and performance, new OEM Lexus/Advics options can sometimes be specified for those seeking the absolute pinnacle of originality and assurance.

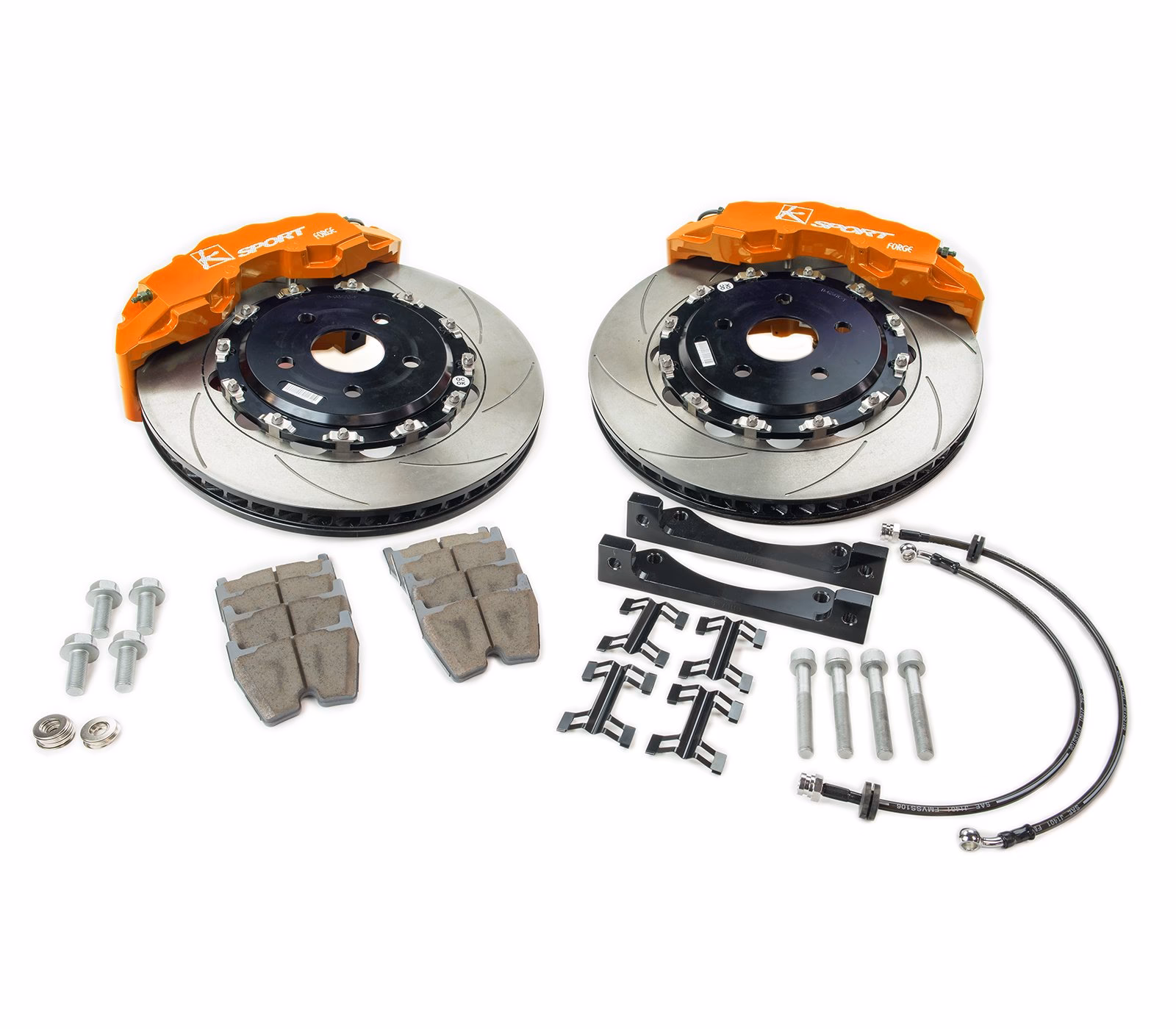

What's in the Big Brake Kit Box?

A comprehensive Big Brake Kit, like the one detailed here, is designed to be a near complete solution for upgrading your braking system. Beyond the star of the show – the calipers – a well-assembled kit will include a host of other essential parts. The aim is to provide a direct-fit upgrade, minimising the need for custom fabrication. Here’s a typical breakdown of what you can expect:

Essential Braking Components:

• Calipers: As discussed, these are the heart of the BBK, providing the hydraulic force to clamp the pads onto the rotors.
• Rotors: These are significantly larger than stock, often in the 360mm (14.2 inch) range, and are typically cross-drilled from the factory for improved heat dissipation and to aid in clearing gas and dust from the pad surface. High-quality rotors, like those from Centric/StopTech, are preferred for their durability and performance characteristics, offering resistance to cracking often seen in lesser aftermarket options.
• Brake Pads: Performance-oriented brake pads are a must. Manufacturers often favour reputable brands known for their excellent street performance, such as Posi-Quiet Centric/Stoptech pads, which offer a good balance of stopping power without excessive noise once properly bedded in.

Mounting and Hardware:

• Brackets: Precision-machined brackets are essential to correctly position the larger calipers over the larger rotors, ensuring proper alignment and function.
• Mounting Hardware: This includes all the necessary bolts, nuts, and washers required to securely attach the calipers and brackets to your vehicle’s hub assembly. High-tensile hardware is often used for safety and durability.
• Pins and Anti-Rattle Springs: These small but vital parts ensure the brake pads are held securely in place within the caliper, preventing excessive movement and noise.

Ancillary and Performance Enhancing Parts:

• Stainless Braided Lines: Replacing the stock rubber brake lines with stainless steel braided ones is a common recommendation. These lines are more resistant to expansion under pressure, leading to a firmer, more responsive pedal feel and improved longevity.
• Roll Centre Adjusters: While not directly part of the braking system, these are sometimes included in kits designed for vehicles where suspension geometry can be altered by significant brake upgrades. They help to maintain optimal suspension geometry.

Compatibility and Fitment Considerations

The provided SKU (XAT-2GS-LS460BBK) highlights a kit designed for a wide array of Lexus and Toyota models, including the GS300, GS400, GS430, SC430, Century, LS400, SC300, SC400, and even the legendary Supra JZA80. This broad compatibility is a testament to the design of the kit and the commonality of certain chassis and hub designs within the Toyota/Lexus family. However, it's crucial to note that while the kit is designed for a direct bolt-on fit, there are other considerations:

Wheel Clearance:

One of the most significant considerations with any Big Brake Kit is wheel clearance. These larger calipers and rotors simply won't fit behind smaller diameter wheels. For the LS500 caliper-based kits, an 18-inch wheel is generally the minimum requirement. Even then, not all 18-inch wheels will clear. As noted, certain aftermarket wheels like some Enkei RPF1s and factory IS250/IS350 F Sport front wheels have been identified as problematic. Conversely, many other 18-inch wheels, including factory X-Runner wheels, Enkei NT03+, and G35 Ray’s wheels, have proven compatible. It is always advisable to check specific wheel fitment or consult with the kit manufacturer if you have a particular set of wheels in mind.

Brake Fluid and Installation:

While the kit provides all the necessary hardware, it explicitly states that your preferred brake fluid is not included. High-performance braking systems benefit from high-quality, high-temperature brake fluid (e.g., DOT 4 or even DOT 5.1) to prevent fluid boiling under heavy use, which can lead to brake fade. Proper installation is paramount. While the kit aims for a direct fit, a certain level of mechanical aptitude is required. If you are not comfortable with brake system work, it is highly recommended to have the kit installed by a qualified mechanic. The kit also mentions that it's meant for off-road use only, a common disclaimer for aftermarket performance parts, even if they use DOT-approved components.

Caliber Finish and Customisation

Calipers in these kits are typically supplied with a bare, natural dark grey finish. This is often due to the challenges of maintaining a consistent and durable powder-coating finish on sourced used calipers. While this natural finish is functional and understated, many enthusiasts prefer to customise the look. The recommendation is to seek out local powder-coating specialists who can achieve a high-quality finish in your desired colour, allowing you to truly personalise your vehicle's appearance.

Performance Expectations and Limitations

The primary benefit of a Big Brake Kit featuring LS500 calipers is a dramatic improvement in braking performance. You can expect shorter stopping distances, greater resistance to brake fade during repeated hard braking, and a more confidence-inspiring pedal feel. The larger rotor surface area dissipates heat more effectively, and the increased clamping force from the multi-piston calipers ensures quicker deceleration. However, it's important to manage expectations. While these kits significantly enhance braking, they are not a substitute for proper driving technique or regular maintenance. Ensuring the system is correctly bled and the pads and rotors are properly bedded in is crucial to achieving optimal performance.

Frequently Asked Questions

Q1: What specific Lexus models use these 4-piston front calipers?
A1: The calipers are typically sourced from 2007-2020 LS460, LS460L, LS600h, and LS500 models, specifically the RWD non-sport package K17 style.

Q2: What is the typical size of the rotors included in this kit?
A2: The preferred rotors are usually 360mm (14.2 inches) in diameter, often cross-drilled.

Q3: Will these brakes fit behind my 17-inch wheels?
A3: Generally, no. An 18-inch wheel is typically the minimum requirement for clearance, and even then, some specific 18-inch wheels may not fit.

Q4: Do I need to upgrade my brake fluid?
A4: While not always included, it is highly recommended to use a high-quality, high-temperature brake fluid (e.g., DOT 4 or DOT 5.1) to maximise performance and prevent fluid fade.

Q5: Can I get the calipers powder-coated?
A5: Yes, the calipers are usually supplied bare and can be sent to a local specialist for custom powder-coating.

Q6: How long does it typically take to receive the kit?
A6: While many parts are readily available, expect approximately a 1-week wait for the kit to be assembled and prepared for shipment.

In conclusion, a Big Brake Kit featuring Lexus LS500 calipers offers a substantial upgrade for compatible vehicles. The kit typically includes high-quality calipers, large rotors, performance pads, and all necessary mounting hardware and lines. Careful consideration of wheel clearance and professional installation are key to a successful upgrade. This comprehensive approach ensures not only improved stopping power but also a more refined driving experience.
